Automatic Soft Energy Drinks Fruit Juice Carbonated Beverage Aluminum Can Filling Seaming Machine

Beer can filling-sealing 2-1 machine is a filling sealing 2 in 1 machine designed combined with the actual situation in our country after the introduction and absorption.

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.

The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high efficiency, low noise and smooth operation. It adopts frequency conversion steeples speed regulation and is controlled by PLC industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a same working pace.
Technical Parameters
Filling heads
Capping heads

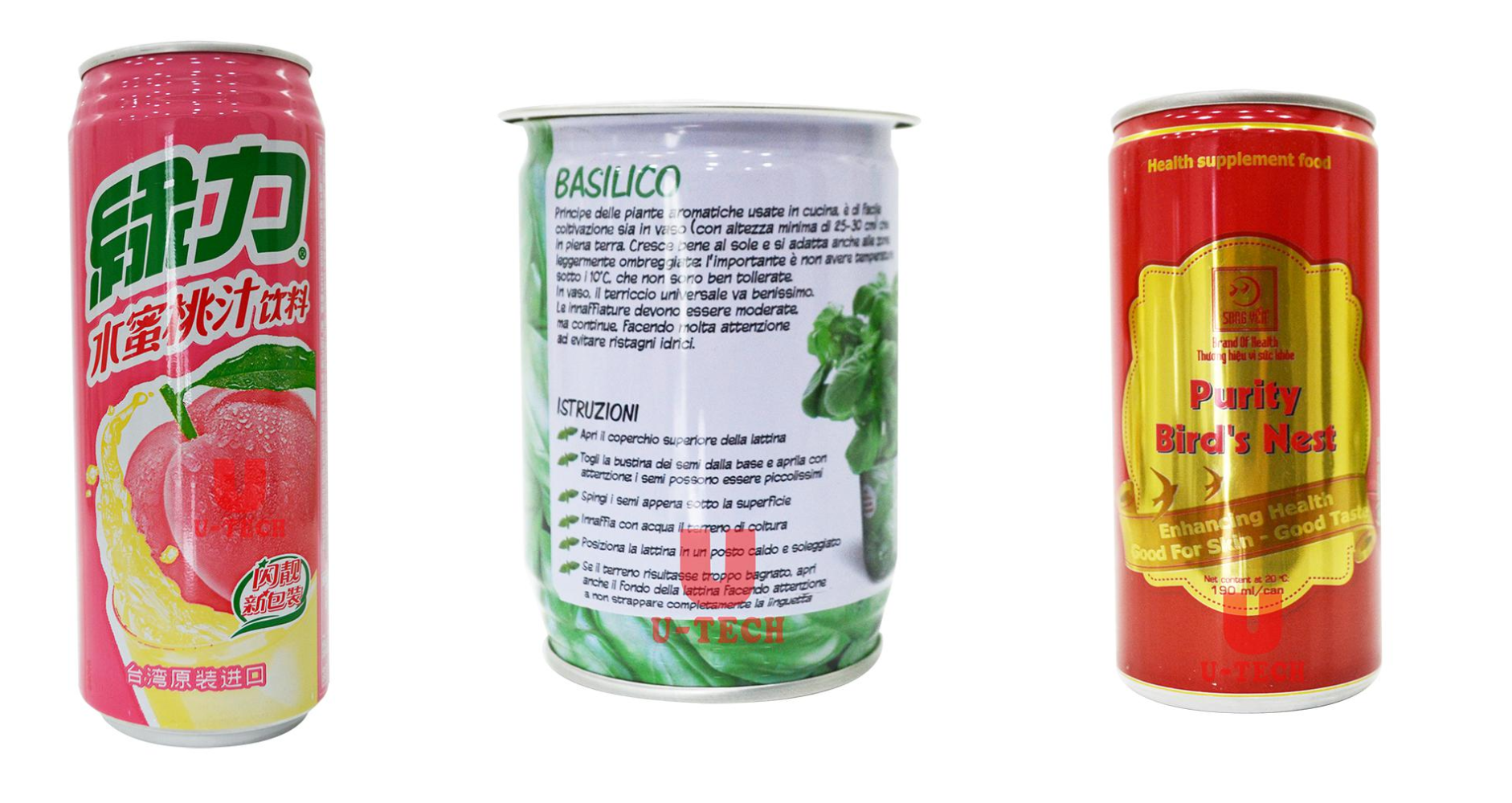

suitable can
PET can,Aluminium can
Main motor power
Machine Details

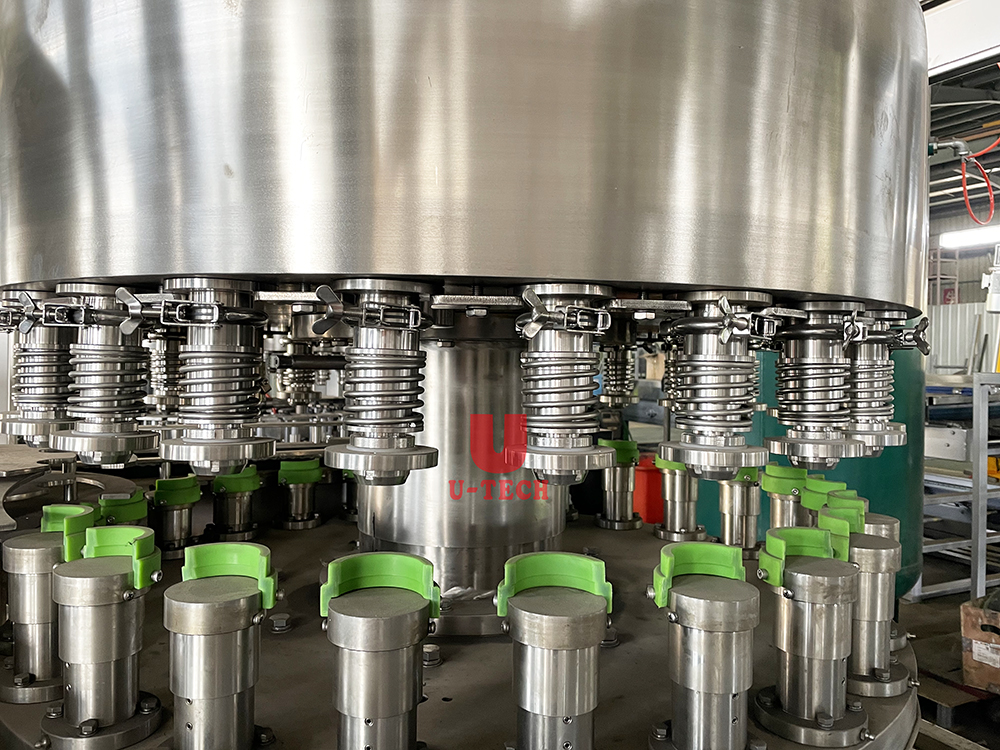

Filling heads

1) Material of filling valve: Stainless steel SUS316L.

2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.

3) Main motor: ABB (Switzerland)/ SEW (Germany).

4) Sliding bearing: Igus (Germany).

Capping heads

1) Frequency inverter: MITSUBISHI (Japan).

2) Pneumatic components: CAMOZZI (Italy).

3) Seals: Busak+Shamban (U.S.A)/ SEALTECH (HK).

4) Photocell switch: Omron, Keyence, P+F (Japan /Germany).

5) Proximity switch: TURCK (Germany).

Main Features

1. Canceled screw and conveyor chains which enabling change bottle with different shapes easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only need to change related the curved plate, wheel and nylon parts.

3. The specially designed bottle washing machine gripper is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4.  Isobaric filling valve is adopted, filling accurate and no liquid lose.

5.  Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
