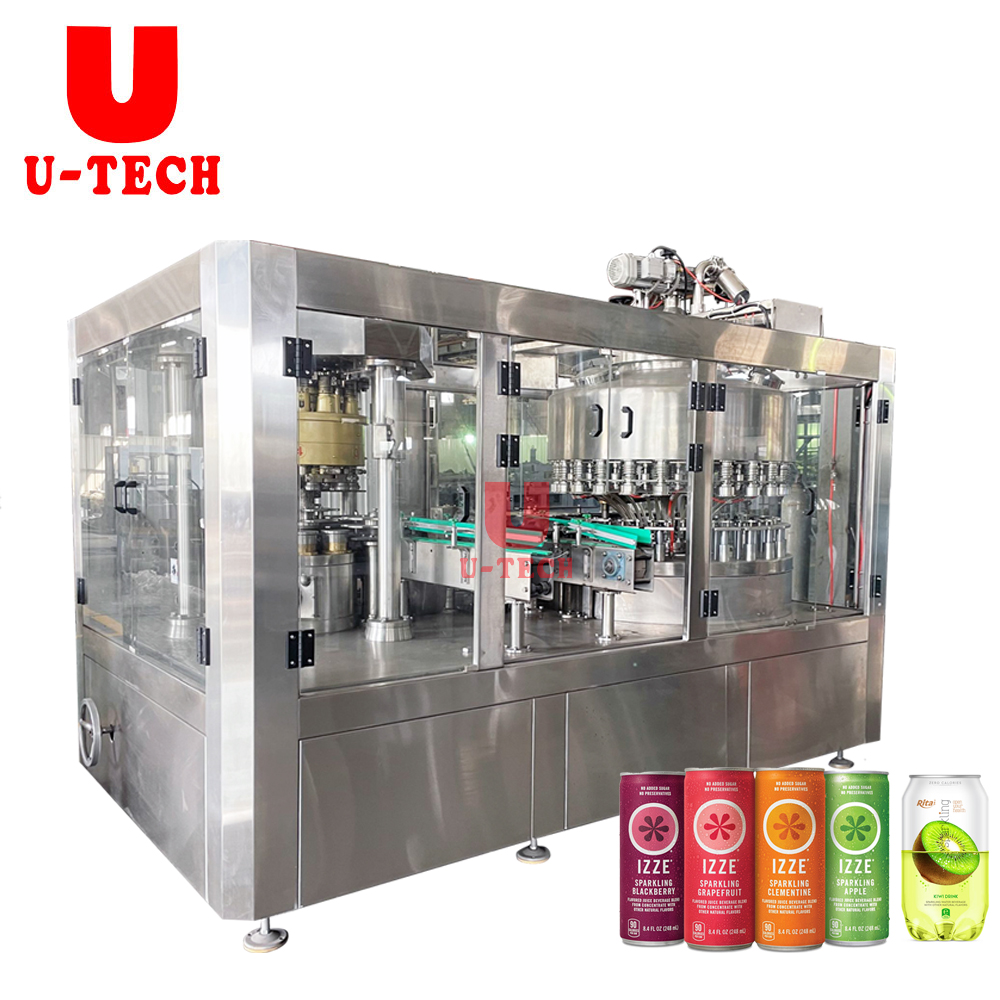

Small Scale Carbonated Beverage Juice Energy Drink Beer Wine Aluminum Tin Can Filling Machine

Beer can filling-sealing 2-1 machine is a filling sealing 2 in 1 machine designed combined with the actual situation in our country after the introduction and absorption.

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.

The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high efficiency, low noise and smooth operation. It adopts frequency conversion steeples speed regulation and is controlled by PLC industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a same working pace.
Technical Parameters
Filling heads
Capping heads

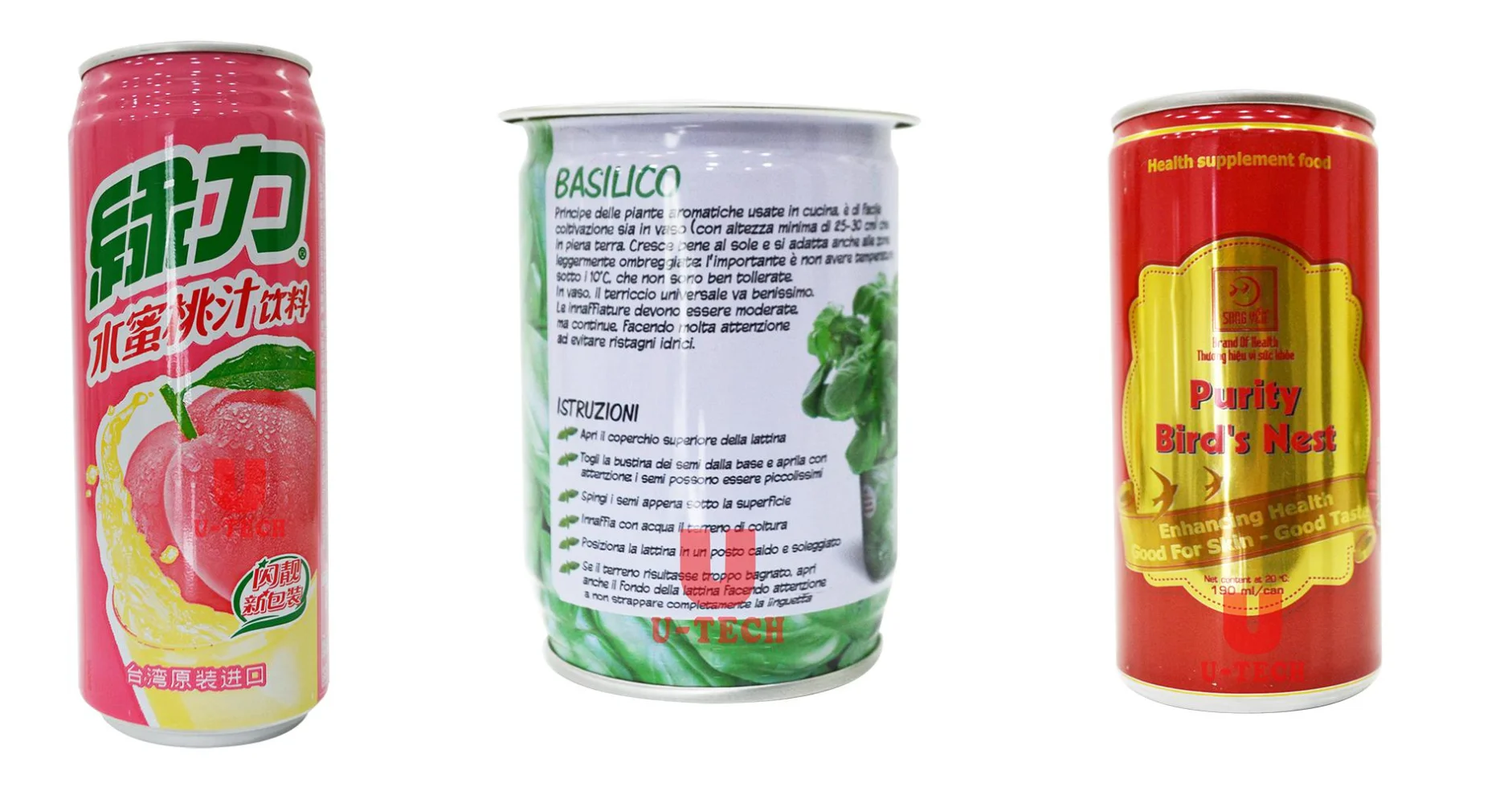

suitable can
PET can,Aluminium can
Main motor power
Machine Details

Filling heads

1) Material of filling valve: Stainless steel SUS316L.

2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.

3) Main motor: ABB (Switzerland)/ SEW (Germany).

4) Sliding bearing: Igus (Germany).

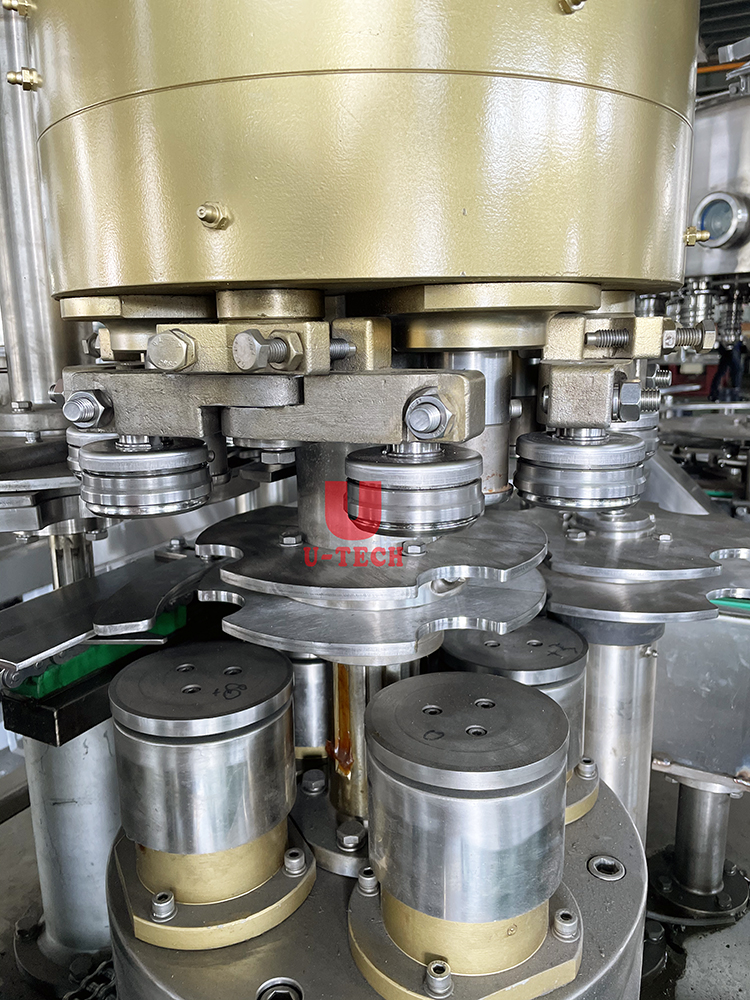

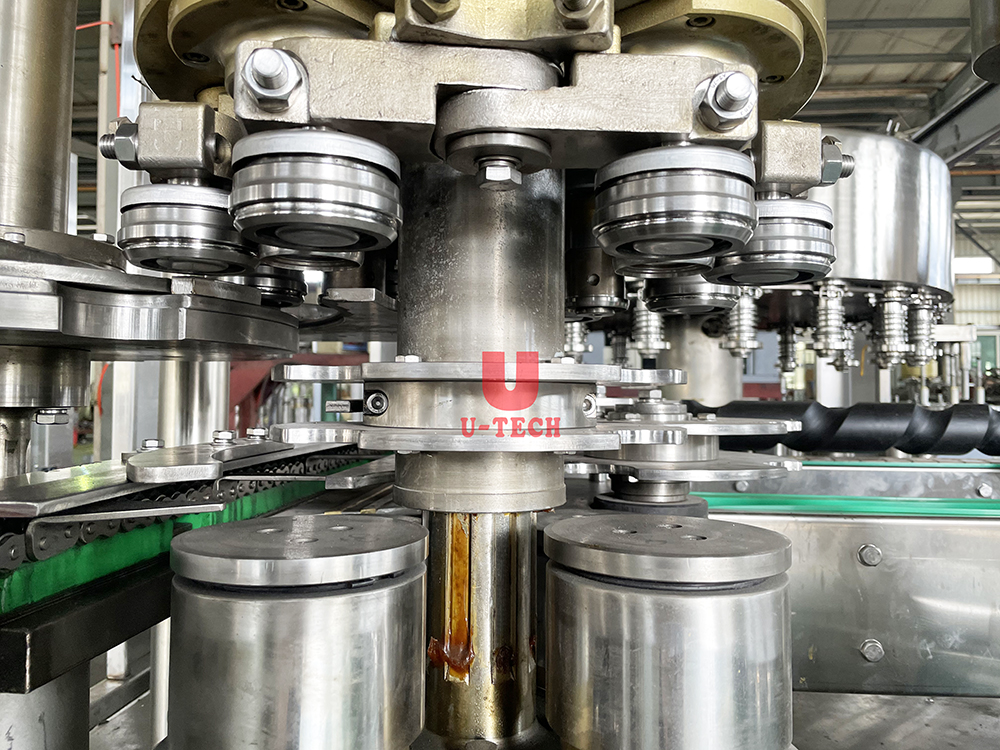

Capping heads

1) Frequency inverter: MITSUBISHI (Japan).

2) Pneumatic components: CAMOZZI (Italy).

3) Seals: Busak+Shamban (U.S.A)/ SEALTECH (HK).

4) Photocell switch: Omron, Keyence, P+F (Japan /Germany).

5) Proximity switch: TURCK (Germany).

Main Features

1. Canceled screw and conveyor chains which enabling change bottle with different shapes easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only need to change related the curved plate, wheel and nylon parts.

3. The specially designed bottle washing machine gripper is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4.  Isobaric filling valve is adopted, filling accurate and no liquid lose.

5.  Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Control System
Main motor
Touch screen
Thermo- relay
Air-break switch
Proximity switch
Photoelectric switch
Air circuit system
Water pump
Related Products
Water Treatment System
The company's Water Treatment System used in electronics, electroplating,power plants, pharmaceutical, petroleum, chemical, food and beverage and printing industries to provide high quality water, reverse osmosis pure water technology is the most advanced, most economical, the most effective system of water technology,which is the use of ultra-thin film reverse osmosis membrane by water pressure, so that the water seepage from the high levels of salt to reverse the process of low salinity. Can remove most of the harmful substances, heavy metals, solids can be capacitive, only water molecules can only end through a reverse osmosis membrane water.
Beverage Mixture Machine
The machine is made with the newest technology introduced from Japan.It is in the leading position comparing with similar products in China.The mixer is mainly suitable for mixing process of all kinds of carbonated drinks.It is also used in mixing of slurry drink,fermented drink and other drinks.

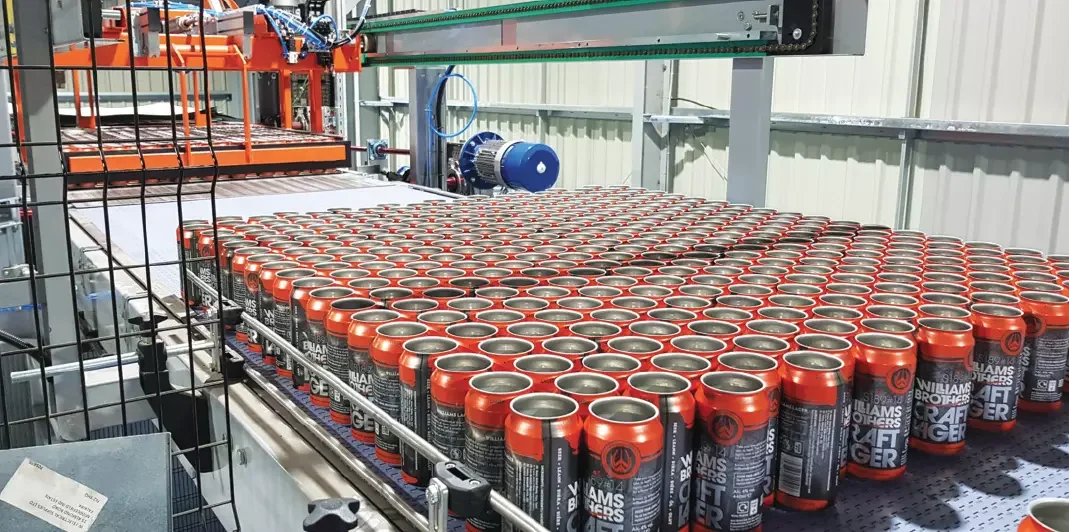

Can Depalletizer
1. It can replace the manual ways arrangementand traditional empty can unloading machine, saving a lot of manpower andincreasing production effects.
2. The pile feeding direction, can dischargingdirection and operation panel position of the machine can be
flexibly changedaccording to user requirement.
Spray Washer
After overturn, the empty cans come into washer. And then through spurt and rinse of the hot water pipe, The cans turns 0.5 meters, the machine spray and sterilize to the inner and outer surface of cans during the can turn. After rinse finish, the cans roll in the conveyor chain.

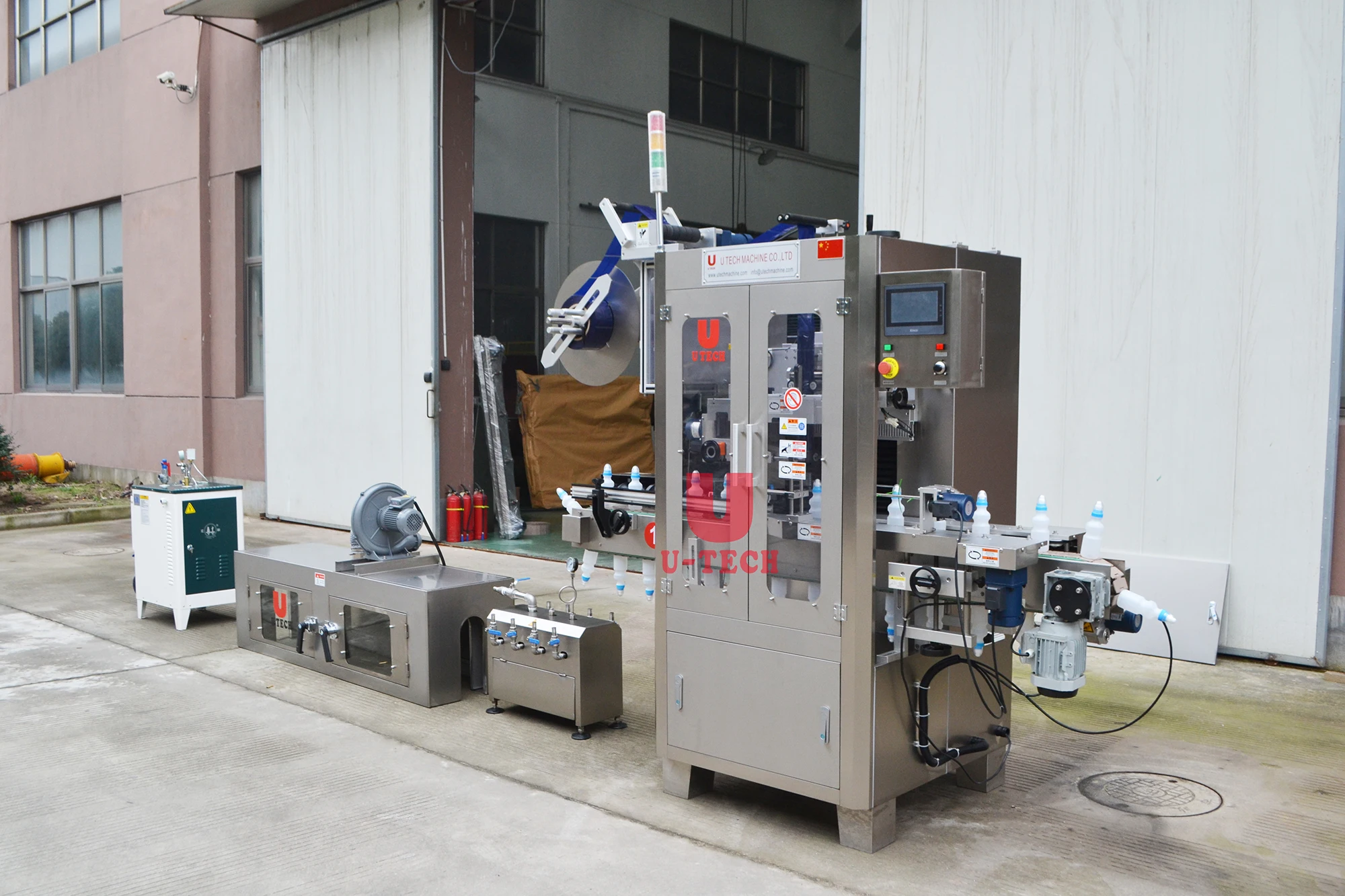

Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height.

The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.
Bottle Warming Colling Machine
This machine can reduce the temperature of hot filling drinks to 36 -40 ℃,or increase the temperature of cold filling carbonic acid drinks to 36-40℃. It is used in carbonated drinks,,hot tea drinks,juice drinks and production line. This machine can eliminate the condensed water on the external side of bottles ,keep bottle clean and dry. This makes bottles easier for labeling and package.
Can Dryer
This can dryer adopts high speed air knife principle to blow the bead away. The main parts of this equipment adopt stainless steel.
Liquid Level Detector
Liquid level detector is we design and manufacturer liquid level detector which reach to advanced technology. It utilizes the principle that ray intensity changes according to the measured material position after the interaction of low-energy photon source and measured material, so as to control detected liquid volume. This non-contact measuring method fundamentally solves the problem that regular weighing method can’t measure the capacity of bottled/canned liquid in the production line. Therefore, it is widely
used for on-line automatic control of production line for bottled (no matter bottled or canned) liquid, in the field of food, medicine, chemicals, weapons and ammunition.
Internal Pressure Detector
Pressure detector detects internal pressure of filled cans with nitrogen dosing drinks or carbonated drinks. It could detect the products quickly and eliminate unqualified ones and provide audible and visual alarm. While continuous unqualified products appear and eliminate happens, user knows there is something wrong with the preceding machines, the user could stop the preceding machines to reduce the loss.
Coding Machine
Ink-jet printed the date and batch number on the can.
Shrink Film Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
