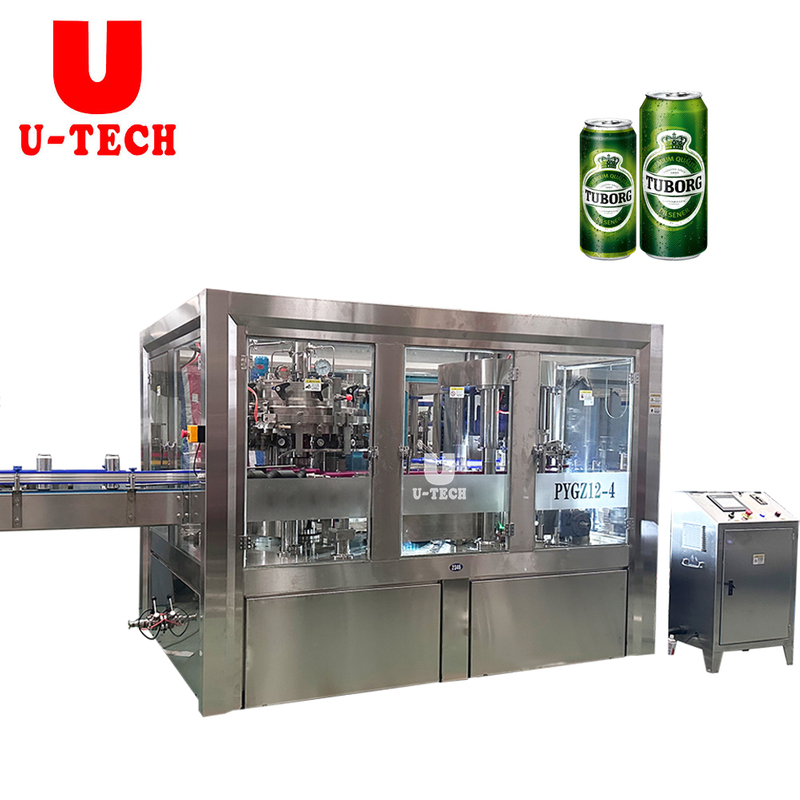

Automatic Carbonated Beverage Energy Soft Drink Aluminum Beer Tin Can Filling Machine

Availability:
Quantity:
Inquire Add to Basket

Production line flow
This machine is core machine in beer/carbonated drinks production line. It is for fill and seam of beer and other carbonated soft drinks(aluminum can/pet can), like cola、soda、energy drinks and so on.

Features

1. Canceled screw and conveyor chains which enabling change bottle with different shapes easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only need to change related the curved plate, wheel and nylon parts.

3. The specially designed bottle washing machine gripper is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. Isobaric filling valve is adopted, filling accurate and no liquid lose.

5. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical Parameters
Model
BST16-4
Capacity
200-250cans/min
Filling heads
16
Capping heads
4
suitable can
PET can,Aluminium can
Weight
4500kg
Main motor power
4.5kw
Machine Details

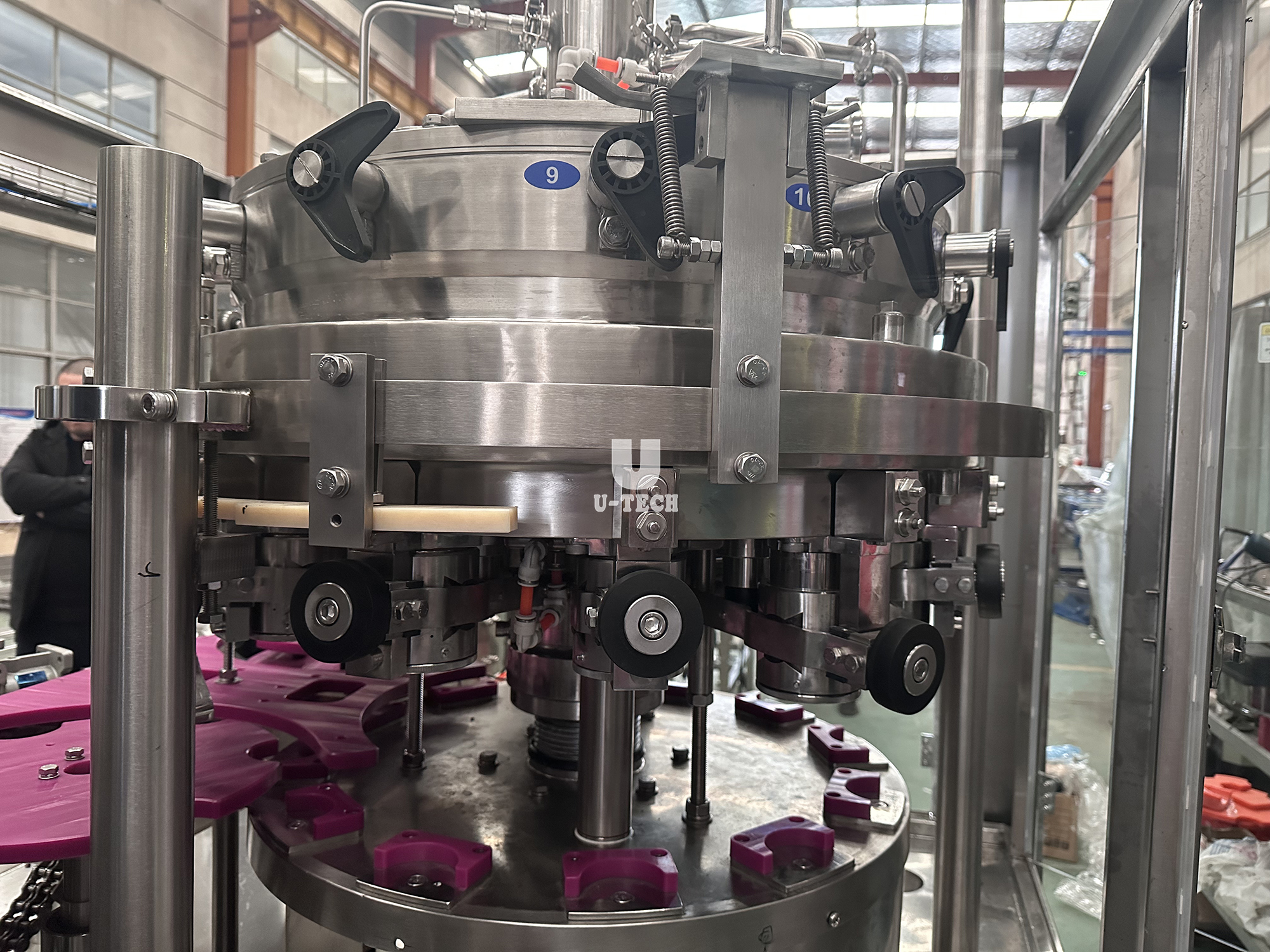

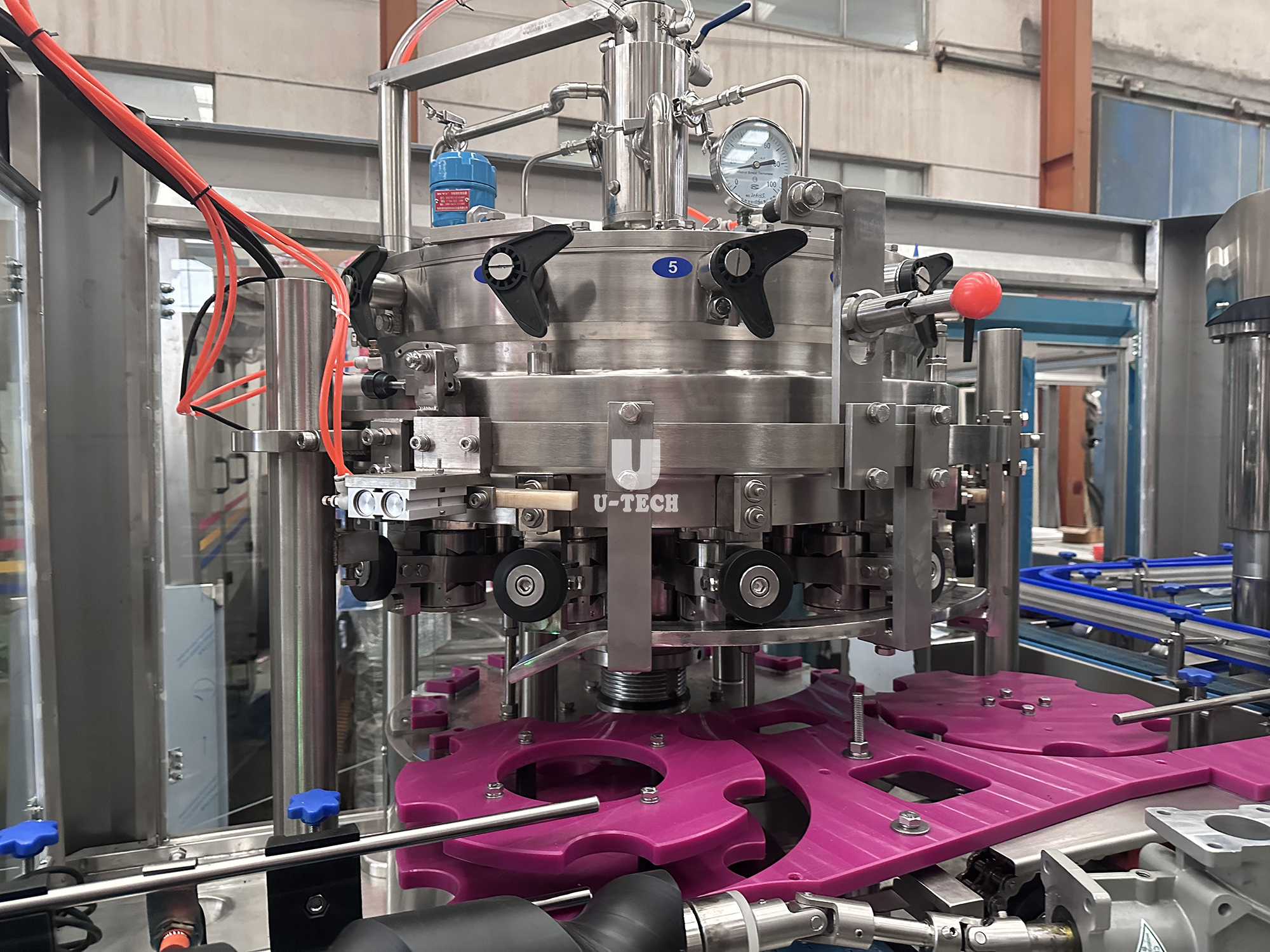

Filling Heads
1. 304/316 Stainless steel high precision filling nozzle
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4. 304/316 stainless steel filling pump
5. Efficient spray nozzle rinse thoroughly and save water for flushing

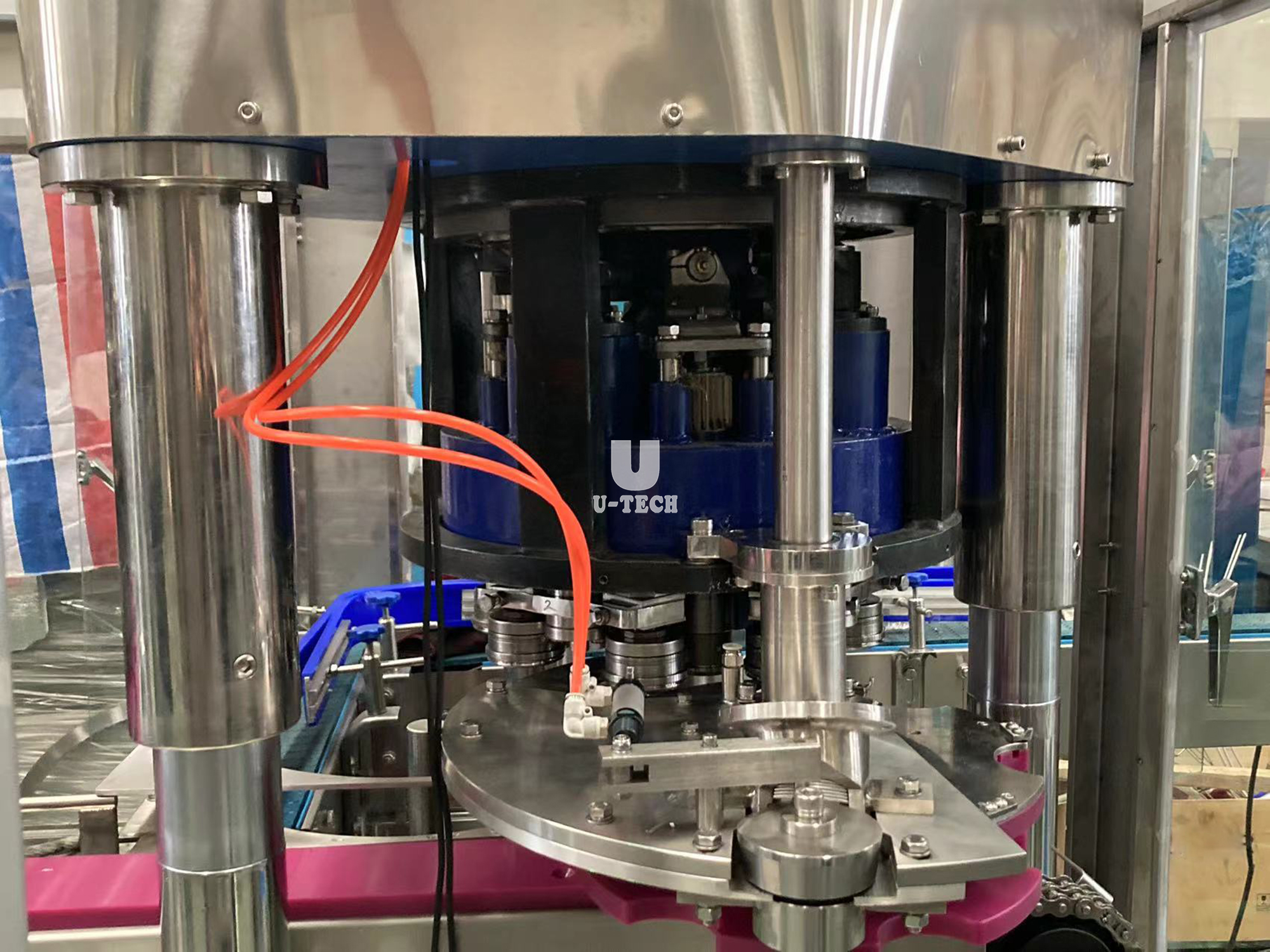

Sealing Part
The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.
