Automatic high speed 2 in 1 beverage juice energy drink beer tin can filling machine line

Availability:
Quantity:
Product Description
Beer Can Filling Sealing 2-1 Machine
Beer can filling-sealing 2-1 machine is a filling sealing 2 in 1 machine designed combined with the actual situation in our country after the introduction and absorption.
It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.
The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high efficiency, low noise and smooth operation. It adopts frequency conversion steeples speed regulation and is controlled by PLC industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a same working pace.
Technical parameter
Model
BST16-4
Capacity
200-250cans/min
Filling heads
16
Capping heads
4
Suitable can
PET can,Aluminium can
Weight
4500KG
Main motor power
4.5KW
Machine details

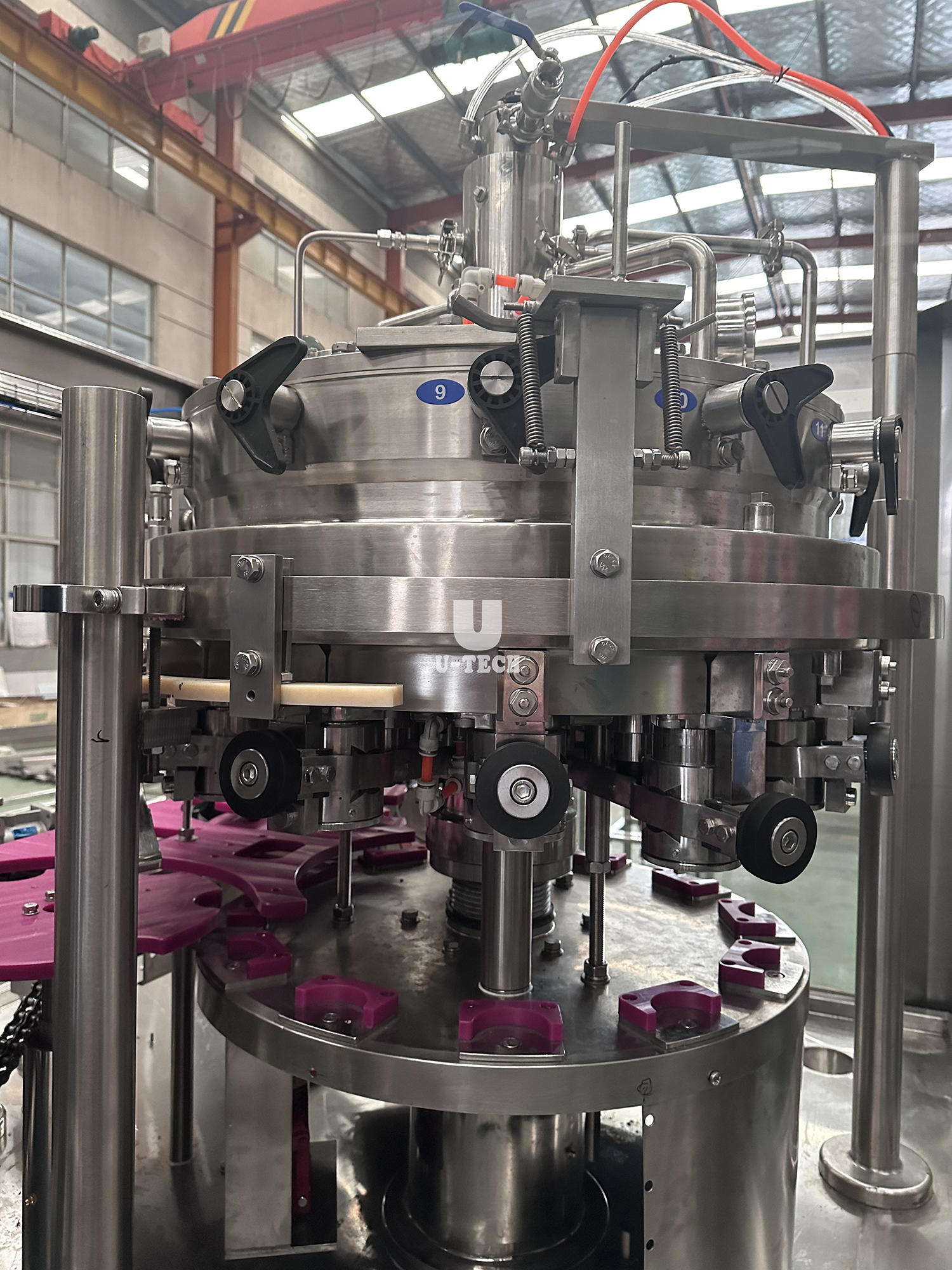

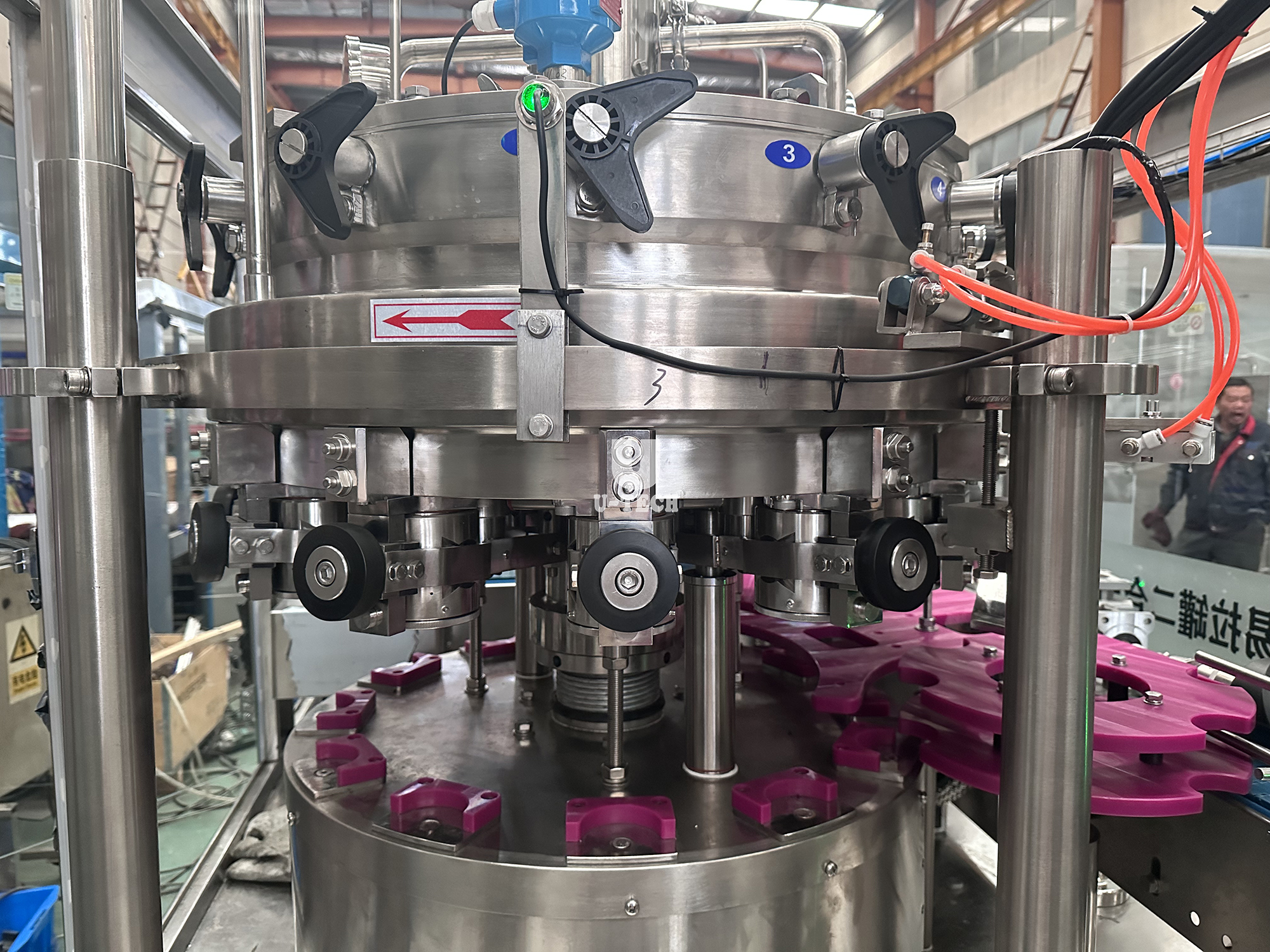

Filling heads
1. Material of filling valve: Stainless steel SUS316L. 2. Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304. 3. Main motor: ABB (Switzerland)/ SEW (Germany). 4.Sliding bearing: Igus (Germany).

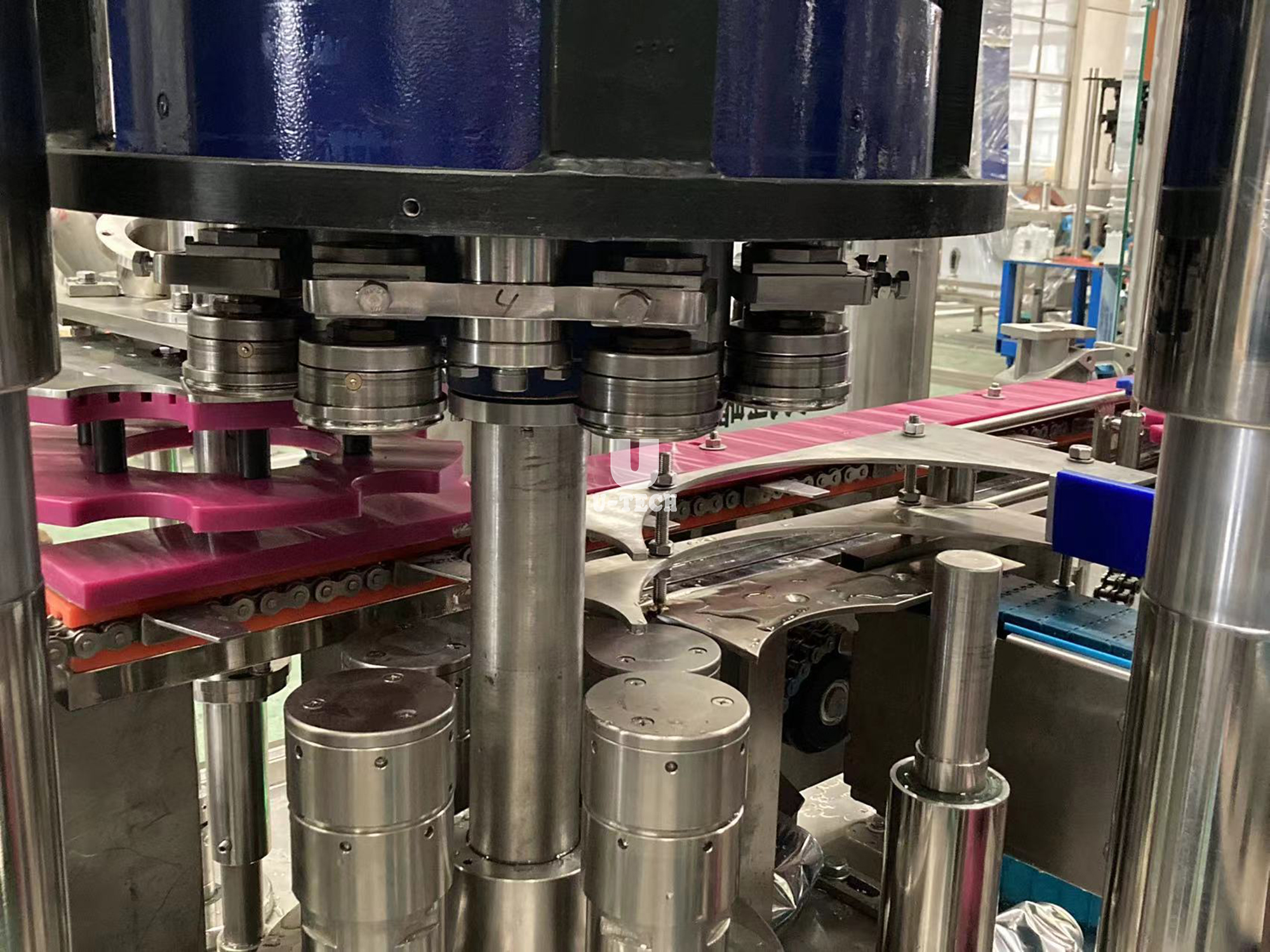

Capping heads
1.Frequency inverter: MITSUBISHI (Japan). 2. Pneumatic components: CAMOZZI (Italy). 3).Seals: Busak+Shamban (U.S.A)/ SEALTECH (HK). 4).Photocell switch: Omron, Keyence, P+F (Japan /Germany). 5).Proximity switch: TURCK (Germany).
Flow chart

Sample
Control system
Name
Brand
Country
Main motor
ABB
Switzerland
Inverter
MITSUBISHI
Japan
PLC
OMRON
Japan
Touch screen
MITSUBISHI
Japan
Contactor
SCHNEIDER
France
Thermo-relay
SCHNEIDER
France
Air-break switch
SCHNEIDER
France
Proximity switch
TURCK
USA
Photoelectric switch
BANNER
USA
Air circuit system
SMC
Japan
Water pump
Southern
China
