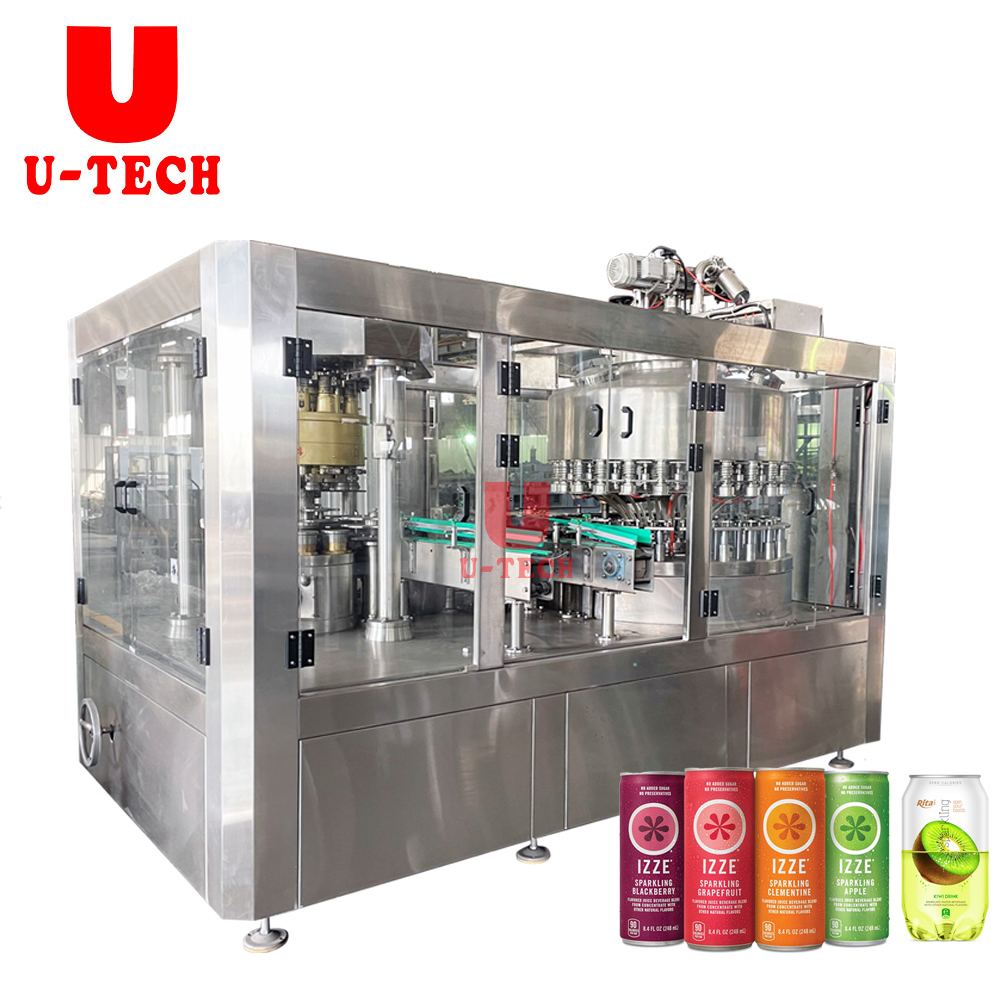

A To Z Automatic Tomato Sauce Fish Sauce Pepper Sauce Can Filling Sealing Machine Line

Share to:

A To Z Automatic Tomato Sauce Fish Sauce Pepper Sauce Can Filling Sealing Machine Line

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

 Beer can filling-sealing 2-1 machine is a filling sealing 2 in 1 machine designed combined with the actual situation in our country after the introduction and absorption.

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level and realizing that it only starts to filling when there is a can, otherwise it will stop filling. Using the device structure of filling valve precover device plus supporting can bottom device, it can guarantee the maximum stability of cans when they passing in and out of the filling machine. Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height. Float switches in the filling cylinder ensure a smooth liquid inlet.

The main transmission adopts gear transmission belt and gear box type exposed drive combination with advantages of high efficiency, low noise and smooth operation. It adopts frequency conversion steeples speed regulation and is controlled by PLC industrial computers. Sealing machine and filling machine are connected by hooks coupling universal coupling to make sure them a same working pace.

 Flow

 Sample

Technical Parameters

Model	BST16-4
Capacity	200-250cans/min
Filling heads	16
Capping heads	4
suitable can	PET can,Aluminium can
Weight	4500kg
Main motor power	4.5kw

Machine Details

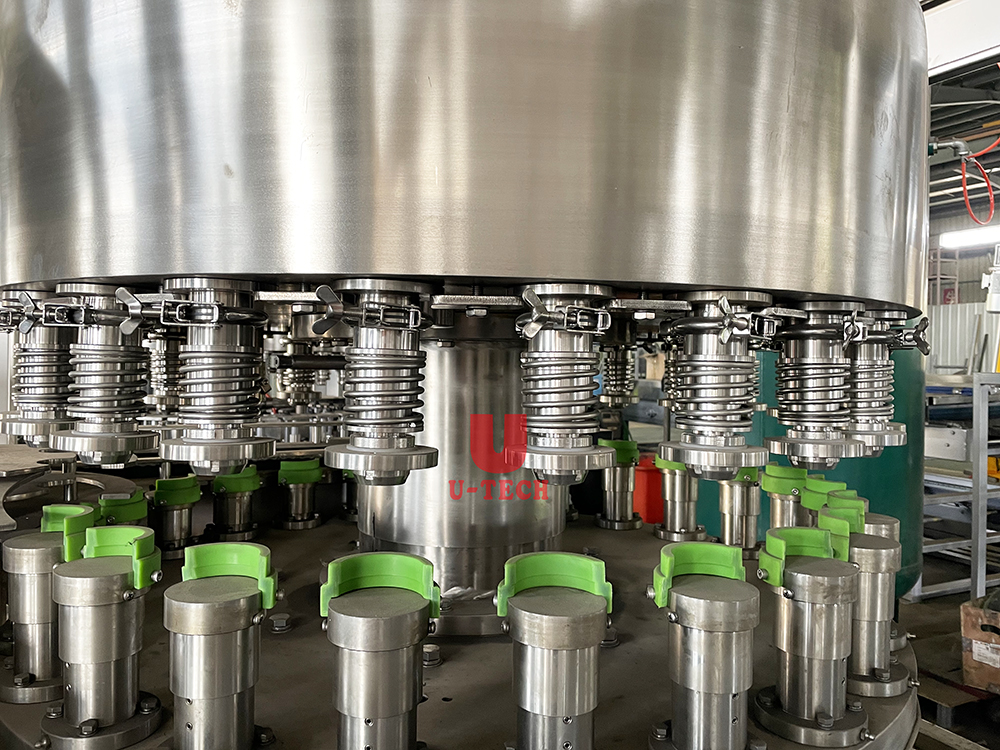

Filling heads

 1) Material of filling valve: Stainless steel SUS316L. 2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304. 3) Main motor: ABB (Switzerland)/ SEW (Germany). 4) Sliding bearing: Igus (Germany).

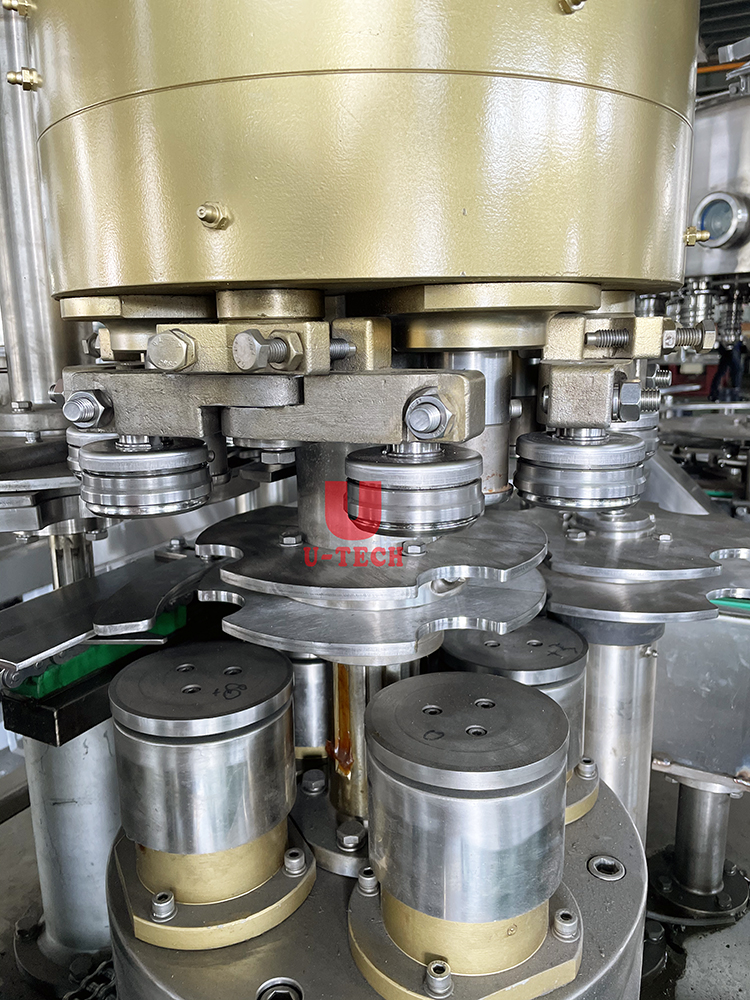

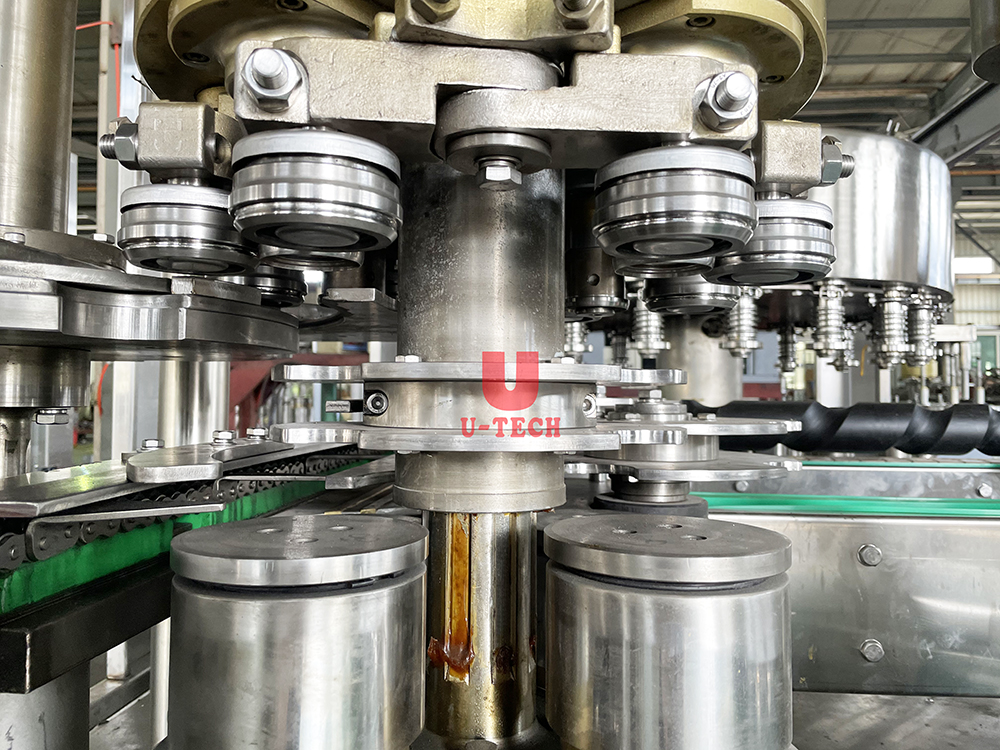

Capping heads

 1) Frequency inverter: MITSUBISHI (Japan).2) Pneumatic components: CAMOZZI (Italy).
3) Seals: Busak+Shamban (U.S.A)/ SEALTECH (HK).
4) Photocell switch: Omron, Keyence, P+F (Japan /Germany).
5) Proximity switch: TURCK (Germany).


Main Features

 Canceled screw and conveyor chains which enabling change bottle with different shapes easier.
Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only need to change related the curved plate, wheel and nylon parts.

The specially designed bottle washing machine gripper is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

 Isobaric filling valve is adopted, filling accurate and no liquid lose.

 Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China

Related Products

Water Treatment System

 The company's Water Treatment System used in electronics, electroplating,power plants, pharmaceutical, petroleum, chemical, food and beverage and printing industries to provide high quality water, reverse osmosis pure water technology is the most advanced, most economical, the most effective system of water technology,which is the use of ultra-thin film reverse osmosis membrane by water pressure, so that the water seepage from the high levels of salt to reverse the process of low salinity. Can remove most of the harmful substances, heavy metals, solids can be capacitive, only water molecules can only end through a reverse osmosis membrane water.

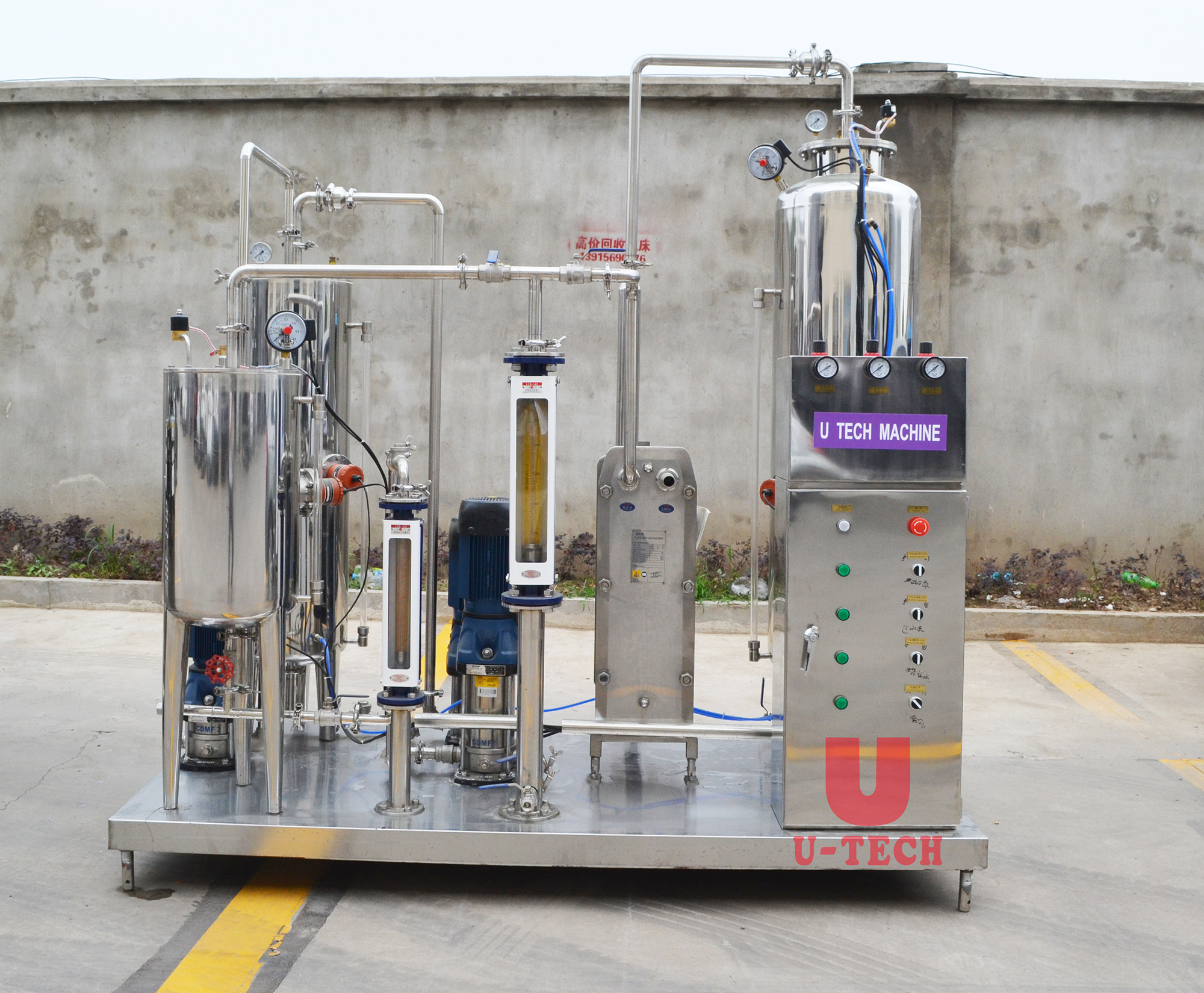

Beverage Mixture Machine

 The machine is made with the newest technology introduced from Japan.It is in the leading position comparing with similar products in China.The mixer is mainly suitable for mixing process of all kinds of carbonated drinks.It is also used in mixing of slurry drink,fermented drink and other drinks.

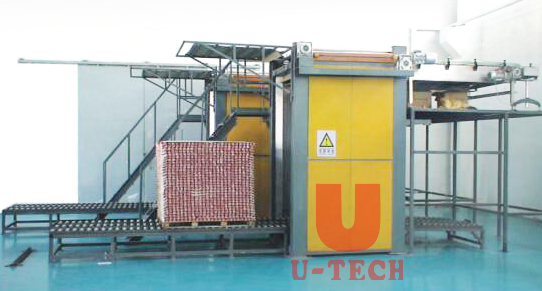

Can Depalletizer

1. It can replace the manual ways arrangementand traditional empty can unloading machine, saving a lot of manpower andincreasing production effects.  2. The pile feeding direction, can dischargingdirection and operation panel position of the machine can be
flexibly changedaccording to user requirement.

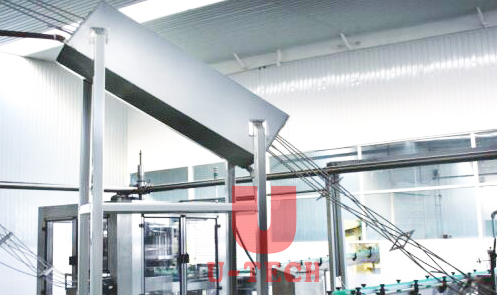

Spray Washer
