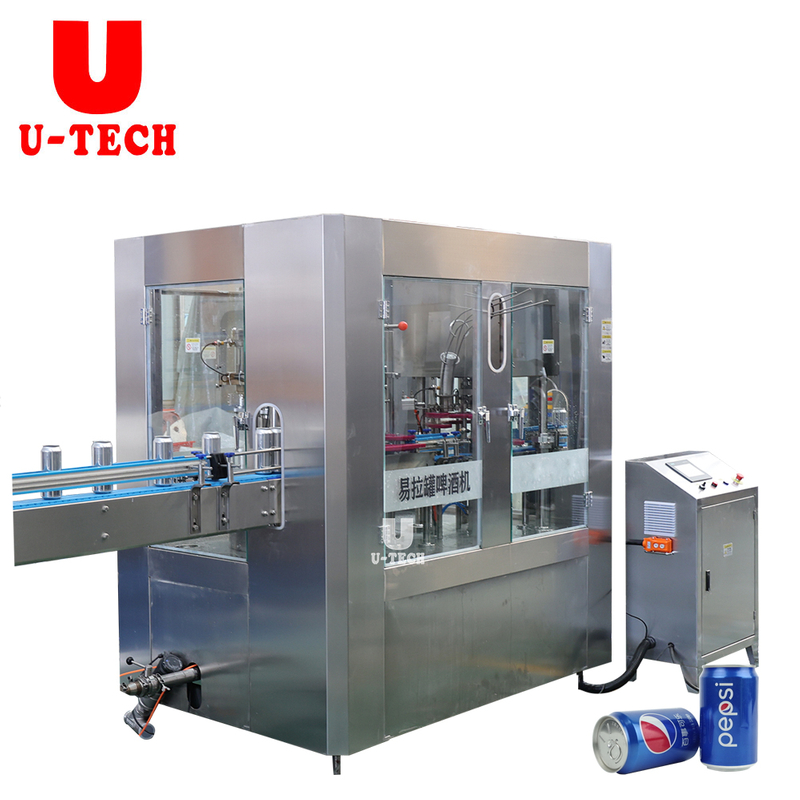

Automatic Small Business Beverage Carbonated Energy Drink Juice Beer Can Filling Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Production line flow

This machine is core machine in beer/carbonated drinks production line. It is for fill and seam of beer and other carbonated soft drinks(aluminum can/pet can), like cola、soda、energy drinks and so on.

Features

1. Canceled screw and conveyor chains which enabling change bottle with different shapes easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only need to change related the curved plate, wheel and nylon parts.

3. The specially designed bottle washing machine gripper is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. Isobaric filling valve is adopted, filling accurate and no liquid lose.

5. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Technical Parameters

Model	BST16-4
Capacity	200-250cans/min
Filling heads	16
Capping heads	4
suitable can	PET can,Aluminium can
Weight	4500kg
Main motor power	4.5kw

Machine Details

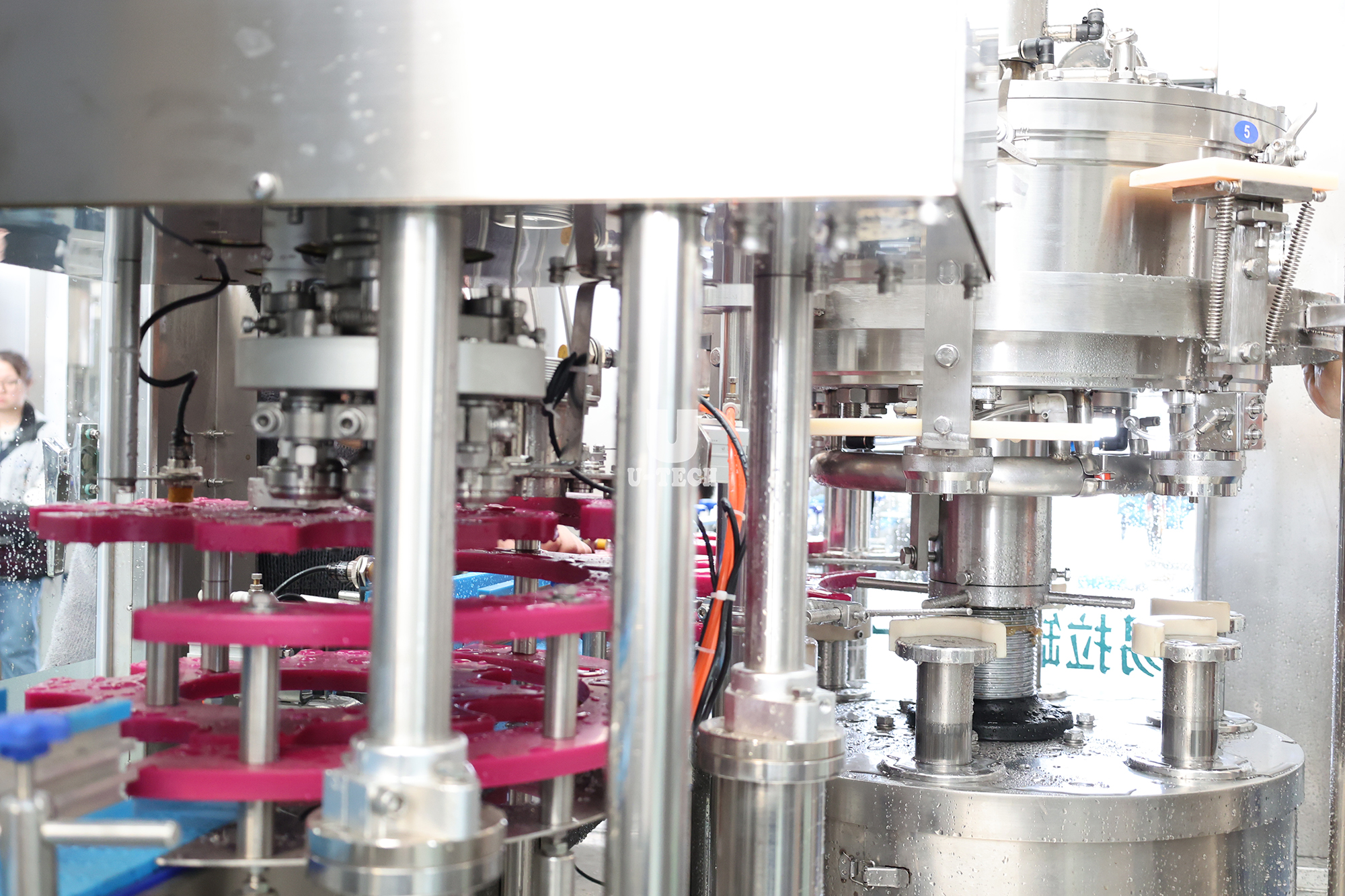

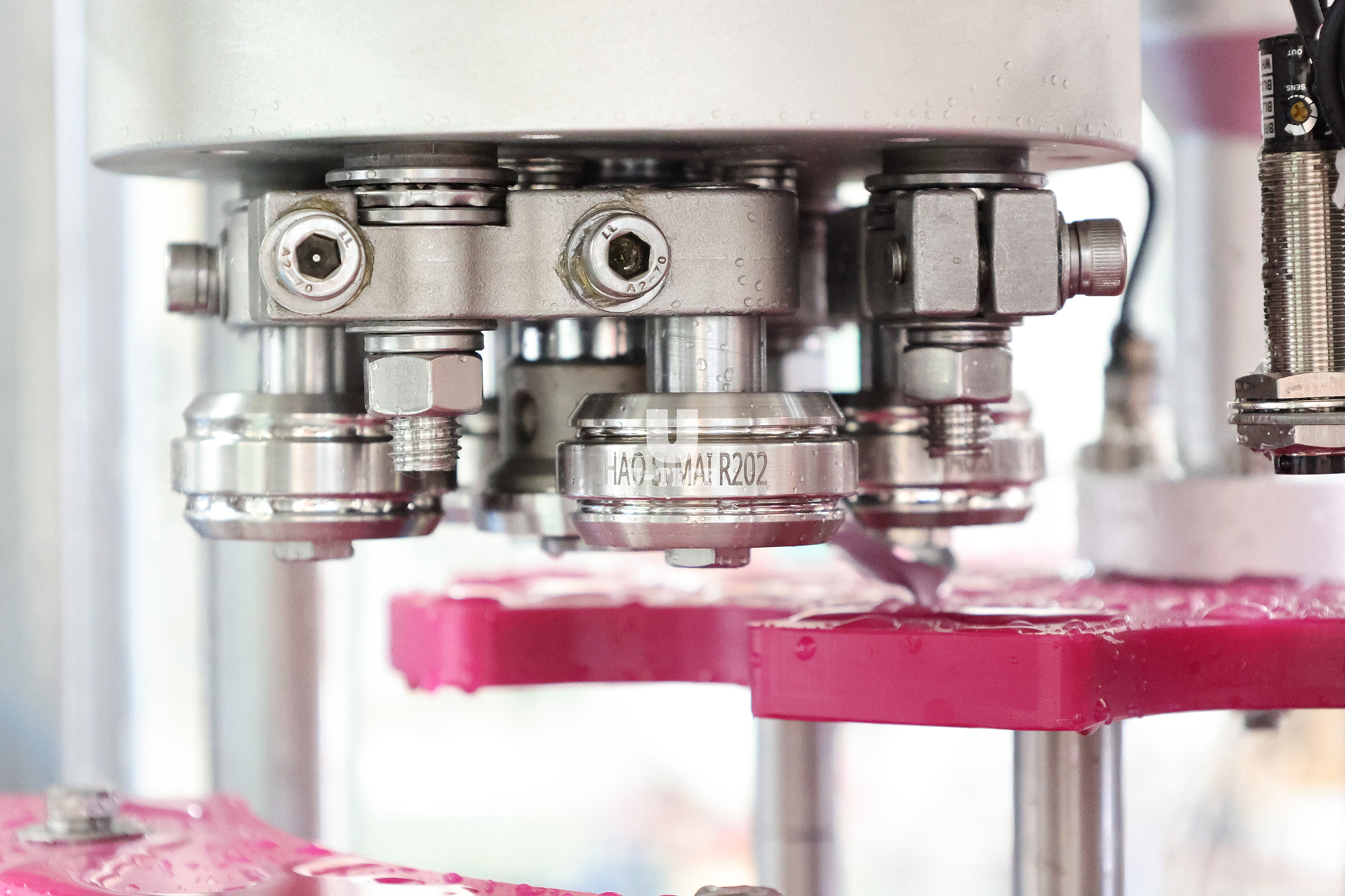

Filling Heads

1. 304/316 Stainless steel high precision filling nozzle

2. Filling volume adjustable in fine rank, same liquid level after filling

3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

4. 304/316 stainless steel filling pump

5. Efficient spray nozzle rinse thoroughly and save water for flushing

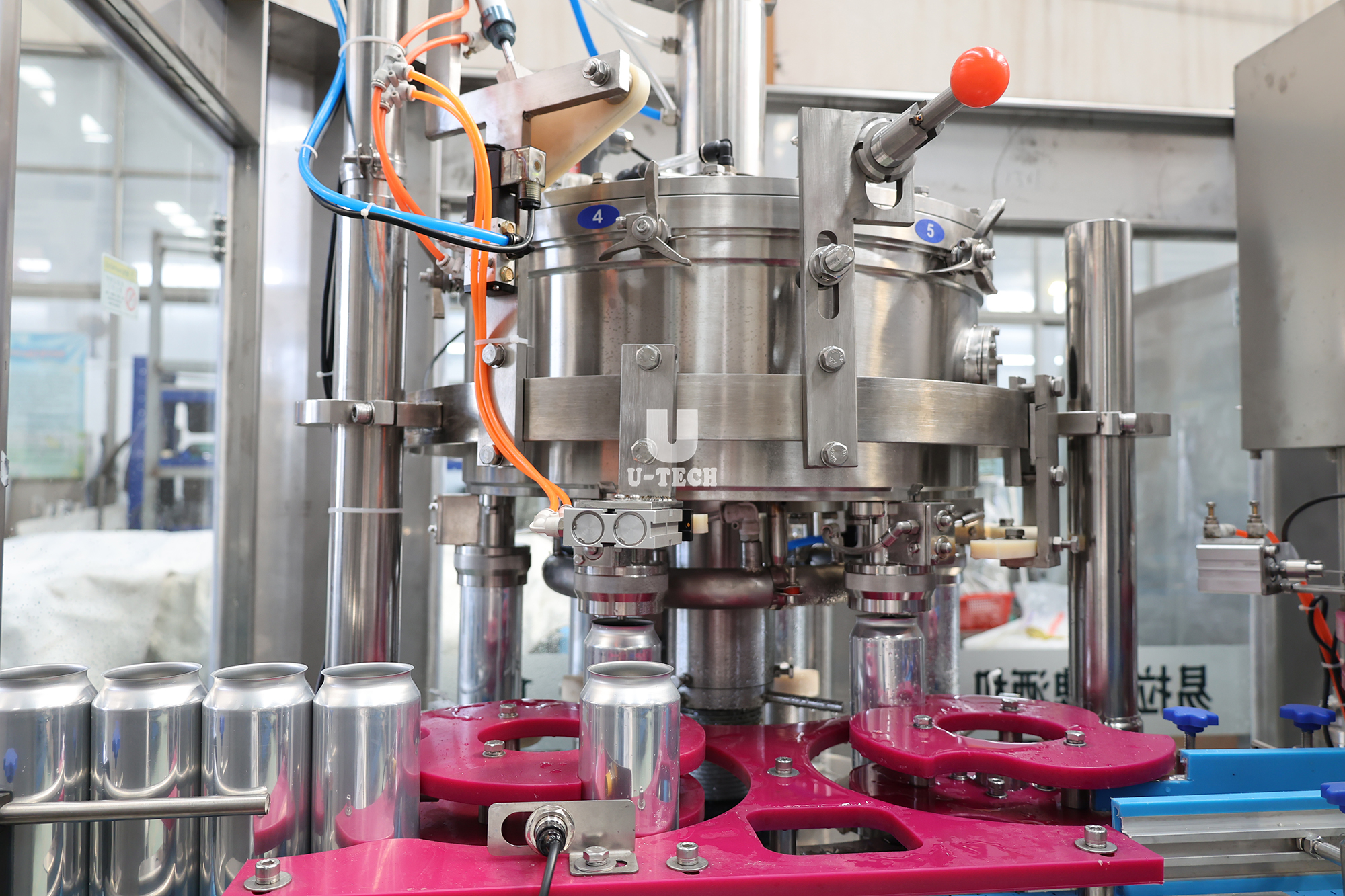

Sealing Part

The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.

Related Products

Drink mixer

The machine is made with the newest technology introduced from Japan.It is in the leading position comparing with similar products in China.The mixer is mainly suitable for mixing process of all kinds of carbonated drinks.It is also used in mixing of slurry
drink,fermented drink and other drinks.

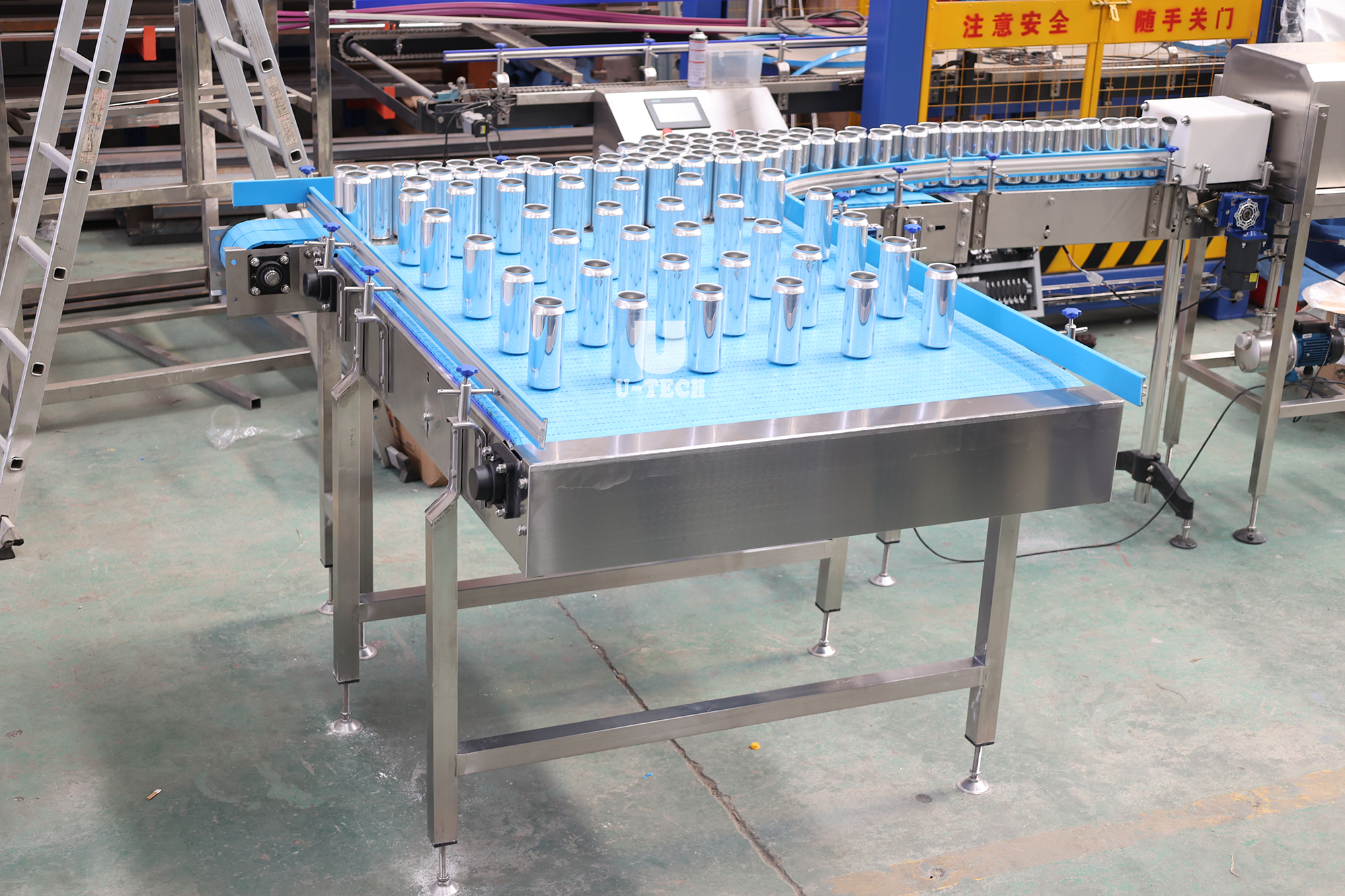

Can feeding table

The automatic bottle unscrambler is used for bottle sorting and conveying. It works with round bottles, square bottles and flat
bottles of different sizes and materials.

Inside Washer

After overturn, the empty cans come into washer. And then through spurt and rinse of the hot water pipe, The cans turns 0.5
meters, the machine spray and sterilize to the inner and outer surface of cans during the can turn. After rinse finish, the cans
roll in the conveyor chain.

Can Dryer

This can dryer adopts high speed air knife principle to blow the bead away. The main parts of this equipment adopt stainless
steel.

Laser printer

Laser printer ejects is a permanent mark that can not be erased. It is formed by the instantaneous vaporization of laser directly
on the surface of the object. It can be distinguished by naked eyes without any auxiliary tools, which is convenient for consumers to identify.
