Automatic 330ml 500ml Soft Drink Making Machines Carbonated Drink Bottling Can Filling Machine for Carbonated Beverage

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

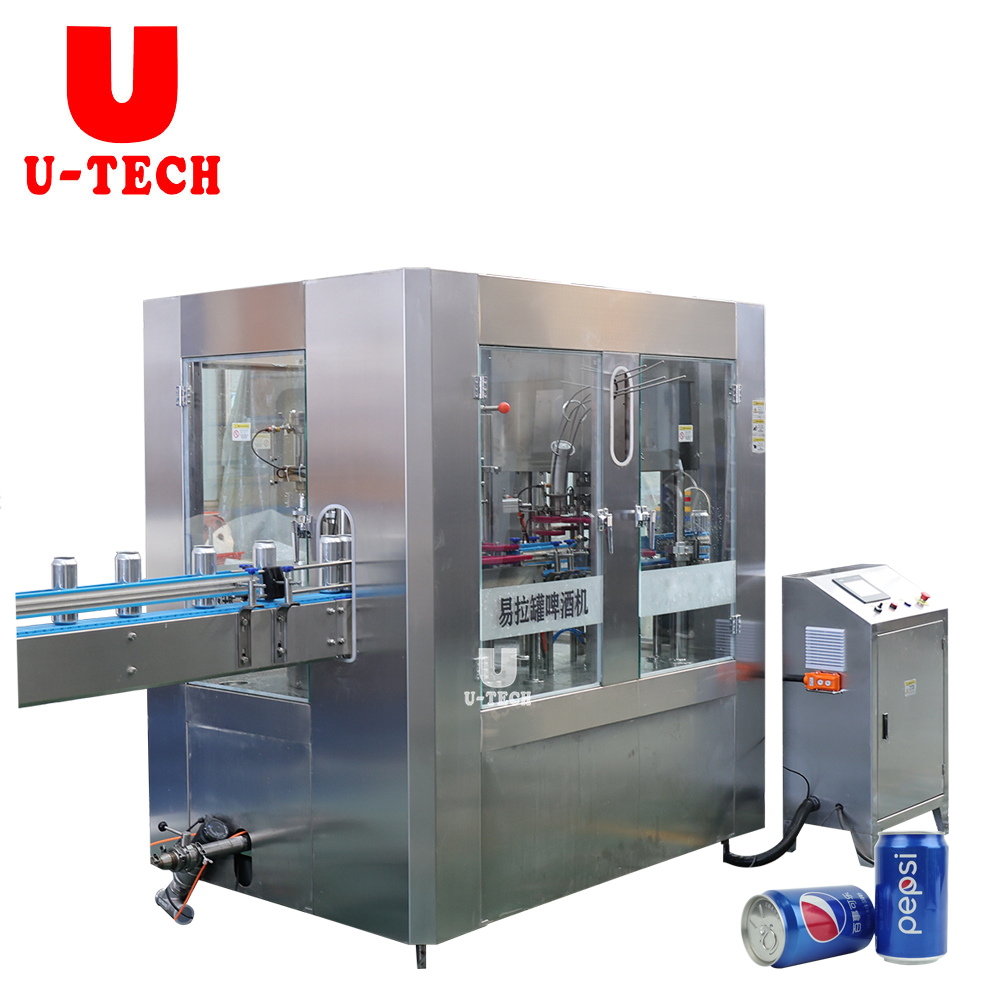

This machine is core machine in beer/carbonated drinks production line. It is for fill and seam of beer and other carbonated soft drinks(aluminum can/pet can), like cola、soda、energy drinks and so on.

Machine Details

Can washing part

1. All 304/316stainless steel rinse heads, water spray style inject design,more save water consumption and more clean

2. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

3. 304/316 stainless steel washing pump

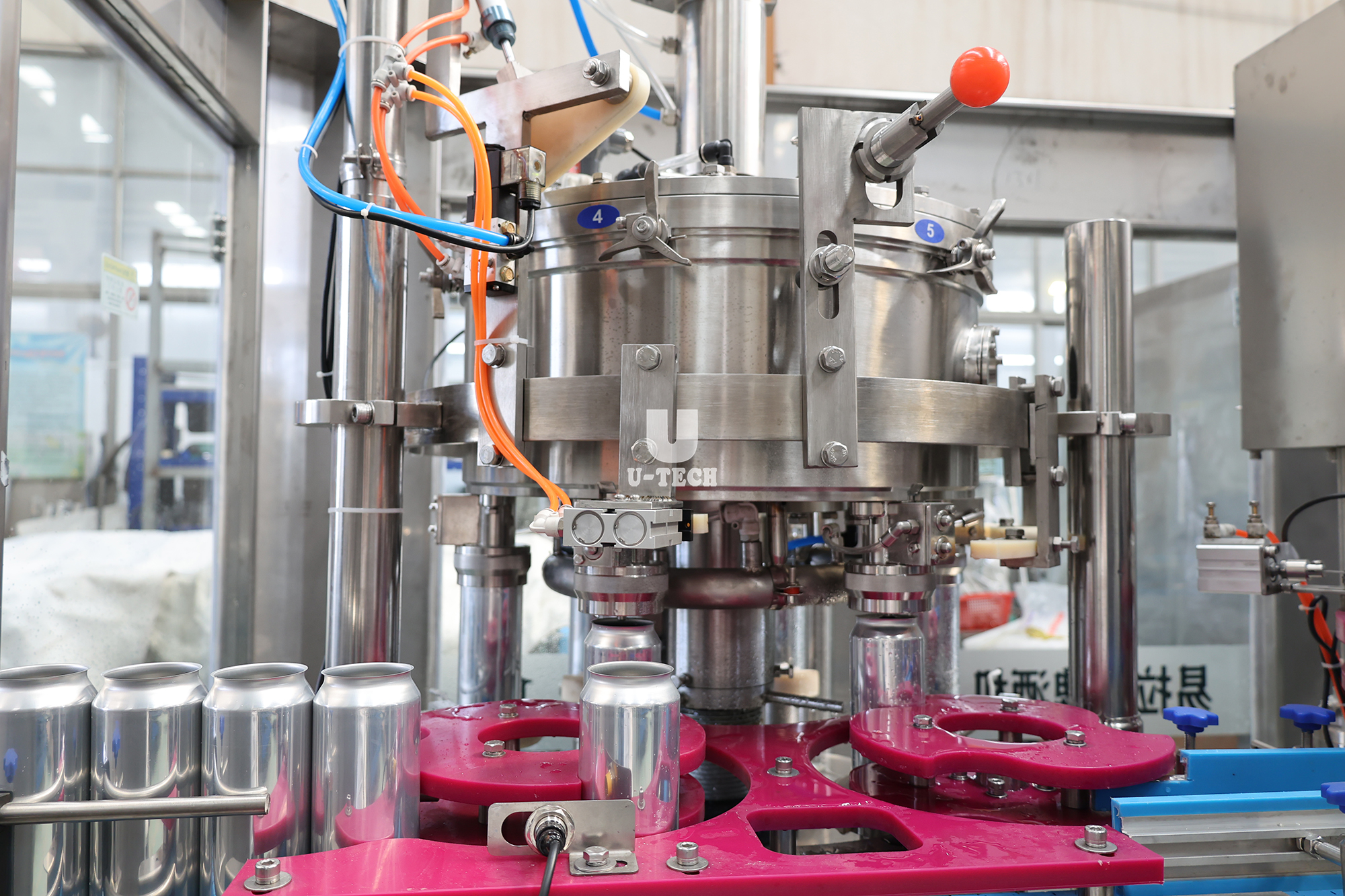

Filling part

1. 304/316 Stainless steel high precision filling nozzle

2. Filling volume adjustable in fine rank,same liquid level after filling

3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

4. 304/316 stainless steel filling pump

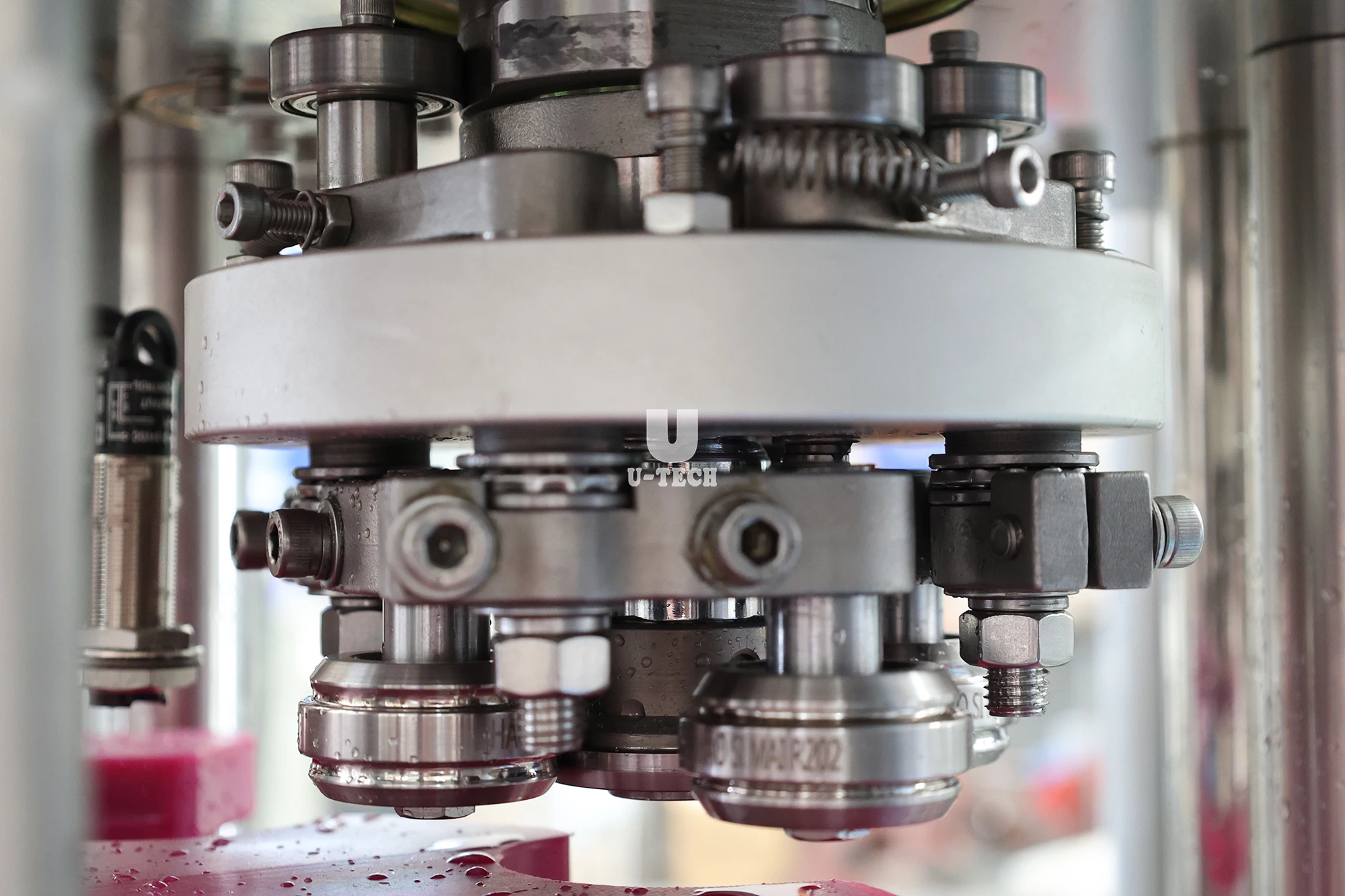

Capping part

1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

2. All 304/316 stainless steel construction 3. No bottle no capping

4. Automatic stop when lack of bottle

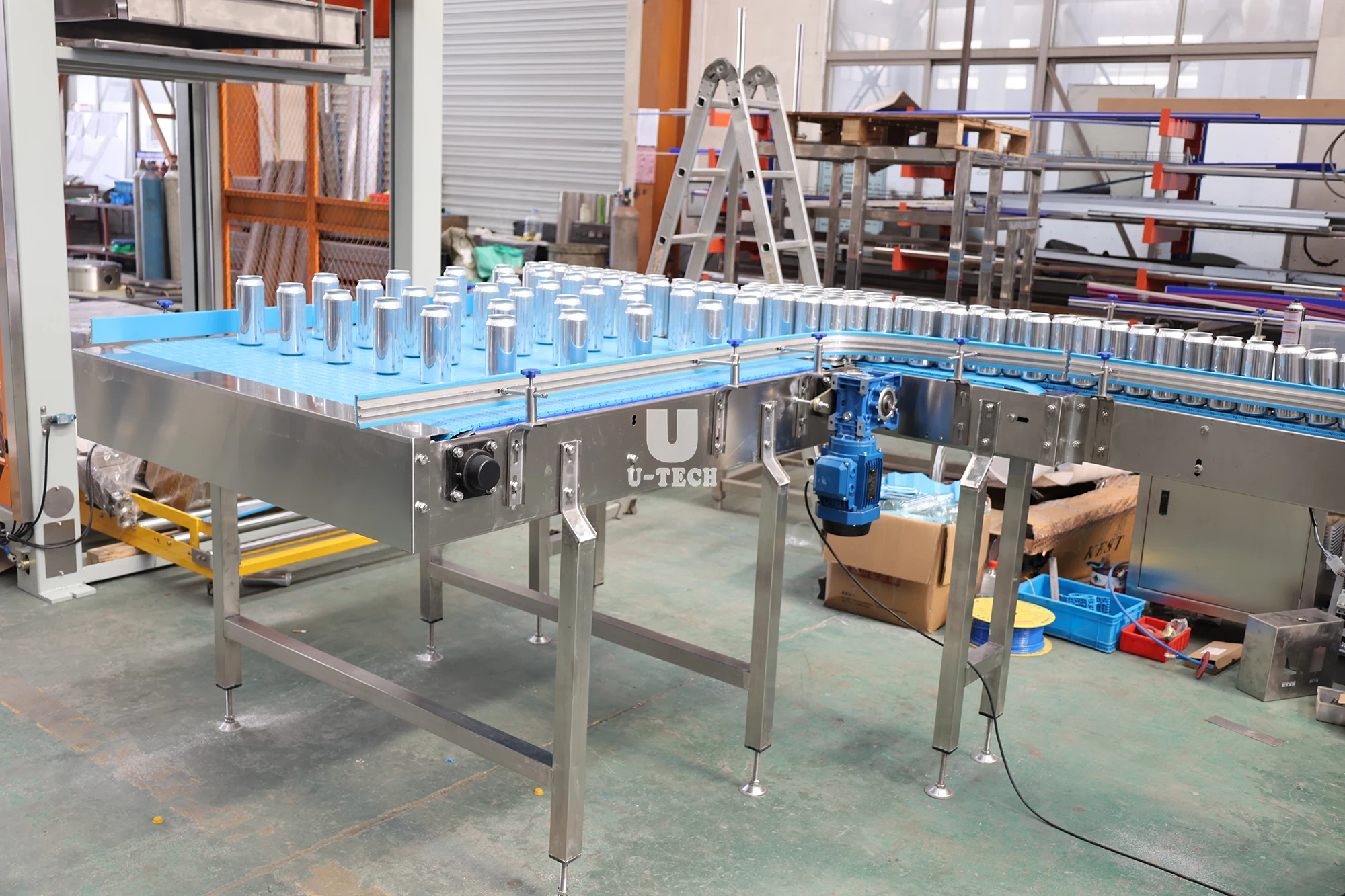

Flat conveyor

1. Energy saving. High efficient. Adapt to customer factory layout

2. Special lubrication system, keep products clean, health,
safety

3. Electric eyes design keep whole line running safety and quickly

4. Overload protection mechanism to effectively ensure the safety of the machine

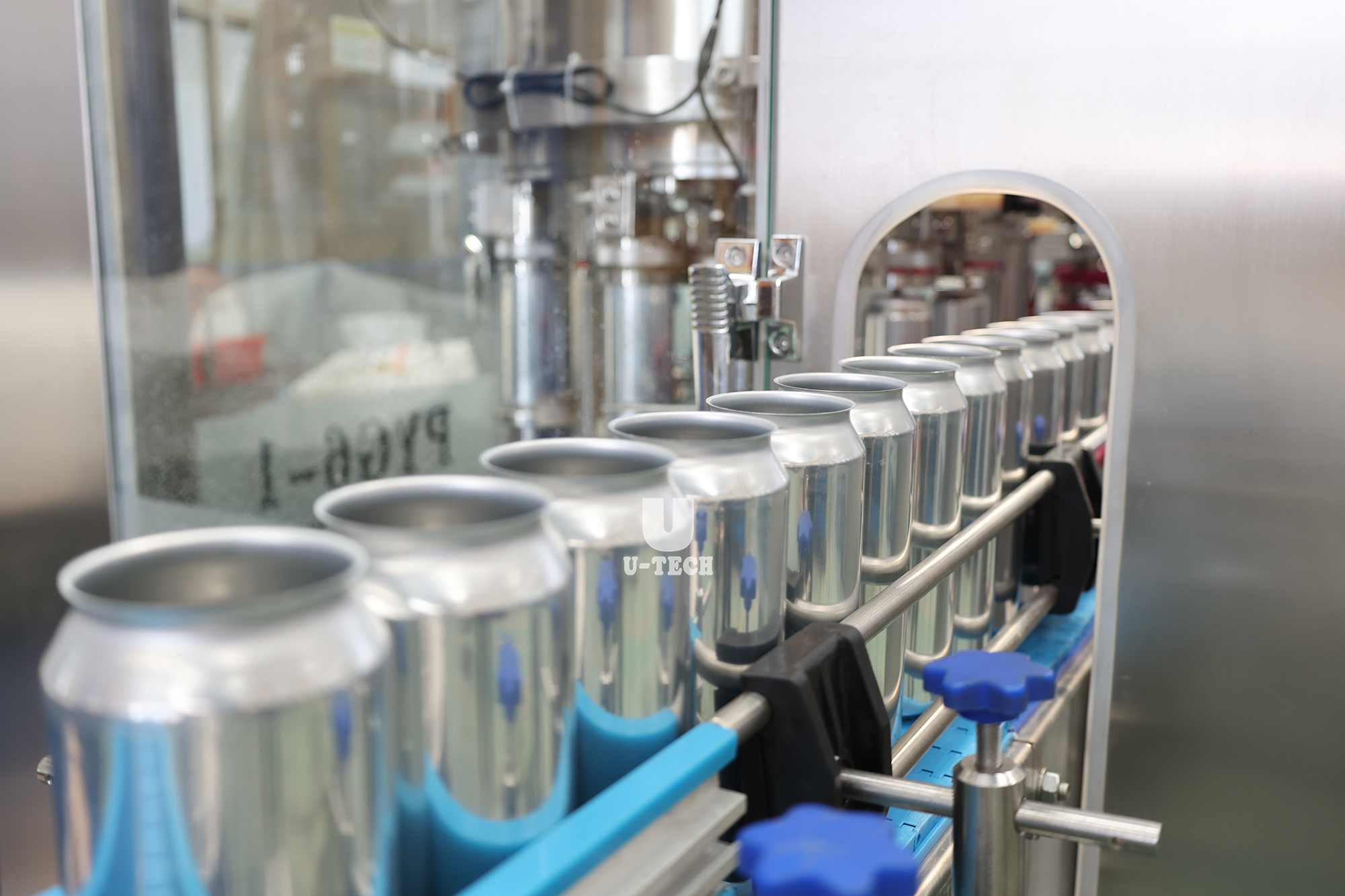

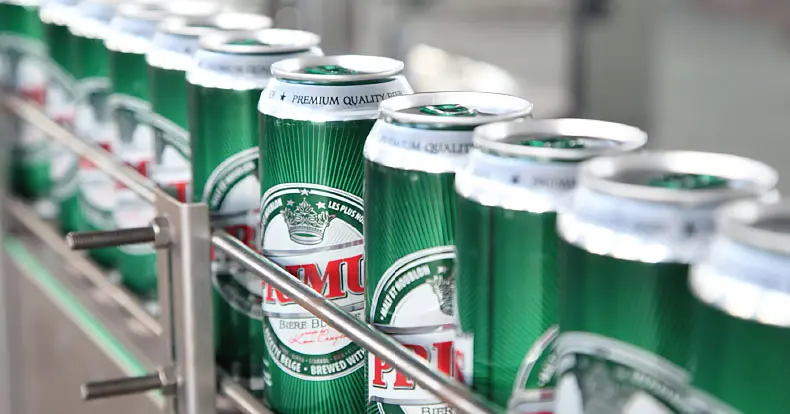

Can conveyor

1. Air conveyor is fixed on the floor, with fan installed on the top.

2. Air filter is positioned at every entrance of air fan, to
prevent dust blown into bottles.

3. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.

4. All are made of stainless steel SUS 304 /316.

5. Rack made by high quality carbon steel welded.

Technical Parameters

Model	BST12-1	BST16-4	BST24-6	BST32-8
Capacity	1200-1500cans/hour	5000-6000 CPH	7000-9000 CPH	10000-12000 CPH
Can Volume	200ml-1000ml	200ml-1000ml	200ml-1000ml	200ml-1000ml
Can diameater	50-70mm	50-70mm	50-70mm	50-70mm
Bottle high	120-170mm	120-170mm	120-170mm	120-170mm
Machine power	1.5KW	2.2KW	3.7KW	5.5KW
Machine size	175x120x195CM	305x175x220CM	340X195X220CM	350x235x225CM

Sticker labeling machine

The height adjustment adopts motor fluctuating;It is convenient to replace the material.
The special cutter head designing,make the film-rolling cut more correct and reliable.
The machinery part adopts combination designing of modularization,and makes the machine reasonable.

Water treatment system

Stainless steel high pressure film shellAll kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system Online type pressure auto self-protection device Online type electricity indicator System safe protecting and alarm system System frame

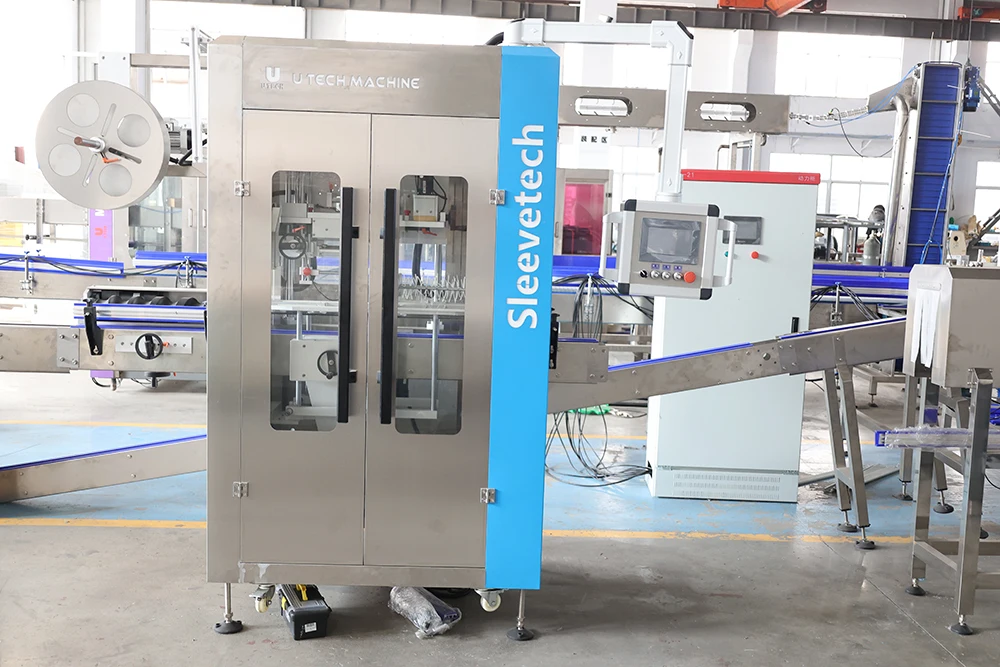

Shrinking label machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is,four-wheel driving, self-centering and balanced pressure of four wheels.

Film wrap packing machine

In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine,sometimes called the winding machine and the wrapping machine.
