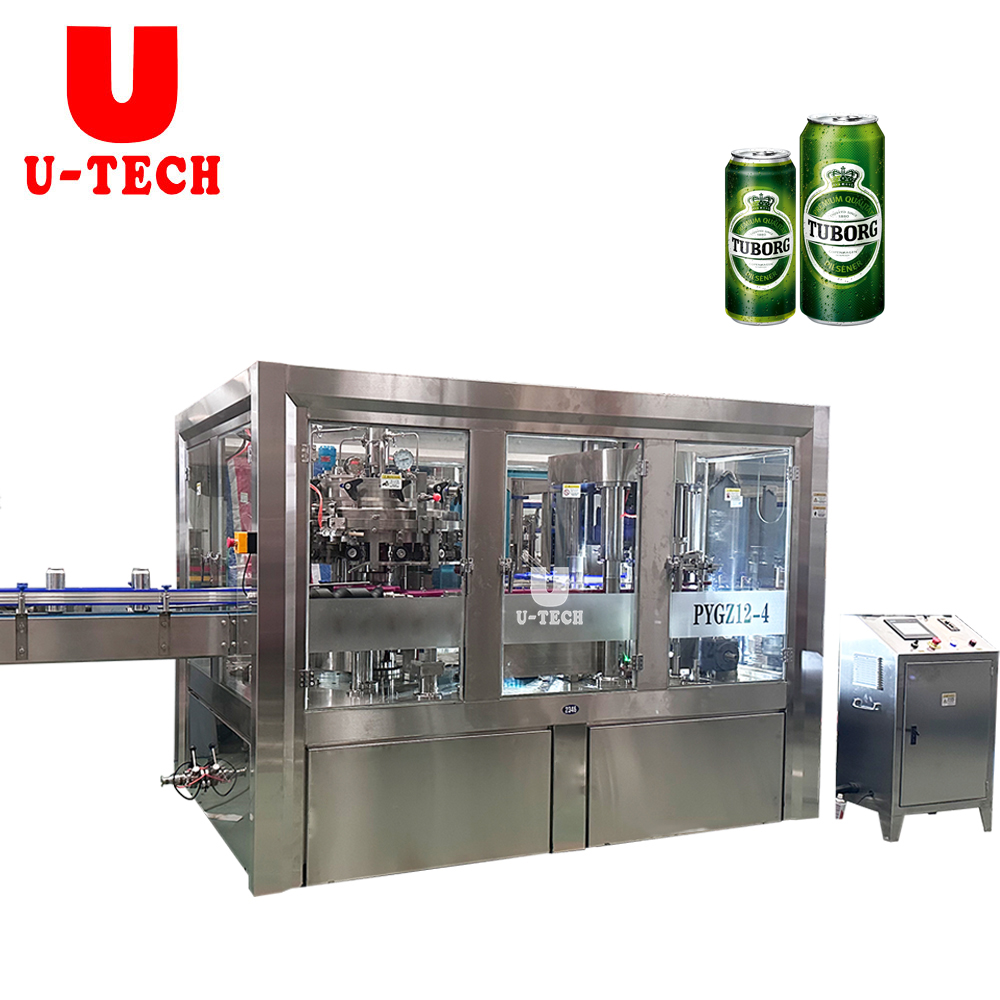

Complete Project Automatic Carbonated Soft Energy Drink Aluminum Tin Can Beer Filling Machine Production Line

Availability:

Quantity:



Inquire Add to Basket

Product Description

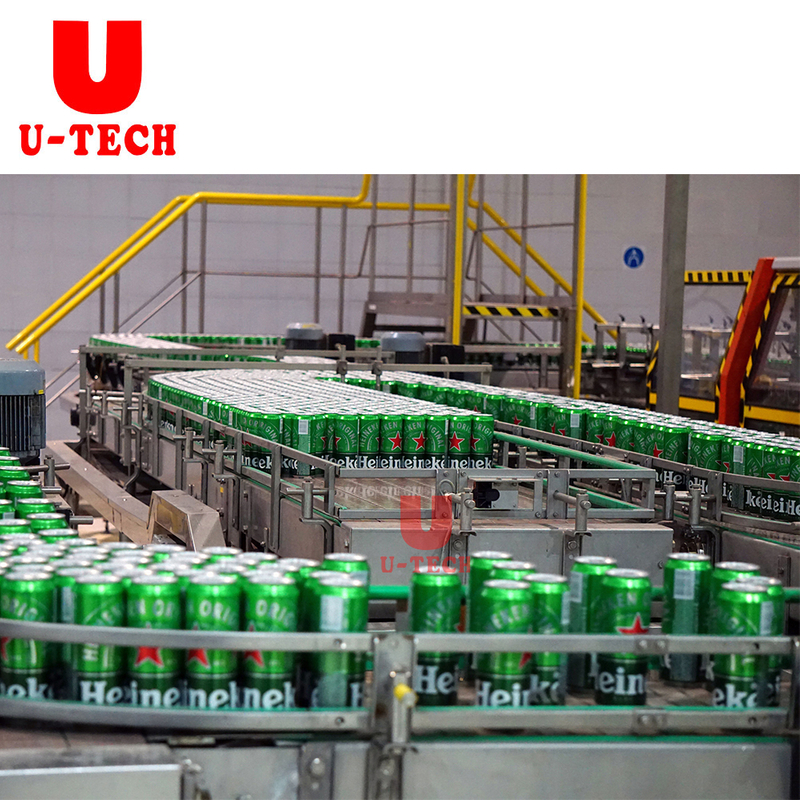

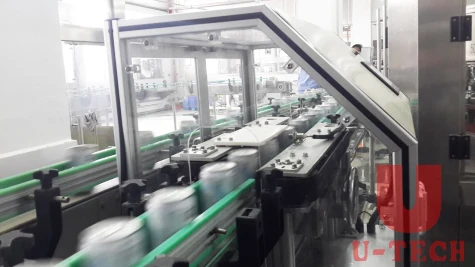

Production line flow

This machine is core machine in beer/carbonated drinks production line. It is for fill and seam of beer and other carbonated soft drinks(aluminum can/pet can), like cola、soda、energy drinks and so on.

Features

1. Canceled screw and conveyor chains which enabling change bottle with different shapes easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only need to change related the curved plate, wheel and nylon parts.

3. The specially designed bottle washing machine gripper is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. Isobaric filling valve is adopted, filling accurate and no liquid lose.

5. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Technical Parameters

Model	BST16-4
Capacity	200-250cans/min
Filling heads	16
Capping heads	4
suitable can	PET can,Aluminium can
Weight	4500kg
Main motor power	4.5kw

Machine Details

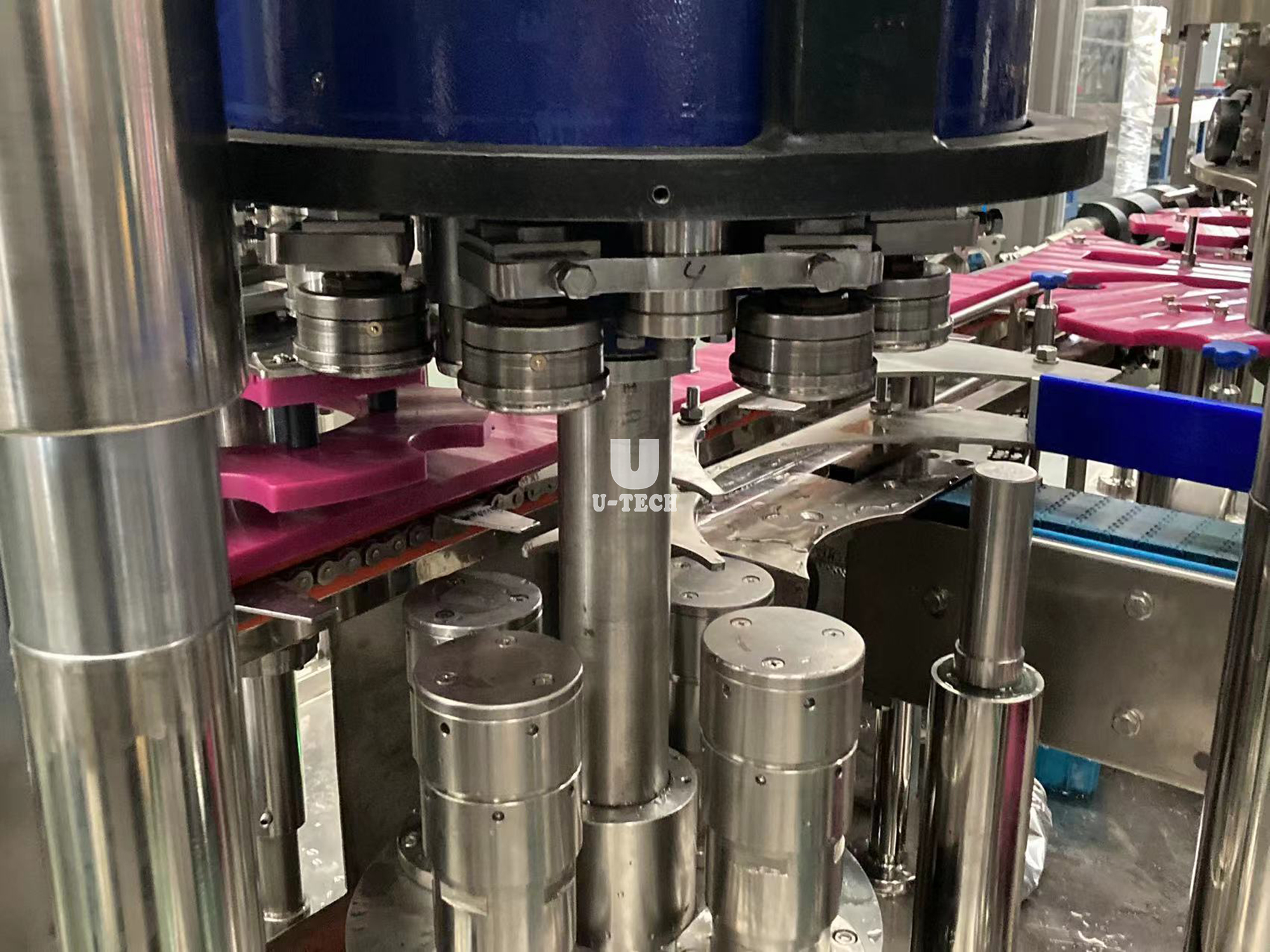

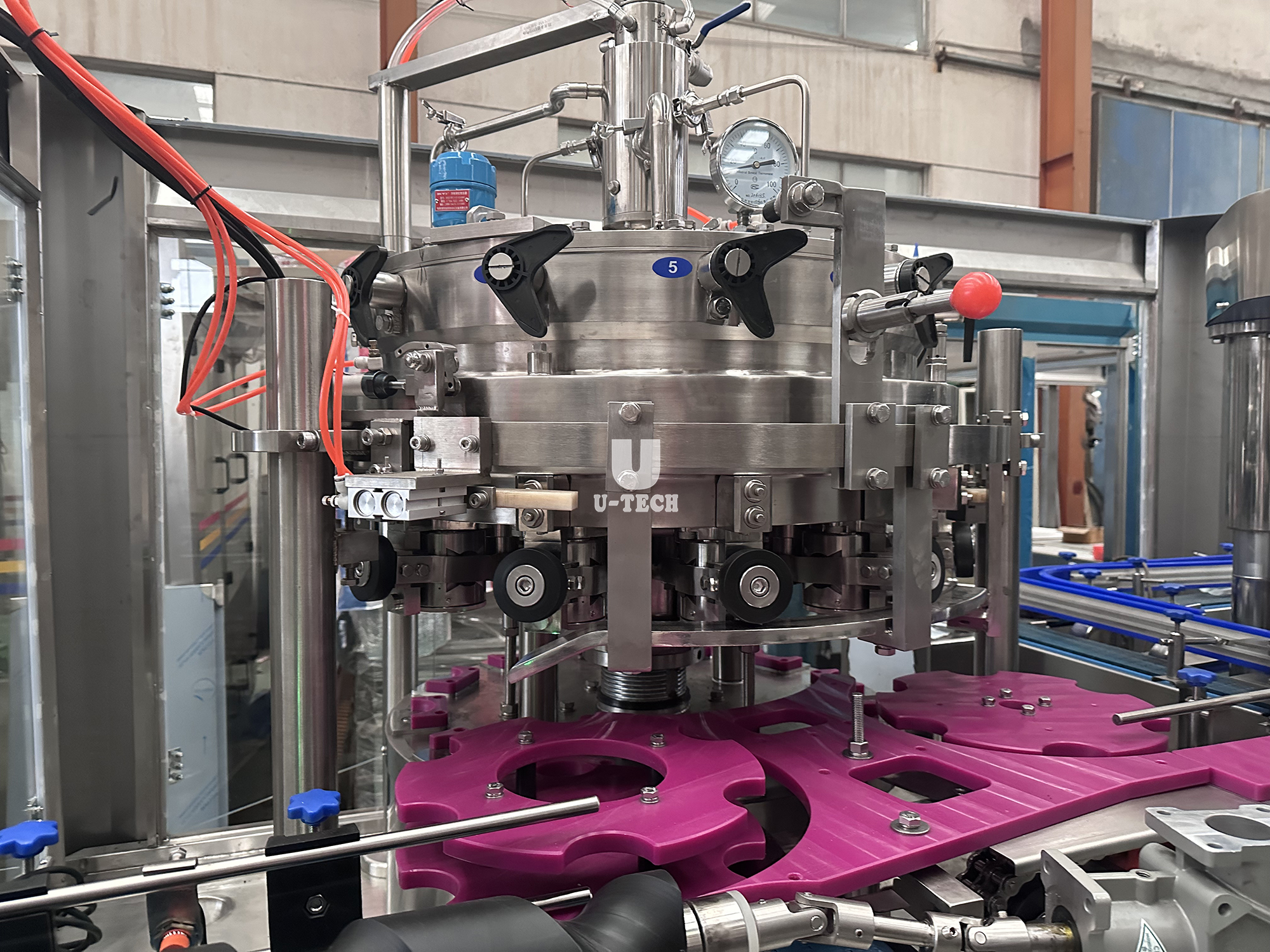

Filling Heads

1. 304/316 Stainless steel high precision filling nozzle

2. Filling volume adjustable in fine rank, same liquid level after filling

3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

4. 304/316 stainless steel filling pump

5. Efficient spray nozzle rinse thoroughly and save water for flushing

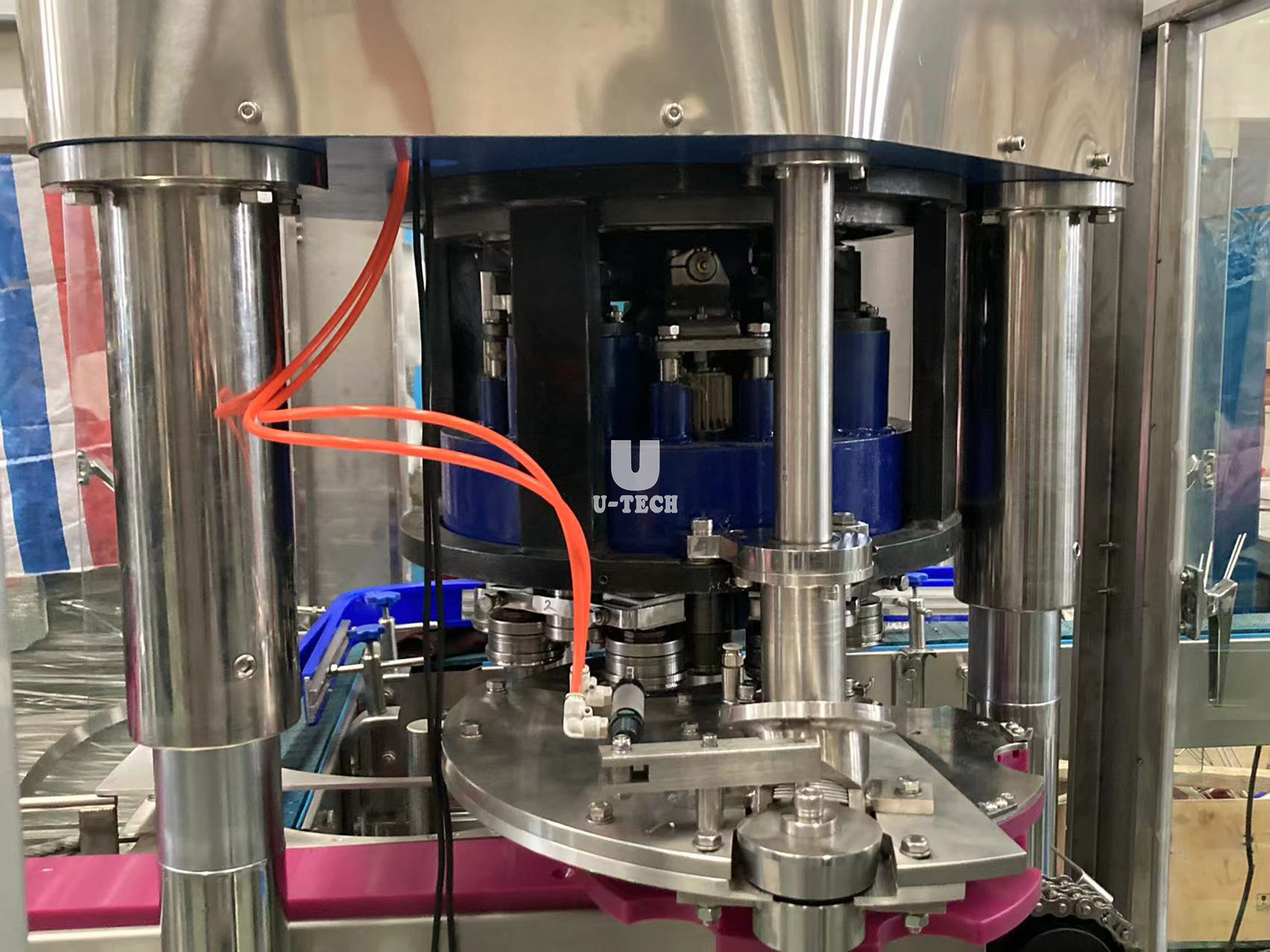

Sealing Part

The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.

Related Products

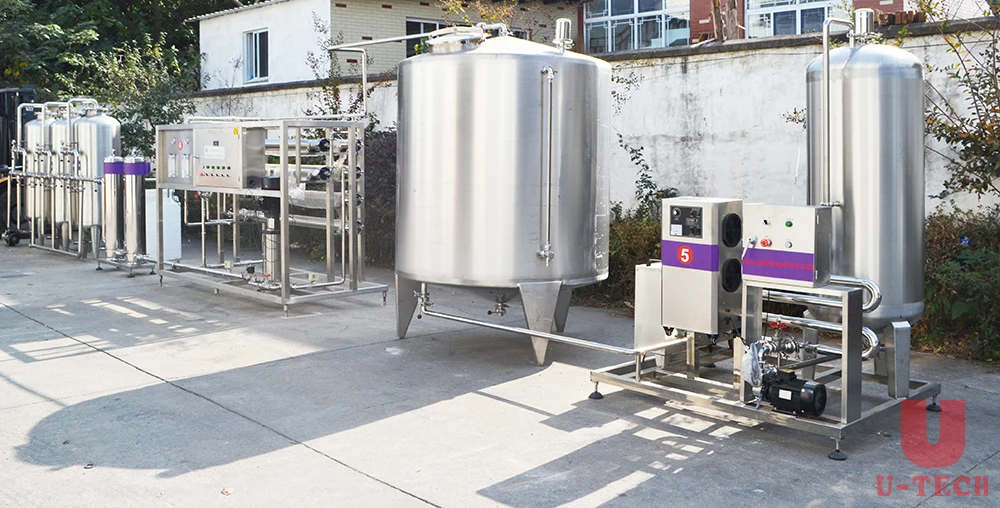

Water Treatment System

The company's Water Treatment System used in electronics, electroplating,power plants, pharmaceutical, petroleum, chemical, food and beverage and printing industries to provide high quality water, reverse osmosis pure water technology is the most advanced, most economical, the most effective system of water technology,which is the use of ultra-thin film reverse osmosis membrane by water pressure, so that the water seepage from the high levels of salt to reverse the process of low salinity. Can remove most of the harmful substances, heavy metals, solids can be capacitive, only water molecules can only end through a reverse osmosis membrane water.

Beverage Mixture Machine

The machine is made with the newest technology introduced from Japan.It is in the leading position comparing with similar products in China.The mixer is mainly suitable for mixing process of all kinds of carbonated drinks.It is also used in mixing of slurry drink,fermented drink and other drinks.

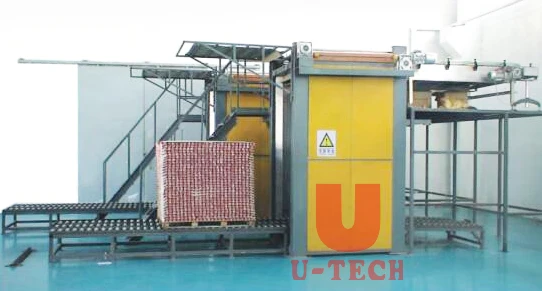

Can Depalletizer

1. It can replace the manual ways arrangementand traditional empty can unloading machine, saving a lot of manpower andincreasing production effects.

2. The pile feeding direction, can dischargingdirection and operation panel position of the machine can be flexibly changedaccording to user requirement.

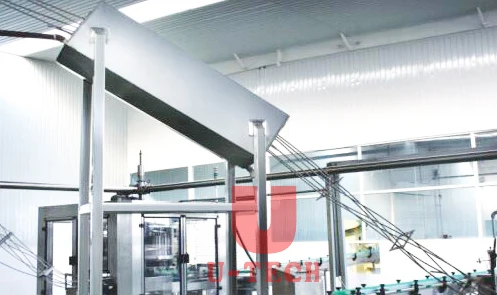

Spray Washer

After overturn, the empty cans come into washer. And then through spurt and rinse of the hot water pipe, The cans turns 0.5 meters, the machine spray and sterilize to the inner and outer surface of cans during the can turn. After rinse finish, the cans roll in the conveyor chain.

Sleeve Labeling Machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

Bottle Warming Colling Machine

This machine can reduce the temperature of hot filling drinks to 36 -40 ℃,or increase the temperature of cold filling carbonic acid drinks to 36-40℃. It is used in carbonated drinks,,hot tea drinks,juice drinks and production line. This machine can eliminate the condensed water on the external side of bottles ,keep bottle clean and dry. This makes bottles easier for labeling and package.

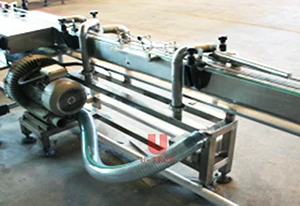

Can Dryer

This can dryer adopts high speed air knife principle to blow the bead away. The main parts of this equipment adopt stainless steel.

Liquid Level Detector

Liquid level detector is we design and manufacturer liquid level detector which reach to advanced technology. It utilizes the principle that ray intensity changes according to the measured material position after the interaction of low-energy photon source and measured material, so as to control detected liquid volume. This non-contact measuring method fundamentally solves the problem that regular weighing method can’t measure the capacity of bottled/canned liquid in the production line. Therefore, it is widely used for on-line automatic control of production line for bottled (no matter bottled or canned) liquid, in the field of food, medicine, chemicals, weapons and ammunition.

Internal Pressure Detector

Pressure detector detects internal pressure of filled cans with nitrogen dosing drinks or carbonated drinks. It could detect the products quickly and eliminate unqualified ones and provide audible and visual alarm. While continuous unqualified products appear and eliminate happens, user knows there is something wrong with the preceding machines, the user could stop the preceding machines to reduce the loss.

Coding Machine

Ink-jet printed the date and batch number on the can.

Shrink Film Packing Machine

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
