Complete Project Automatic Small PET Bottle Cooking Food Edible Sunflower Oil Filling Line Equipment Price

Availability:
Quantity:
  • U TECH
Product Introduction
The oil filling machine can fill all kinds of oils, such as edible oil, lubricating oil, peanut oil, soybean oil, etc. This type of filling machine is a filling machine specially developed for oil materials. The machine is mainly composed of magnetic cylinders, oil cylinders and electrical control components. It has the advantages of simple overall structure, small footprint, and easy operation;
BST series 2-in-1 filling machine is automatic filling and capping. It is suitable for all kinds of edible oil, juice, seasoning
etc. This series products apply electronic measuring mode and special liquid component to realize low foam volumetric filling and can realize non-contact filling under all temperature condition. Adopt ALCOA capping technology to realize full direction COP cleaning. Production varies from 3000BPH to 30,000BPH.

Application
Technical Parameters
Containers and Specifications

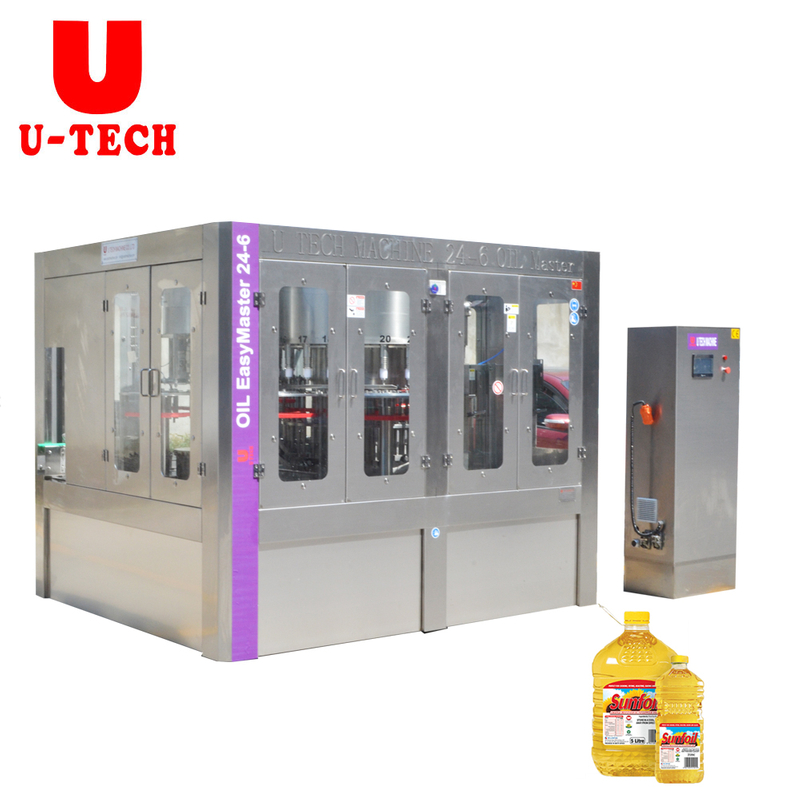

Project Name:Automatic Oil Filling Machine
Oil and Fat Products
Bottle Material
Bottle Shape
Filling Range
Filling Heads
Production Capacity
PET / PP / PE / Glass / Metal
Round / Square
/ Unique Shape
200ml-6000ml
24
6000-8000bph

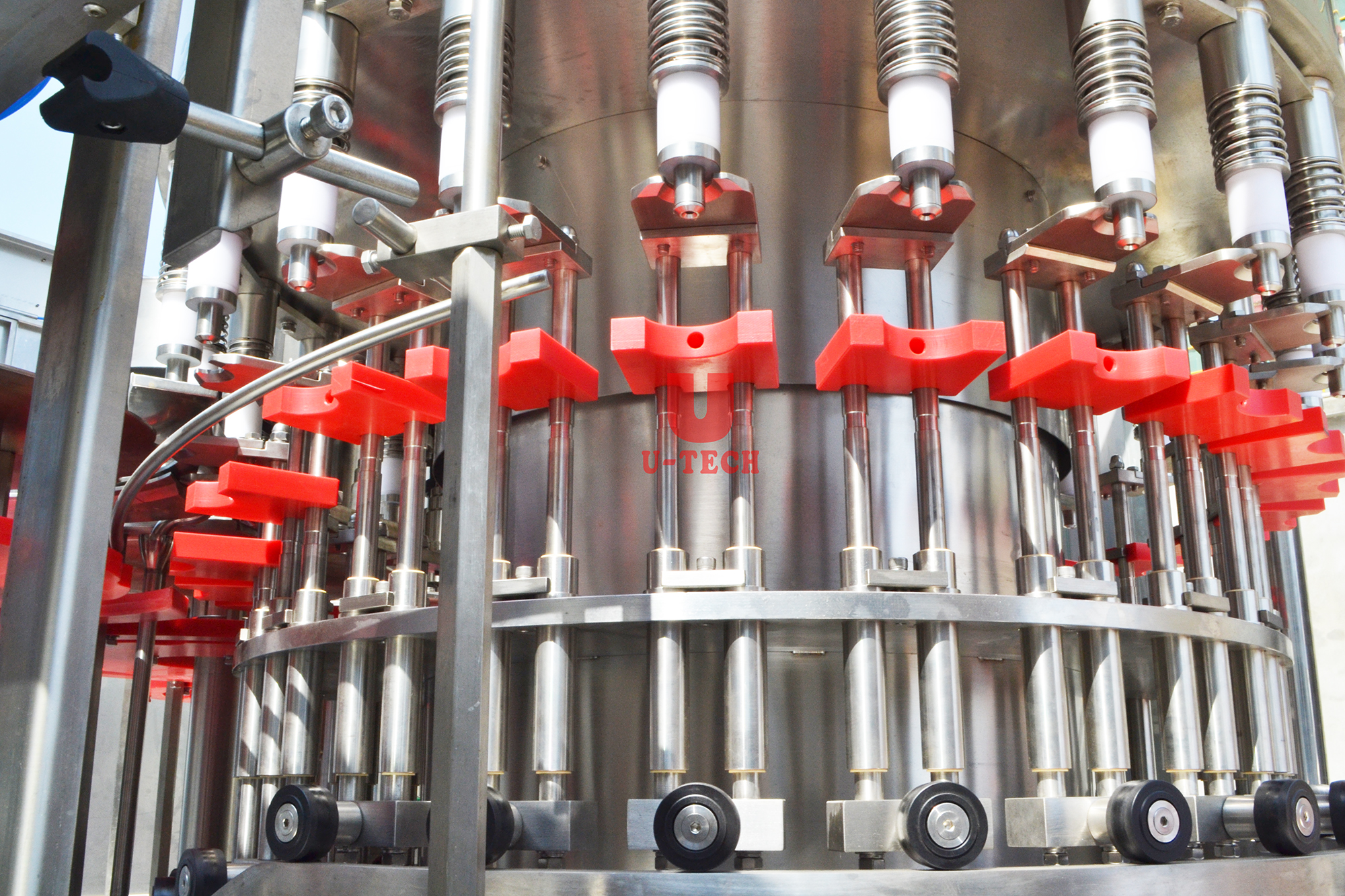

Filling Valve
Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage.

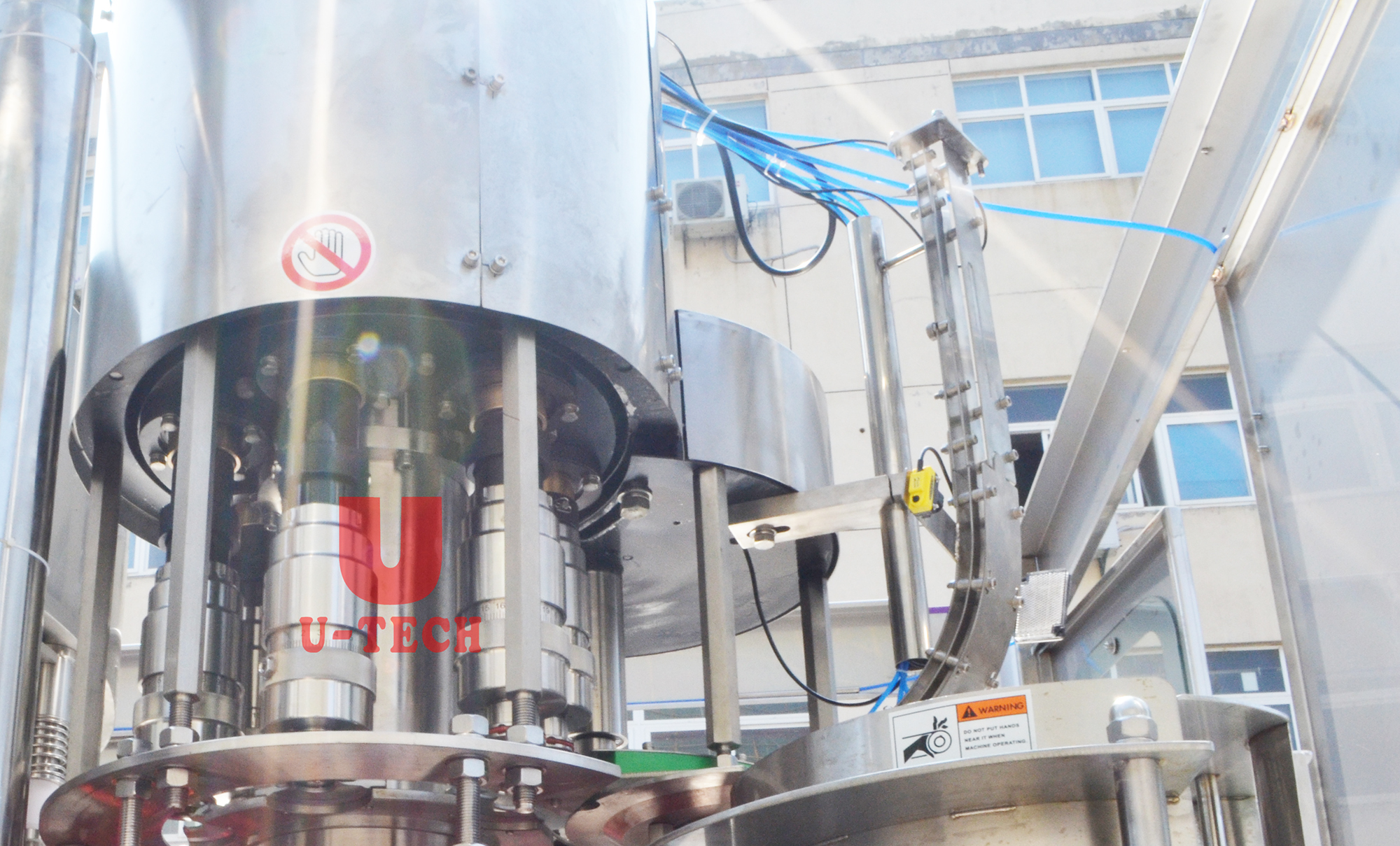

Cap closing
method
applicability for both crowning and capping, mechanical instant sealing or servo­controlled sealing
Bottle components
rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Filling precision
limit deviation: ±2-3g standard deviation: 1.5
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%
Control System
S/N
Name
Brand
Country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
Related Products
Automatic PET bottle blow moulding machine
Semi automatic PET bottle blow moulding machine
Sleeve labeling machine
Adhesive labeling machine
Shrink packing machine

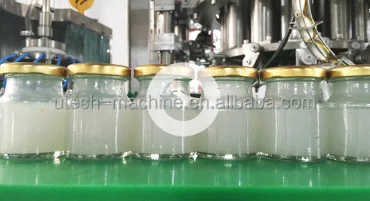

Machine Running Video
FAQ
Q1:Do you have any reference project?

  >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.


Q2:What's your guarantee or the warranty of the quality if we buy your machines?

  >>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.


Q3: Do you provide customized service?

  >> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.


Q4:When can I get my machine after I paid?

  >> A4:We will deliver the machines on time as the date we agreed both side.


Q5:How can I install my machine when it arrives?

  >> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
