Automatic Rotary 2 in 1 Small Plastic Bottle Olive Essential Coconut Edible Cooking Oil Filling Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

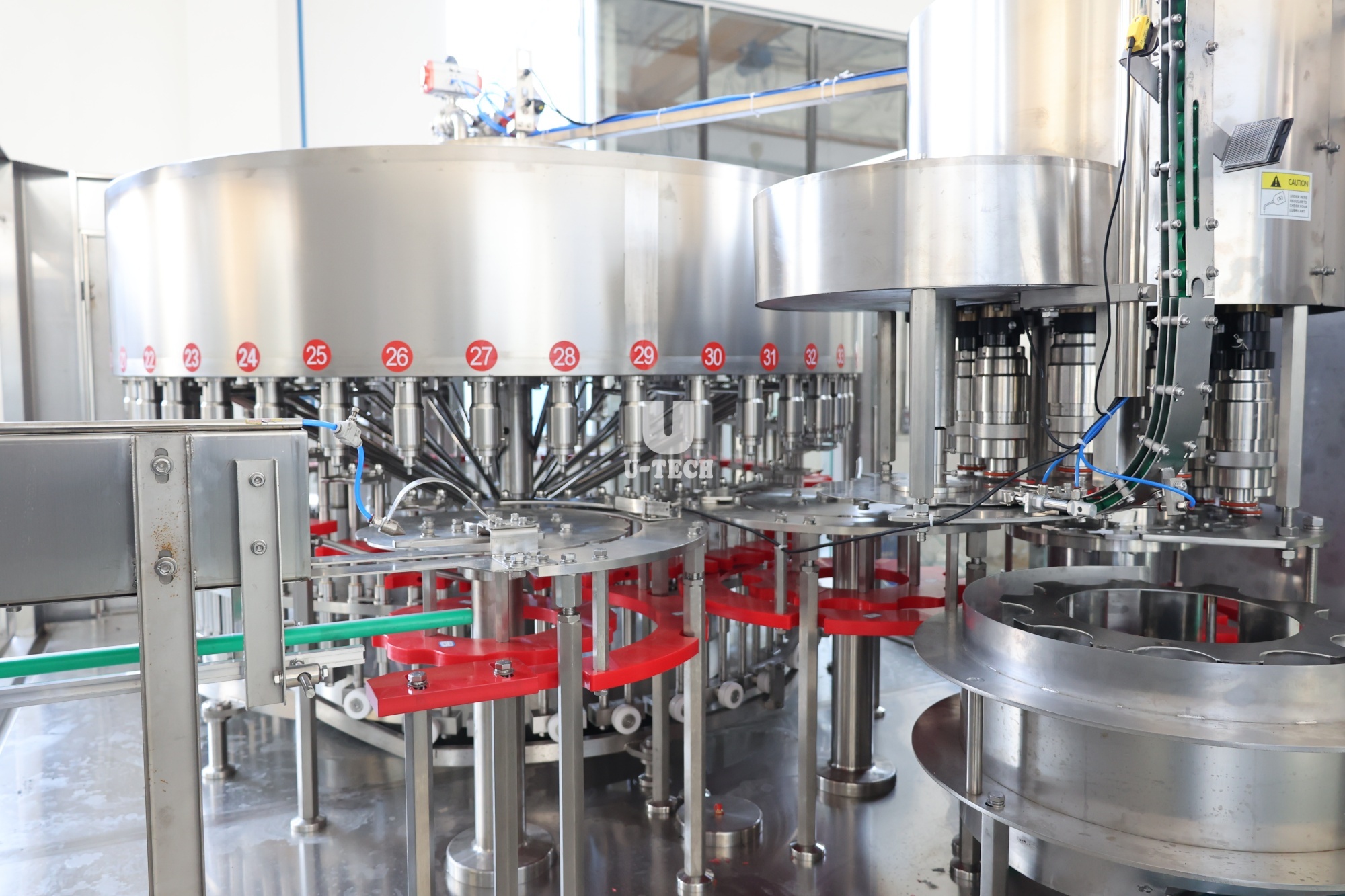

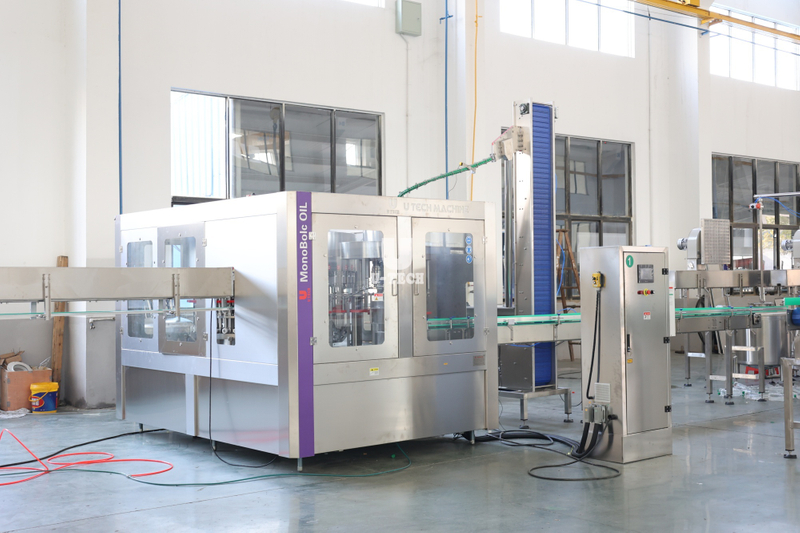

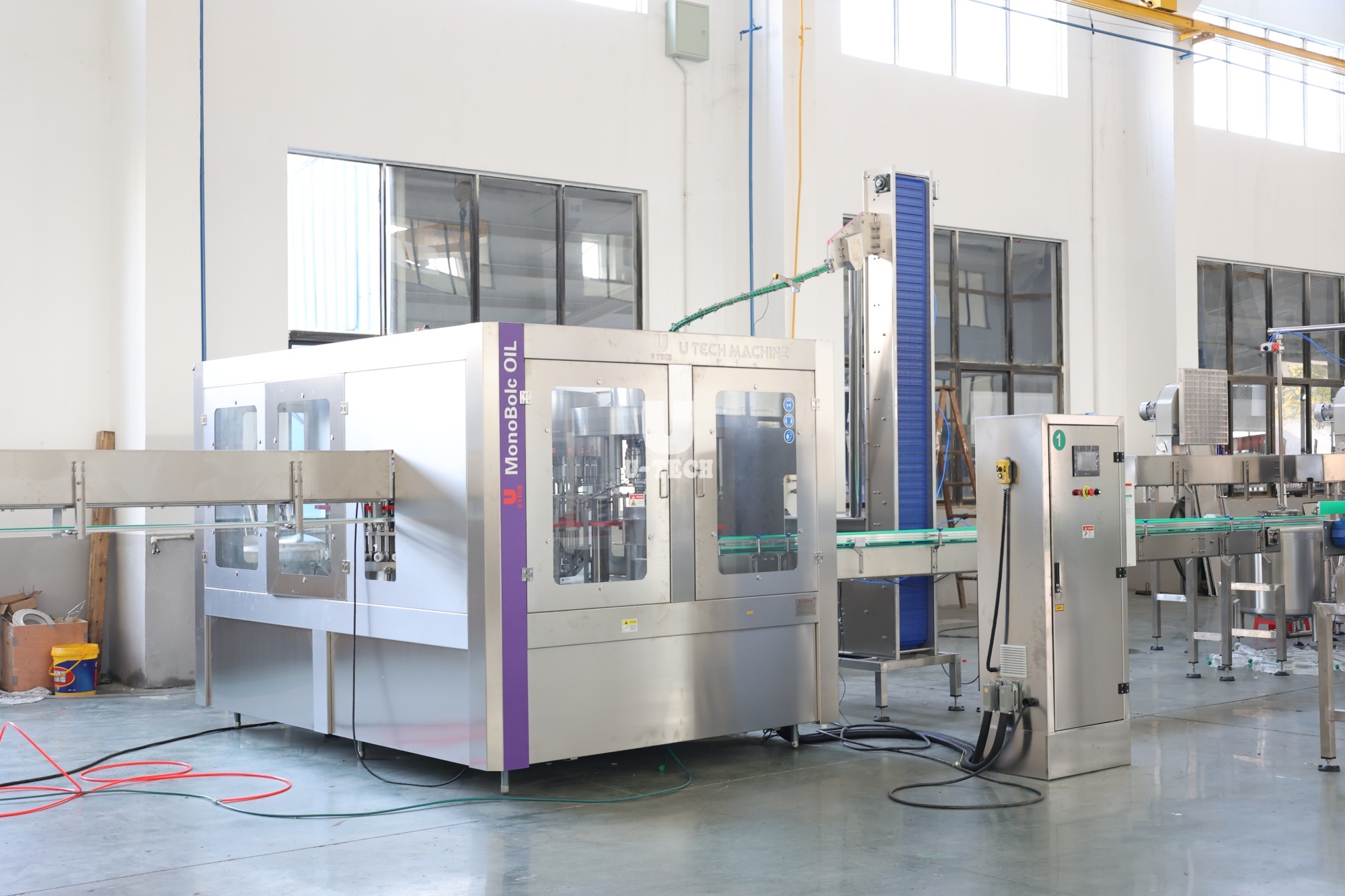

BST series 2-in-1 filling machine is automatic filling and capping. It is suitable for all kinds of edible oil, juice, seasoning etc. This series products apply electronic measuring mode and special liquid component to realize low foam volumetric filling and can realize non-contact filling under all temperature condition. Adopt ALCOA capping technology to realize full direction COP cleaning. Production varies from 3000BPH to 30,000BPH.

Machine Details

Machine Parts

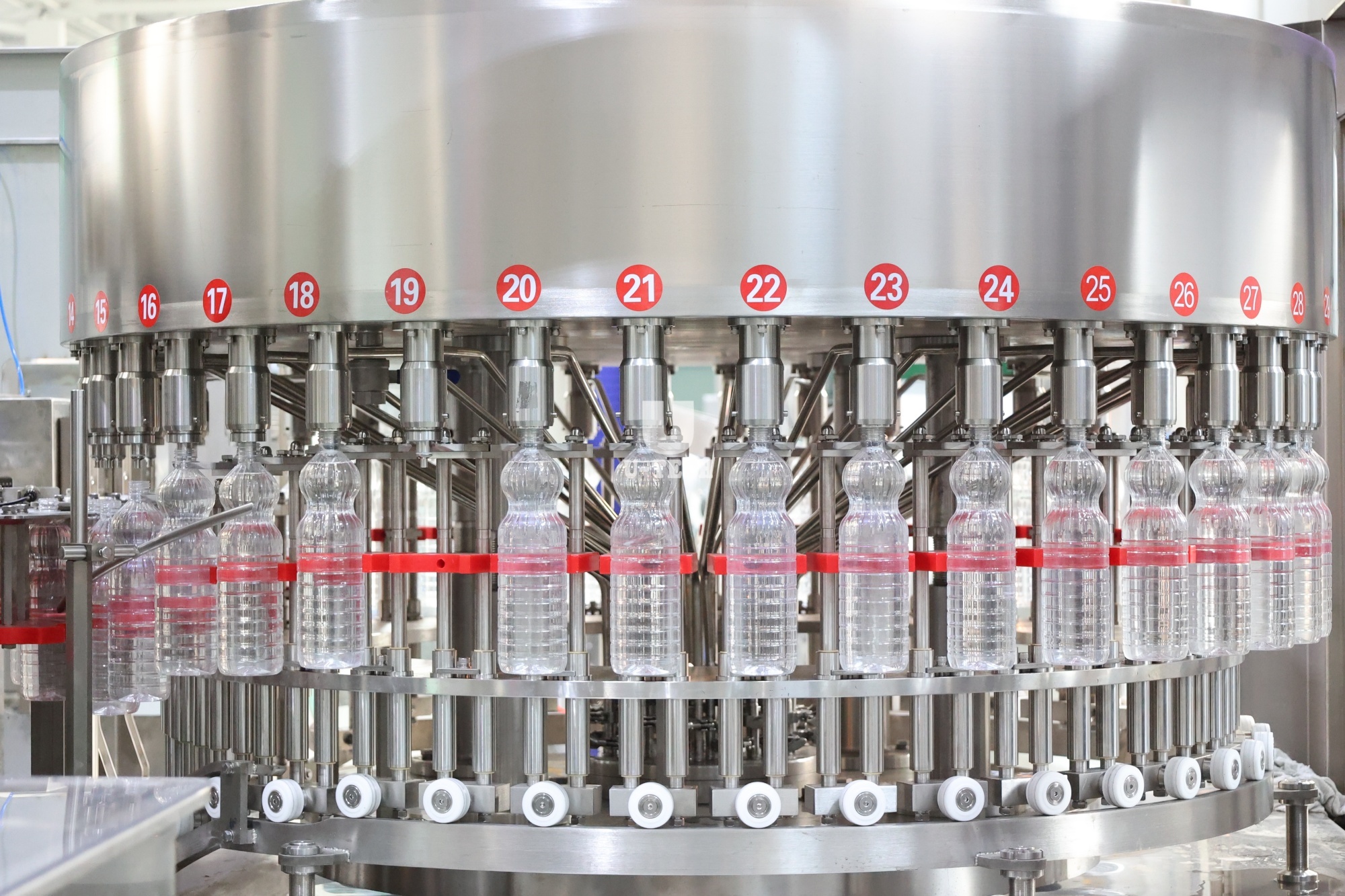

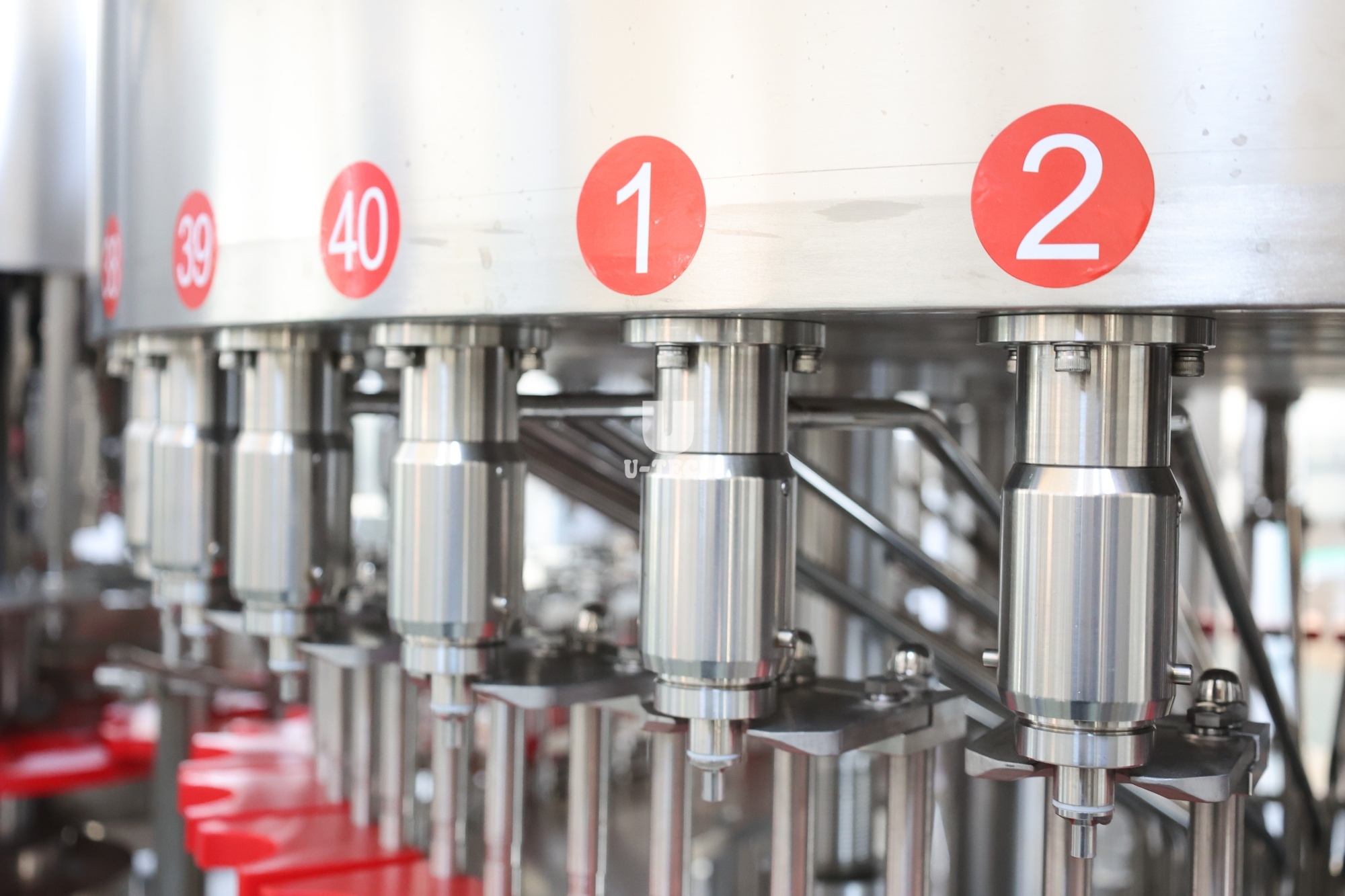

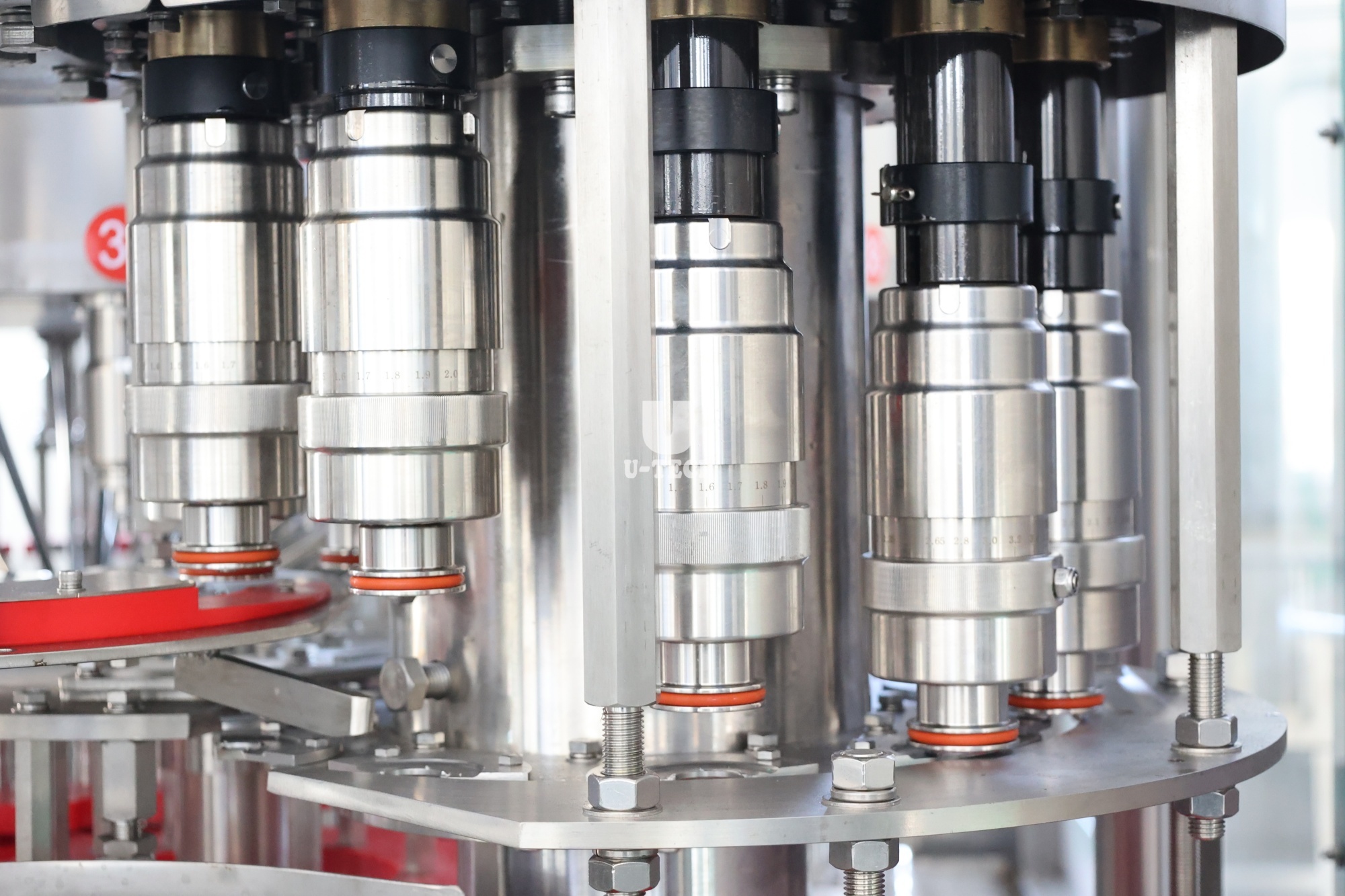

Name: filling heads

Brand: U Tech

Original: Jiangsu China

gravity filling with holding bottle neck; the special back flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.

Machine Parts

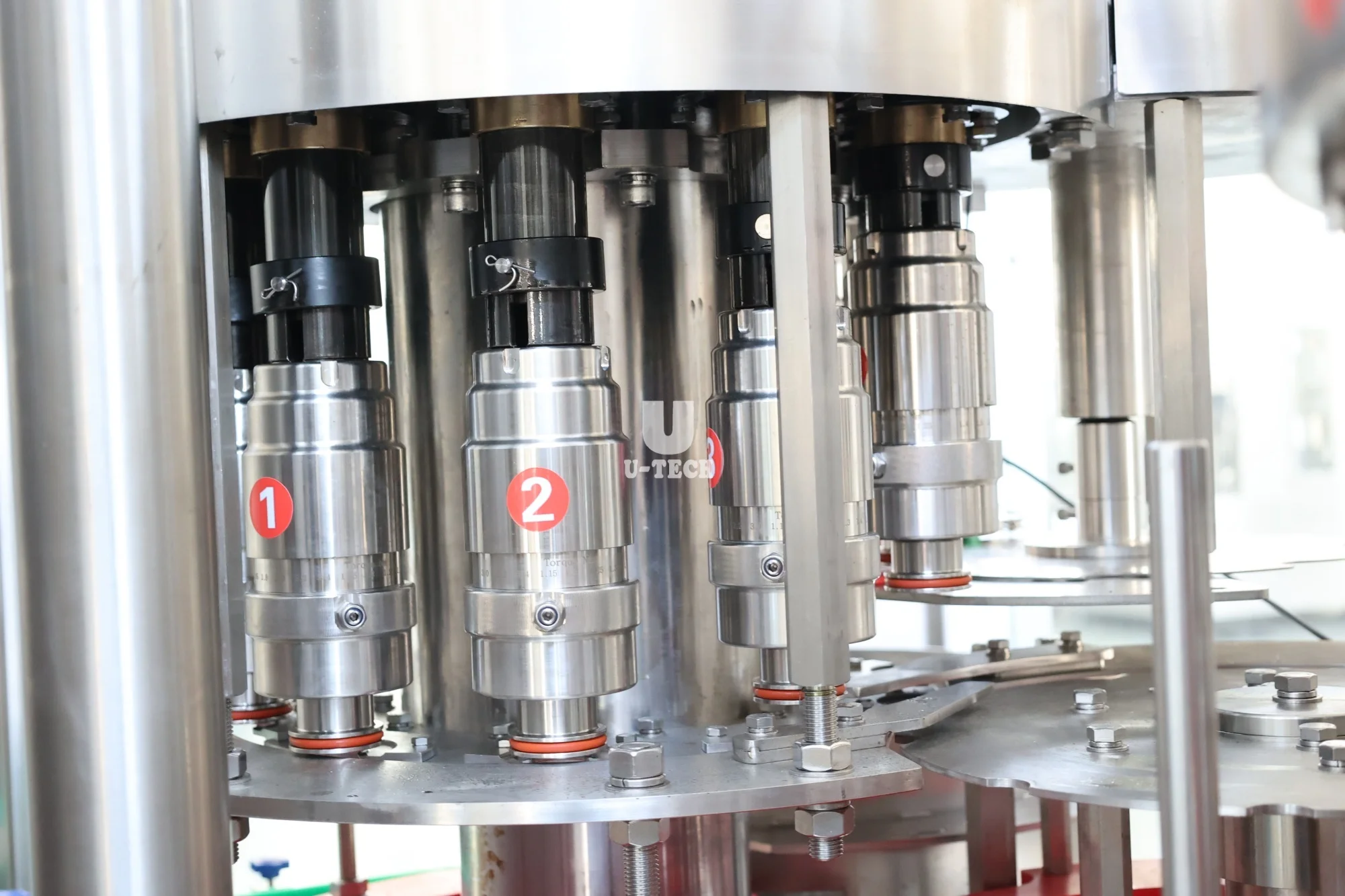

Name: capping heads
Brand: U Tech
Original: Jiangsu China
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

Technical Parameters

Containers and Specifications
Project Name:Automatic Oil Filling Machine				Oil and Fat Products
Bottle Material	Bottle Shape	Filling Range	Filling Heads	Production Capacity
PET / PP / PE / Glass / Metal	Round / Square / Unique Shape	200ml-6000ml	40	10000bph
Filling Valve	Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage.
Cap closing method	applicability for both crowning and capping, mechanical instant sealing or servocontrolled sealing
Bottle components	rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Filling precision	limit deviation: ±2-3g standard deviation: 1.5
User Ambient Conditions		Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Bottle blow molding machine

Automatic PET Bottle Blowing Machine

Semi-Automatic PET Bottle Blowing Machine Bottle

The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

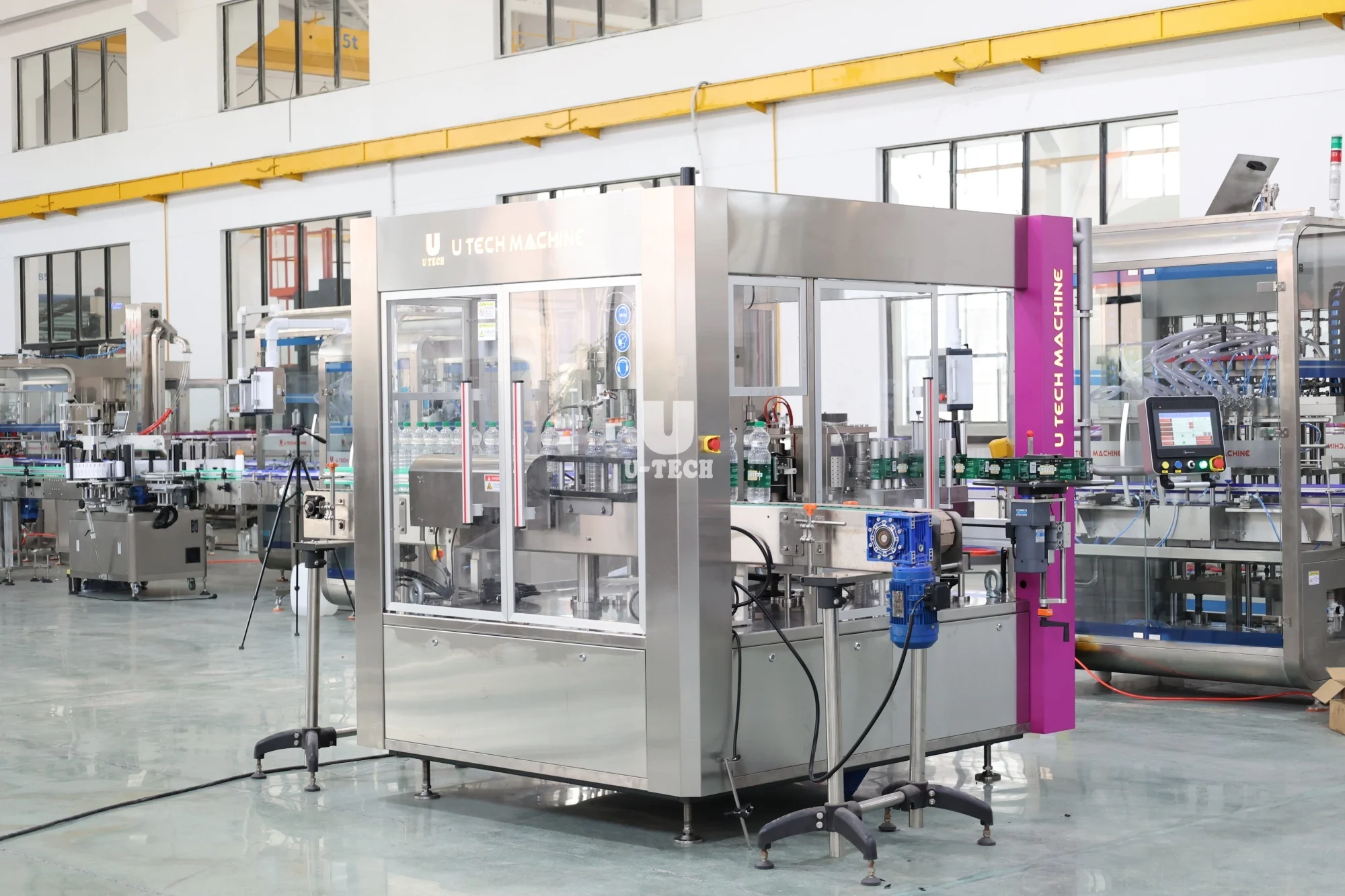

OPP labeling machine

The Hot Melt Glue Plastic Bottle Labeling Machine is widely suitable for different material of container and label.The label cost is comparatively lower,it can meet the requirements of those users who have diverse kinds of the containers.It is the most economical models in cost to make mass production and intergrated operating.

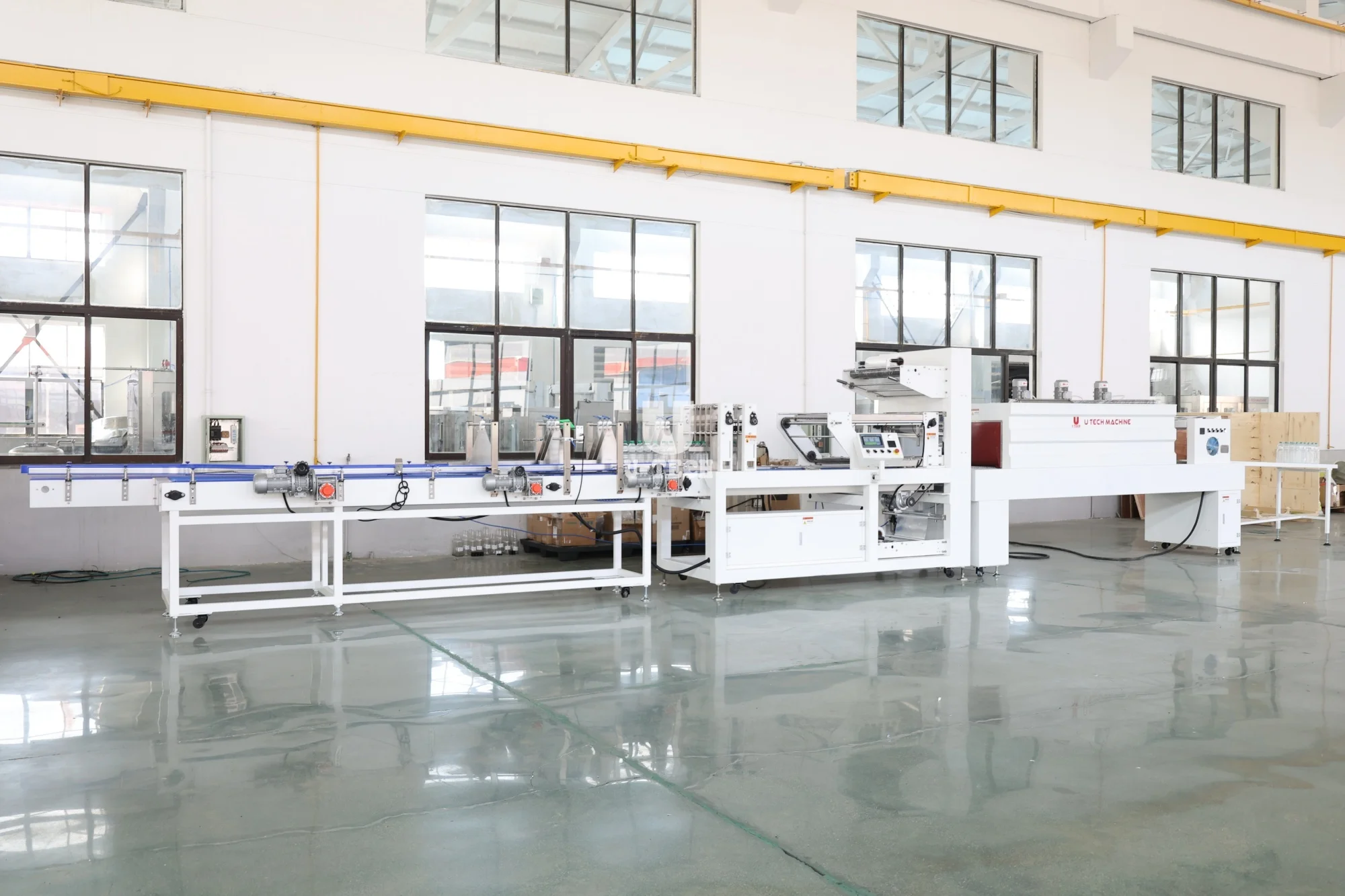

Shrink packing machine

The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
