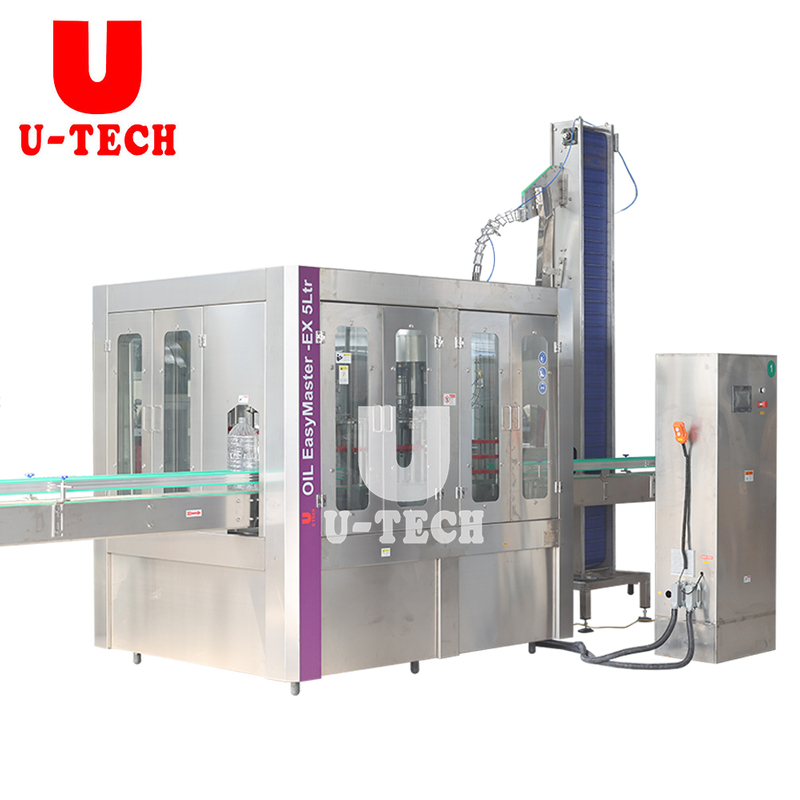

Automatic Sunflower Olive Vegetable Coconut Edible Cooking 5L PET Bottle Oil Filling Capping Machine Price Plant

Availability:
Quantity:
Description

BST series 2-in-1 filling machine is automatic filling and capping. It is suitable for all kinds of edible oil, juice, seasoning etc. This series products apply electronic measuring mode and special liquid component to realize low foam volumetric filling and can realize non-contact filling under all temperature condition. Adopt ALCOA capping technology to realize full direction COP cleaning. Production varies from 3000BPH to 30,000BPH.

Technical Parameters
Containers and Specifications
Project Name:Automatic Oil Filling Machine
Oil and Fat Products
Bottle Material
Bottle Shape
Filling Range
Filling Heads
Production Capacity
PET / PP / PE / Glass / Metal
Round / Square
/ Unique Shape
200ml-6000ml
8
1000bph

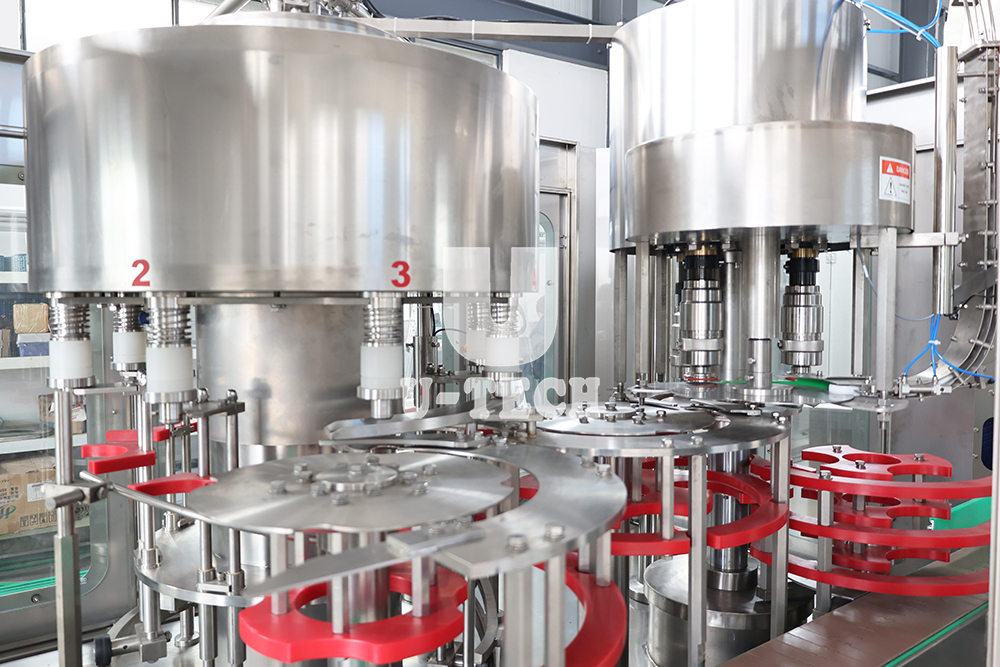

Filling Valve
Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage.

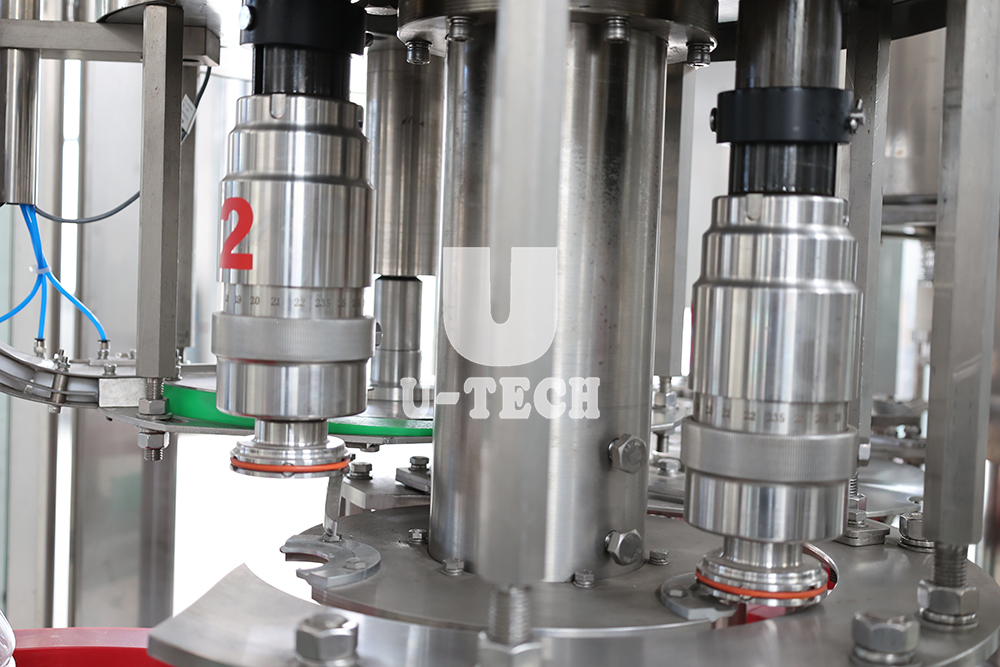

Cap closing
method
applicability for both crowning and capping, mechanical instant sealing or servo­controlled sealing
Bottle components
rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Filling precision
limit deviation: ±2-3g standard deviation: 1.5
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%
Machine Details
Control System
S/N
Name
Brand
Country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
Related Products

Bottle blow molding machine

Automatic PET Bottle Blowing Machine
Semi-Automatic PET Bottle Blowing Machine Bottle
The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

Sleeve labeling machine

This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height.

The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.

Shrink packing machine

The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
