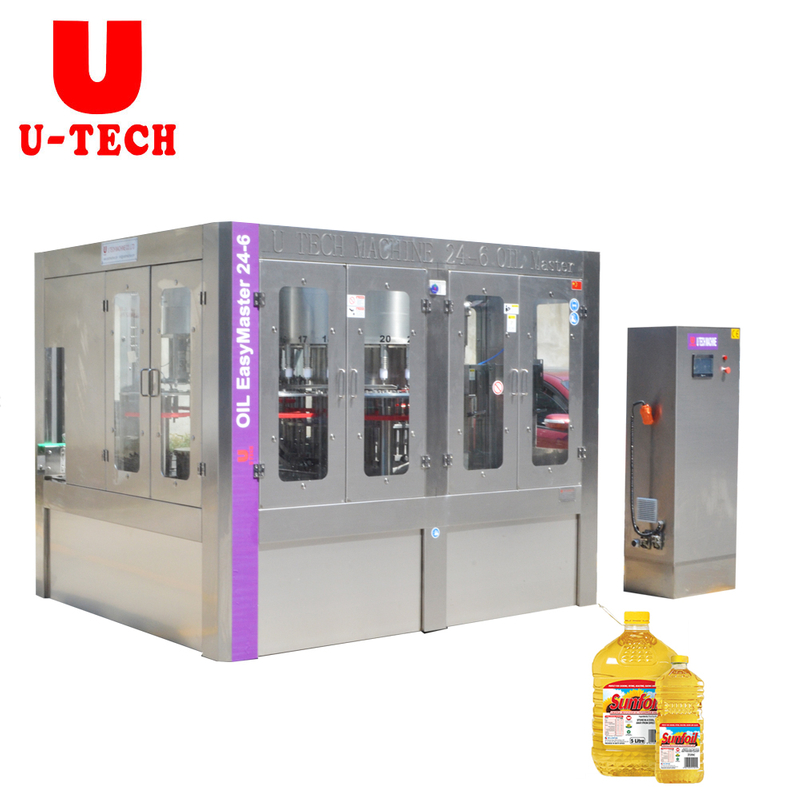

Automatic Rotary 2 in 1 Small Pet Plastic Bottle Food Sunflower Cooking Oil Filling Capping Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

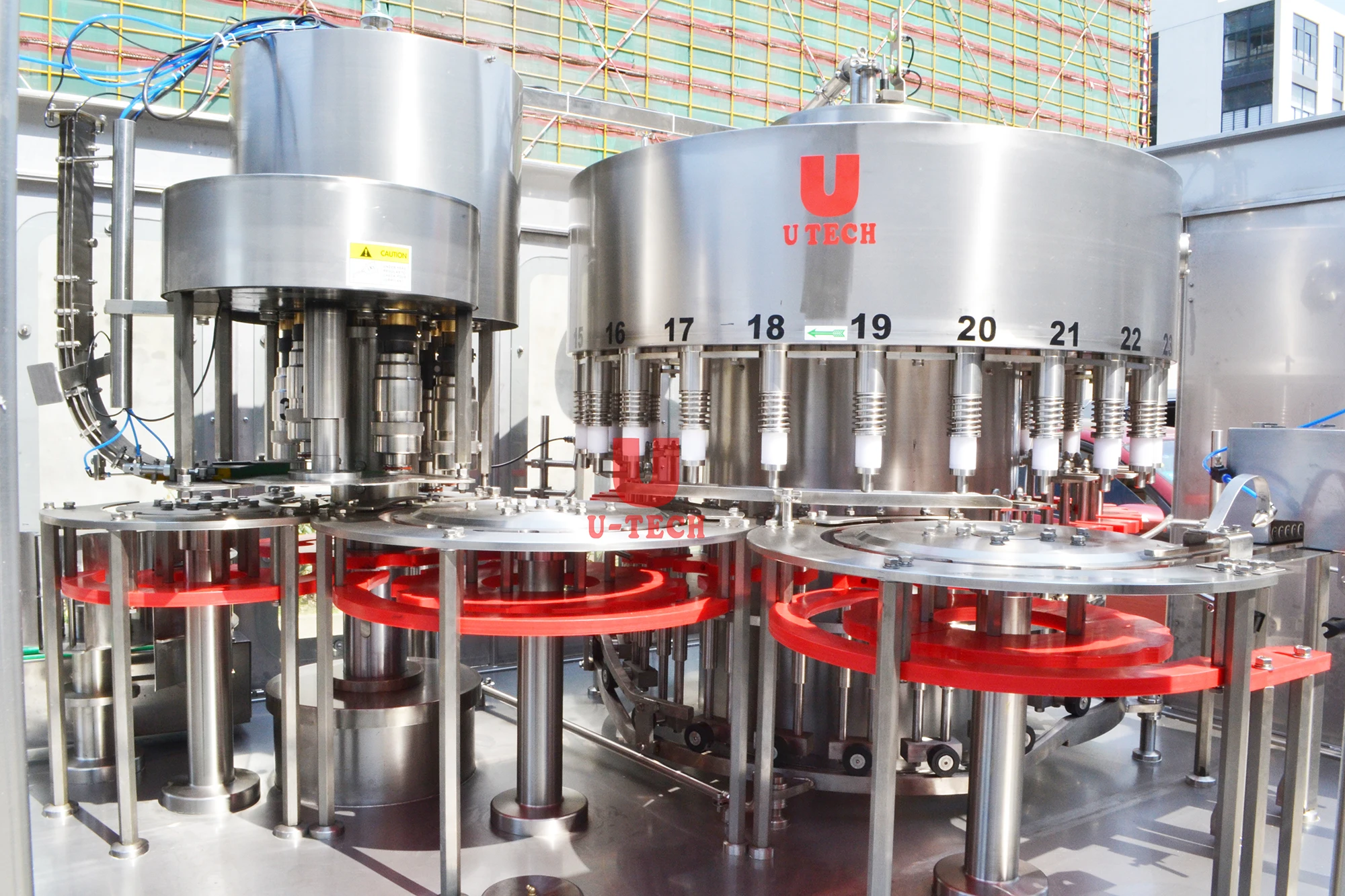

BST series 2-in-1 filling machine is automatic filling and capping. It is suitable for all kinds of edible oil, juice, seasoning
etc. This series products apply electronic measuring mode and special liquid component to realize low foam volumetric filling and can realize non-contact filling under all temperature condition. Adopt ALCOA capping technology to realize full direction COP cleaning. Production varies from 3000BPH to 30,000BPH.

Technical parameter

Containers and Specifications
Project Name:Automatic Oil Filling Machine				Oil and Fat Products
Bottle Material	Bottle Shape	Filling Range	Filling Heads	Production Capacity
PET / PP / PE / Glass / Metal	Round / Square / Unique Shape	200ml-3000ml	24	8000-10000bph
Filling Valve	Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage.
Cap closing method	applicability for both crowning and capping, mechanical instant sealing or servocontrolled sealing
Bottle components	rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Filling precision	limit deviation: ±2-3g standard deviation: 1.5
User Ambient Conditions		Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Machine details

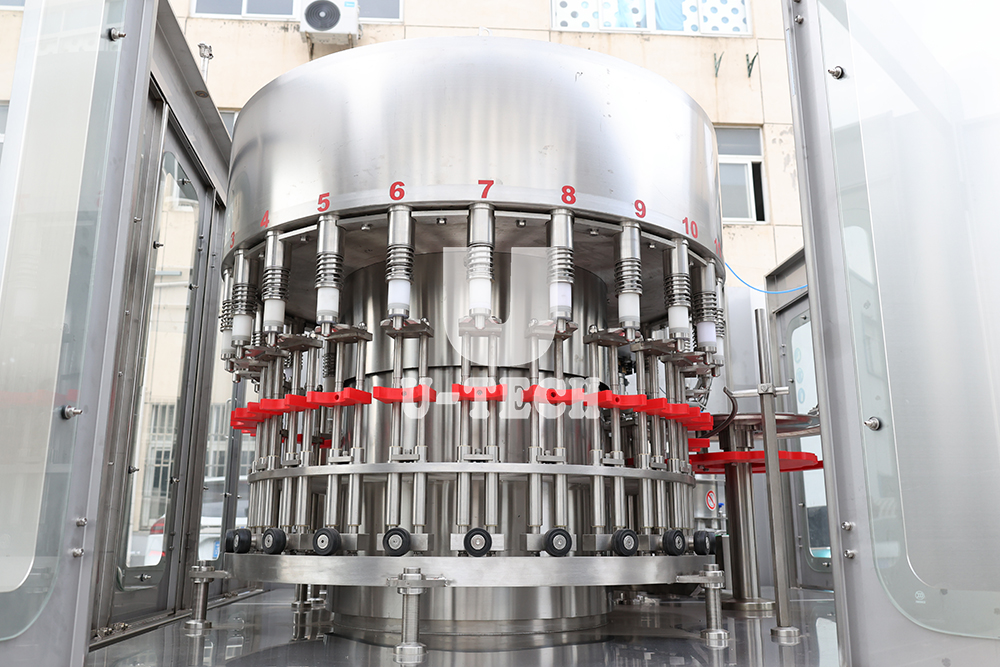

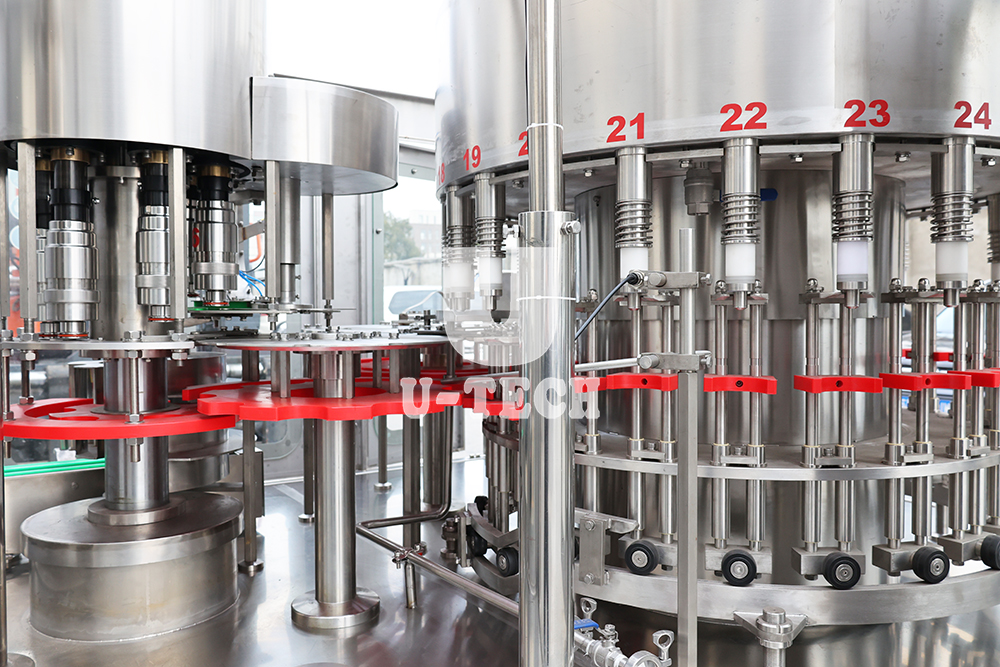

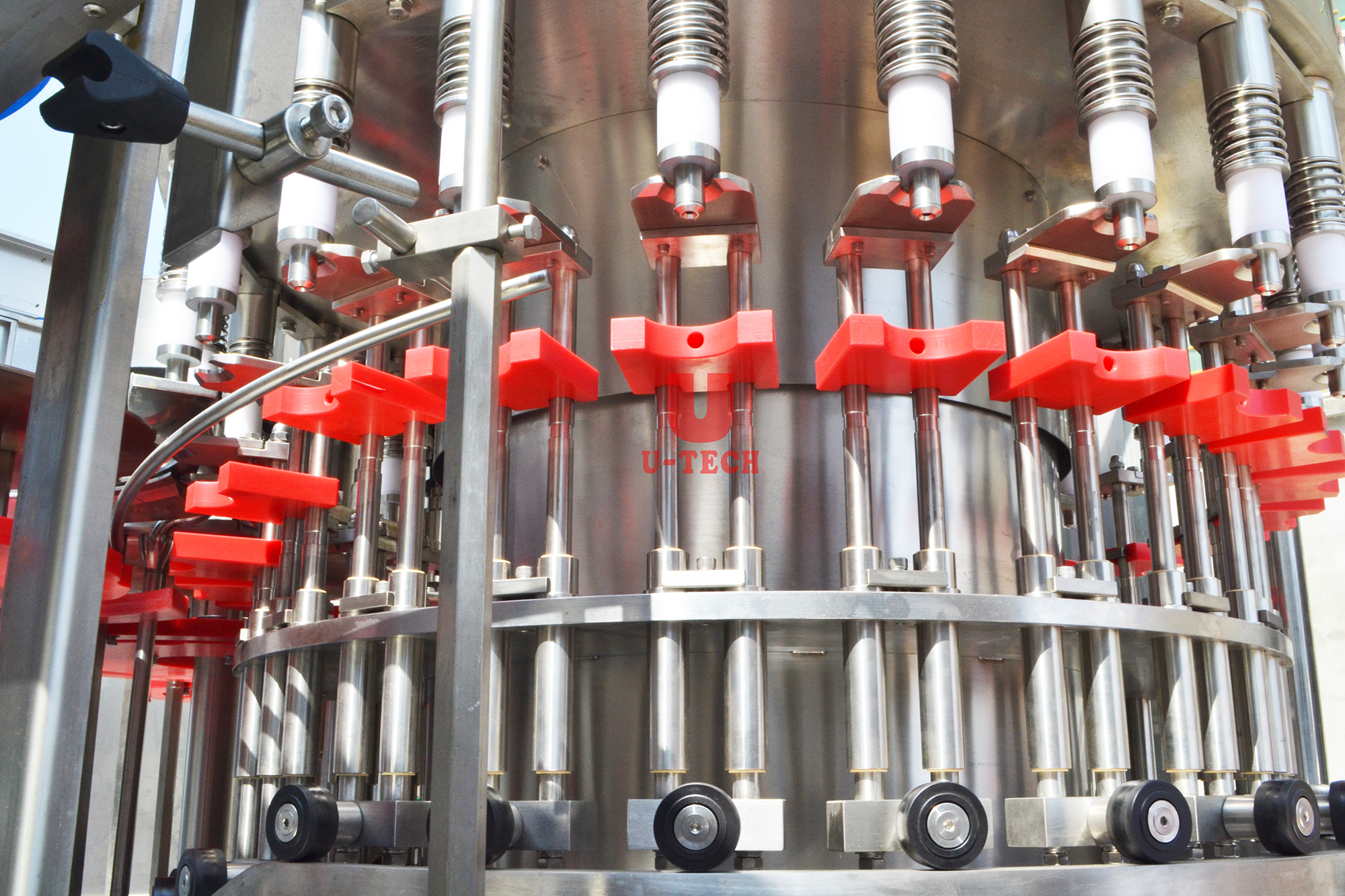

Filling heads

Name: filling heads
Brand: U Tech
Original: Jiangsu China
gravity filling with holding bottle neck; the special back flow type of the filling valve can avoid leakage after filling and also
control liquid level accurately.

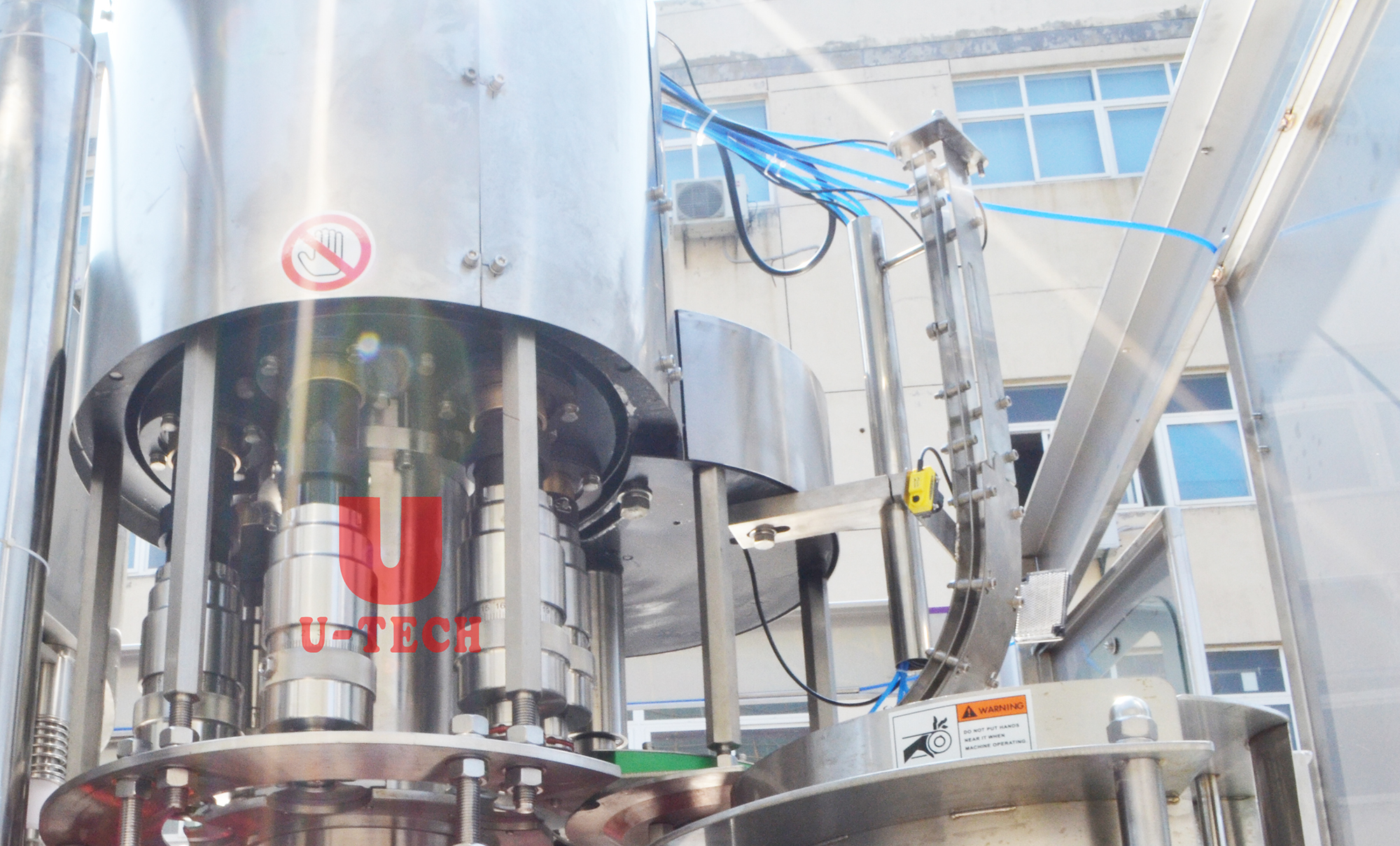

Capping heads

Name: capping heads
Brand: U Tech
Original: Jiangsu China
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made
of excellent stainless steel or food grade engineering plastic.

Main Features

1. Touch screen operation interface;

2. Up and down movement type filling, effectively prevent the foam from being produced, easy to take apart and wash;

3. The filling accuracy can reach +/-1%;

4. The flling cylinder is ground, unique flling valve design, no leakage;

5. With no bottle no flling and automatic bottle stop function;

6. Design different positioning devices according to the actual situation of the bottle;

7. The equipment is easy to clean, can be disassemble without tools, it can also be cleaned online or high temperature
sterilization;

8. PLC programmable control use Japan Mitsubishi;

9. Frequency converter adopts France Schneider;

10. Pneumatic components adopt Taiwan Airtac;

11. Material contact parts are made of SUS304# stainless steel;

12. The equipment meets the hygiene and safety standards. The user can choose the glass protective cover.
