Automatic Bottle Edible Food Cooking Coconut Mustard Oil Filling Capping Machine Line

Share to:

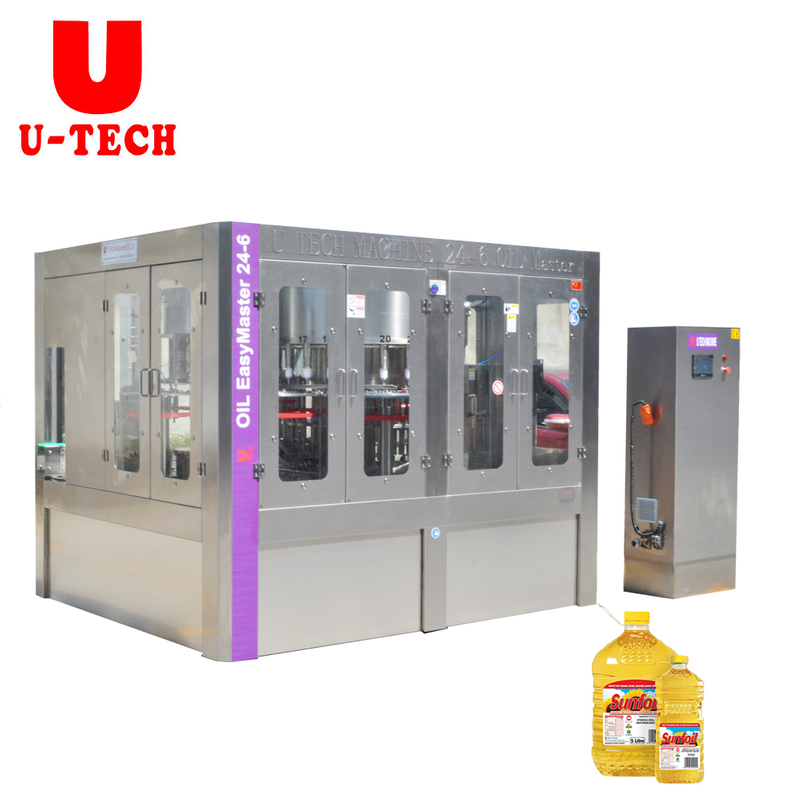

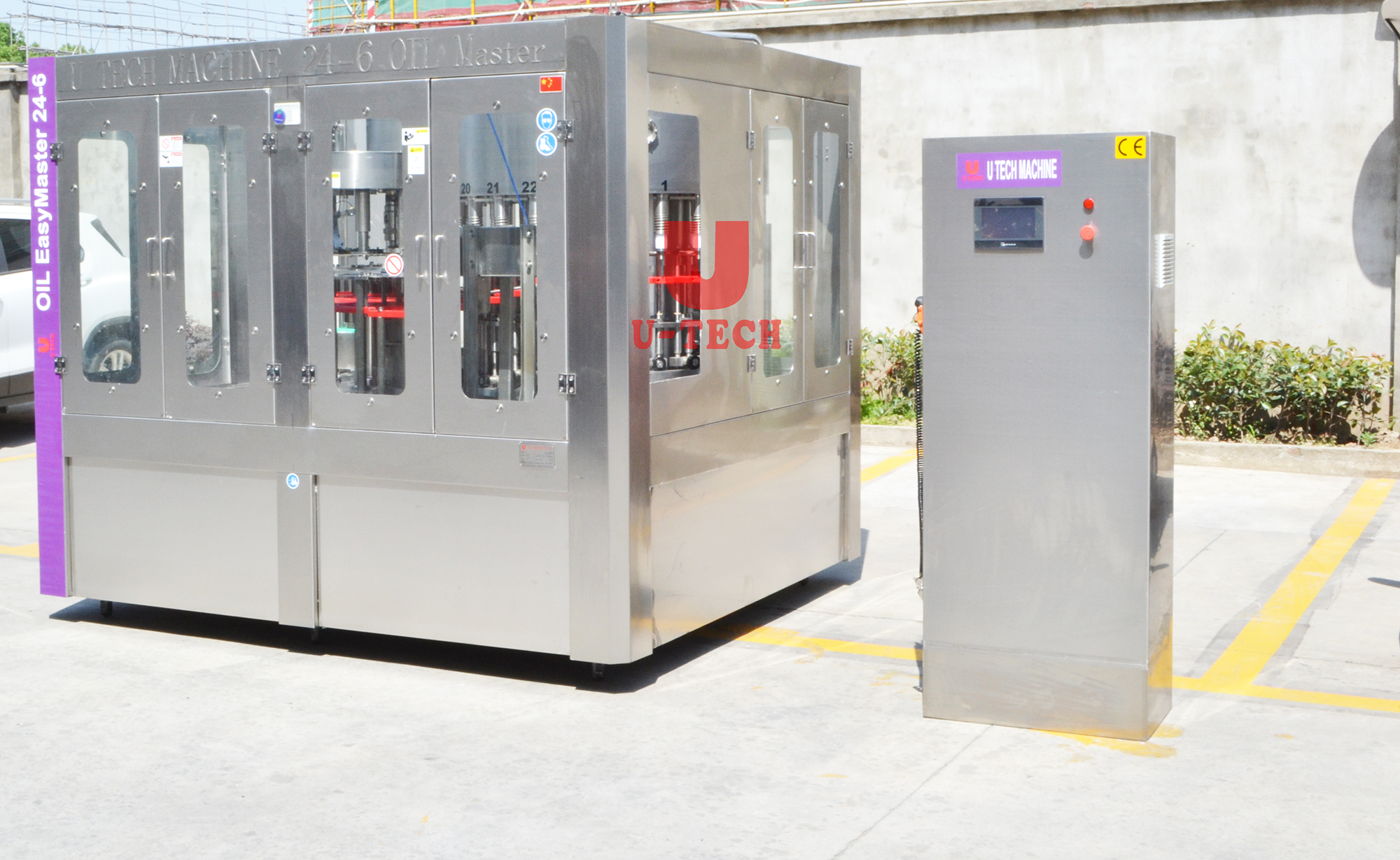

Automatic Bottle Edible Food Cooking Coconut Mustard Oil Filling Capping Machine Line

Availability:

Quantity:



Inquire Add to Basket

Model:
UT24-6
Brand:
U TECH

Product Description

Description

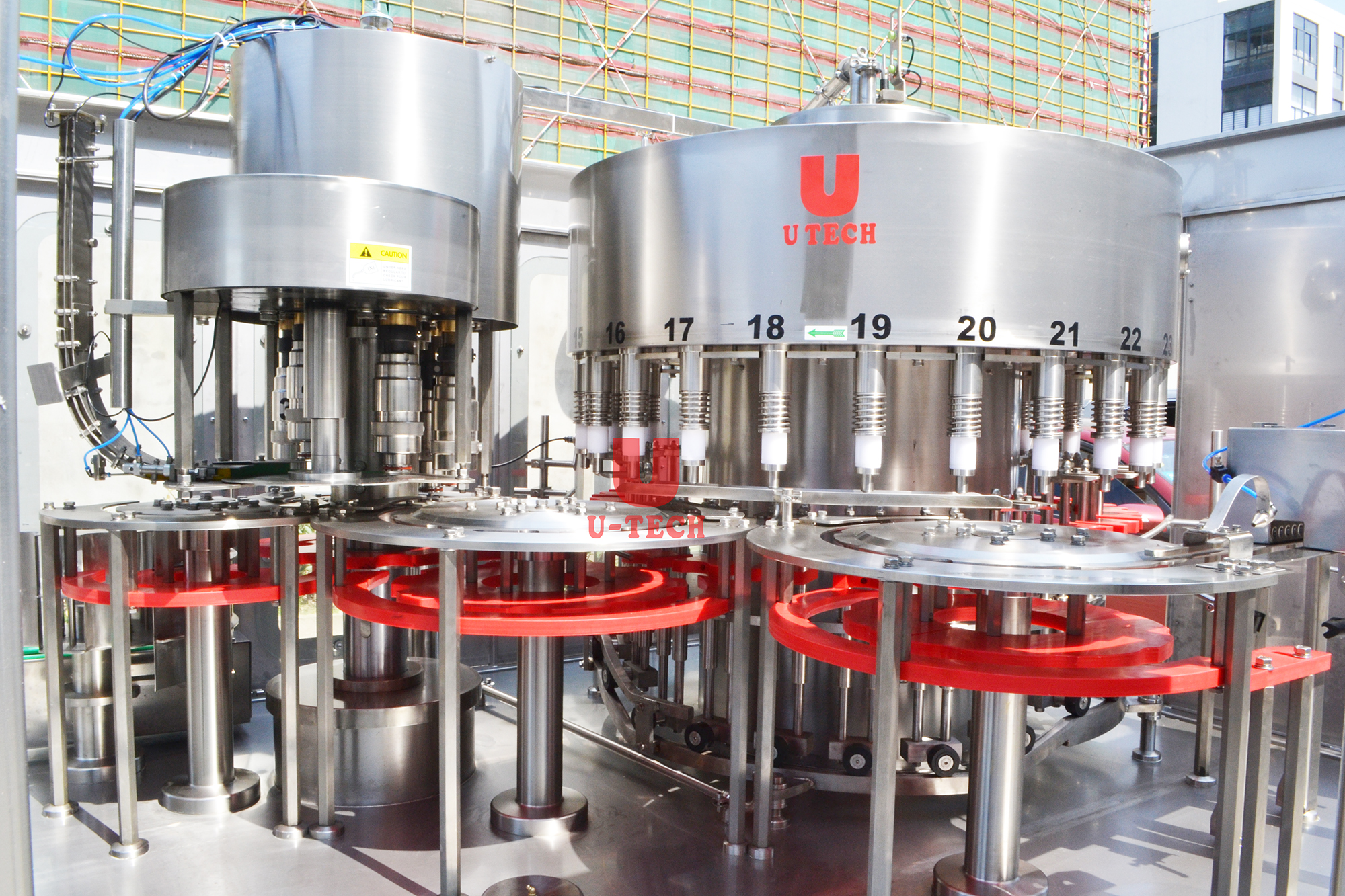

 BST series 2-in-1 filling machine is automatic filling and capping. It is suitable for all kinds of edible oil, juice, seasoning etc. This series products apply electronic measuring mode and special liquid component to realize low foam volumetric filling and can realize non-contact filling under all temperature condition. Adopt ALCOA capping technology to realize full direction COP cleaning. Production varies from 3000BPH to 30,000BPH.

 Flow

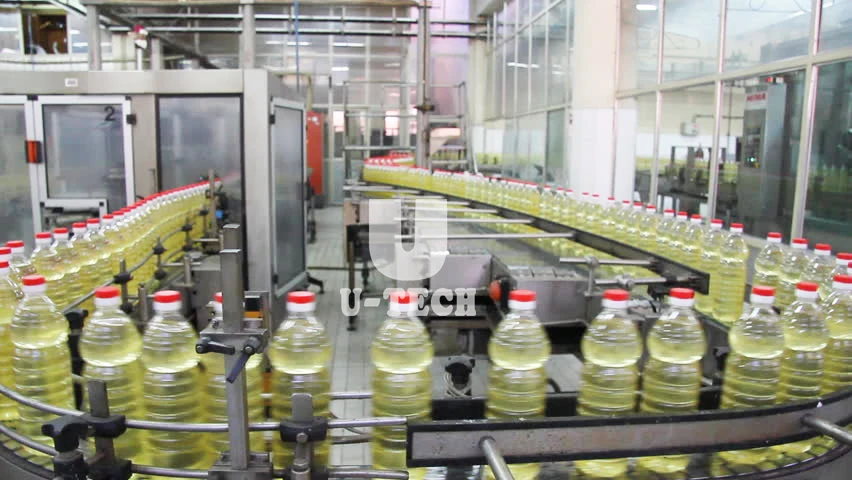

 Sample

Technical Parameters

Containers and Specifications
Project Name:Automatic Oil Filling Machine				Oil and Fat Products
Bottle Material	Bottle Shape	Filling Range	Filling Heads	Production Capacity
PET / PP / PE / Glass / Metal	Round / Square / Unique Shape	200ml-6000ml	24	6000-8000bph
Filling Valve	Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage.
Cap closing method	applicability for both crowning and capping, mechanical instant sealing or servocontrolled sealing
Bottle components	rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Filling precision	limit deviation: ±2-3g standard deviation: 1.5
User Ambient Conditions		Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Machine Details

Machine Parts

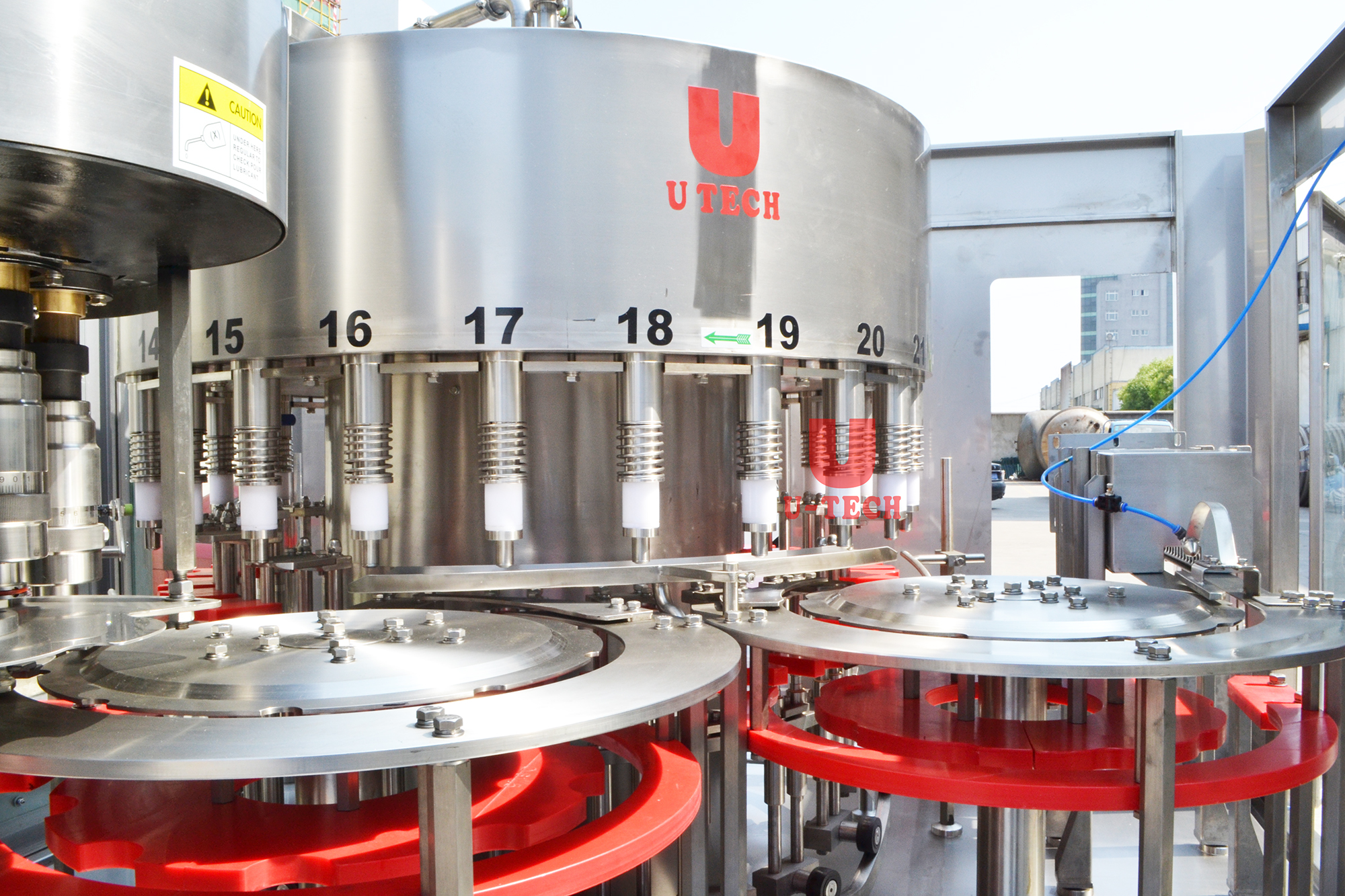

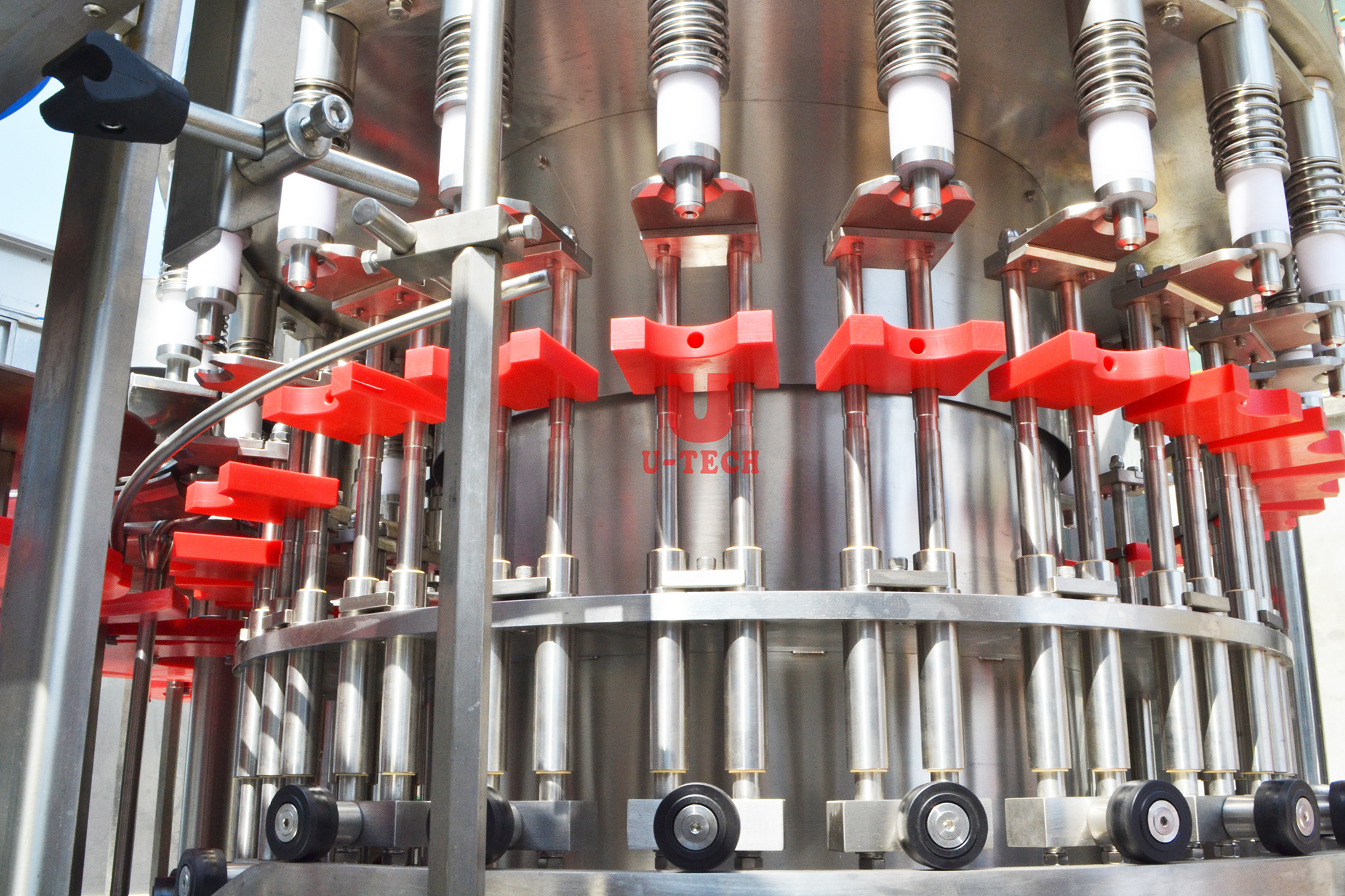

Name: filling heads
Brand: U Tech
Original: Jiangsu China
gravity filling with holding bottle neck; the special back flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.

Machine Parts

Name: capping heads
Brand: U Tech
Original: Jiangsu China
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

Main Features

Touch screen operation interface;

Up and down movement type filling, effectively prevent the foam from being produced, easy to take apart and wash;

The filling accuracy can reach +/-1%;

The flling cylinder is ground, unique flling valve design, no leakage;

With no bottle no flling and automatic bottle stop function;

Design different positioning devices according to the actual situation of the bottle;

The equipment is easy to clean, can be disassemble without tools, it can also be cleaned online or high temperature sterilization;

PLC programmable control use Japan Mitsubishi;

Frequency converter adopts France Schneider;

Pneumatic components adopt Taiwan Airtac;

Material contact parts are made of SUS304# stainless steel;

The equipment meets the hygiene and safety standards. The user can choose the glass protective cover.

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China

Bottle blow molding machine

 Automatic PET Bottle Blowing Machine

 Semi-Automatic PET Bottle Blowing Machine Bottle

 The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

Sleeve labeling machine

 This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height.

The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.

Shrink packing machine

 The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.

FAQ

Q1:Do you have any reference project?   >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?
   >>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.

Q3: Do you provide customized service?
   >> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.

Q4:When can I get my machine after I paid?
   >> A4:We will deliver the machines on time as the date we agreed both side.

Q5:How can I install my machine when it arrives?
   >> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
