Automatic 2 in 1 rotaey small scale pet bottle food cooking edible oil filling capping machine line

Share to:

Automatic 2 in 1 rotaey small scale pet bottle food cooking edible oil filling capping machine line

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

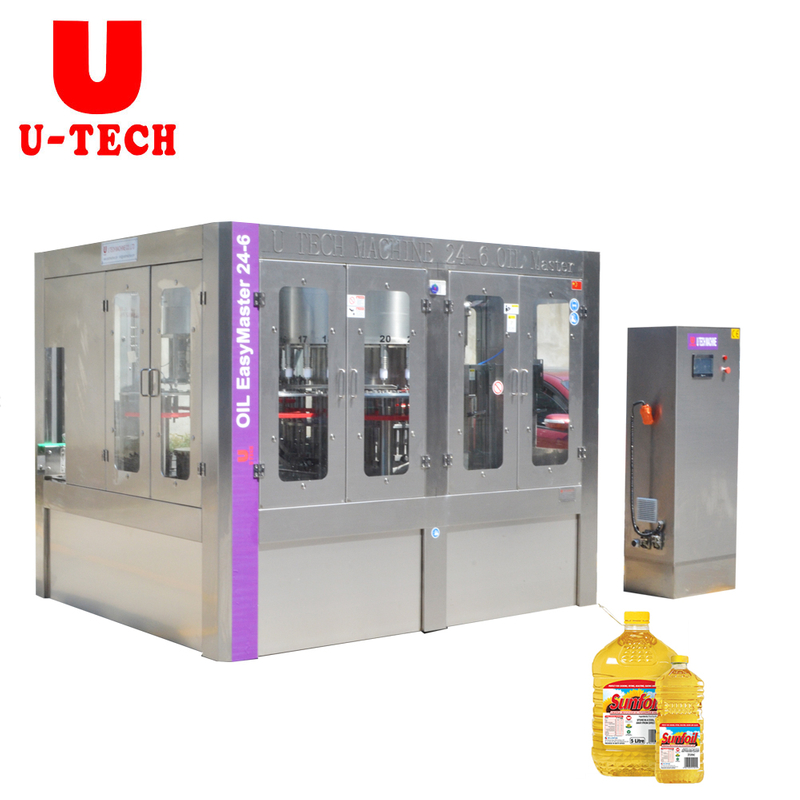

BST series 2-in-1 filling machine is automatic filling and capping. It is suitable for all kinds of edible oil, juice, seasoning etc. This series products apply electronic measuring mode and special liquid component to realize low foam volumetric filling and can realize non-contact filling under all temperature condition. Adopt ALCOA capping technology to realize full direction COP cleaning. Production varies from 3000BPH to 30,000BPH.

Technical Parameters

Containers and Specifications
Project Name:Automatic Oil Filling Machine				Oil and Fat Products
Bottle Material	Bottle Shape	Filling Range	Filling Heads	Production Capacity
PET / PP / PE / Glass / Metal	Round / Square / Unique Shape	200ml-6000ml	24	6000-8000bph
Filling Valve	Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage.
Cap closing method	applicability for both crowning and capping, mechanical instant sealing or servocontrolled sealing
Bottle components	rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Filling precision	limit deviation: ±2-3g standard deviation: 1.5
User Ambient Conditions		Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Machine Details

Machine Parts

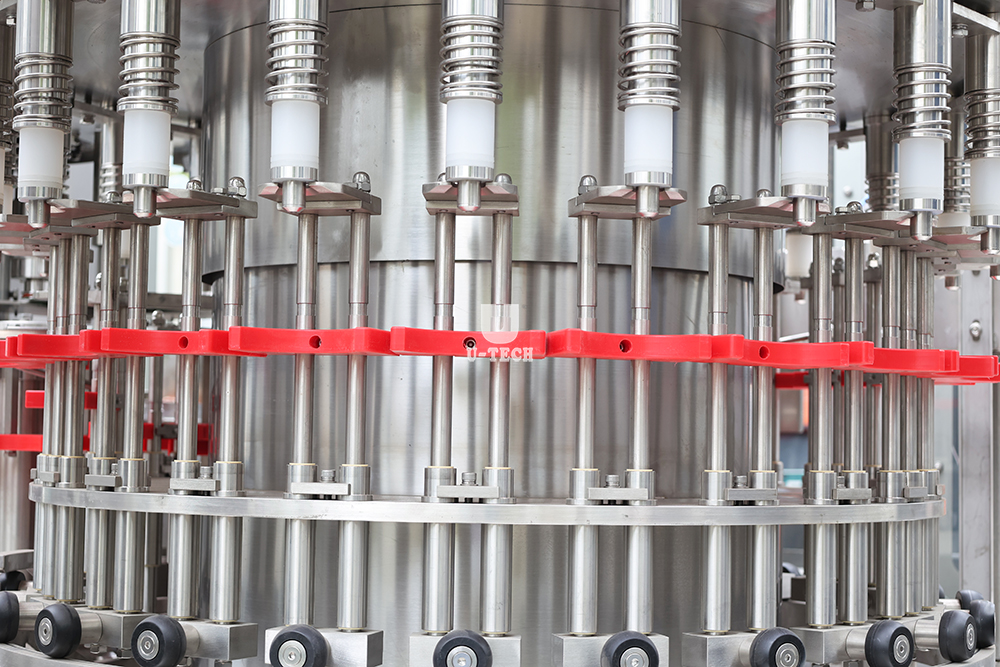

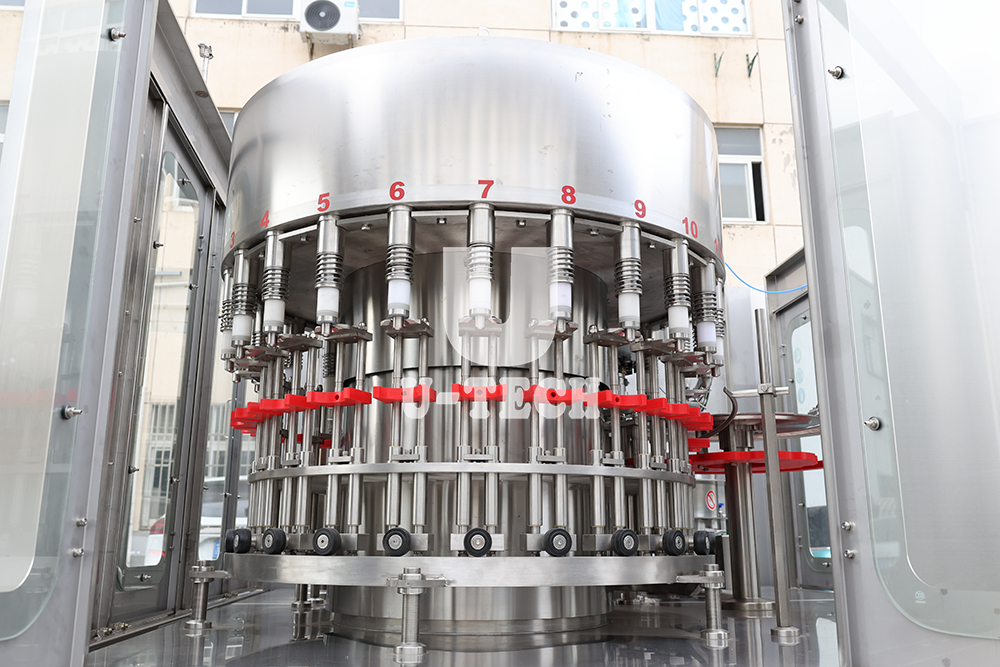

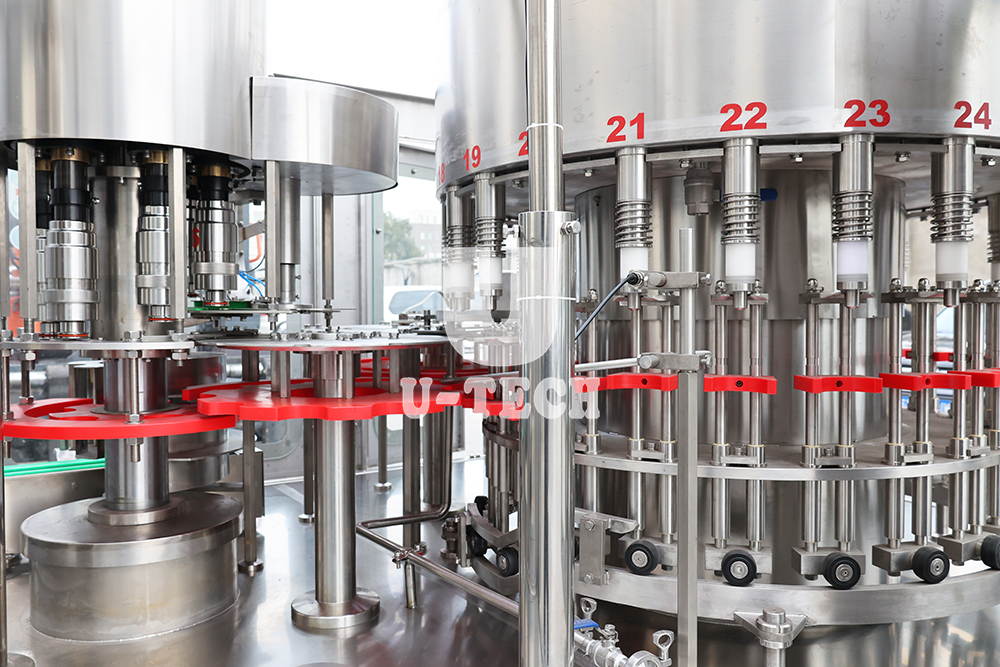

Name: filling heads

Brand: U Tech

Original: Jiangsu China

gravity filling with holding bottle neck; the special back flow type of the filling valve can avoid leakage after filling and also control liquid level accurately.

Machine Parts

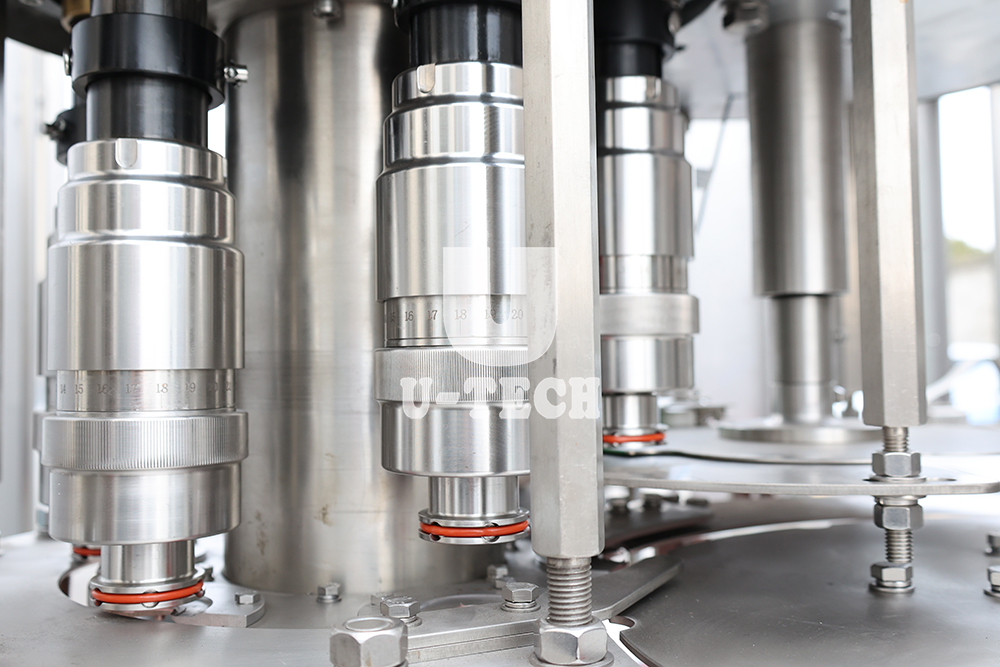

Name: capping heads
Brand: U Tech
Original: Jiangsu China
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.
