Small PET bottle pure mineral spring drinking water filling machine production line

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description and Flow

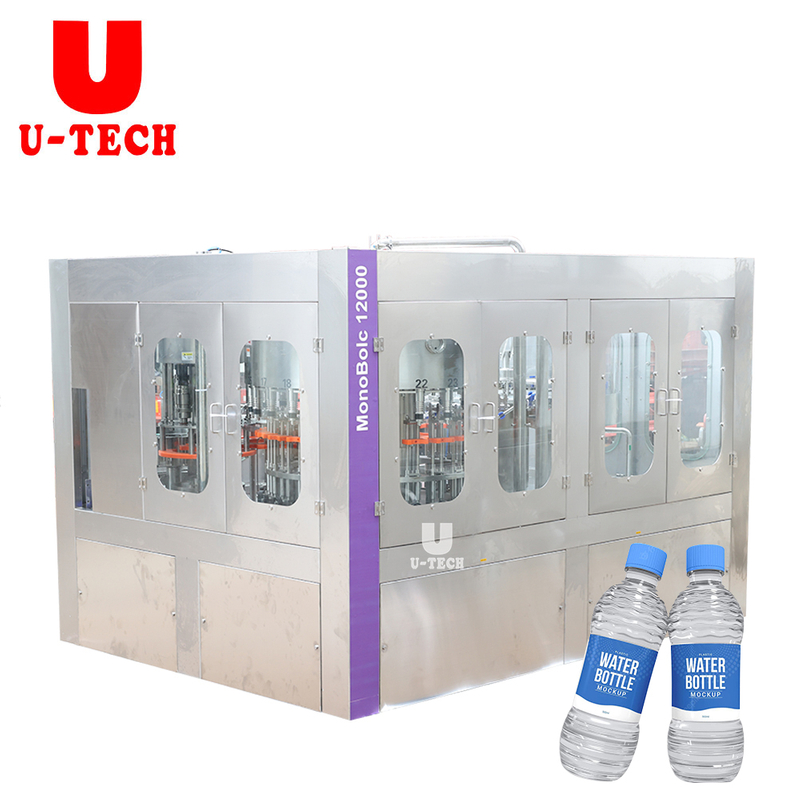

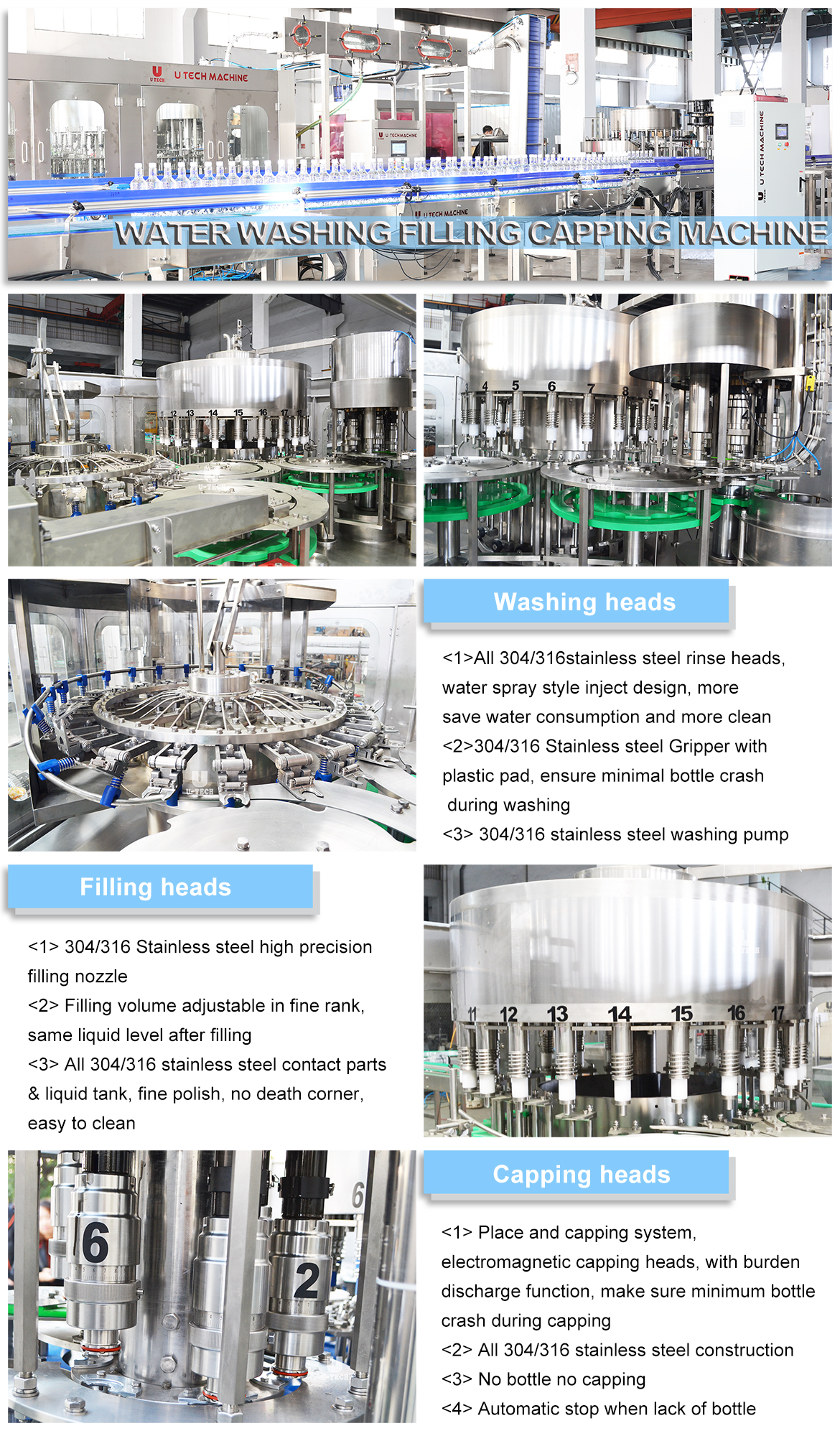

 CGFseries washing, filling ,capping 3 in 1 unit is a new type equipment, which base on years' usual practice and adopt the advanced technology,and absorb many clients' views .It meets the client's requirement about filling different bottle size through one set. The suspension card bottleneck is adopted to make changing the bottle size more convenient. It can deliver the bottles automatically by blind and then washing,drying ,filling,covering,capping by order automatically. It is impossible to cover lids when the bottles are't up to the limited level, or don't arrive to the limited possible, or to adjust the speed freely, for it employs the advanced PLC system and frequency conversion and speed control system. The function of touching the screen enables the operation easier and faster. It is mainly used to non-carbonated beverage.


Technical Parameters

Model	CGF24-24-8
Capacity	10000PBH
Washing heads	24
Filling heads	24
Capping heads	8
suitable bottle	PET bottle,plastic bottle
Diameter of bottle	55-110mm
Height of bottle	150-310mm
Suitable cap	Plastic screw cap
Weight	4500kg
Main motor power	3kw

Machine Details

Main Features

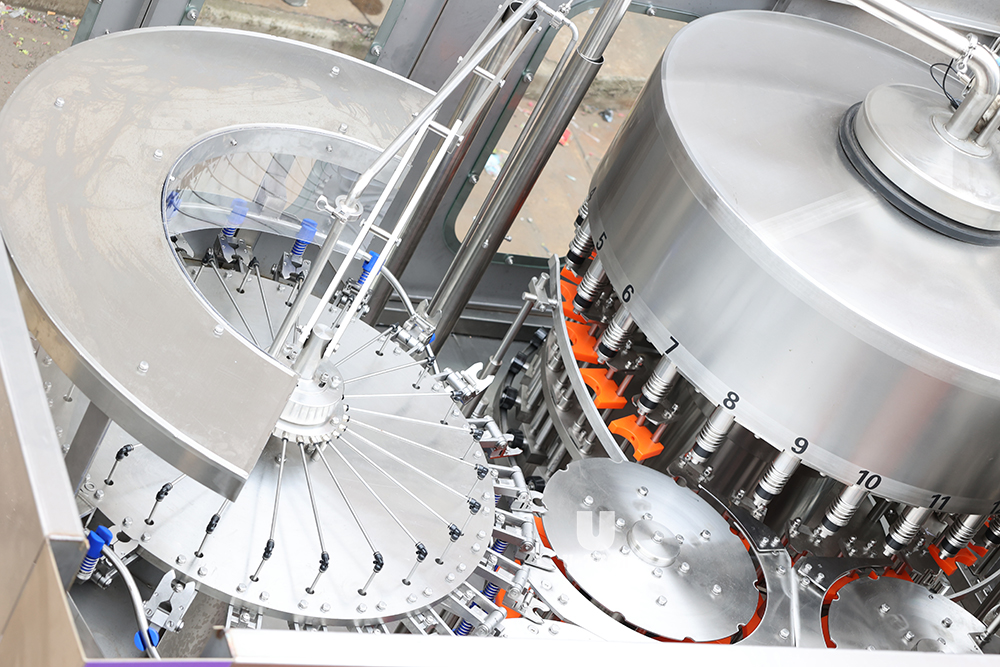

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

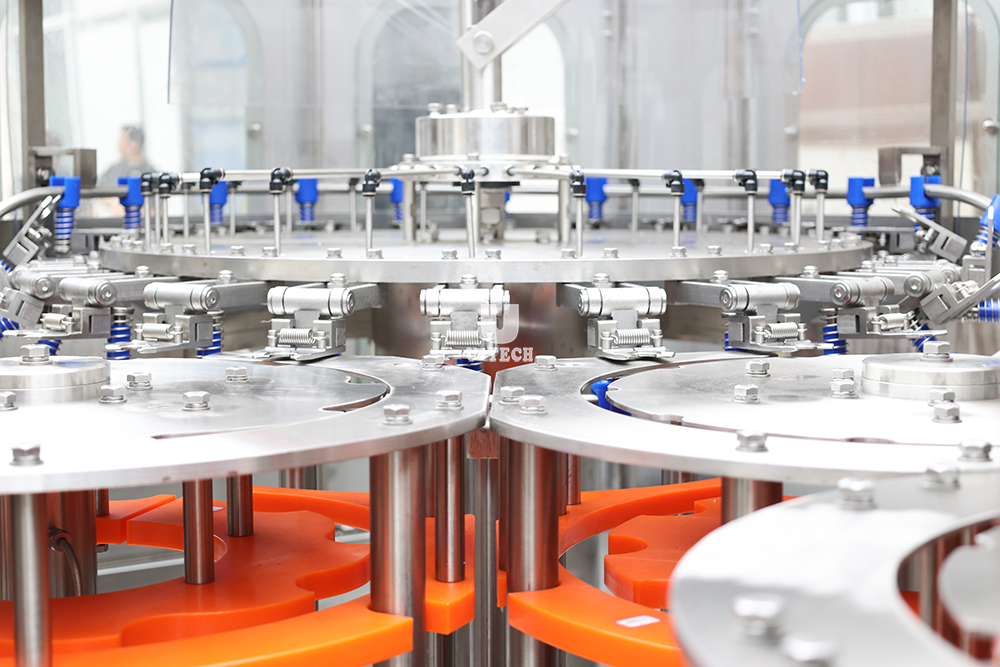

Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

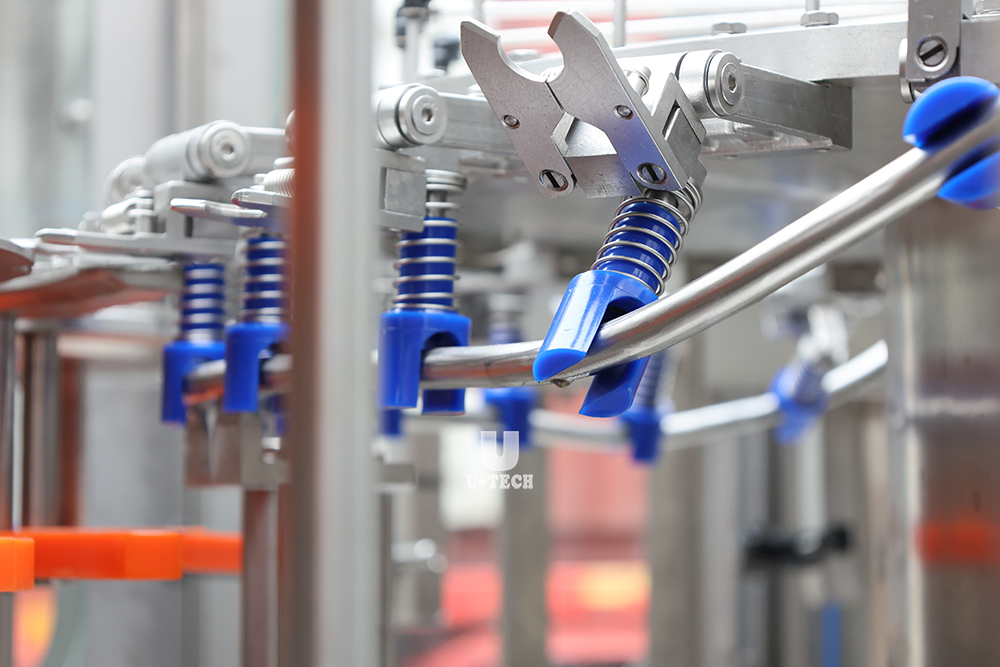

The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

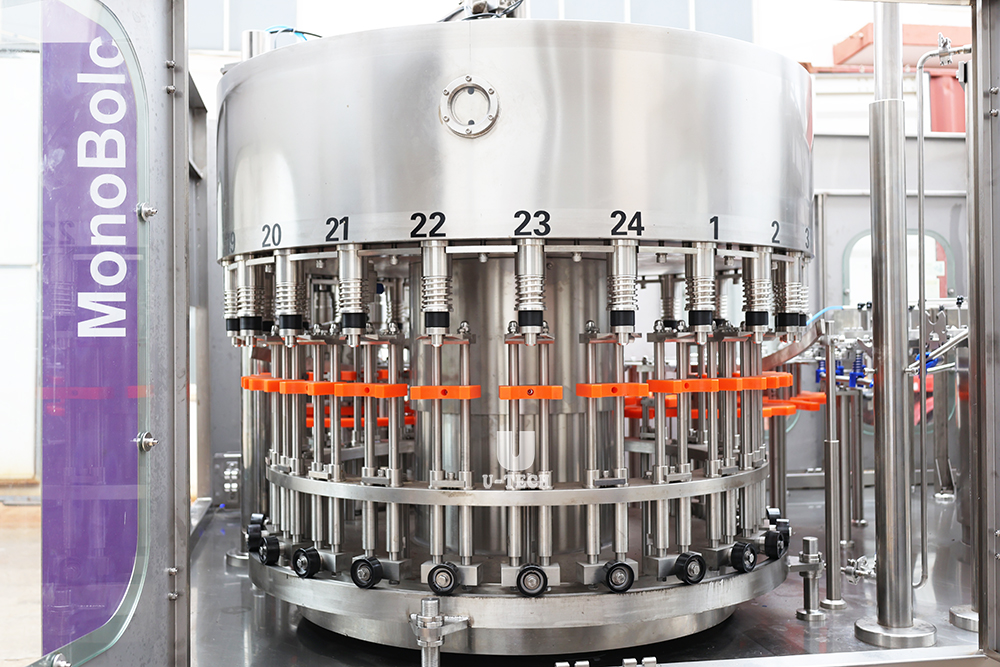

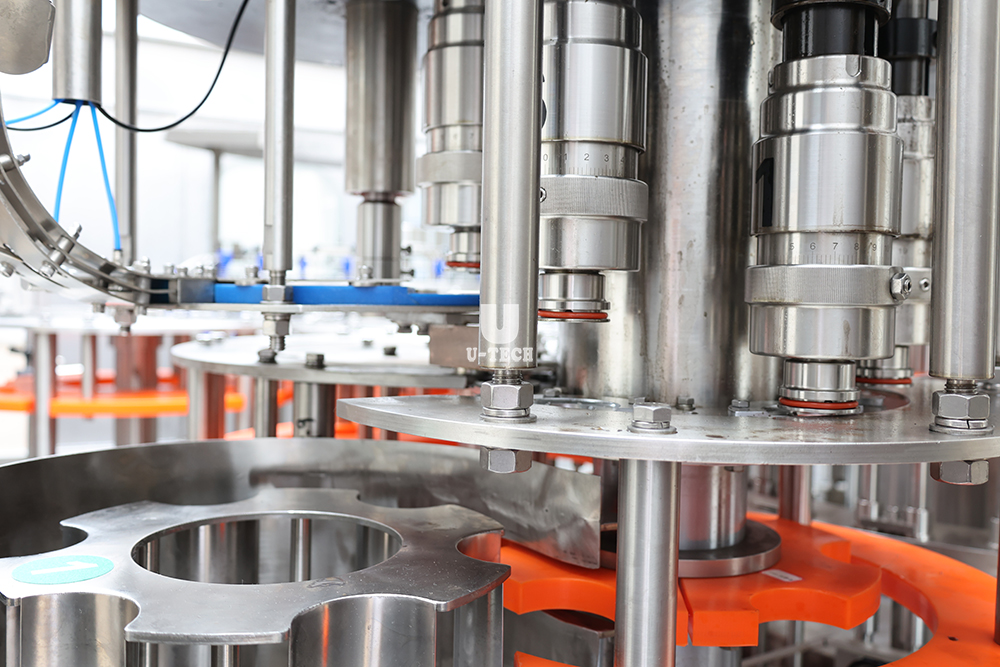

High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China
