18000 20000BPH Small Scale Bottle Mineral Pure Spring Water Botting Machine Line

Product Introduction

 CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.

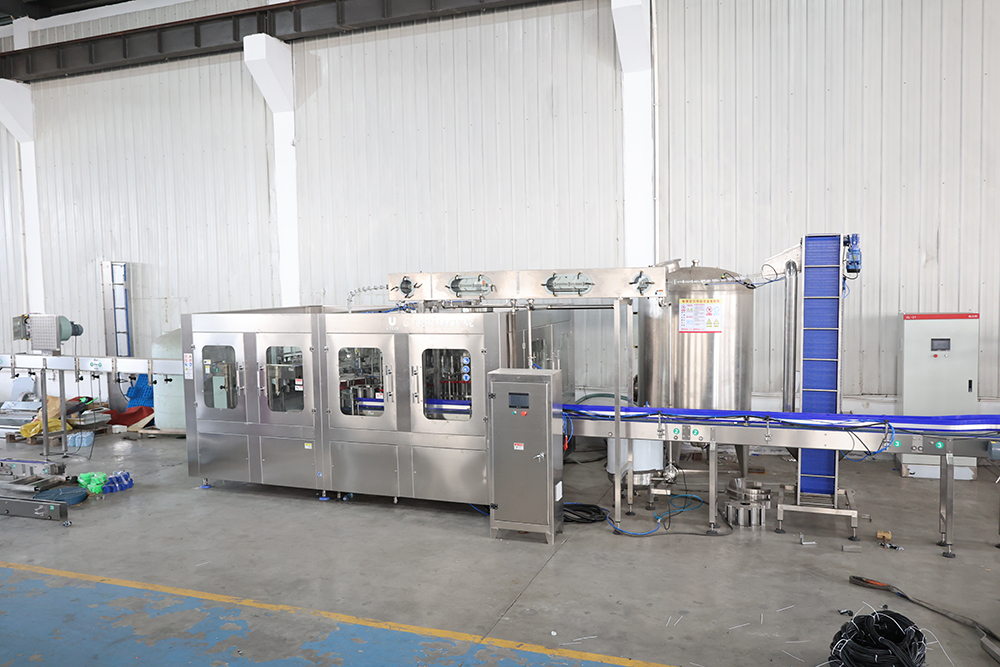

 Water filling line drawing

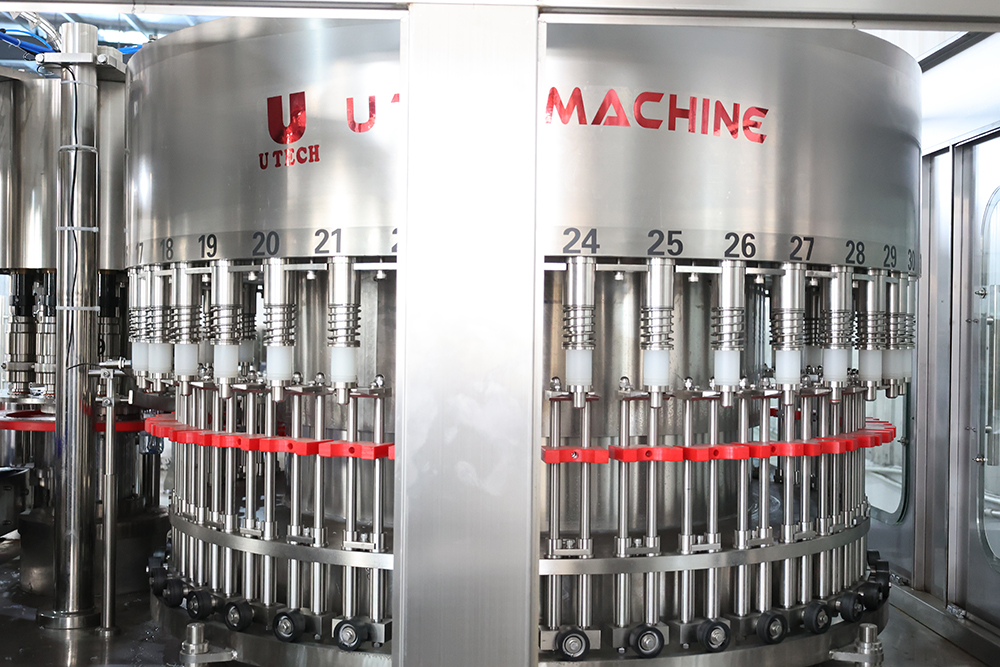

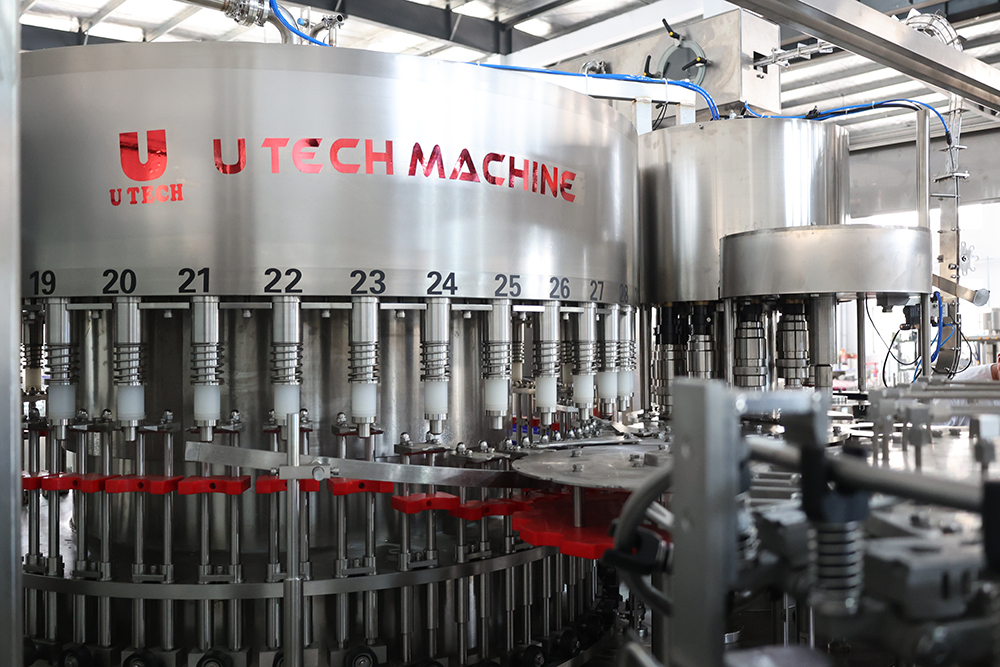

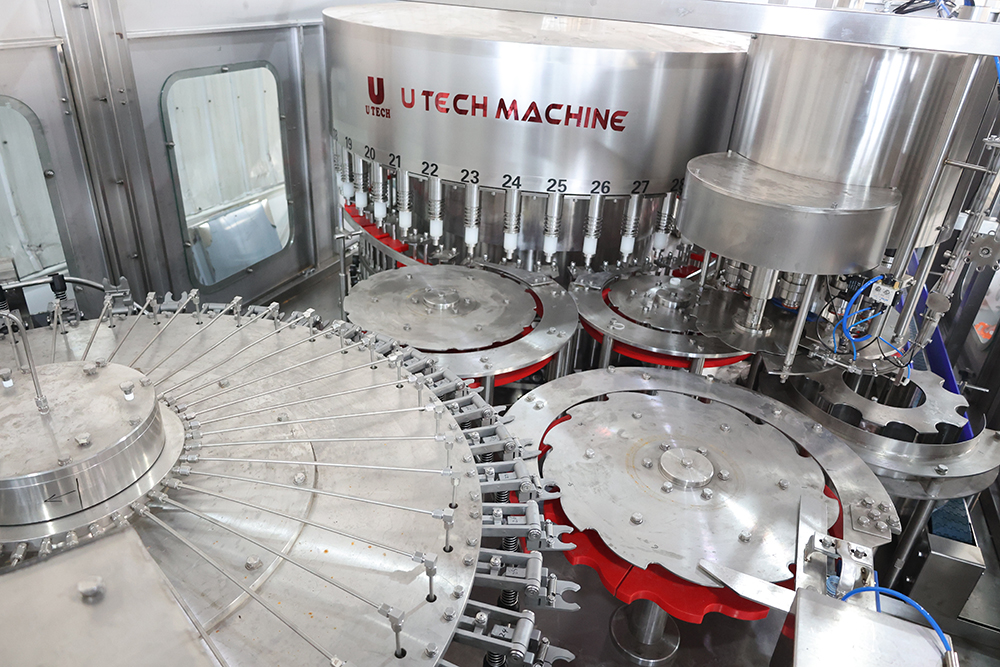

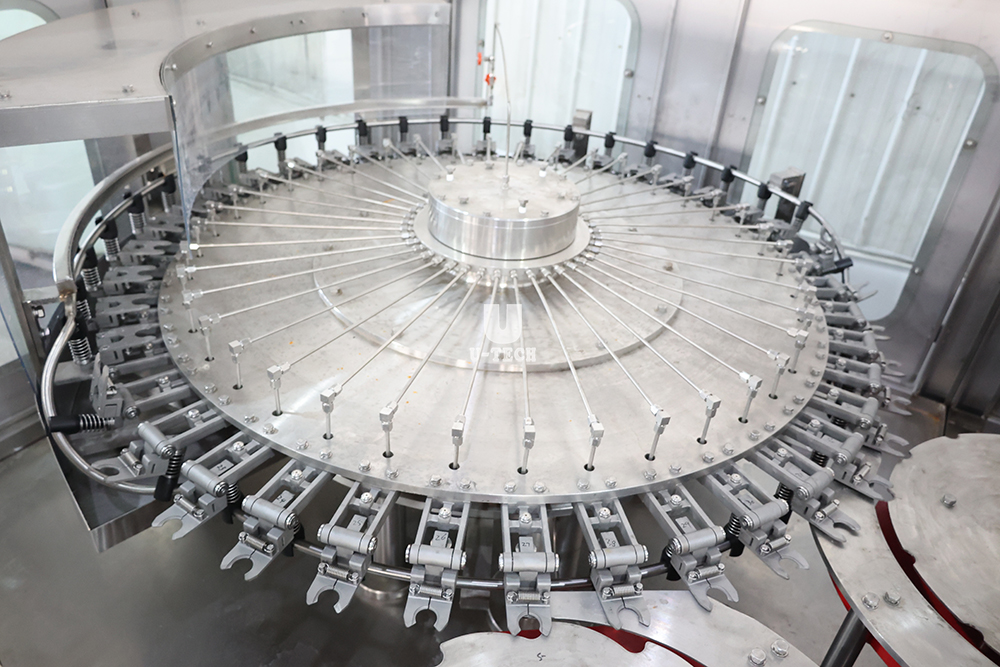

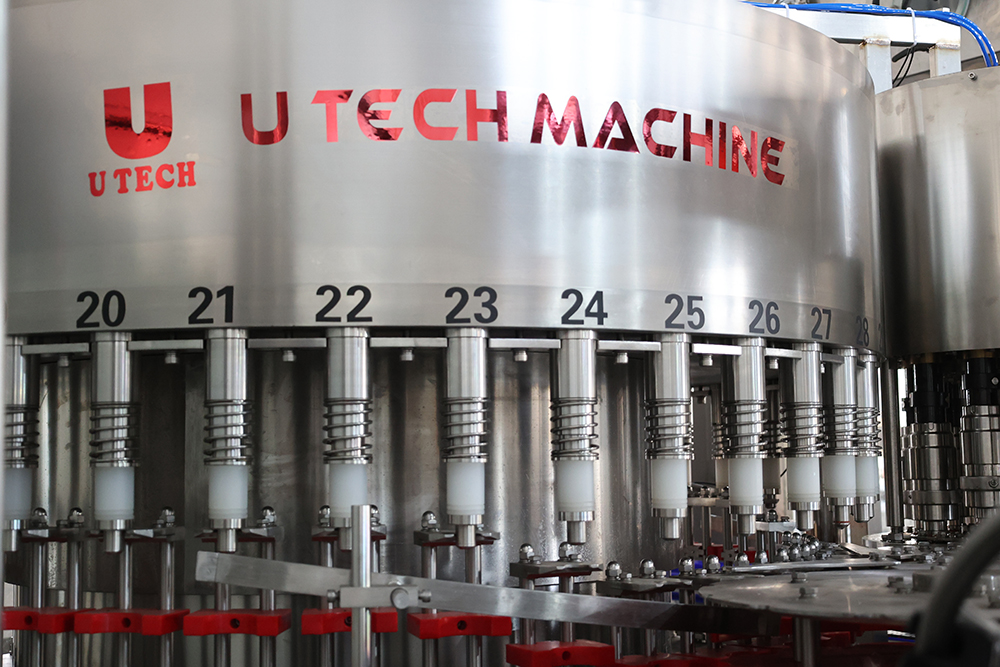

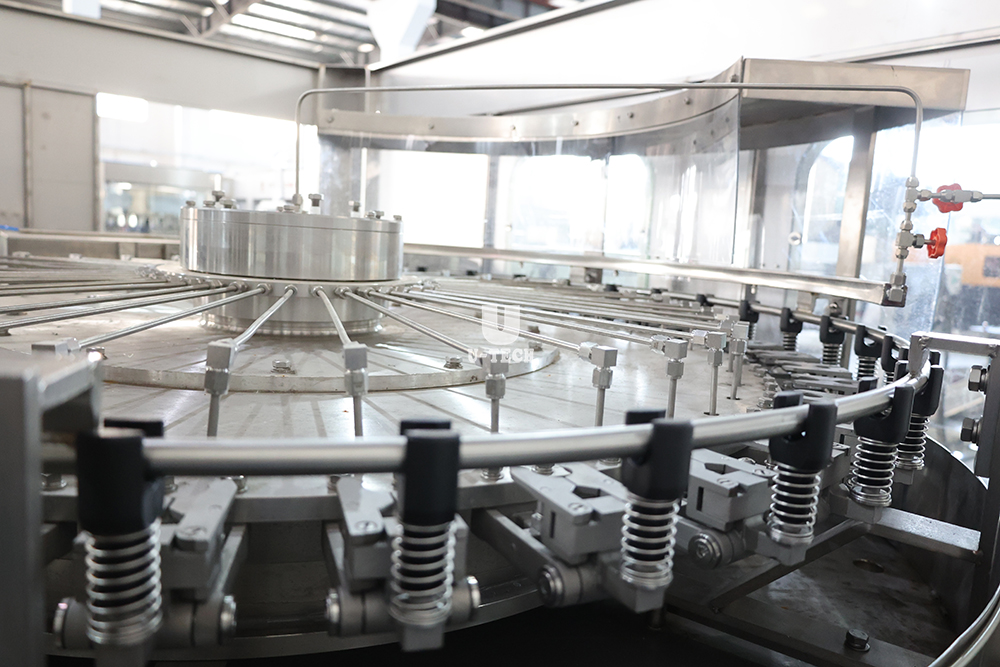

Filling Machine Details

Technical Parameters

Model	CGF14-12-5	CGF16-16-6	CGF24-24-6	CGF32-32-8	CGF40-40-10
Capacity(500ML)	5000PBH	8000PBH	12000PBH	15000PBH	18000BPH
Washing heads	14	16	24	32	40
Filling heads	12	16	24	32	40
Capping heads	5	6	6	8	10
suitable bottle	PET bottle,plastic bottle
Diameter of bottle	55-110mm
Height of bottle	150-310mm
Suitable cap	Plastic screw cap
Weight	2000kg	4000kg	4500kg	6000kg	7800kg
Main motor power	1.5kw	3kw	3kw	3kw	5.5kw

Production line flow

Water treatment system

 The system is the process of purifying the raw water by a series equipments and devices to be drinkable.

Automatic PET bottle blow moulding machine

 Suitable for blowing any kind of carbonated fruit juice beverage sparkling pure mineral water bottle.

Hot melt glue OPP labeling machine

 This OPP labeling machine or hot melt adhesive labeler is suitable for labeling OPP material labels.


Laser printer

 The pet bottle laser printer is suitable for cables PE pipes, automatic production line of date code or bar code.

Wrap around caser

 The machine shapes the cartons automatically and closes their bottoms flaps within hot glue.
