3 In 1 Automatic complete project drinking table spring natural pure mineral water small bottle filling machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

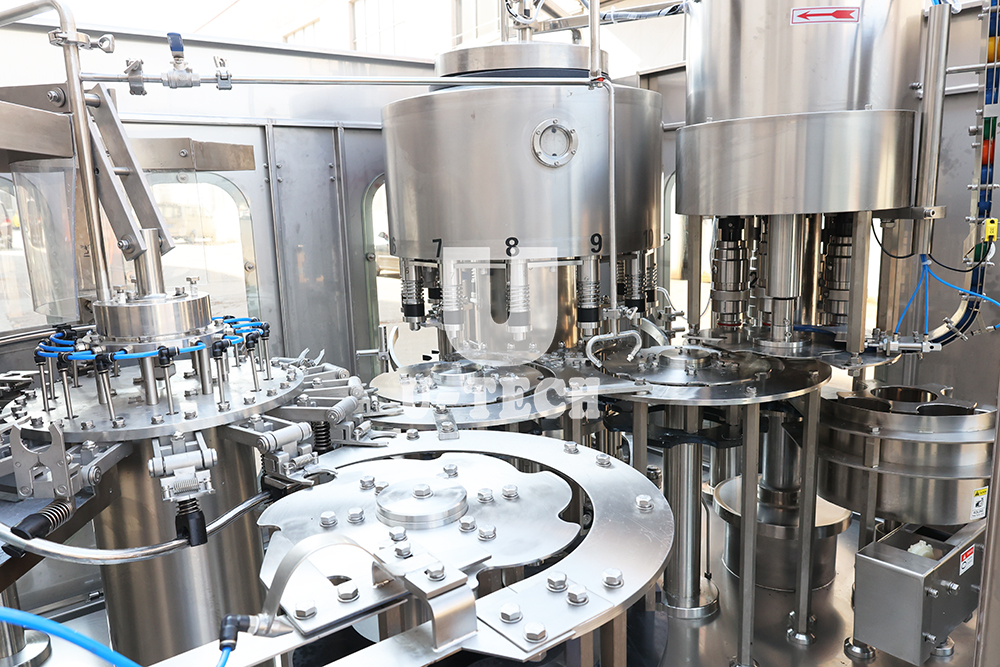

 This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

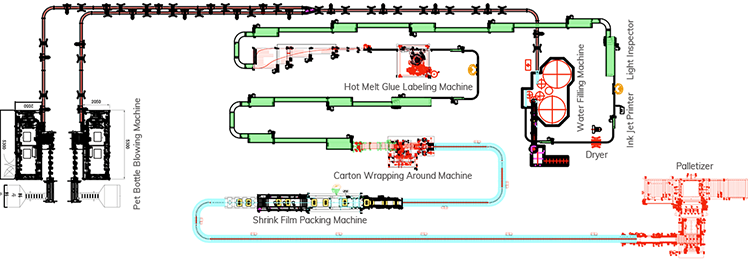

 Flow

 Bottle sample

Technical Parameters

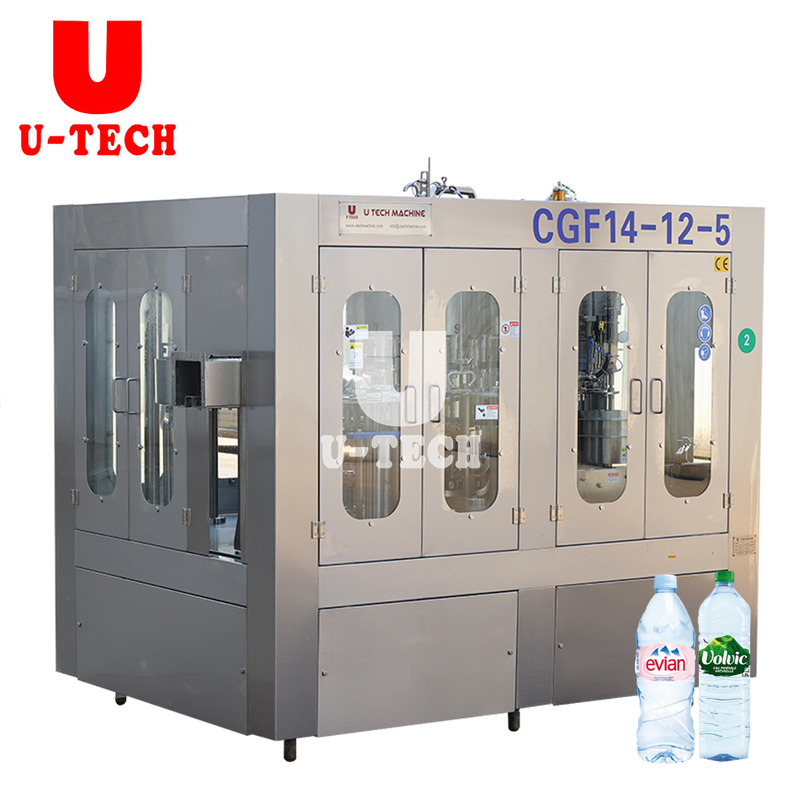

Model	CGF14-12-5
Capacity	5000PBH
Washing heads	14
Filling heads	12
Capping heads	5
suitable bottle	PET bottle,plastic bottle
Diameter of bottle	55-110mm
Height of bottle	150-310mm
Suitable cap	Plastic screw cap
Weight	2000kg
Main motor power	1.5kw

Machine Details

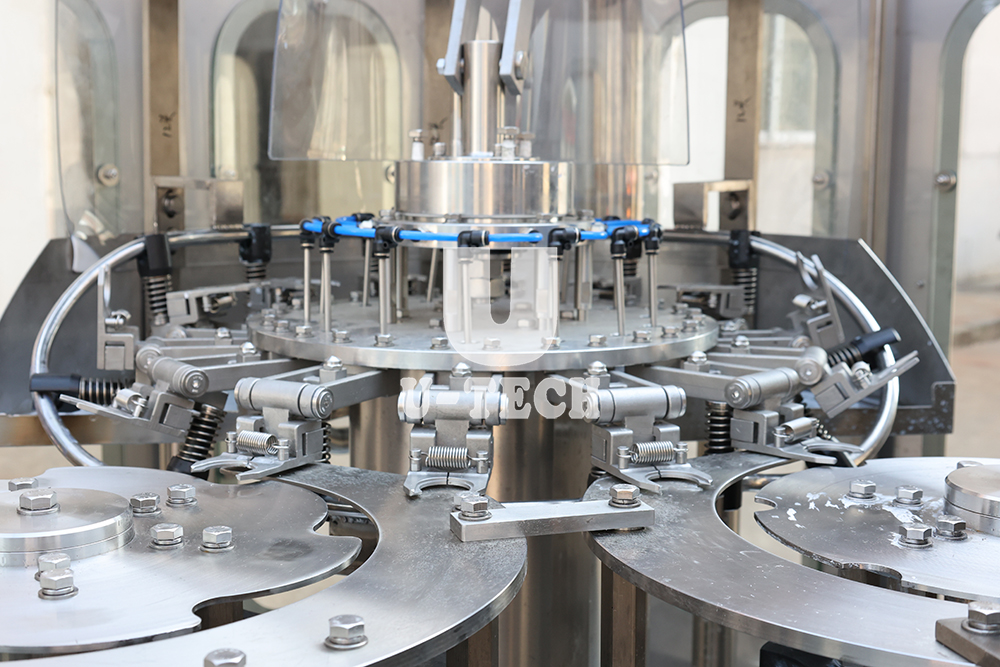

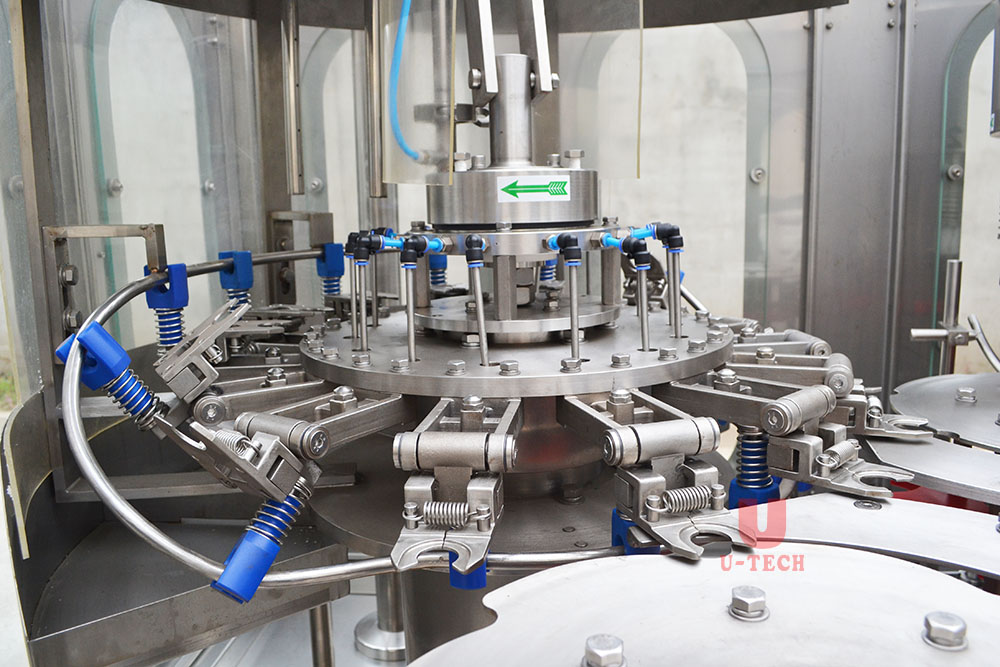

Washing heads

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
 <3> 304/316 stainless steel washing pump

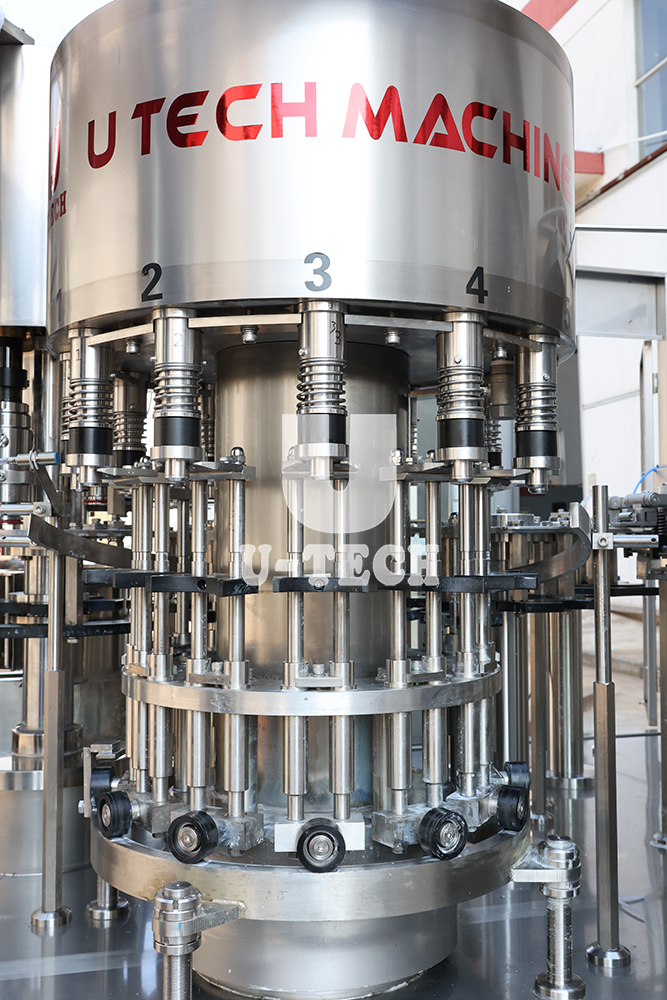

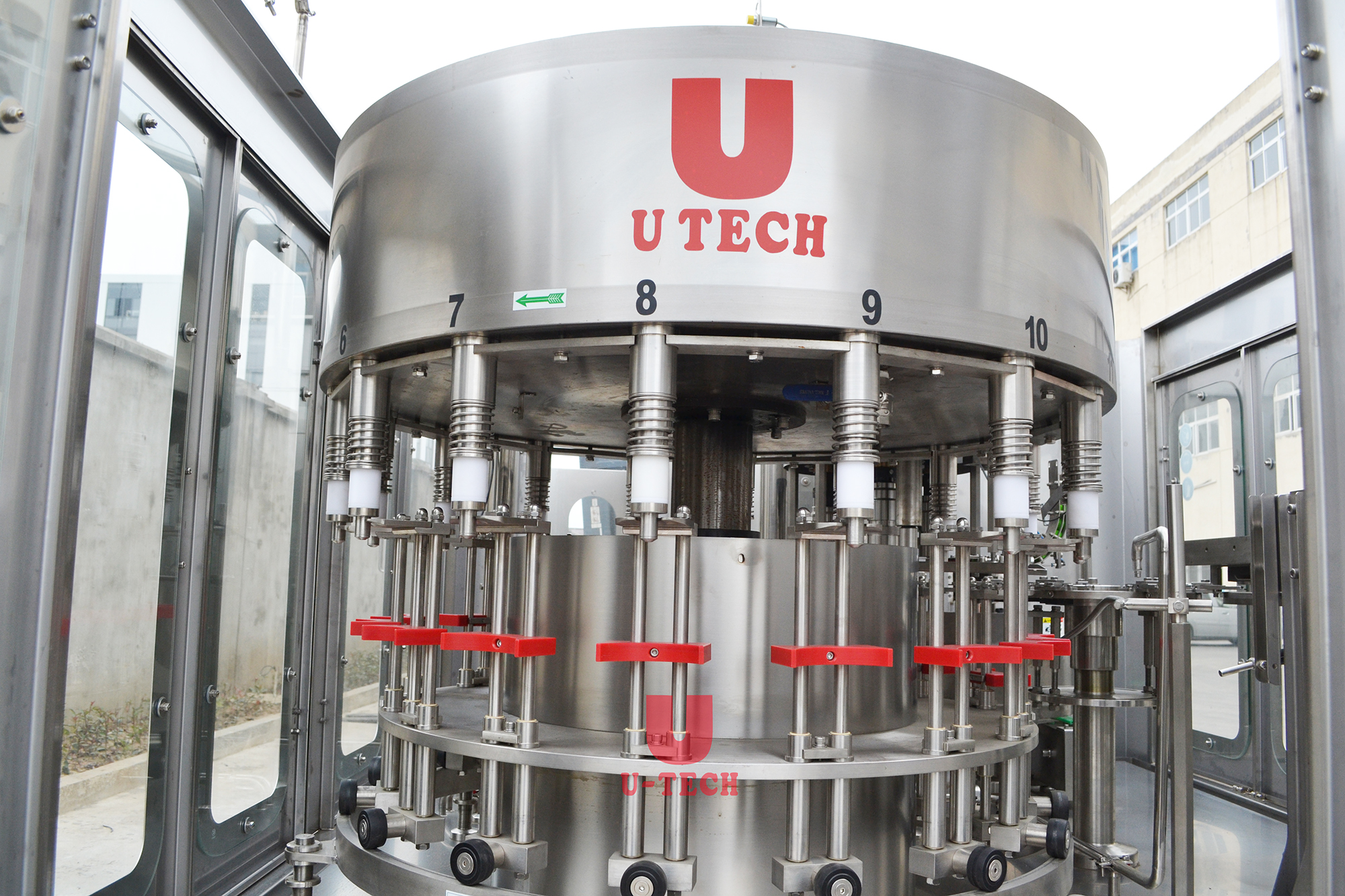

Filling heads

<1> 304/316 Stainless steel high precision filling nozzle <2> Filling volume adjustable in fine rank, same liquid level after filling
 <3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
 <4> 304/316 stainless steel filling pump

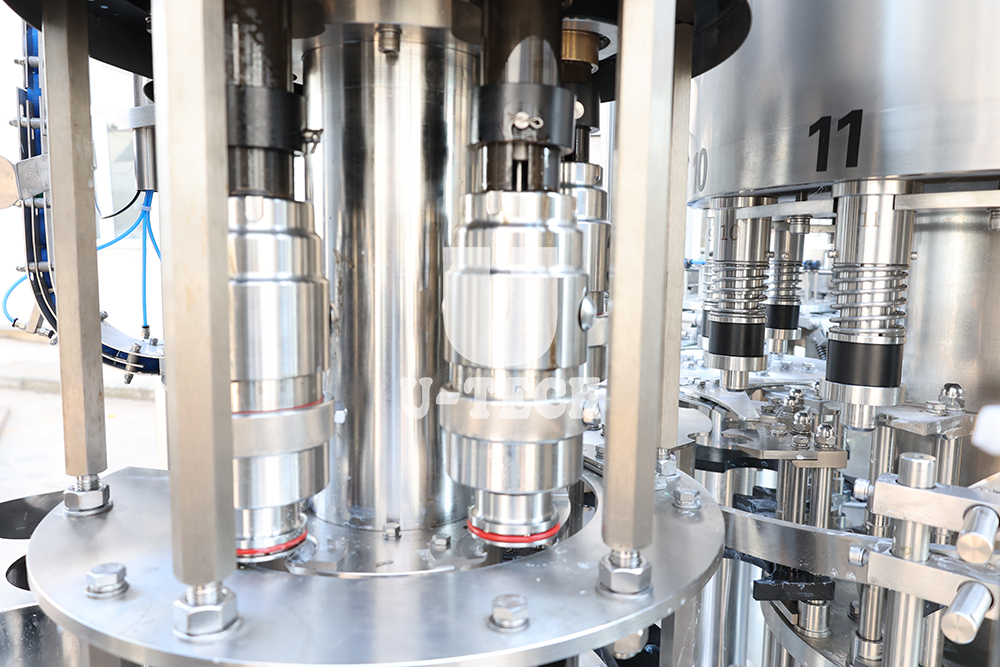

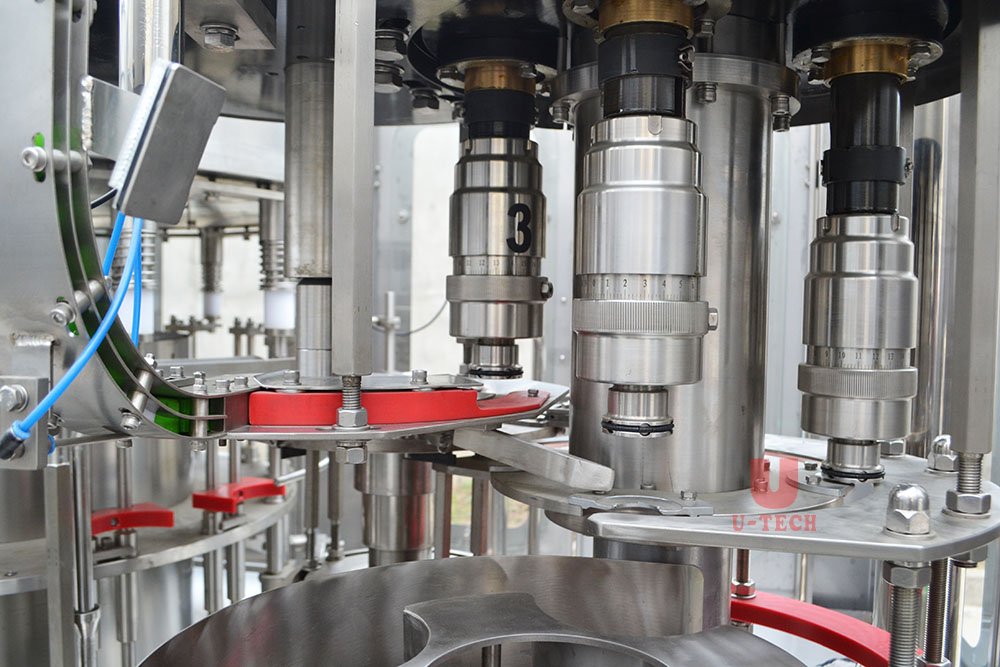

Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping<2> All 304/316 stainless steel construction <3> No bottle no capping
 <4> Automatic stop when lack of bottle

Main Features

Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China
