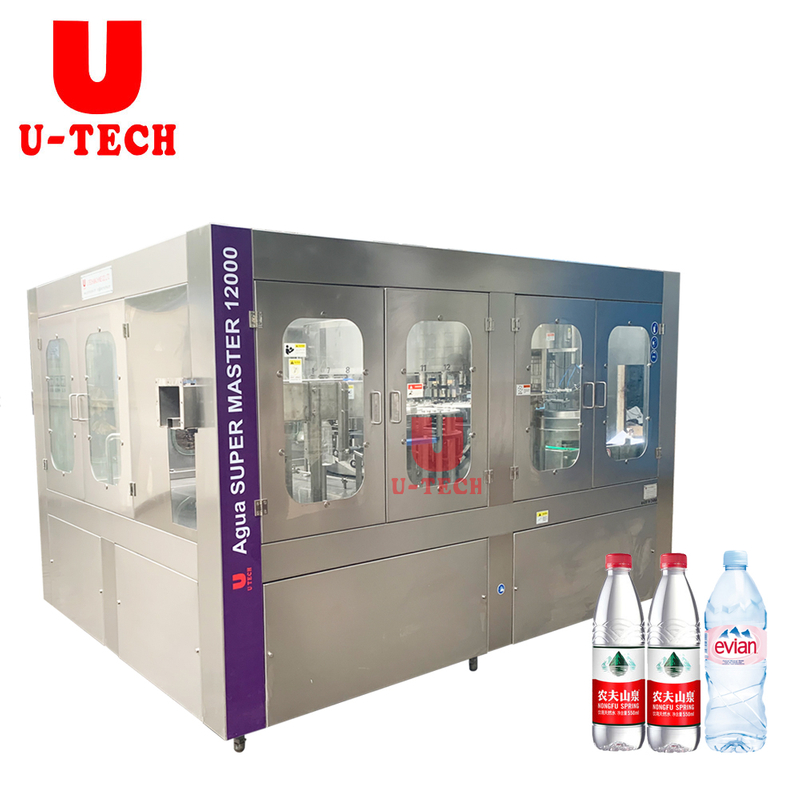

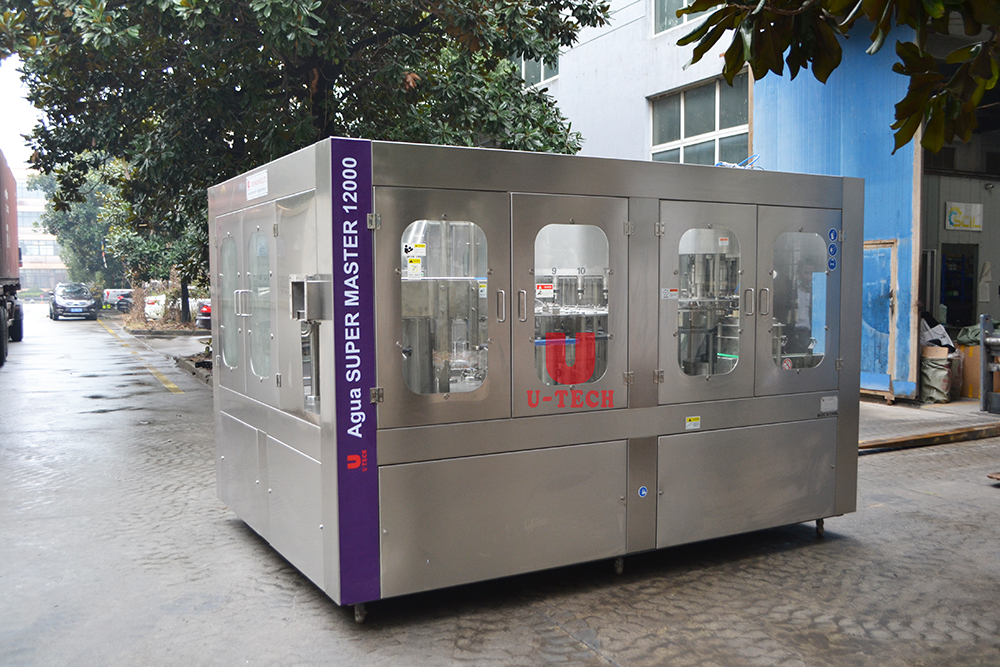

Auto Small Business Bottle Table Water Filling Bottling Machine Production Line

Bottle water filling machine is full-automatic multiple-function washing, filling, capping unit. It is used in washing, filling, capping all kinds of non-gas drink, such as vinegar, wine, mineral water, pure water.
It adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling, capping, which makes changing different size bottles very easy. Most of elements of the electric system employ famous brand products. The machine parts contact with the liquid are made of high quality stainless steel. They obtain the advantages of good abrasive resistance, high stability, low failure rate, etc. The quality of the equipment can reach the international advanced level and gained good reputation among our clients.
Quantity:
  • CGF24-24-6
  • U TECH
Product Introduction
CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.
Technical Parameters
Model
CGF8-8-3
CGF14-12-5
CGF16-16-6
CGF24-24-6
CGF32-32-8
CGF40-40-10
Capacity
2000PBH(500ML)
5000PBH
(500ML)
8000PBH
(500ML)
12000PBH
(500ML)
15000PBH
(500ML)
18000PBH
(500ML)
Washing heads
8
14
16
24
32
40
Filling heads
8
12
16
24
32
40
Capping heads
3
5
6
6
8
10
suitable bottle
PET bottle,plastic bottle
Diameter of bottle
55-110mm
Height of bottle
150-310mm
Suitable cap
Plastic screw cap
Weight
1500kg
2000kg
4000kg
4500kg
6000kg
7800kg
Main motor power
1.2kw
1.5kw
3kw
3kw
3kw
5.5kw
Filling Machine Details

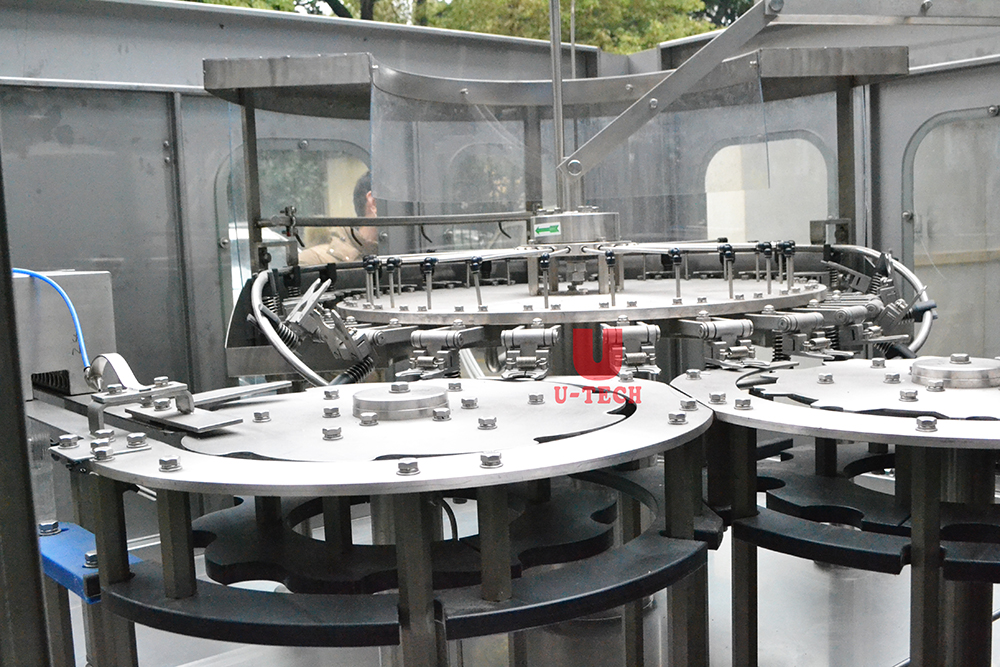

Washing heads

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

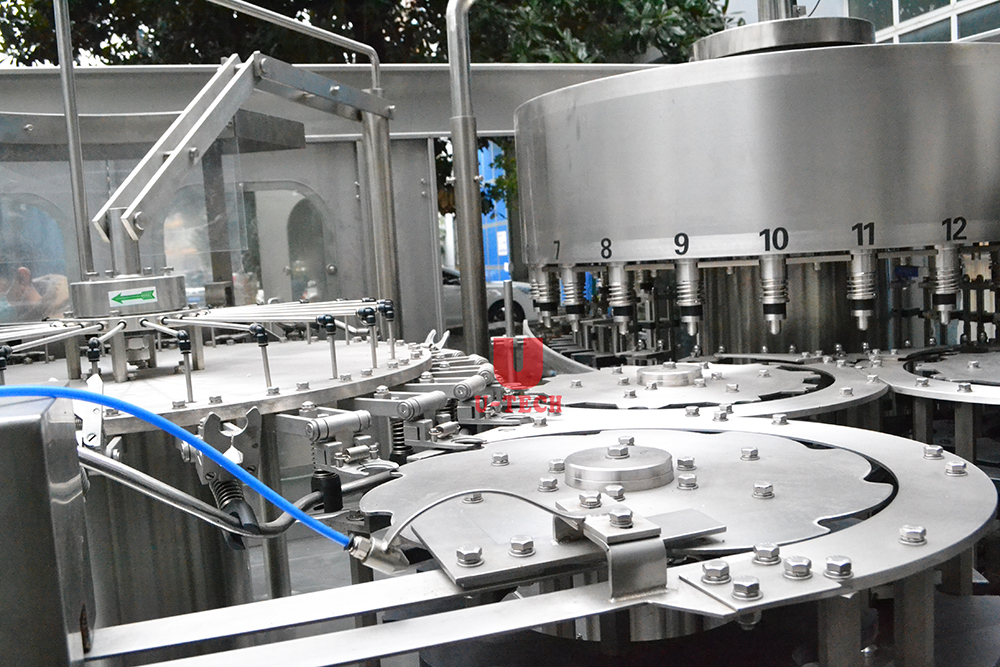

Filling heads

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle

Main Features

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Control System
S/N
Name
Brand
Country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China

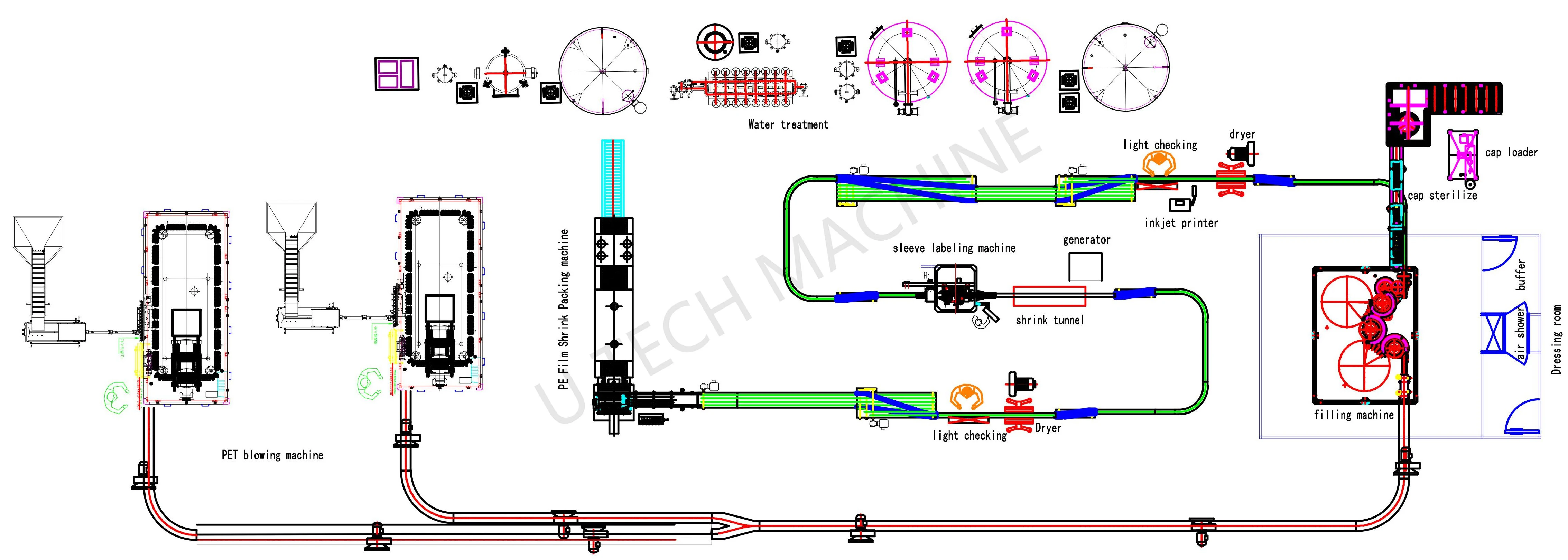

Production line flow

FAQ
Q1:Do you have any reference project?

  >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.


Q2:What's your guarantee or the warranty of the quality if we buy your machines?

  >>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.


Q3: Do you provide customized service?

  >> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.


Q4:When can I get my machine after I paid?

  >> A4:We will deliver the machines on time as the date we agreed both side.


Q5:How can I install my machine when it arrives?

  >> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
