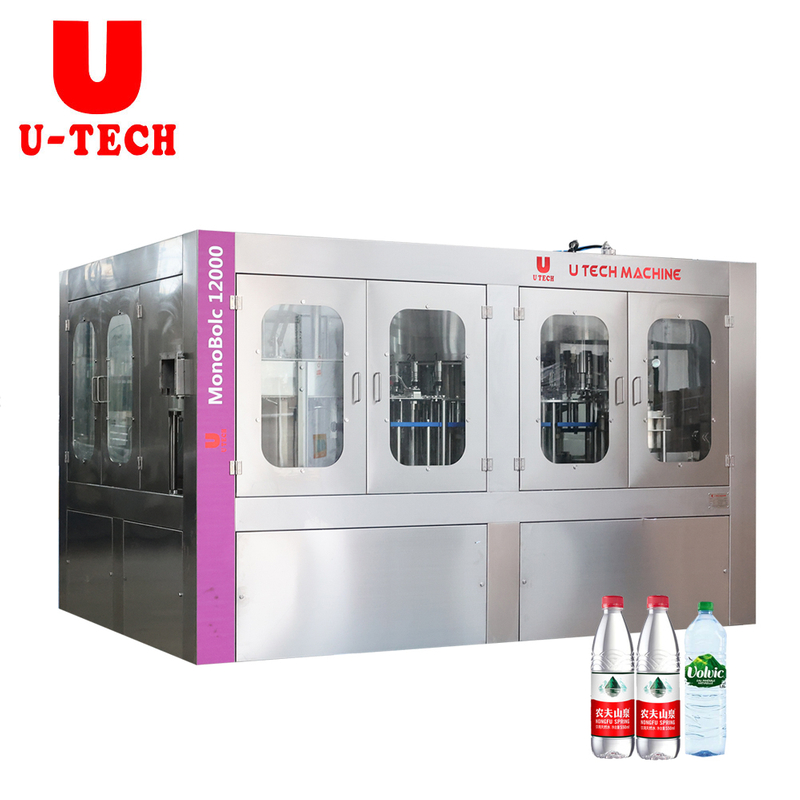

Automatic small scale mineral drinking water bottling production line plant machine equipment sale cost

Share to:

Automatic small scale mineral drinking water bottling production line plant machine equipment sale cost

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

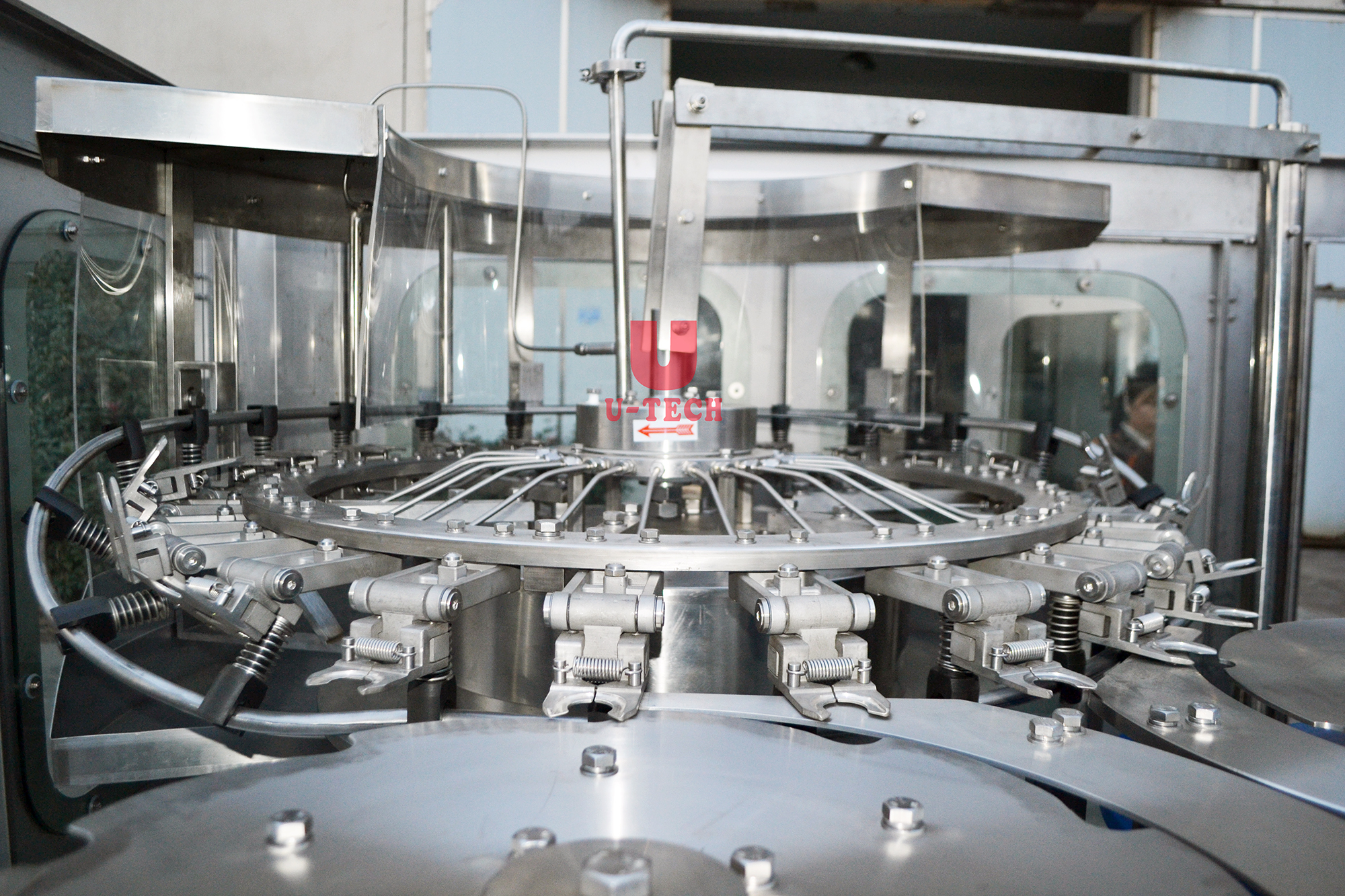

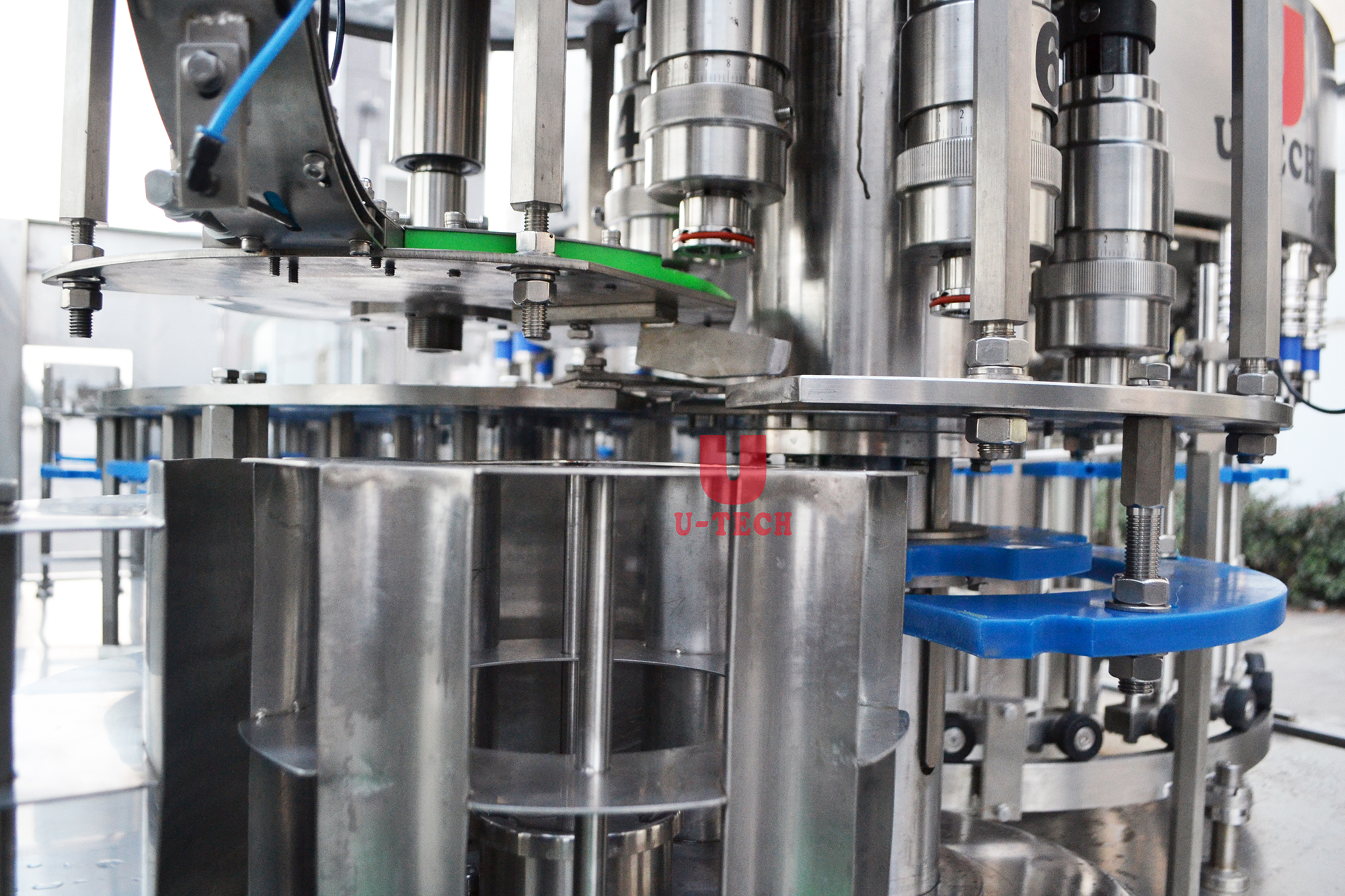

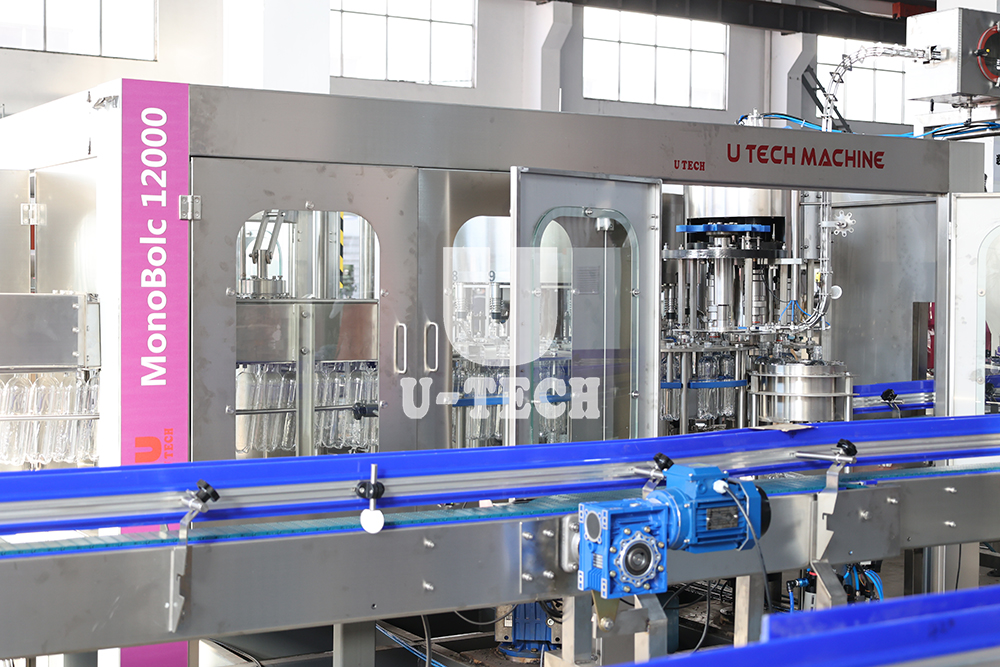

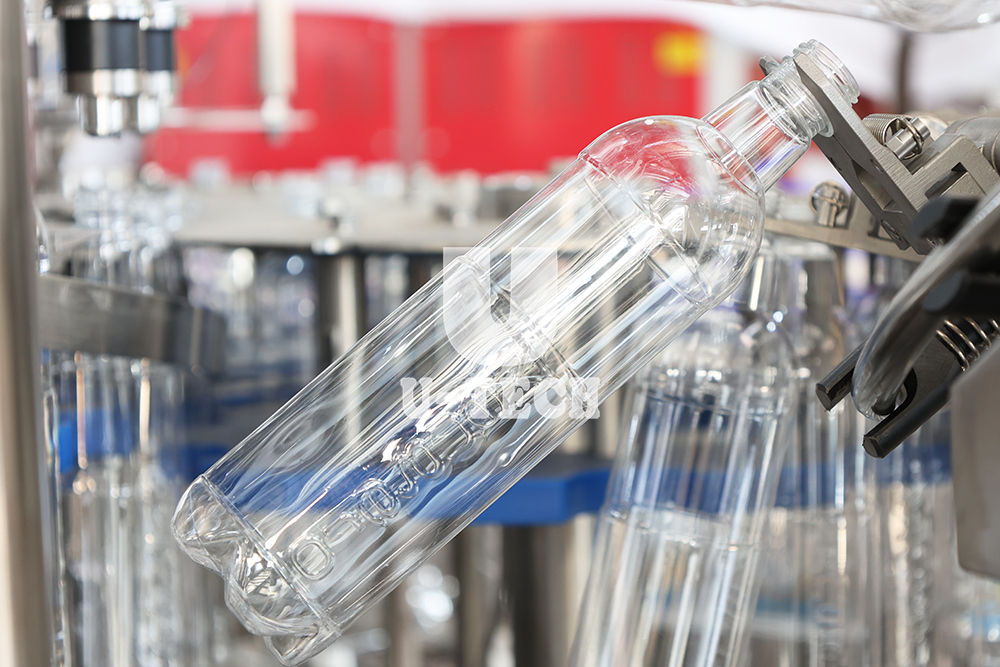

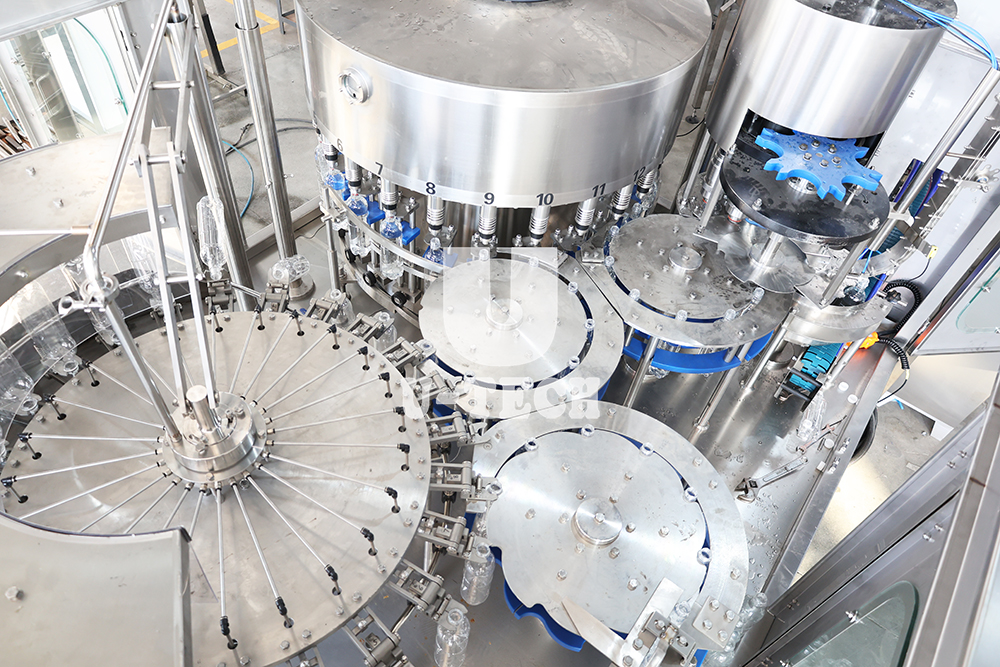

 The monoblock washing,filling and capping machine offer the industry's most proven washer,filler and capper technology in one simple, integrated system. In addition they deliver the high performance today's high speed packaging lines demand.By precisely matching the pitch between washer, filler and capper, monoblock models enhance the transfer process, reducing atmospheric exposure of filled product, eliminating deadplates, and significantly reducing feedscrew spills.


Technical Parameters

Model	CGF24-24-6
Capacity	12000PBH

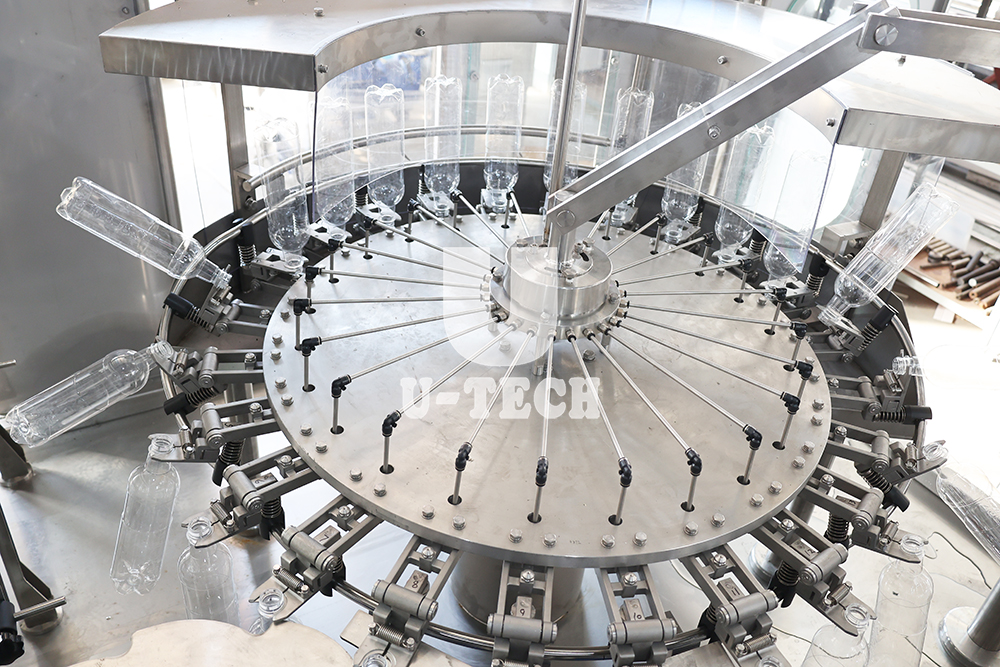

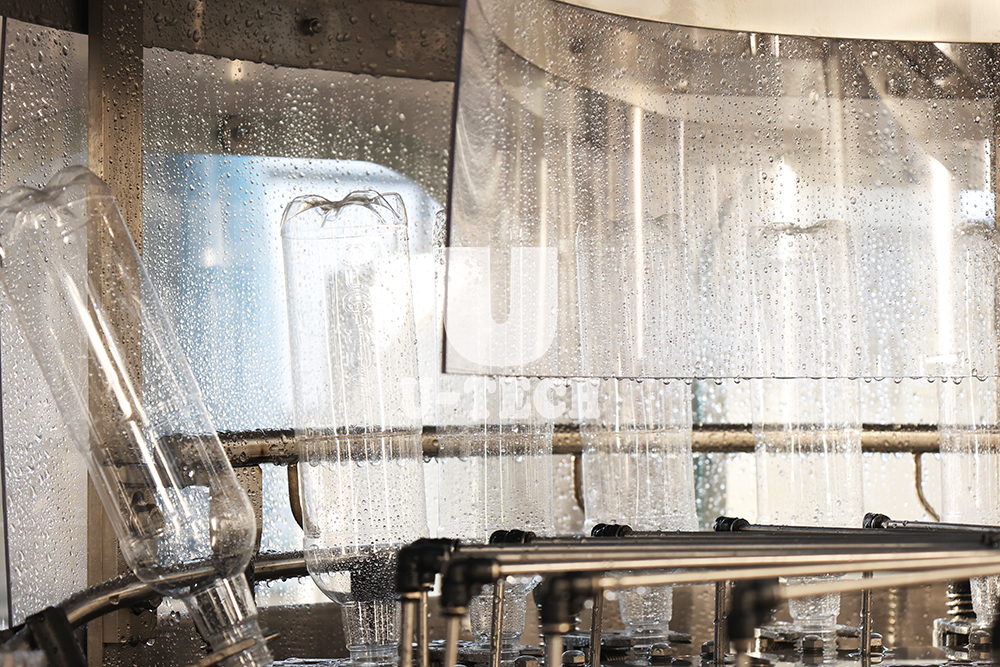

Washing heads	24

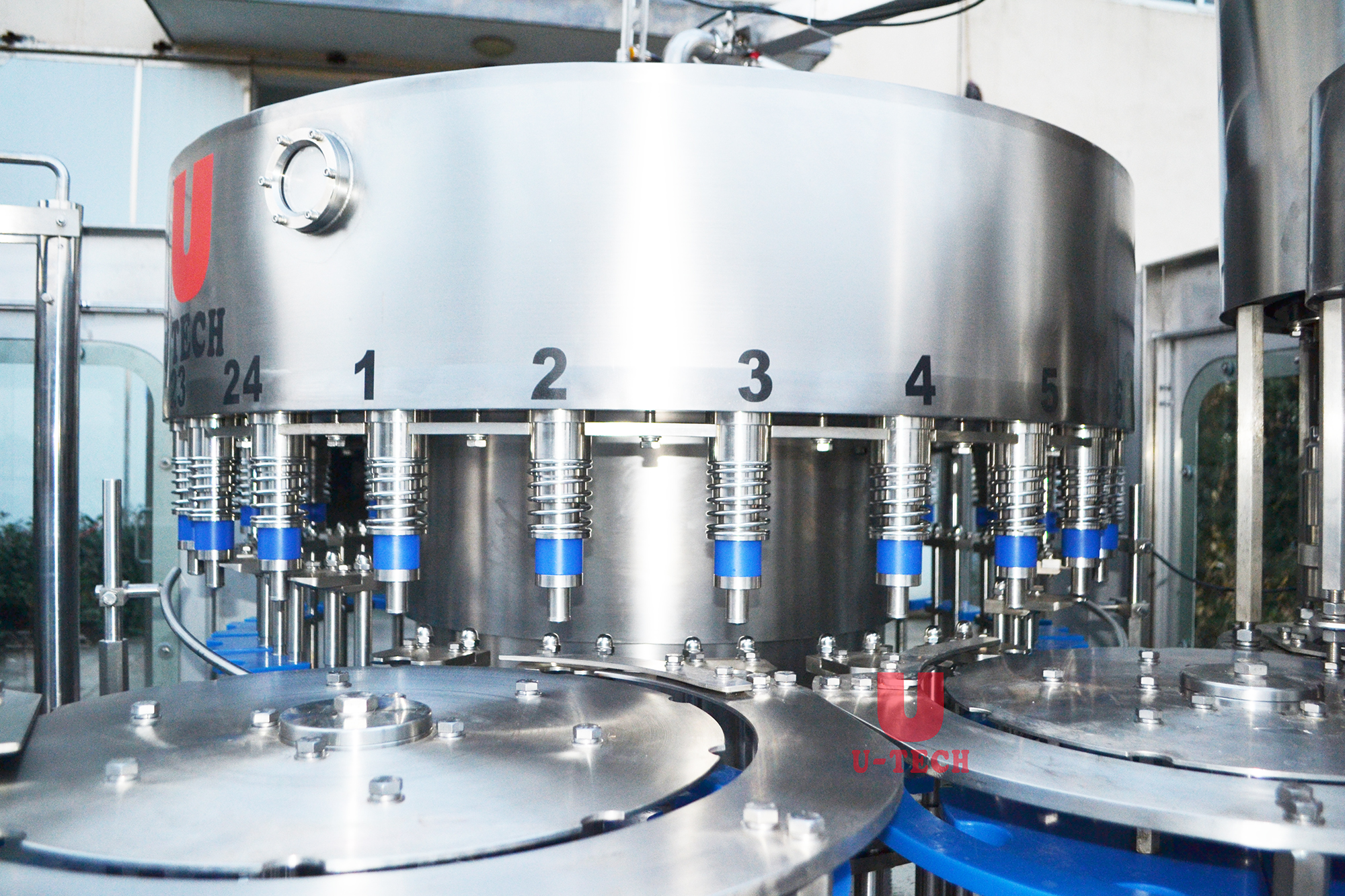

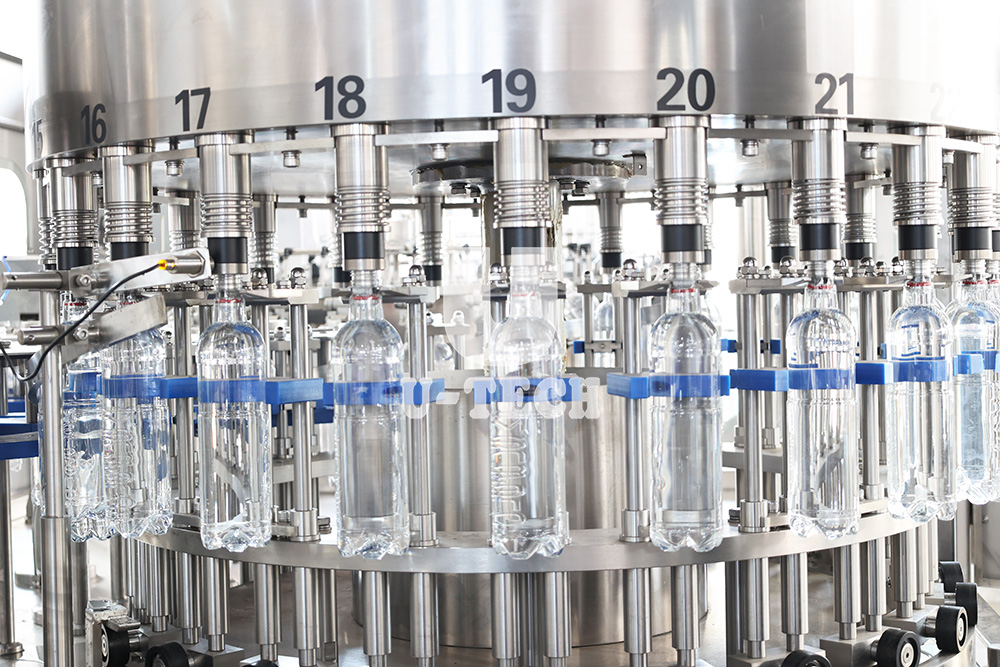

Filling heads	24

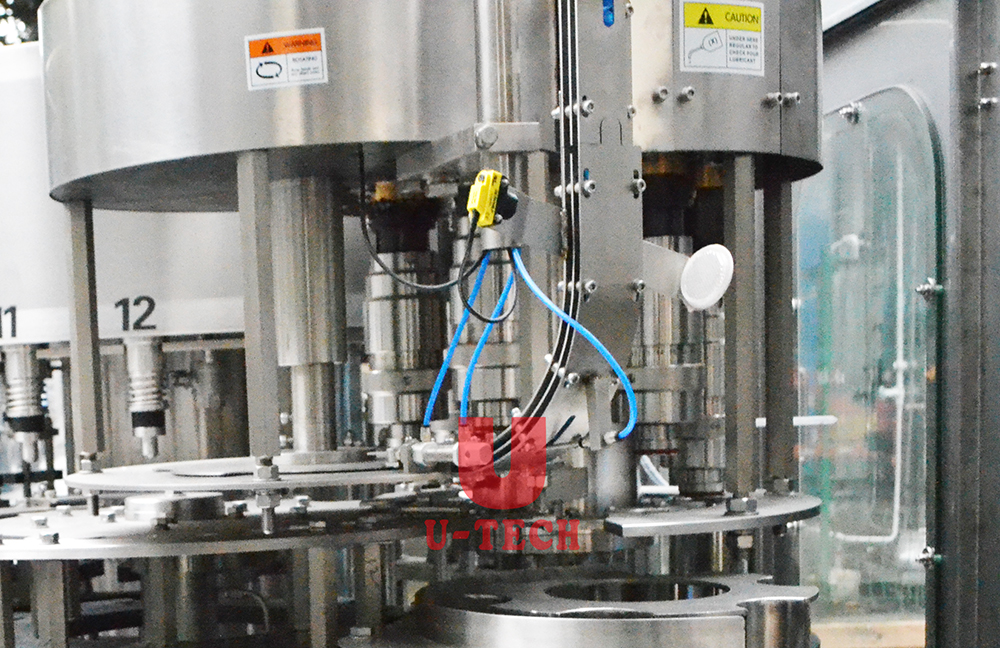

Capping heads	6
suitable bottle	PET bottle,plastic bottle
Diameter of bottle	55-110mm
Height of bottle	150-310mm
Suitable cap	Plastic screw cap
Weight	4500kg
Main motor power	3kw

Machine Details

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China

Related Products

Water Treatment System

 Water treatment system,also called water filtration sterlizer system, is the process of purifying the raw water by a series
equipments and devices to be drinkable.The water treatment equipment includes silica sand filter, active carbon filter, sodium-ion exchanger, precision filter, reverse osmosis, hollow fiber filter, ozone generator, ozone mixing tower and water tank, etc.

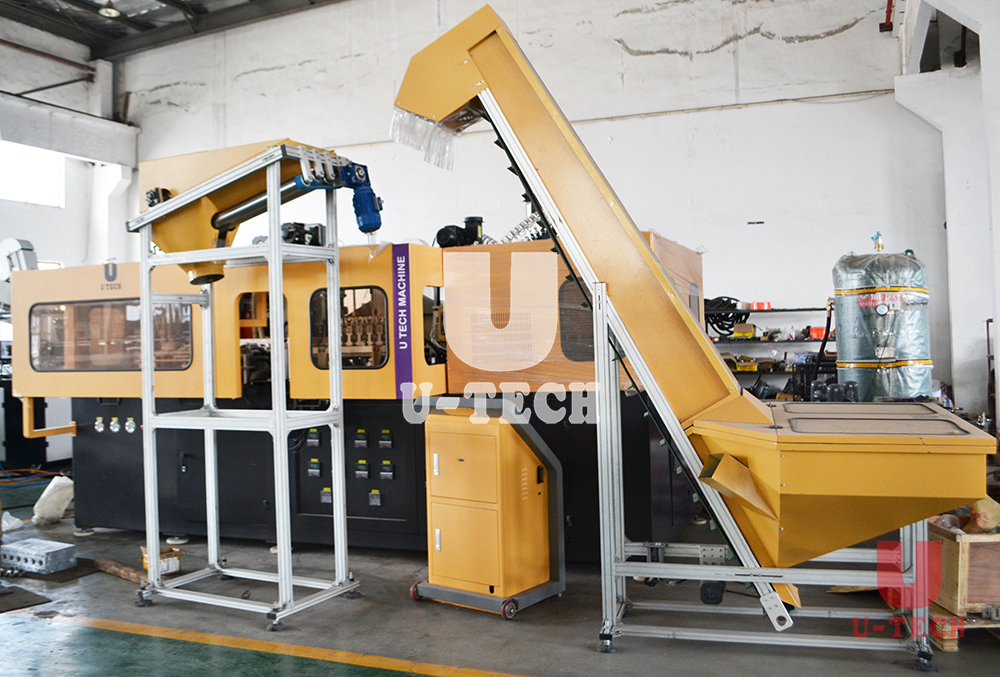

Automatic Bottle Blowing Machine

 The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.

Hot Melt Glue OPP Labeling Machine

 This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label
cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most
economical models in cost to make mass production and intergrated operating.

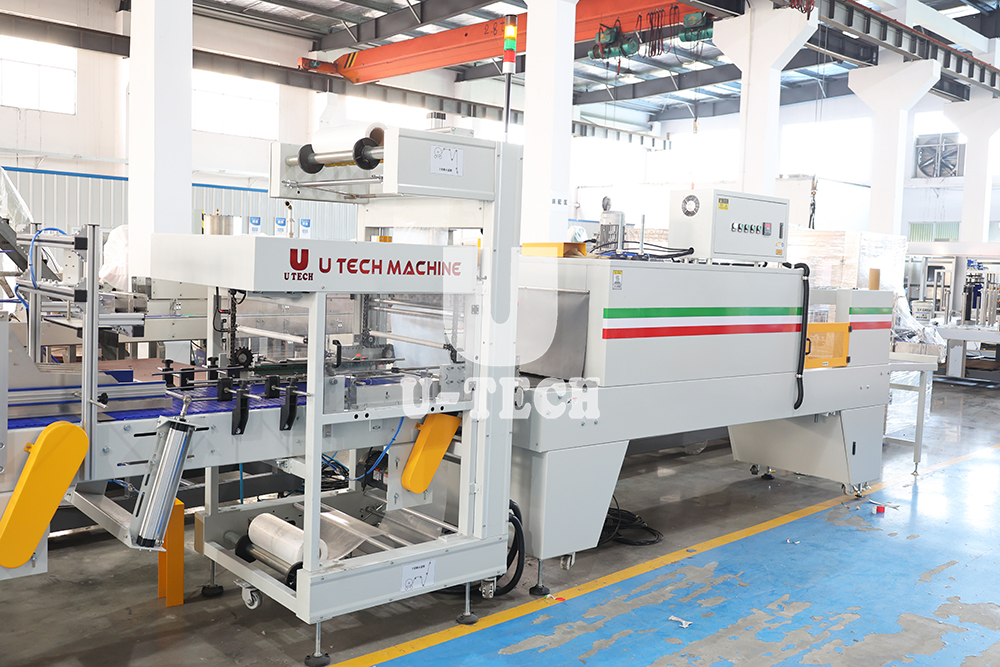

Shrink Packing Machine
