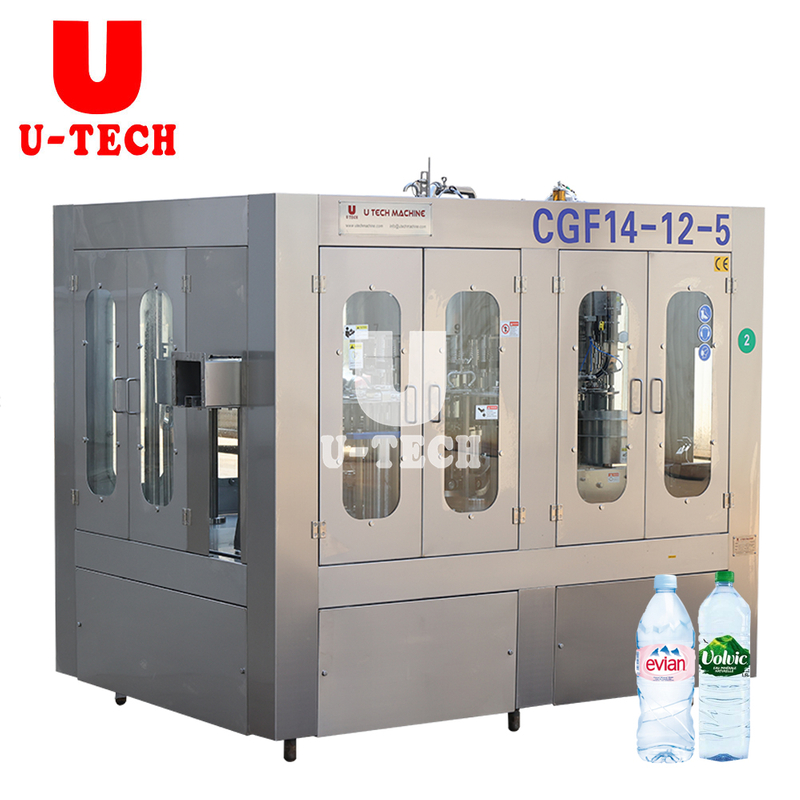

500ML Full Automatic Small Scale PET Bottle Mineral Pure Table Drinking Water Washing Filling Capping Machine

Availability:
Quantity:
Product Introduction
CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.
Water filling line drawing
Filling Machine Details

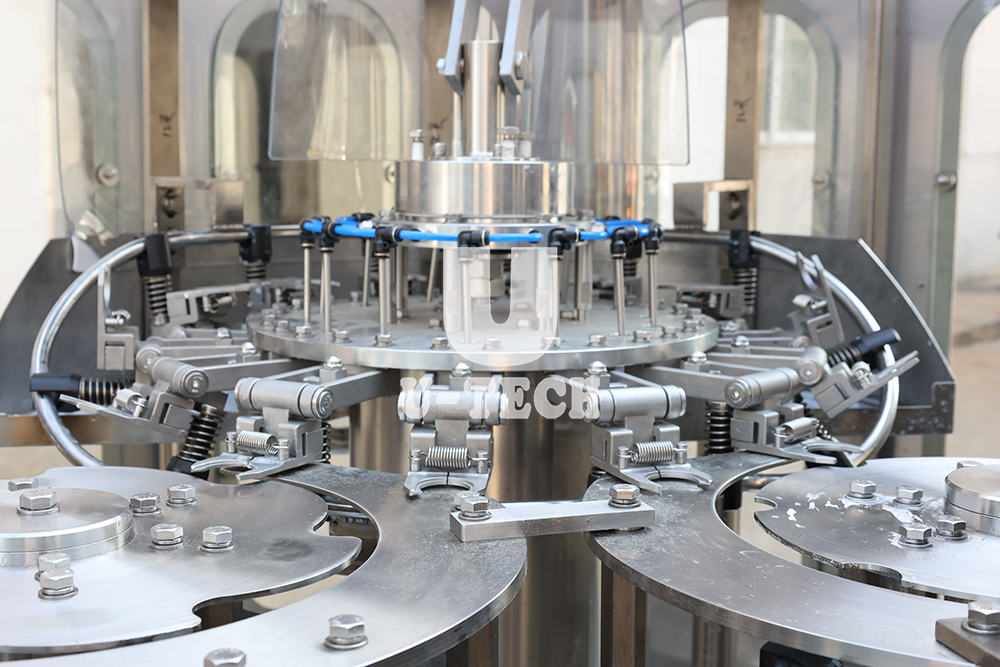

Washing heads

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

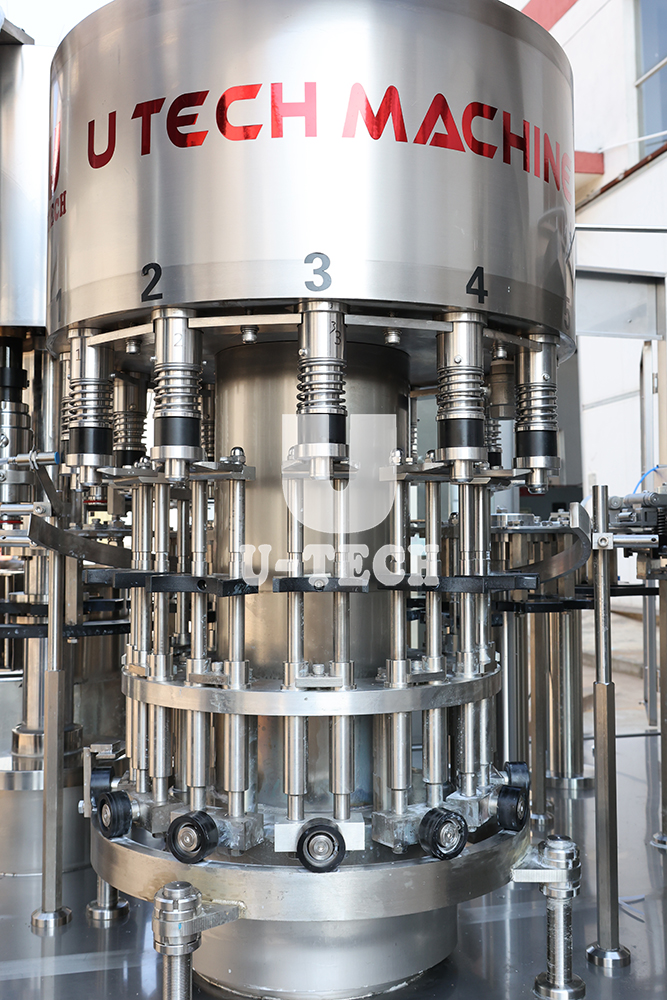

Filling heads


<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Technical Parameters
Model
CGF8-8-3
CGF14-12-5
CGF16-16-6
CGF24-24-6
CGF32-32-8
Capacity(500ML)
2000PBH
5000PBH
8000PBH
12000PBH
15000PBH
Washing heads
8
14
16
24
32
Filling heads
8
12
16
24
32
Capping heads
3
5
6
6
8
suitable bottle
PET bottle,plastic bottle
Diameter of bottle
55-110mm
Height of bottle
150-310mm
Suitable cap
Plastic screw cap
Weight
1500kg
2000kg
4000kg
4500kg
6000kg
Main motor power
1.2kw
1.5kw
3kw
3kw
3kw
Production line flow

Water treatment system

The system is the process of purifying the raw water by a series equipments and devices to be drinkable.

Automatic PET bottle blow moulding machine

Suitable for blowing any kind of carbonated fruit juice beverage sparkling pure mineral water bottle.

Hot melt glue OPP labeling machine

This OPP labeling machine or hot melt adhesive labeler is suitable for labeling OPP material labels.

Laser printer

The pet bottle laser printer is suitable for cables PE pipes, automatic production line of date code or bar code.

Wrap around caser

The machine shapes the cartons automatically and closes their bottoms flaps within hot glue.
Related products
Cap injection molding machine
Semi-Automatic PET Bottle Blowing Machine
Sleeve labeling machine
Adhesive labeling machine
Shrink packing machine
Bottle dryer
Case erector
Case packer
Carton sealer
Control System
S/N
Name
Brand
Country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
