Automatic 3 in1 Mini Small Business Scale Pure Table Drinking Water Bottle Washing Filling Capping Machine Turkey

Availability:
Quantity:
Inquire Add to Basket

Product Introduction
CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.
Water filling line drawing

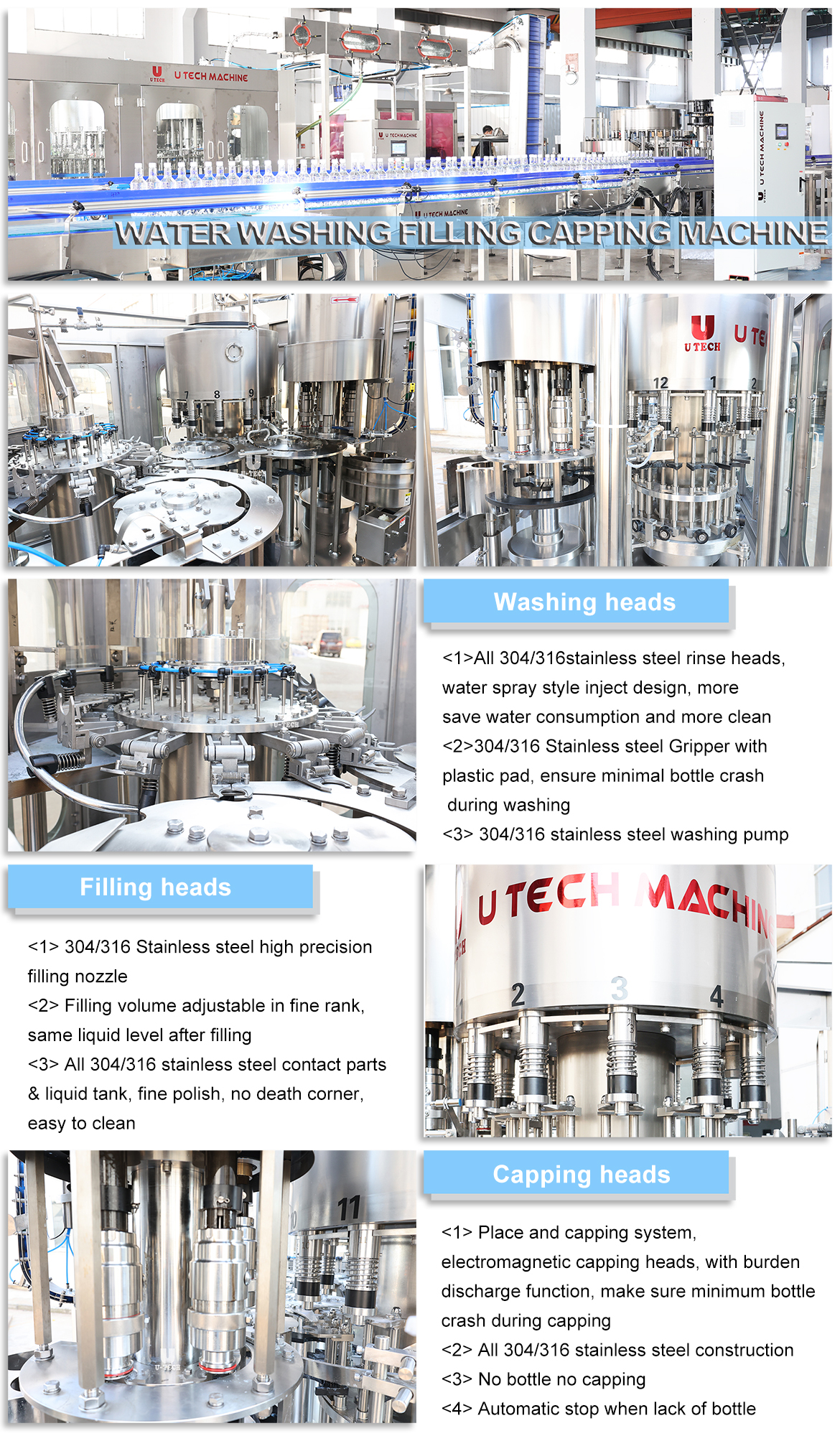

Filling Machine Details
Technical Parameters
Model
CGF8-8-3
CGF14-12-5
CGF16-16-6
CGF24-24-6
CGF32-32-8
Capacity(500ML)
2000PBH
5000PBH
8000PBH
12000PBH
15000PBH
Washing heads
8
14
16
24
32
Filling heads
8
12
16
24
32
Capping heads
3
5
6
6
8
suitable bottle
PET bottle,plastic bottle
Diameter of bottle
55-110mm
Height of bottle
150-310mm
Suitable cap
Plastic screw cap
Weight
1500kg
2000kg
4000kg
4500kg
6000kg
Main motor power
1.2kw
1.5kw
3kw
3kw
3kw
Production line flow

Water treatment system

The system is the process of purifying the raw water by a series equipments and devices to be drinkable.

Automatic PET bottle blow moulding machine

Suitable for blowing any kind of carbonated fruit juice beverage sparkling pure mineral water bottle.

Hot melt glue OPP labeling machine

This OPP labeling machine or hot melt adhesive labeler is suitable for labeling OPP material labels.

Laser printer

The pet bottle laser printer is suitable for cables PE pipes, automatic production line of date code or bar code.

Wrap around caser

The machine shapes the cartons automatically and closes their bottoms flaps within hot glue.
