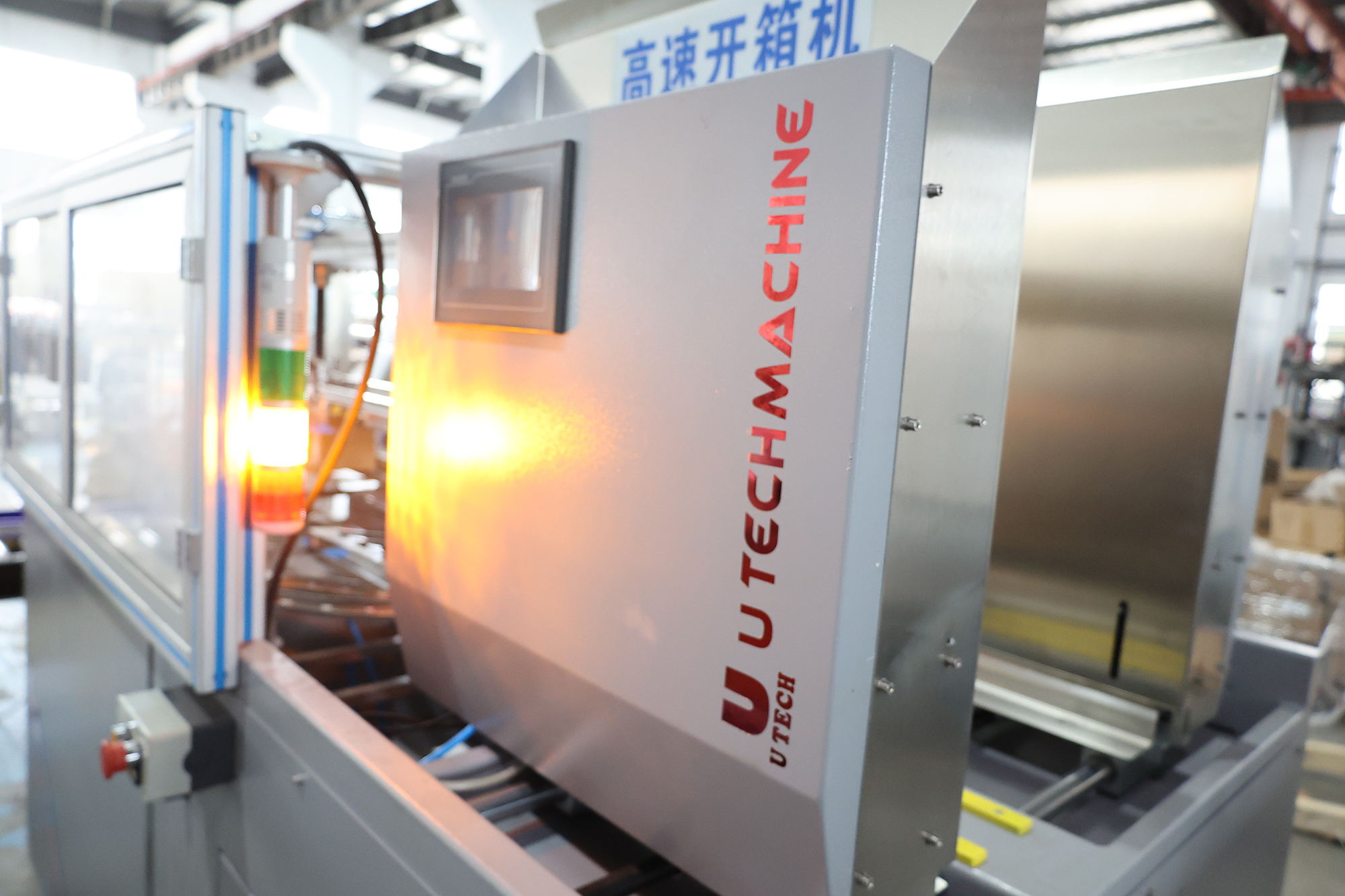

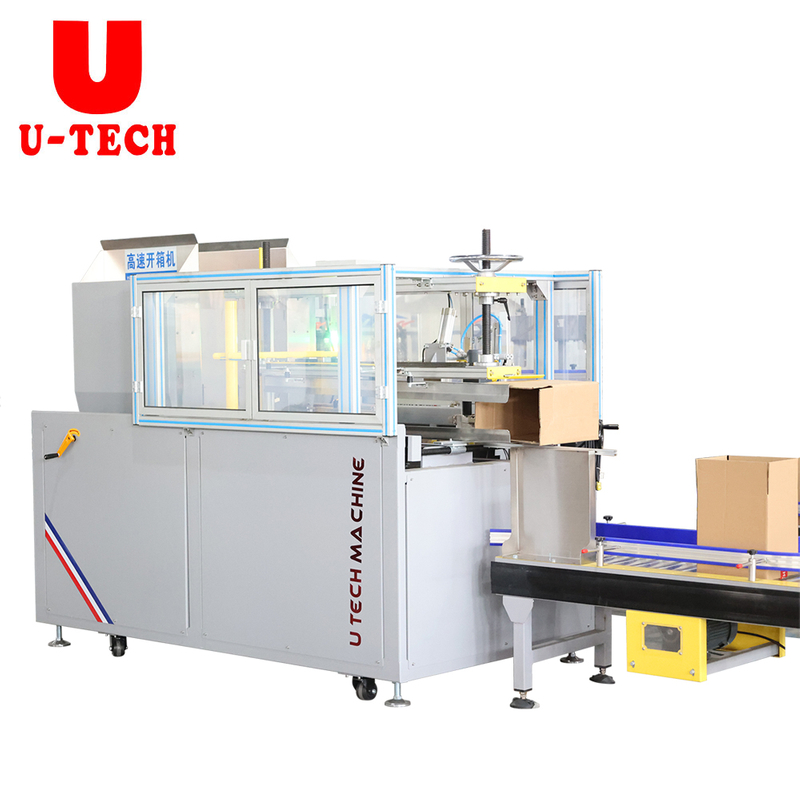

Hot Sale Automatic Packing System Full Set PLC Core Components for Cartons And Bottles Low Price Case Erector

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

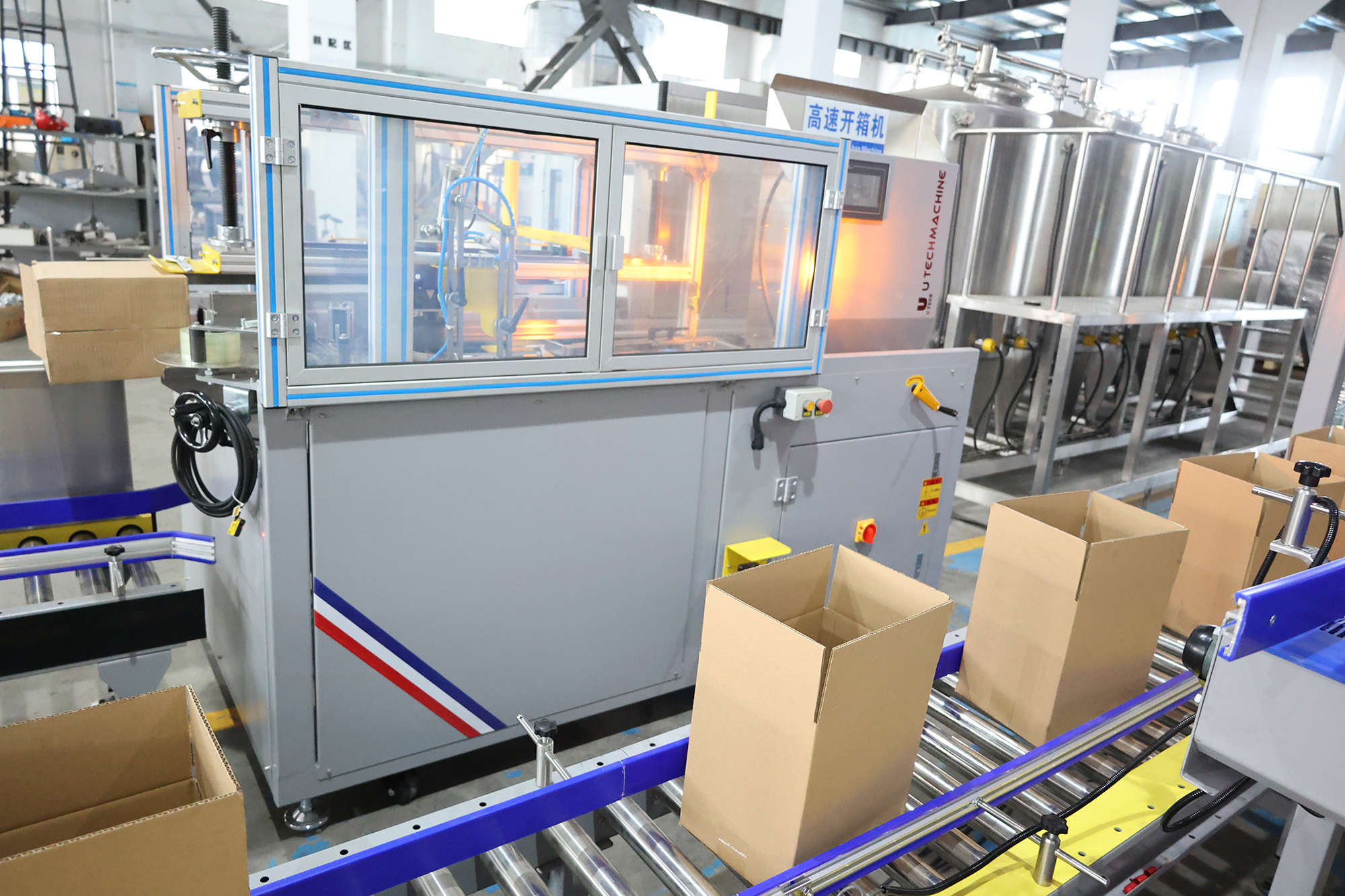

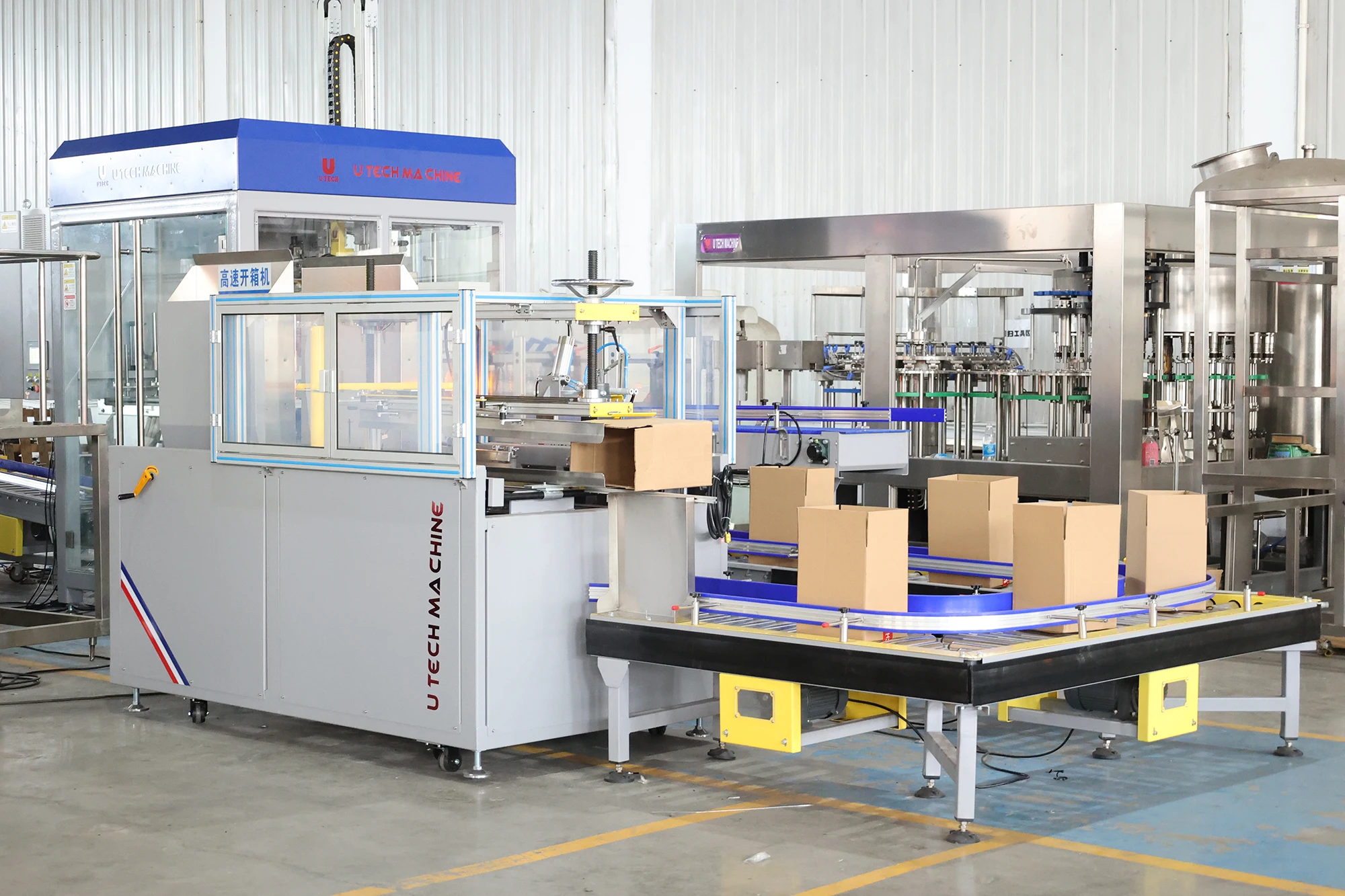

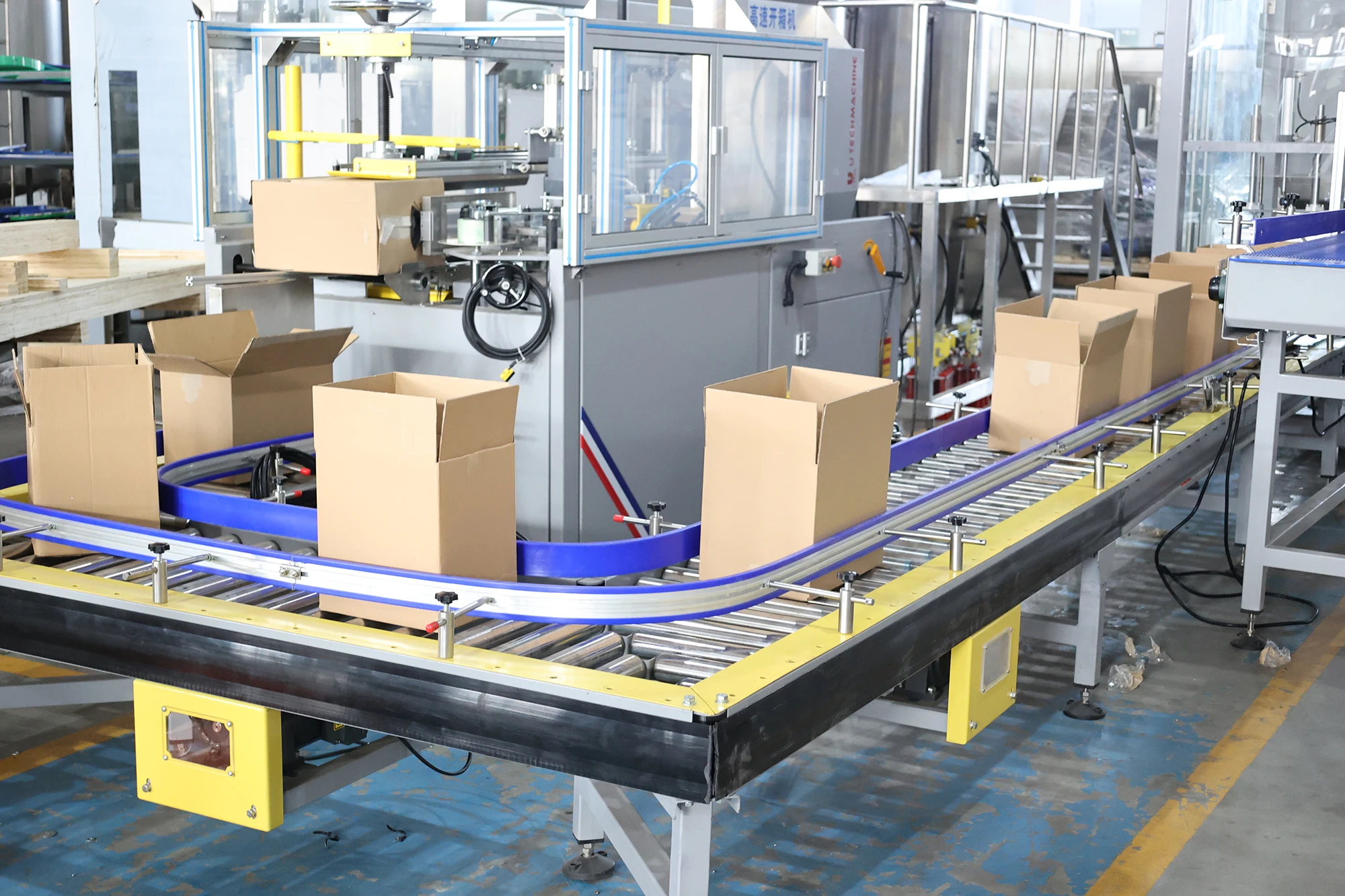

Carton erectors used in automated or semi-automated caton/case packaging processes, its main function is to erect(unfold) the cardboard box and seal the bottom flaps so that it is ready for packing.

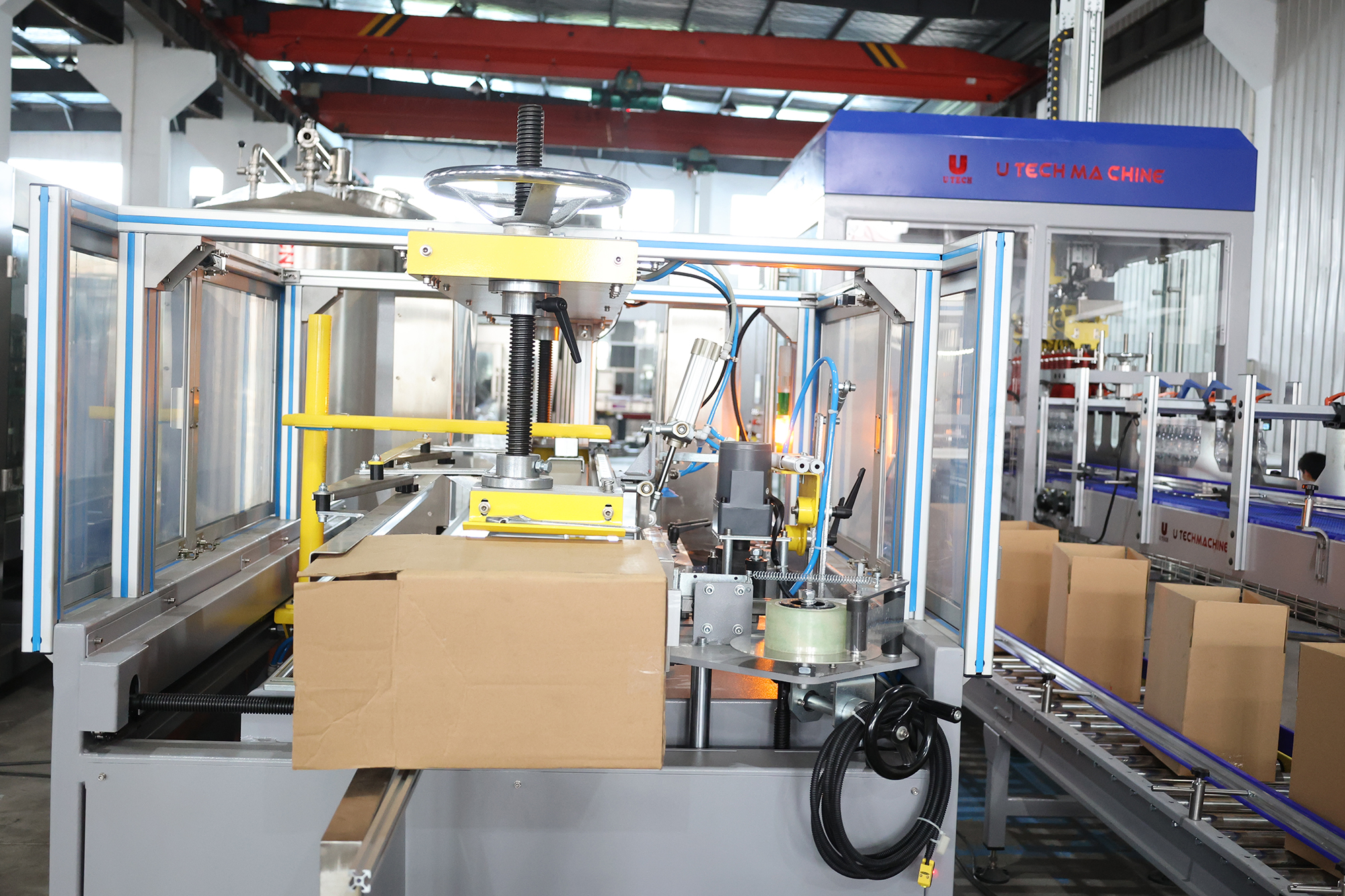

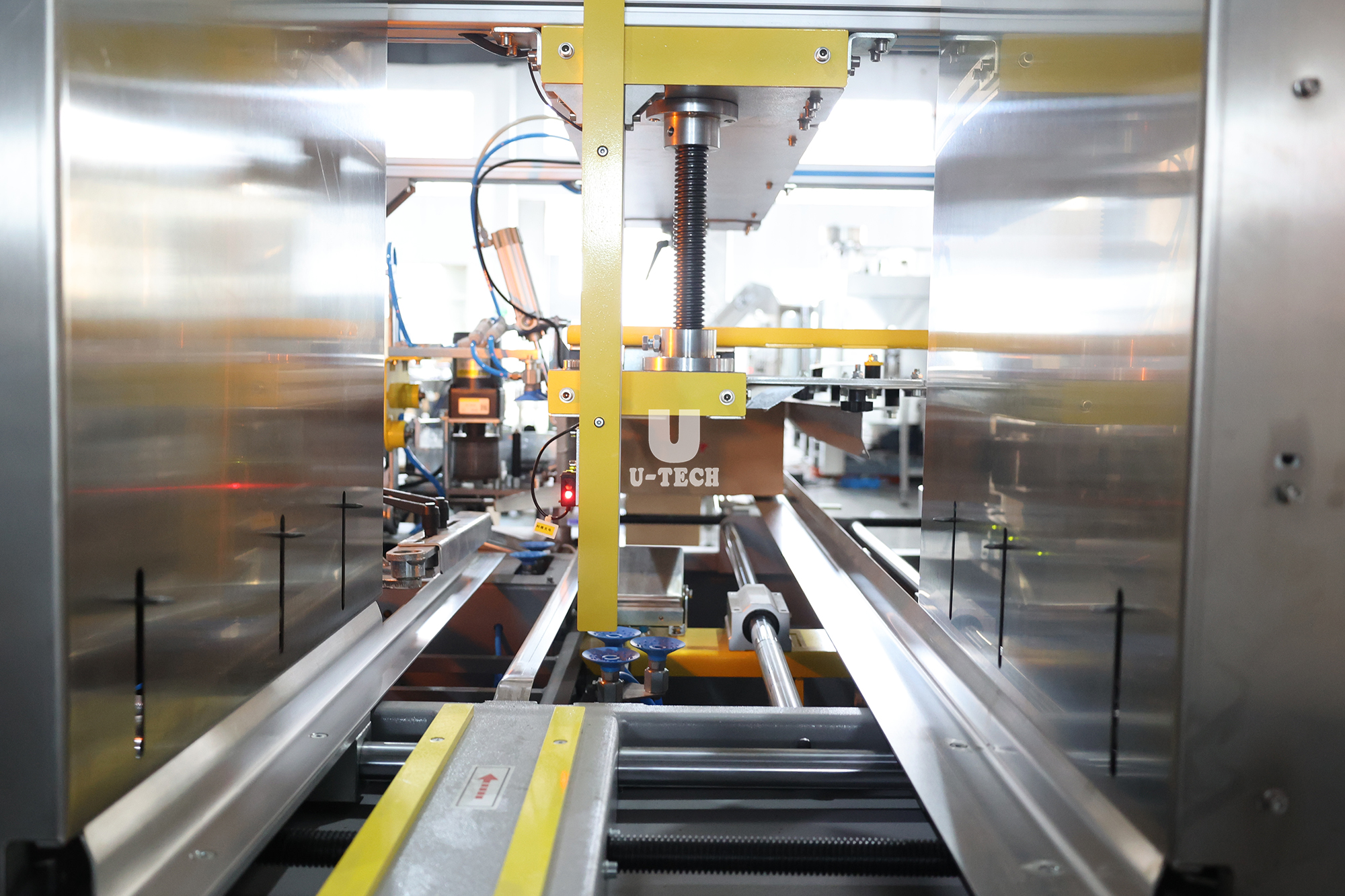

Machine Details

Specification

Suitable Case	L200-500mm/W150-390mm/H150-350mm
Height of table	Min.H650mm Max.H700mm
Work speed	10-14carton/min.
Power	Single phase, 110V or 220V/ 50/60HZ , 300W
Air Source	＞500L/min、 0.4~0.8 Mpa
Opp tape	W50mm or W60mm or W75mm
Machine Weight	NW-400KG GW-450kg

Related Products

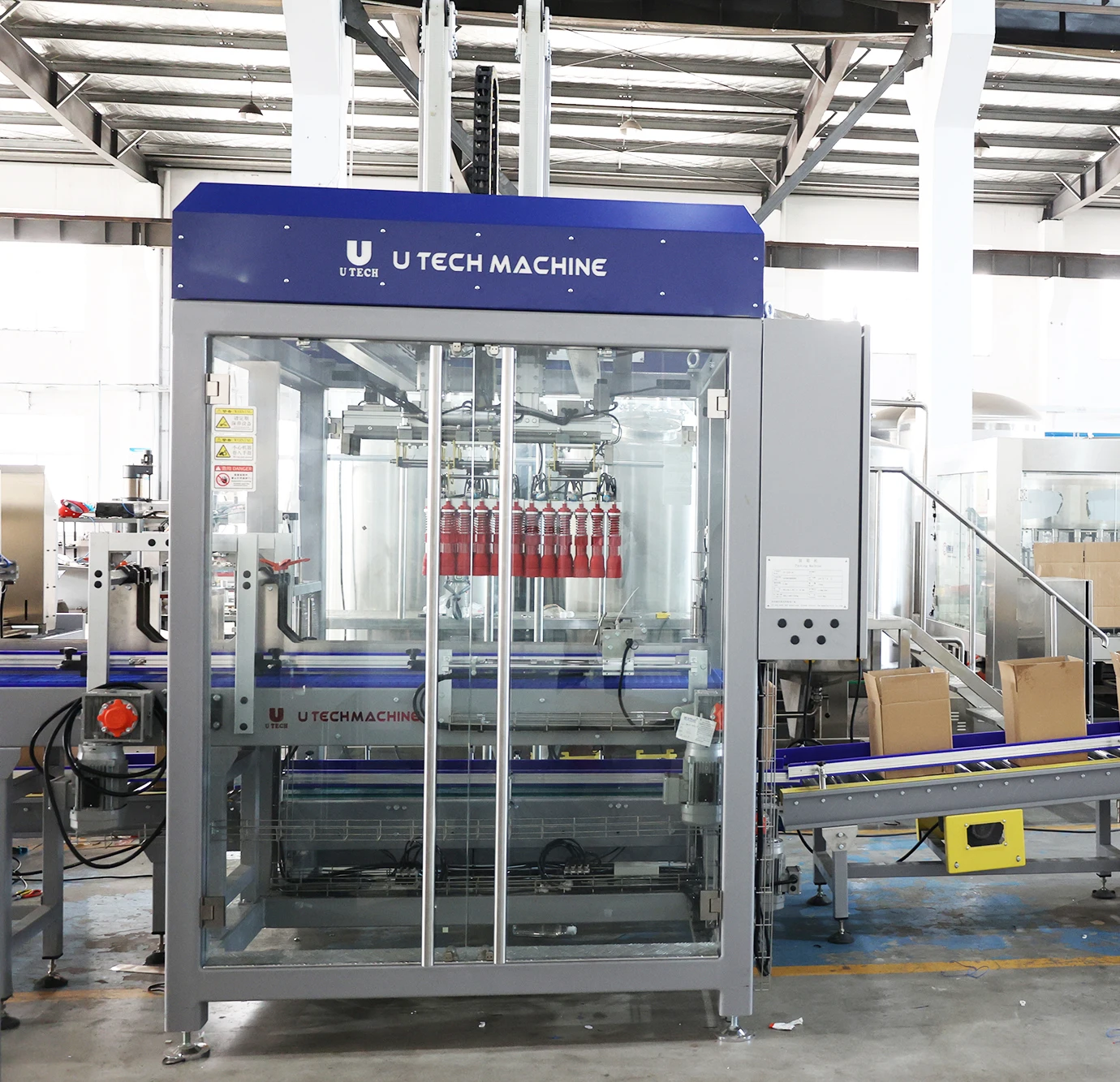

Case packer

This machine adopts two big sprocket.hanging chain driven fixture run back and forth , can match for three to six sets of clamp.The calmp can be made according to the product.And the packing speed can reach 18-30 cases per minute.

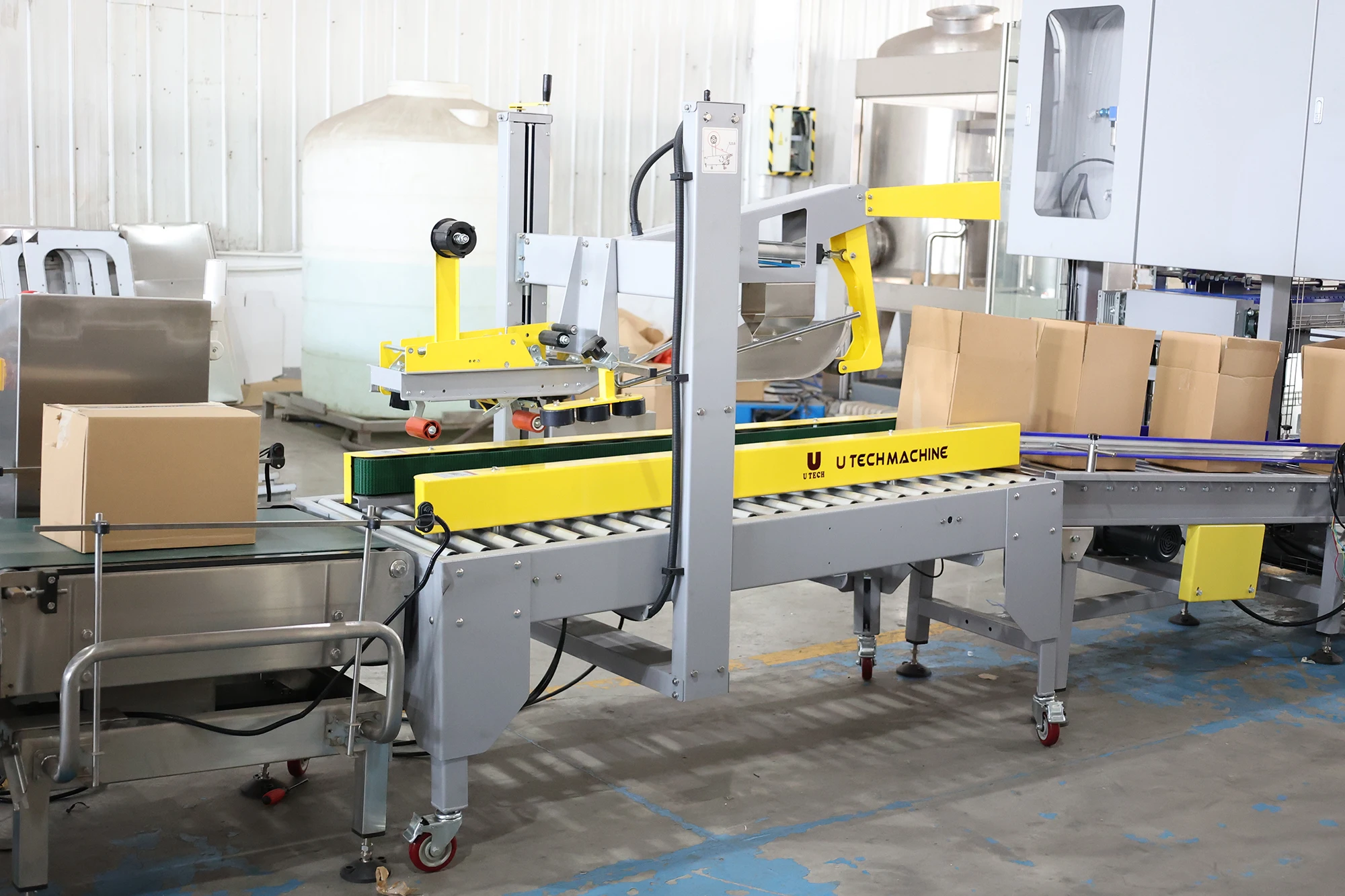

Carton sealer

Automatic carton sealer machine adopts left and right driving belts, pneumatic folding top covers mechanism, trapezoidal screw width and height adjustment mechanism, and high-strength structural design, which makes this model reliable in performance and can adapt to continuous heavy-duty sealing work of the production line.

Wrap around caser

Wrap around caser has high degree of automation, simple operation and strong adaptability. For example, the wrap around caser can be used to die-cut cardboard, nail the box, seal the bottom, box packing, and seal the box at one time, which reduces the
equipment and equipment cost.

Shrink packing machine

This machine is specially designed for packing production line of beverage ,drinking water ,fruit juice ,dairy products etc .with full automatic functions of bottle transfer and arrange ,membrane packing ,sealing and cut ,shrinkage ,cooling and shaping ,etc .

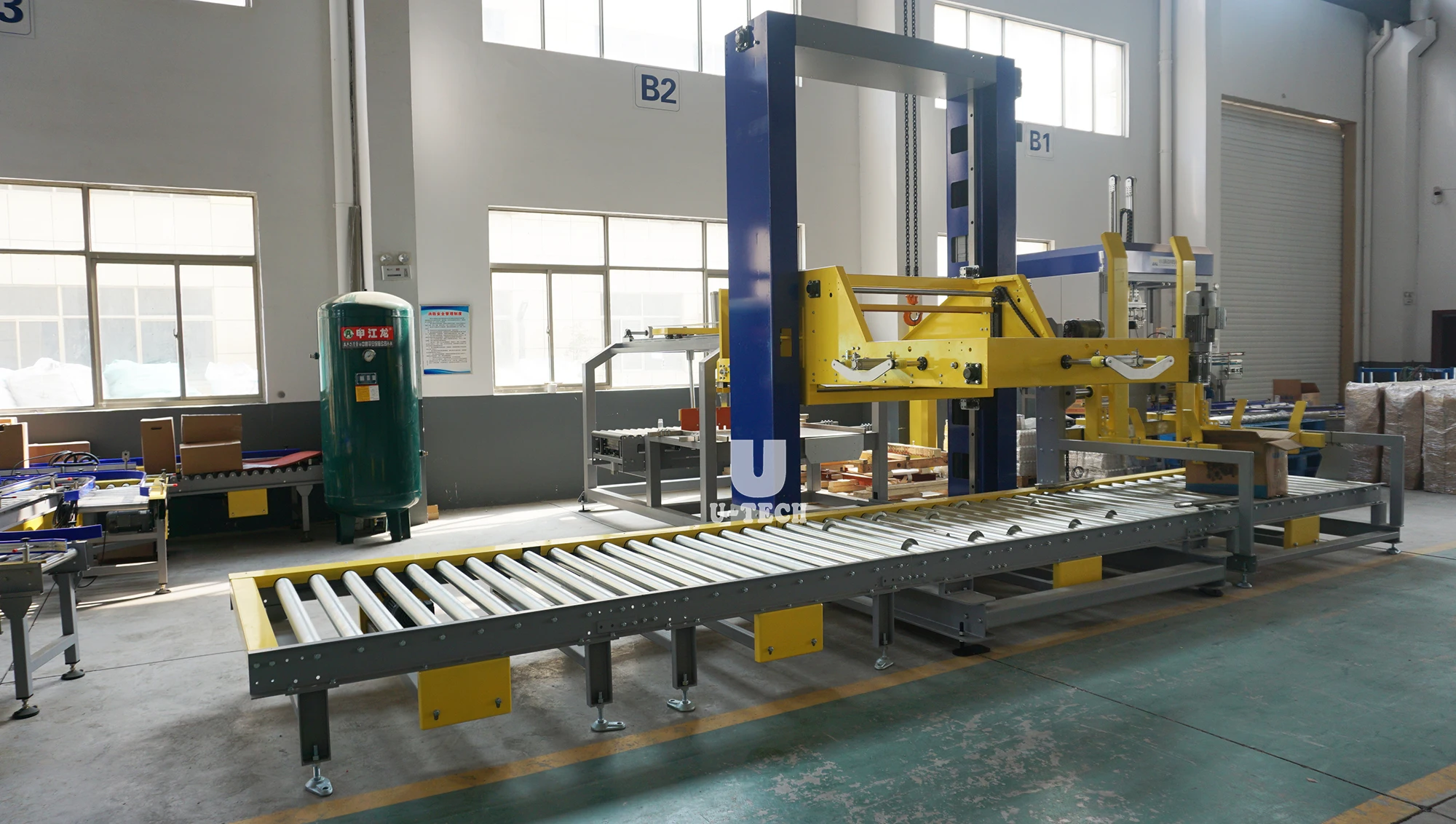

Palletizer

The palletizer is suitable for stacking carton ,plastic case、shrinkwrapped product and five gallons bottling etc. It consists of
Caseinfeed,classification yard, pusher, pallet feeding etc. Optionalinterlayer keeps the stack more stable. It can be designed for
different palletizing requirements with capacity ranging from 24000 to 72000BPH.
