Chinese Supplier U TECH Beverage Can Glass Plastic Bottle Jerrycan Heat Shrink Wrapping Packer Shrink Packaging Machine

Availability:
Quantity:
Product Description
Automatic Shrink Packing Machine
Specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, juice, and dairy product).During the product forward conveying process, it can automatically group the product into package, so as to save time and enhance packing efficiency.Touch-screen operating panel with user-friendly interface and convenient parameter setup, absolutely an easy-to-operate machine.The ideal model of middle-speed heat-shrinking packager in the domestic market.
Application
Technical parameter
UTP-150
Technical Parameters
Dimension for The Whole Unit
L5500mm x W3200mm x H2100mm
Thermal Shrinkage Passage Dimension
L1800mm x W650mm x H450mm
Max. Package Dimension
L600mm x W400mm x H350mm
Packaging Speed
8-13Pcs/min
Transfer Belt Dimension
800-1200mm
Sealing and Cut Time/Temperature
0.5-1.5s 140℃-160℃
Operating Power Supply/Power
(TN-S) 380V 19kw
Operating Air Pressure
0.6-0.8Mpa
Air Consumption
0.5m3/min

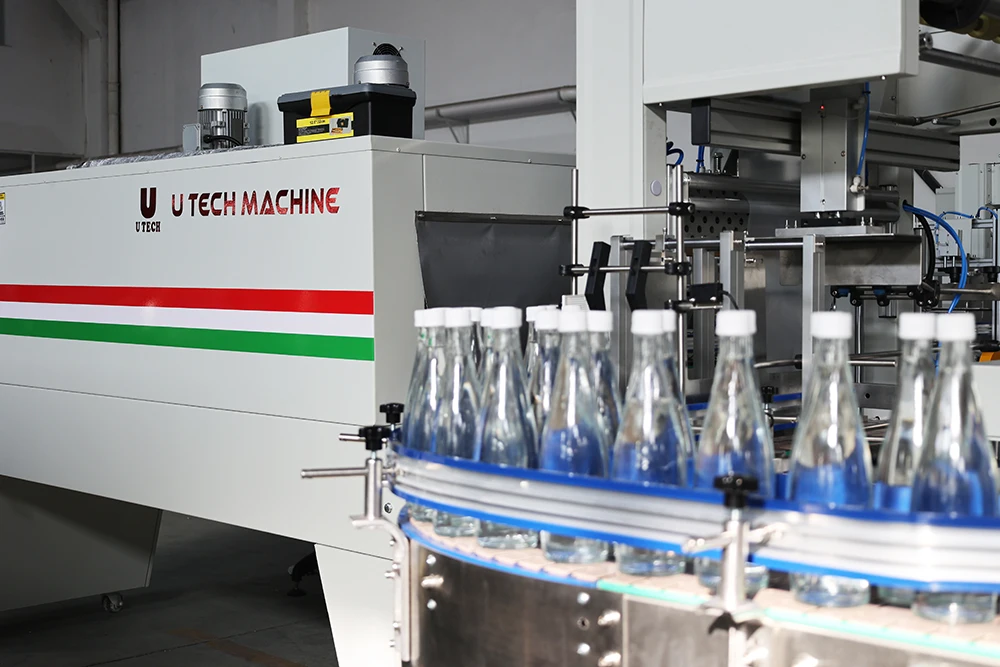

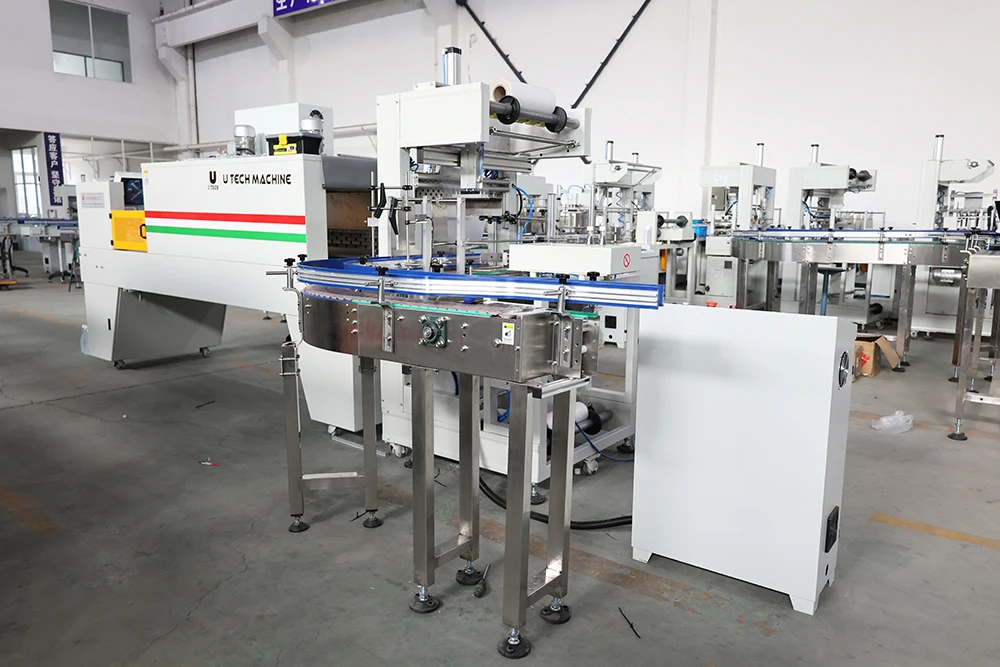

Machine details
Success Cases
