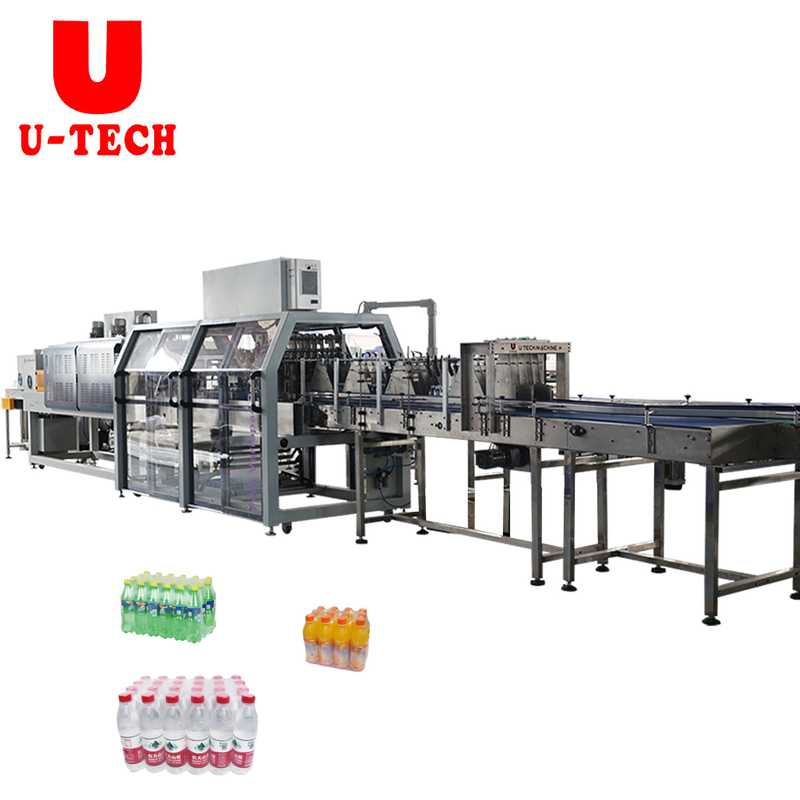

China Automatic Beverage Plastic Hdpe Bottle Heat Film Shrink Wrap Flow Packing Machine for Sale

Availability:
Quantity:
Inquire Add to Basket

Product Description

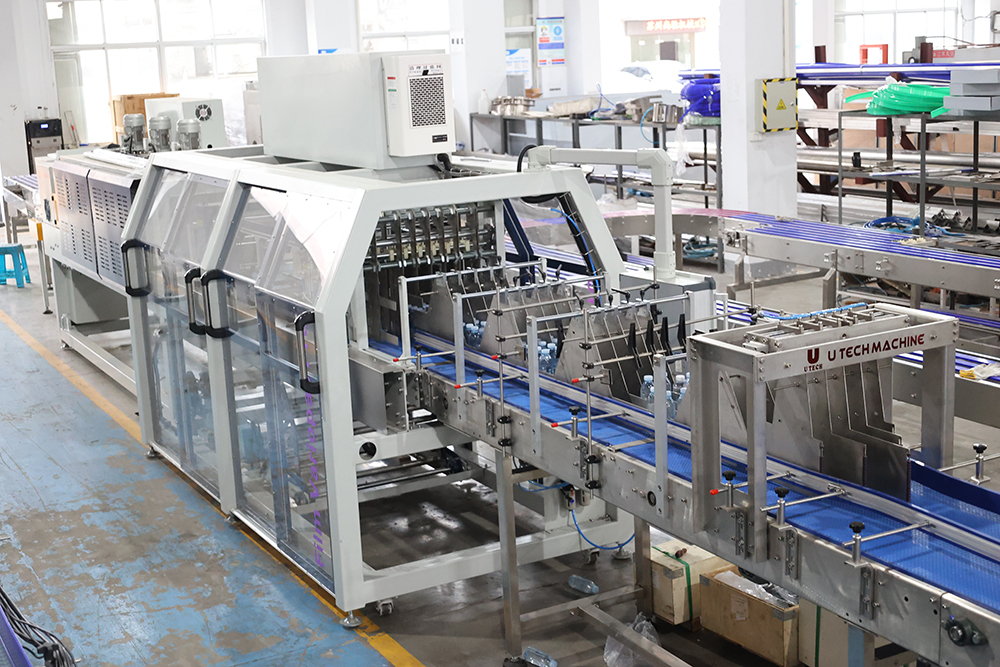

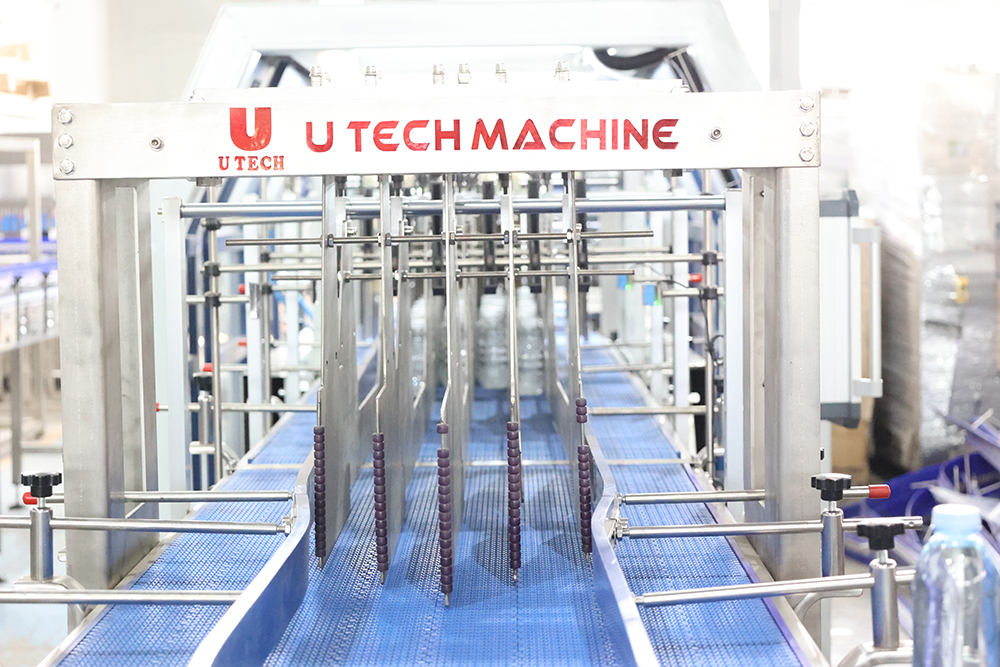

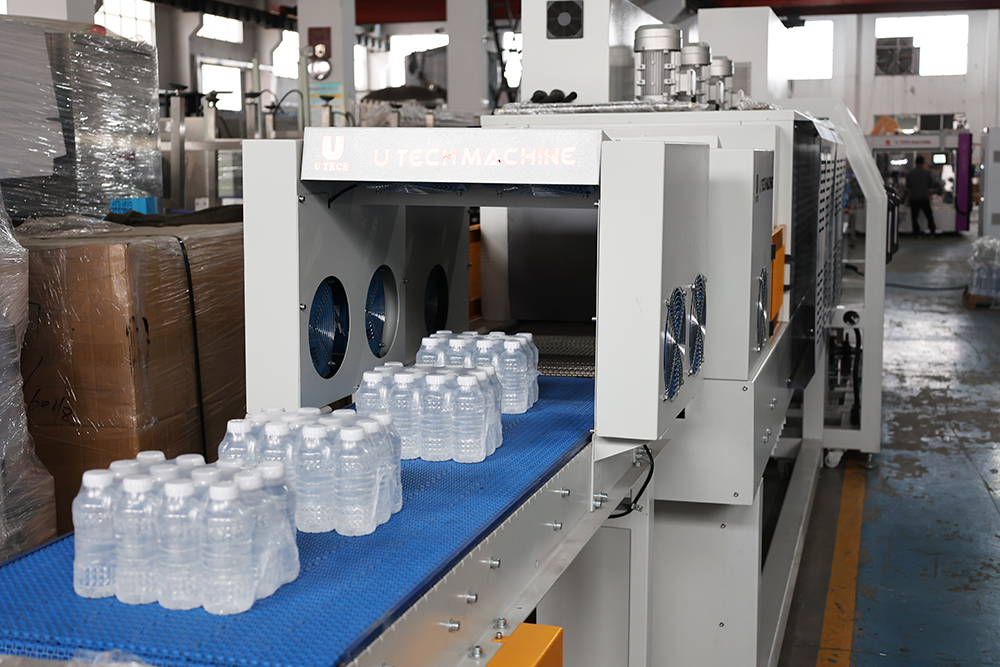

Automatic Shrink Packing Machine
Specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, juice, and dairy product).During the product forward conveying process, it can automatically group the product into package, so as to save time and enhance packing efficiency.
Machine details
Technical parameter
UTP-150
Technical Parameters
Dimension for The Whole Unit
L5500mm x W3200mm x H2100mm
Thermal Shrinkage Passage Dimension
L1800mm x W650mm x H450mm
Max. Package Dimension
L600mm x W400mm x H350mm
Packaging Speed
8-13Pcs/min
Transfer Belt Dimension
800-1200mm
Sealing and Cut Time/Temperature
0.5-1.5s 140℃-160℃
Operating Power Supply/Power
(TN-S) 380V 19kw
Operating Air Pressure
0.6-0.8Mpa
Air Consumption
0.5m3/min
Related products
Wrap around caser
Wrap around caser has high degree of automation, simple operation and strong adaptability. For example, the wrap around caser can be used to die-cut cardboard, nail the box, seal the bottom, box packing, and seal the box at one time, which reduces the
equipment and equipment cost.
Case erector
Carton erectors used in automated or semi-automated caton/case packaging processes, its main function is to erect(unfold) the cardboard box and seal the bottom flaps so that it is ready for packing.
Case packer
The carton packer system includes the carton erector and former, carton packer (filler, fill the bottles into the carton) and carton folder and sealer. The carton case or box can formed or sealed by sticky tape or by hot melt glue.
Carton sealer
The tape sealing machine has a wide range of applications. It is applicable to the sealing and packaging of cartons for household appliances, textiles,food,daily necessities, light industry, chemical and other industries.It can be used alone on in conjunction with the assembly line.
Palletizer
The palletizer is suitable for stacking carton, plastic case, shrink wrapped product and 5 gallon barrel. It consists of case infeed, classification yard, pusher, pallet feeding etc. Optional interlayer keeps the stack more stable. It can be designed for different palletizing requirements with capacity ranging from 24000 to 72000bph
