Full Automatic Factory Price High Level Wooden Pallet Conventional Carton Bag Palletizer Machine for Currgated Box

Share to:

Full Automatic Factory Price High Level Wooden Pallet Conventional Carton Bag Palletizer Machine for Currgated Box

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

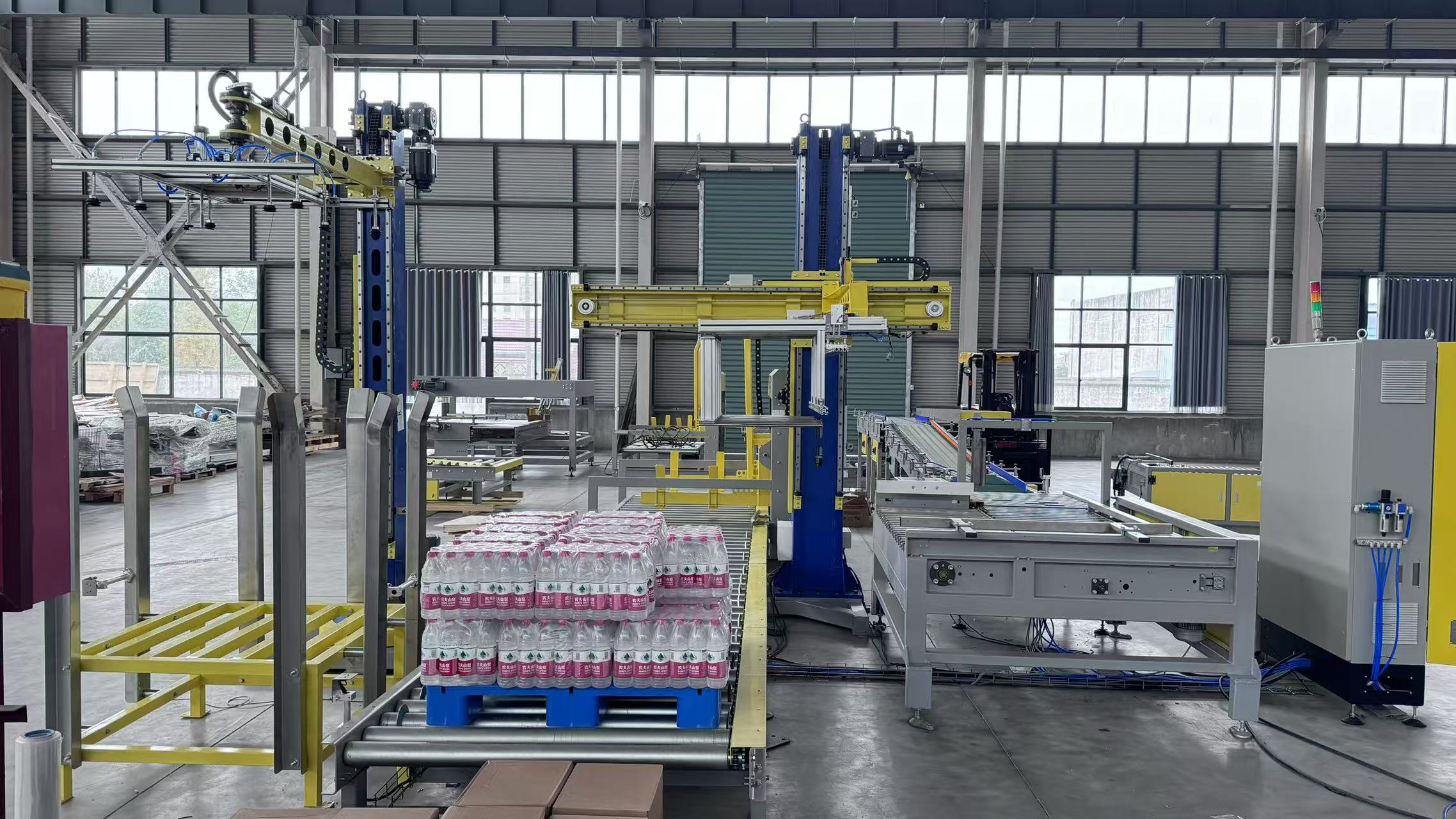

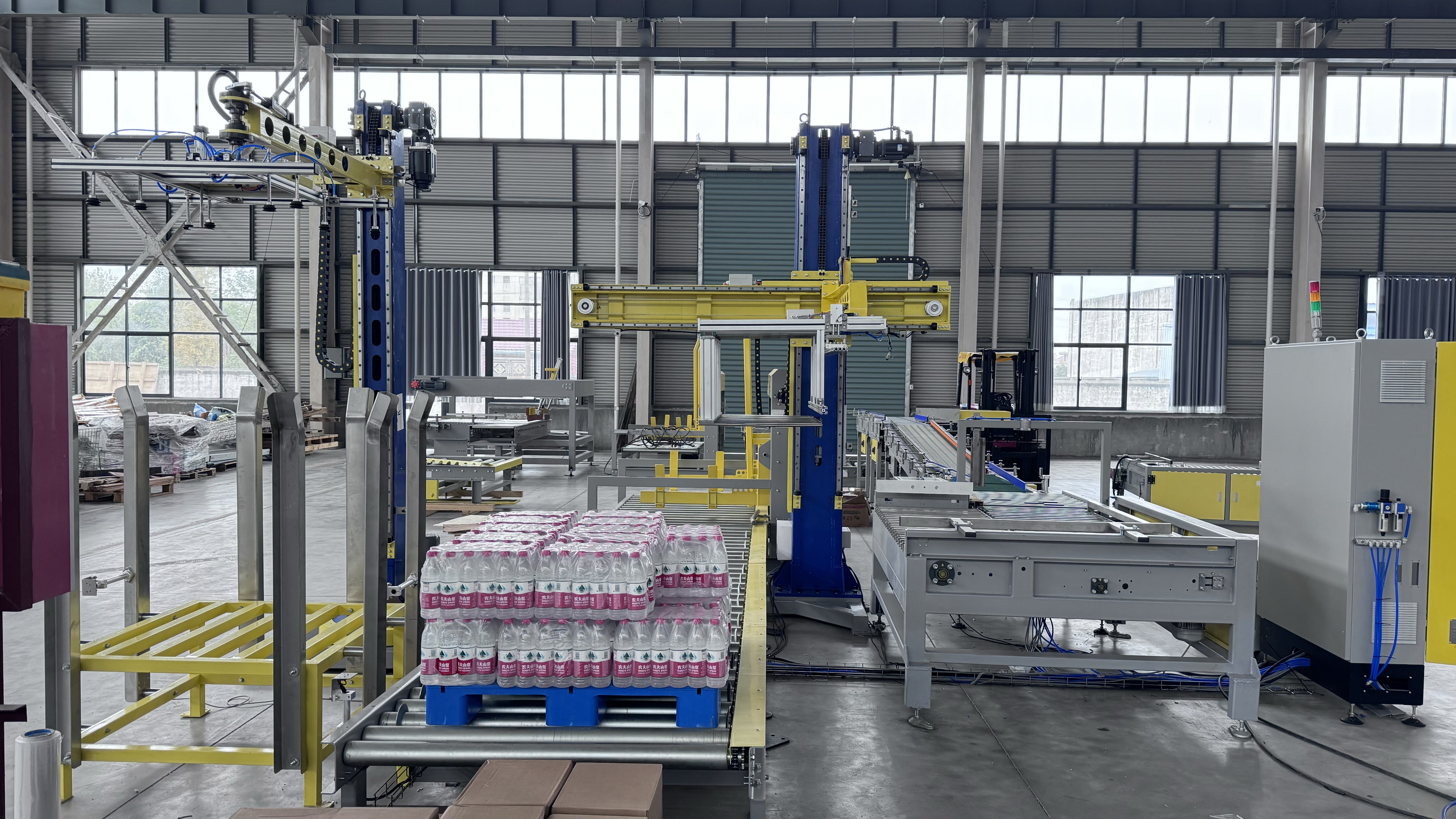

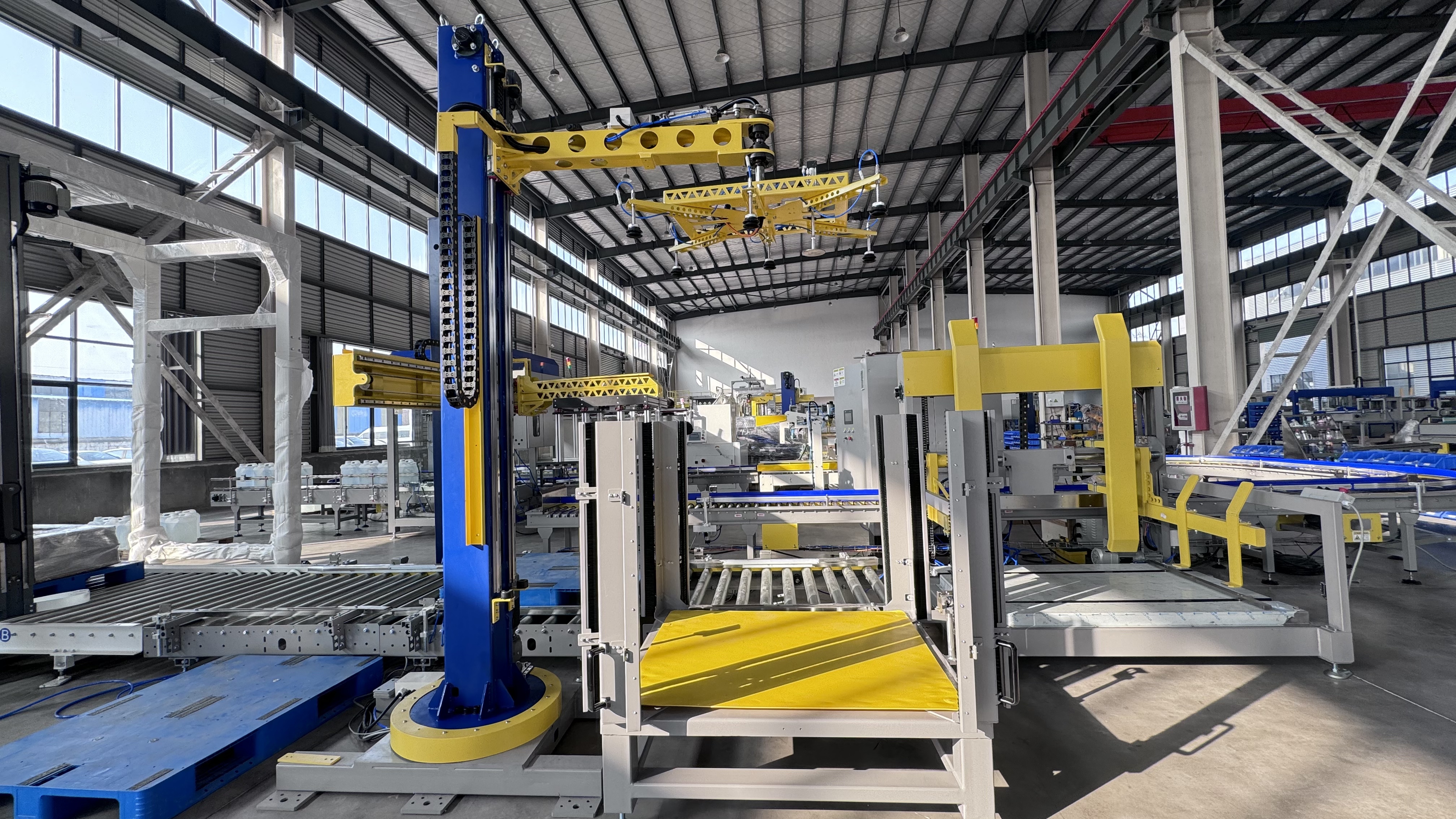

The palletizer is suitable for stacking carton, plastic case, shrink wrapped product and 5 gallon barrel. It consists of case
infeed, classification yard, pusher, pallet feeding etc. Optional interlayer keeps the stack more stable. It can be designed for different palletizing requirements with capacity ranging from 24000 to 72000bph.

Technical parameter

Operating type	horizontal gripper
Production efficiency	45cases/min
Handing product	box,plastic,bottle.can
Product conveyor height	850mm
Pallet conveyor height	650mm
Pallet size	140mmh(approx)
Case size	reference to sample
Layer type	as demanded
Pallet magazine	15 pallets be stored
Power	11kw
Weight	5500kg
size of machine	8400mm4700mm3700mm
