Automatic Industrial Beverage Bag Carton Box Robot Stacker Palletizer Stacking Machine

Share to:

Automatic Industrial Beverage Bag Carton Box Robot Stacker Palletizer Stacking Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

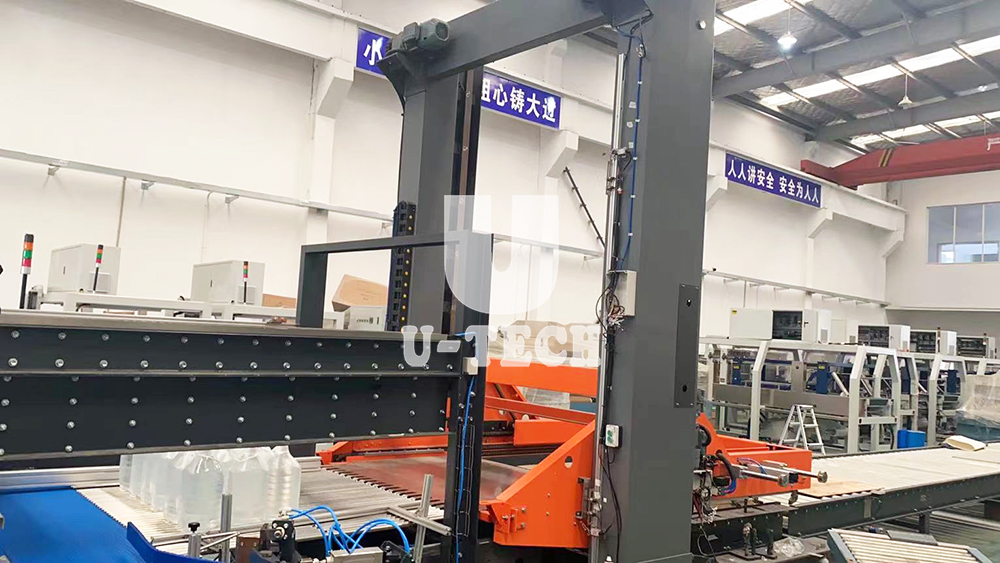

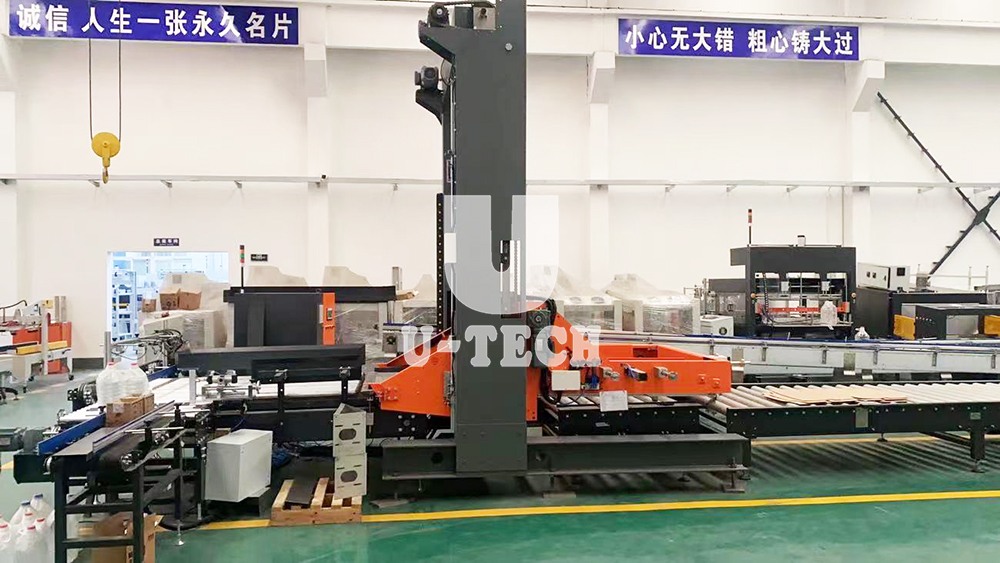

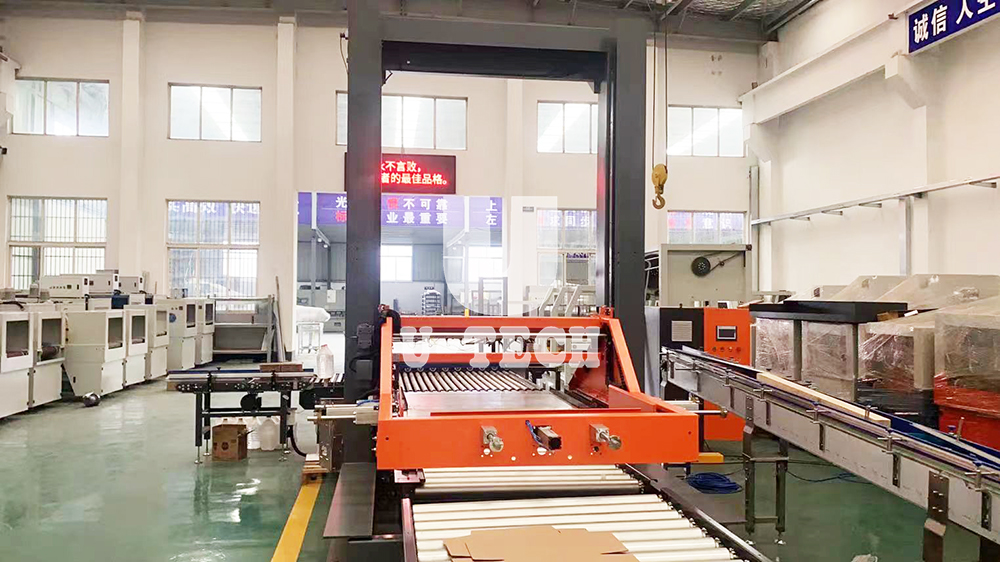

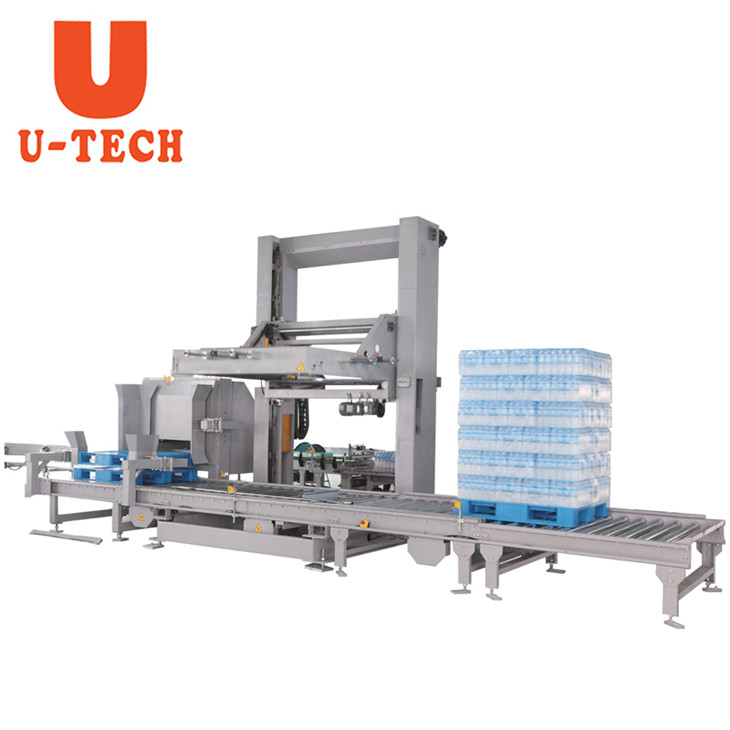

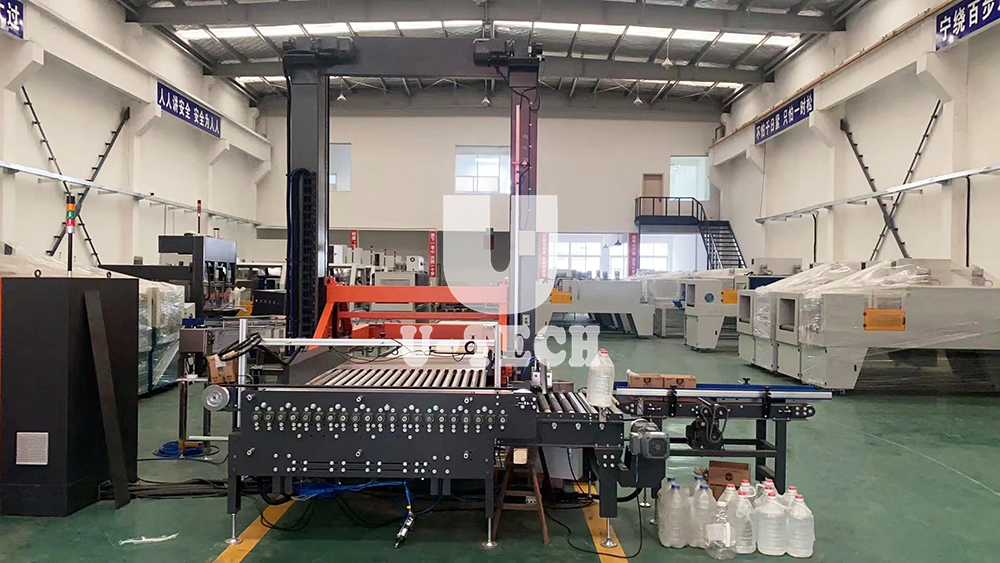

The palletizer is suitable for stacking carton, plastic case, shrink wrapped product and 5 gallon barrel. It consists of case
infeed, classification yard, pusher, pallet feeding etc. Optional interlayer keeps the stack more stable. It can be designed for different palletizing requirements with capacity ranging from 24000 to 72000bph

Technical parameter

Operating type	horizontal gripper
Production efficiency	45cases/min
Handing product	box,plastic,bottle.can
Product conveyor height	850mm
Pallet conveyor height	650mm
Pallet size	140mmh(approx)
Case size	reference to sample
Layer type	as demanded
Pallet magazine	15 pallets be stored
Power	11kw
Weight	5500kg
size of machine	8400mm4700mm3700mm

Related Products

Automatic case erector

Carton erector can finish the work of carton opening, shaping, folding and sticking adhesive tapes.Equipped with our consistency
system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems.Hot
melt glue system is optional.It is widely used with our carton sealer ,carton packer,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.

Case packer

On the basis of absorbing foreign technology, the equipment is designed and manufactured by our company. It is a frame type packing machine with pneumatic + electric working mode. Compact structure, beautiful appearance, low energy consumption, stable
operation and convenient operation. The rocker arm works flexibly and is driven by variable frequency motor, so it runs smoothly.

Carton sealer

Automatic carton seaer machine with adhesive tape will extremely speed up the packing process of boxes and cartons and other packages. the automatic carton sealer machine automates the process of gluing the tape to the top and bottom of the box.the
productivity of the packaging increases, the number of packed boxes per minute usually increases by several times. An automatic
carton closing sealer machine with adhesive tape is easy to use and can be operated by a person without prior professional training.

Wrap around caser

A carton wrap around packer is an automated device that uses corrugated cardboard to pack a group of pre-designed bottles into boxes. The production speed can be automatically adjusted according to the bottle arrival situation of the production line. The operation is simple and the packaging effect is good. It is widely used in beverages, beer, dairy products, daily chemicals and other industries.
