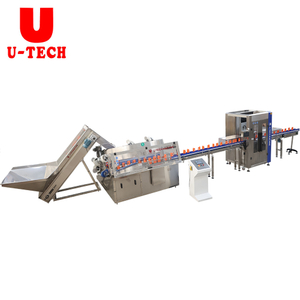

Automatic PET Plastic Empty Bottle Wrapping Bagging Packing Machine Plant

Availability:
Quantity:
Inquire Add to Basket

Product Introduction
U-TECH automatic bagging machine is designed to pack empty plastic containers into prepared plastic bags. The packing speed can be as much as 8,000 bottles per hour, which can improve the productivity greatly and reducing labor cost at the same time. This machine can bag plastic containers ranging from 200ml to 5L. It can be in line integrated with other bottle making equipments such as blow molding machine and labeling machine, fulfilling a full automatic production line for plastic containers.
This machine is designed to pack rectangular empty plastic containers. This machine uses pre-made plastic bags, which are manually placed on the bagger by the operator. It is capable to pack more than one type of bottles, and can be easily fulfilled by changing the bottle pusher and the transit sheet.

Features

1. Freestanding in-feed conveyor whose speed can be adjusted

2. Bottle pusher with positioning devices

3. Operator Touch Panel of 7 inches

4. Displays of alarms and failing causes; warning signs for full bags

5. Thermo device for sealing the bags

6. Can pack different sizes of bottles and different shapes of bottles

7. Operator language in English

Sample
Technical Parameters
Item
Specifications
Remarks
Container requirements
200ml-5L,
Ranging from 200 ml to 5L; the ratio between height and diameter should be less than 4

Packing sizes
(400-1200)*(400-650)*(50-300)(L*W*H)
Length: 400 to 1200 mm; Width: 400 to 650 mm

Conveyor length
Standard conveyor: L*W 2200mm*114.3mm
Can be customized.
Conveyor height
850±50 mm
Can be customized.
Air pressure
6-8 Bar
Supplied by the purchaser
Power consumption
2KW

Output
3,000 to 4,000 per hour for 500 ml bottle

Main Specifications
PLC-- MITSUBISHI /Japan
Touch screen –SIEMENS- Germany
Laser probe--Autonics/ Korean
Air valves-- FESTO / Germany
penumatic and cylinder --FESTO / Germany

Warranty Period
2 year ALL FREE PART SEND

Machine Details
