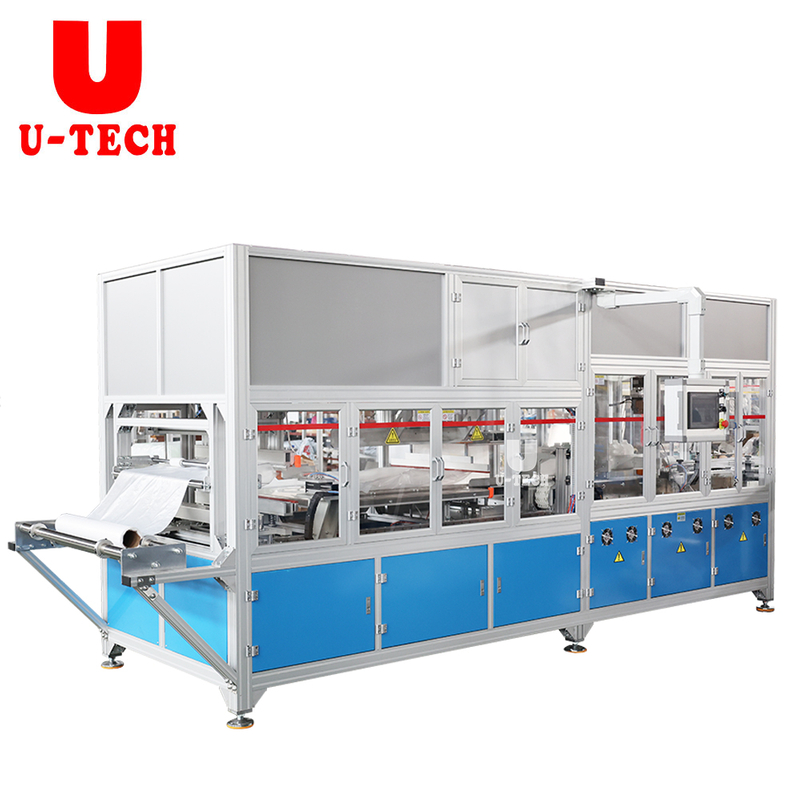

Automatic Empty Plastic PET PP Bottle Bag Packaging Machine Factory Price

Share to:

Automatic Empty Plastic PET PP Bottle Bag Packaging Machine Factory Price

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

 U-TECH automatic bagging machine is designed to pack empty plastic containers into prepared plastic bags. The packing speed can be as much as 8,000 bottles per hour, which can improve the productivity greatly and reducing labor cost at the same time. This machine can bag plastic containers ranging from 200ml to 5L. It can be in line integrated with other bottle making equipments such as blow molding machine and labeling machine, fulfilling a full automatic production line for plastic containers.
This machine is designed to pack rectangular empty plastic containers. This machine uses pre-made plastic bags, which are manually placed on the bagger by the operator. It is capable to pack more than one type of bottles, and can be easily fulfilled by changing the bottle pusher and the transit sheet.

Features

Freestanding in-feed conveyor whose speed can be adjusted

Bottle pusher with positioning devices

Operator Touch Panel of 7 inches

Displays of alarms and failing causes; warning signs for full bags

Thermo device for sealing the bags

Can pack different sizes of bottles and different shapes of bottles

Operator language in English

Sample

Technical Parameters

Item	Specifications	Remarks
Container requirements	200ml-5L, Ranging from 200 ml to 5L; the ratio between height and diameter should be less than 4
Packing sizes	(400-1200)(400-650)(50-300)(LWH) Length: 400 to 1200 mm; Width: 400 to 650 mm
Conveyor length	Standard conveyor: LW 2200mm114.3mm	Can be customized.
Conveyor height	850±50 mm	Can be customized.
Air pressure	6-8 Bar	Supplied by the purchaser
Power consumption	2KW
Output	3,000 to 4,000 per hour for 500 ml bottle
Main Specifications	PLC-- MITSUBISHI /Japan Touch screen –SIEMENS- Germany Laser probe--Autonics/ Korean Air valves-- FESTO / Germany penumatic and cylinder --FESTO / Germany
Warranty Period	2 year ALL FREE PART SEND

Machine Details

Control System

1	Main electronic parts	SIEMENS/GERMANY
2	Electricprotectionswitch	SIEMENS/GERMANY
3	Circuit breaker	SIEMENS/GERMANY
4	Transducer	MITSUBISHI/JAPAN
5	Photo electricity switch	AUTONICS/KOREA
6	Pressuresensor	SMC/JAPAN
7	Motor	SIEMENS/GERMANY
