Automatic Beverage Daily Use Product PE Film Heat Shrink Wrapping Packing Machine

Share to:

Automatic Beverage Daily Use Product PE Film Heat Shrink Wrapping Packing Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

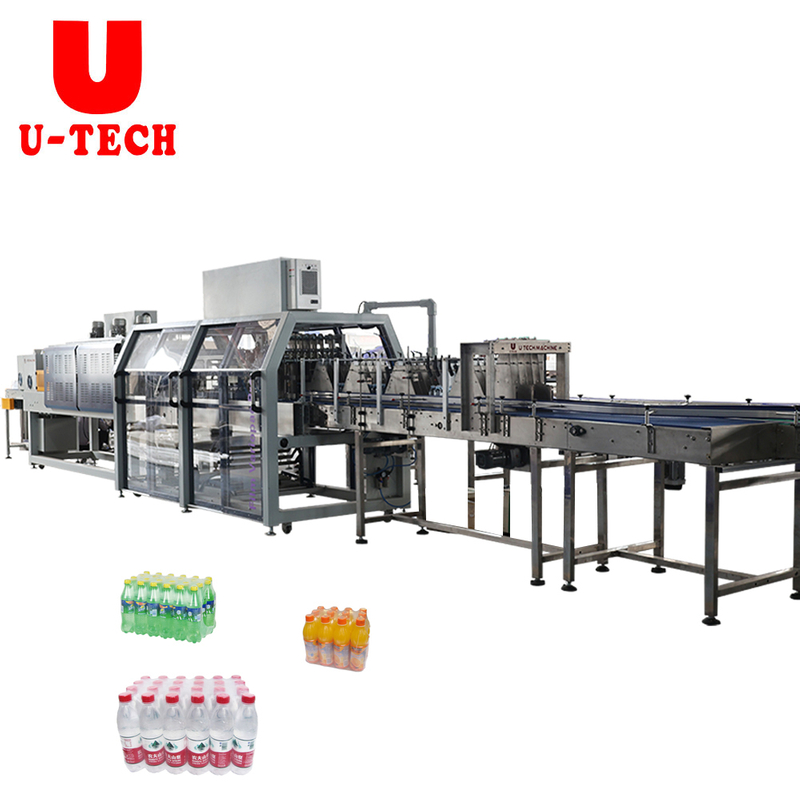

Automatic Shrink Packing Machine

Specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, juice, and dairy product).During the product forward conveying process, it can automatically group the product into package, so as to save time and enhance packing efficiency.Touch-screen operating panel with user-friendly interface and convenient parameter setup, absolutely an easy-to-operate machine.The ideal model of middle-speed heat-shrinking packager in the domestic market.

Technical parameter

UTP-150	Technical Parameters
Dimension for The Whole Unit	L5500mm x W3200mm x H2100mm
Thermal Shrinkage Passage Dimension	L1800mm x W650mm x H450mm
Max. Package Dimension	L600mm x W400mm x H350mm
Packaging Speed	8-13Pcs/min
Transfer Belt Dimension	800-1200mm
Sealing and Cut Time/Temperature	0.5-1.5s 140℃-160℃
Operating Power Supply/Power	(TN-S) 380V 19kw
Operating Air Pressure	0.6-0.8Mpa
Air Consumption	0.5m3/min

Machine details

Main Features

1.Adopt with PLC automatic program circulation control with stable and reliable performance.

2.The original imported guide bar cylinder guarantee correct operation and durable.

3.The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.

4.All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.

5.Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with
beautiful and secure shrinkage effect.

6.three layers of heat insulation treatment with good insulating property,quick temperature rise and energy saving.

7.The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported.

8.It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.
