Small Business Plastic Bottle Fruit Milk Litchi Juice Filling Aluminum Foil Sealing Machine Factory Price

Share to:

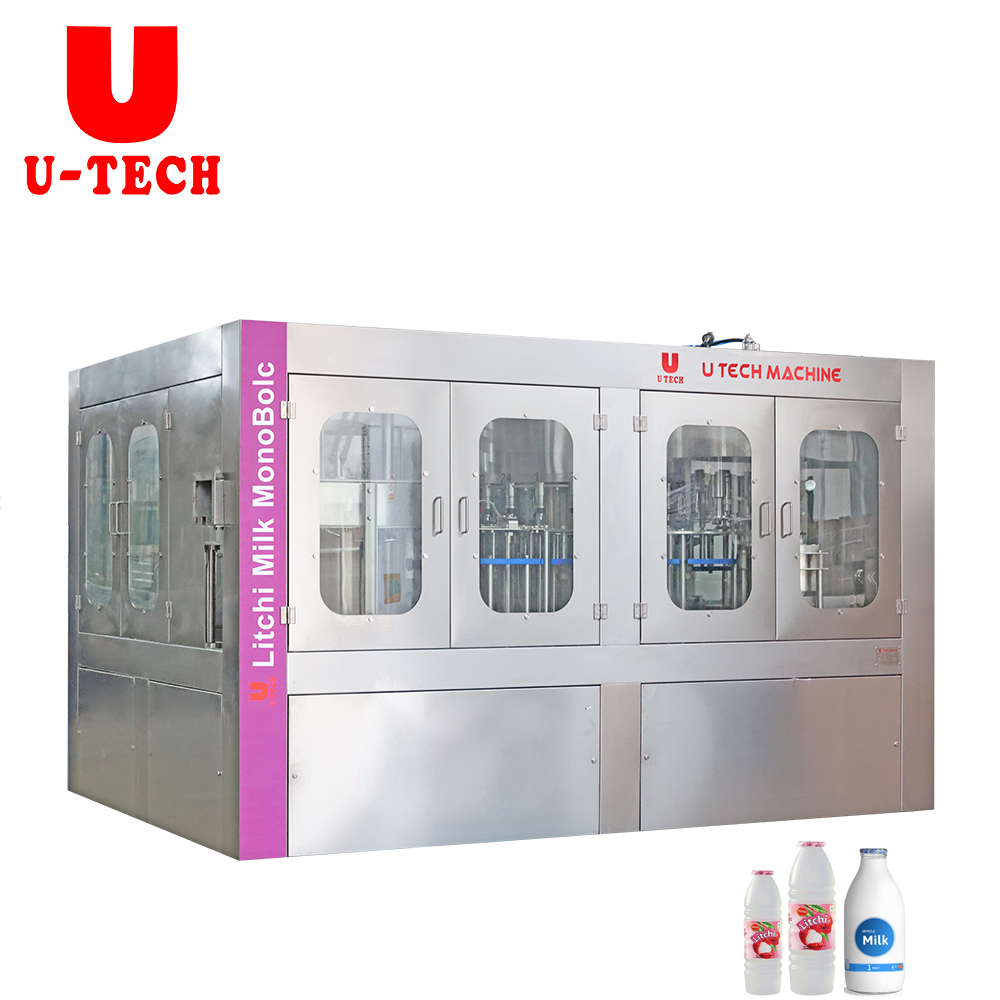

Small Business Plastic Bottle Fruit Milk Litchi Juice Filling Aluminum Foil Sealing Machine Factory Price

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

BST series full automatic rinsing bottle,filling and aluminum foil sealing machine is used for production of bottle of milk,lactate milk,soy milk,juice etc.The machine completes process of vacuum negative pressure filling,automatically form cap,capping(optional) and electricity heat sealing automatically.The machine adopt PLC control system,electronic and temperature control system,pneumatic control and automatic lubrication.The all parts of touching of milk is stainless steel 304,besides,the valve of milk is stainless steel 316.because of the form is rotary automatically filling and sealing machine,the milk touch the air time is very little,so it could guarantee the quality of milk.

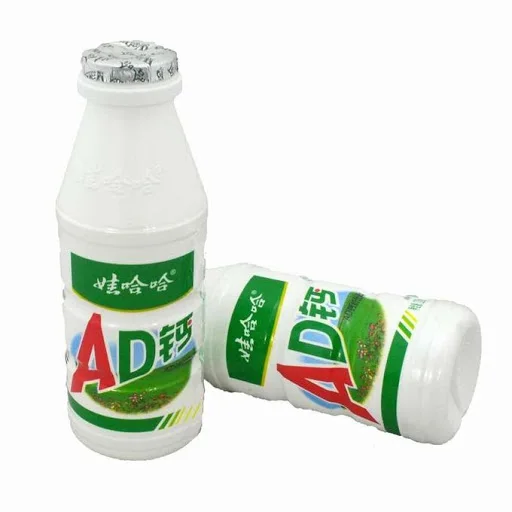

Application

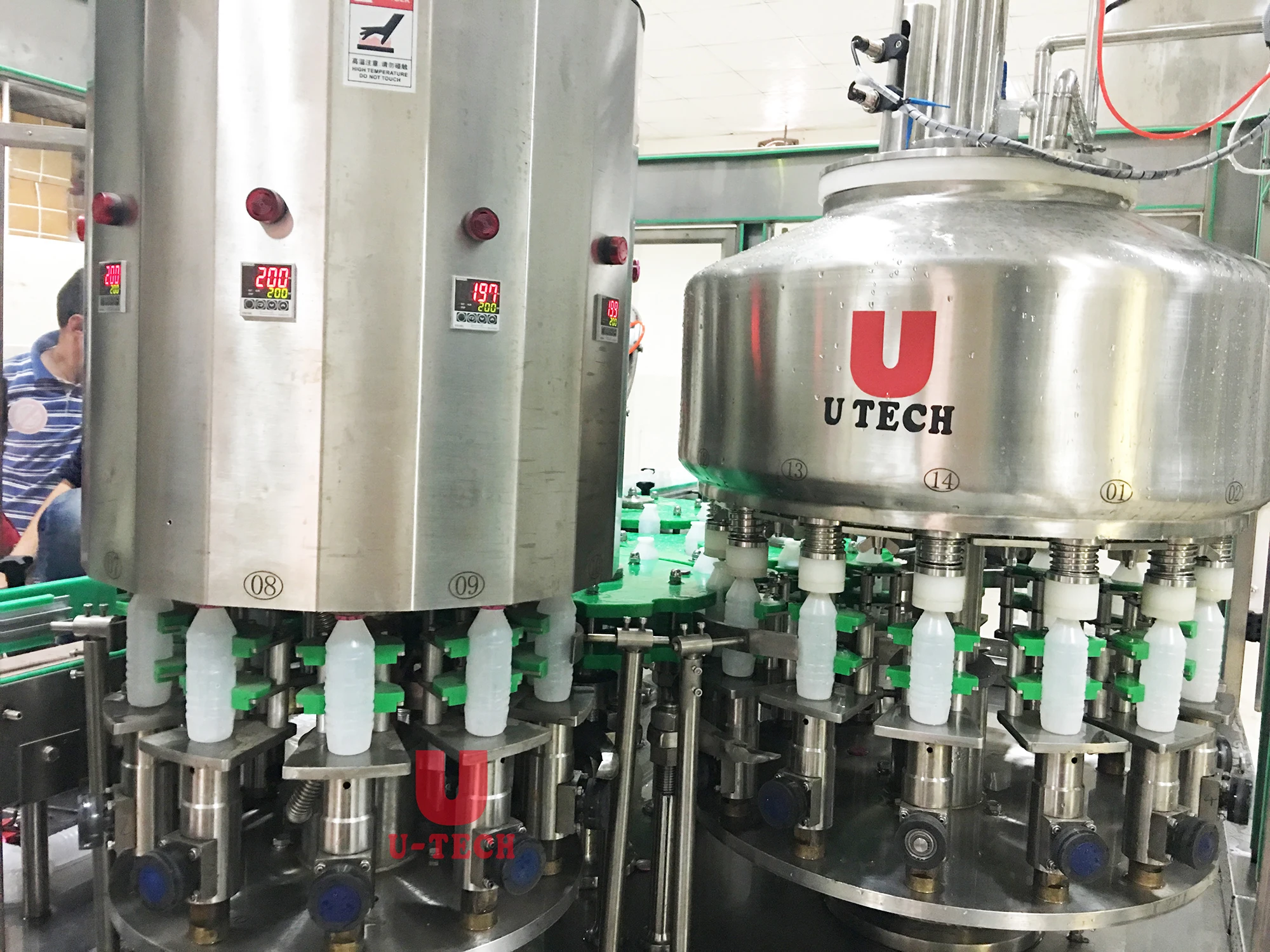

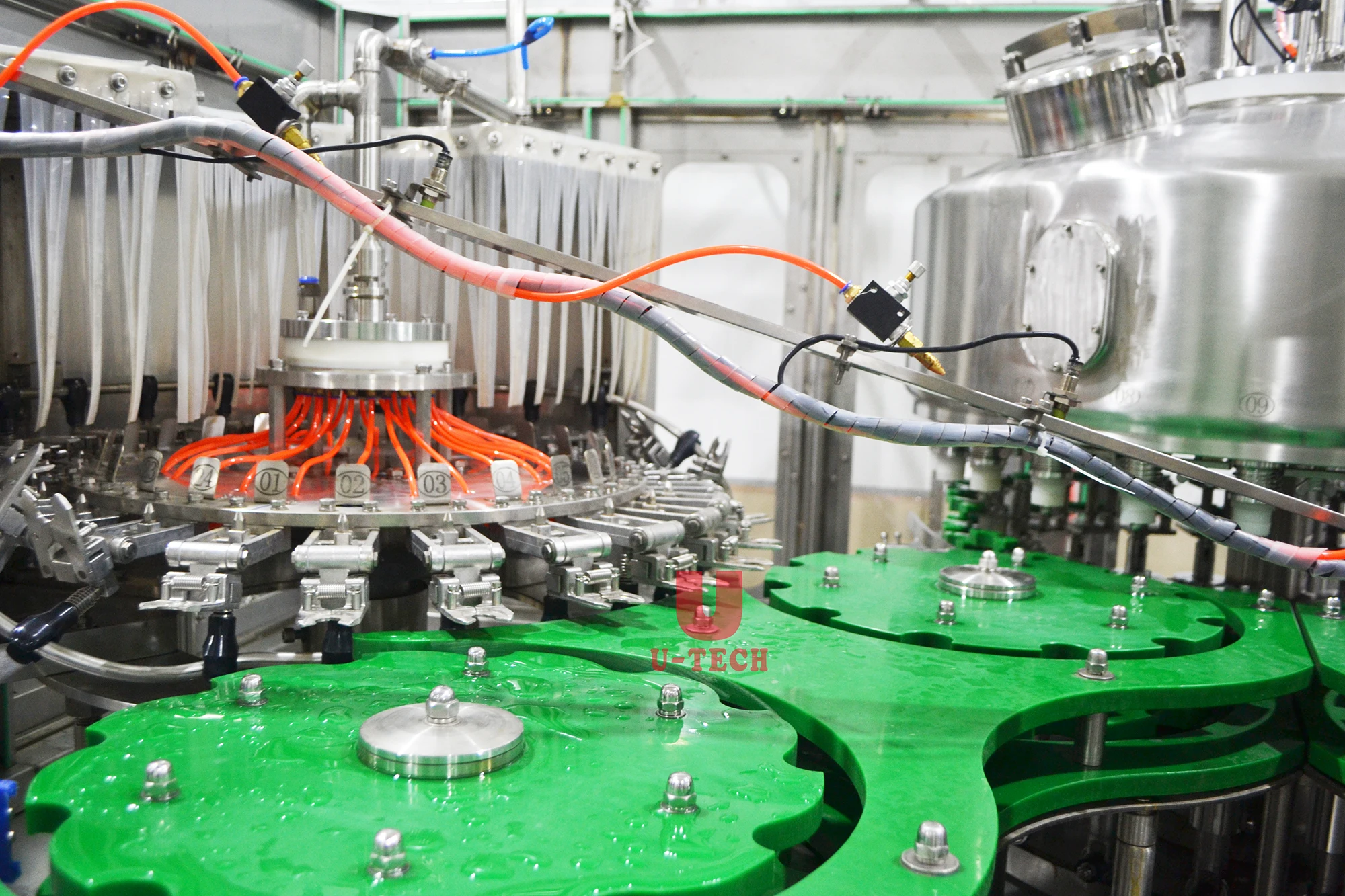

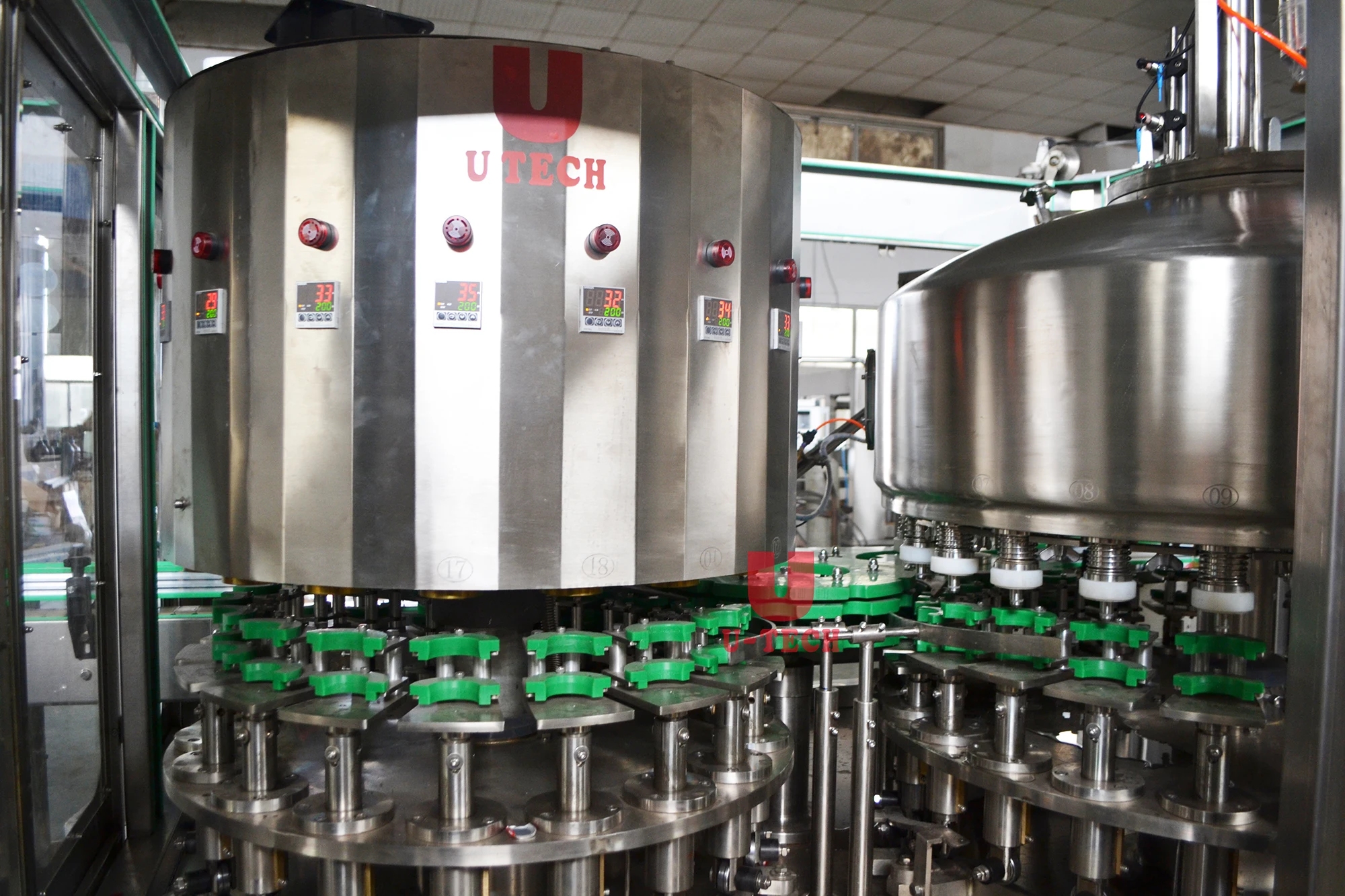

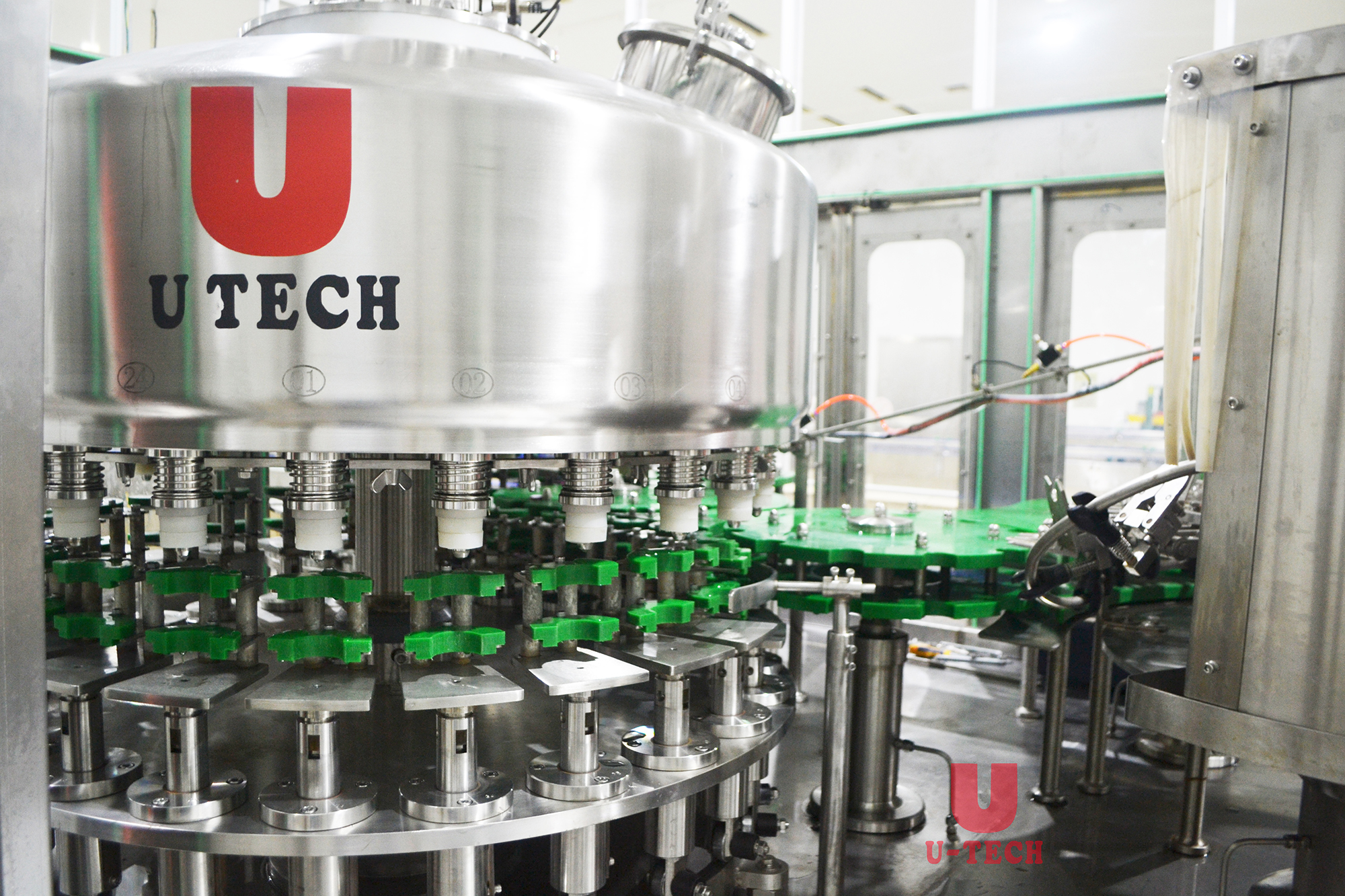

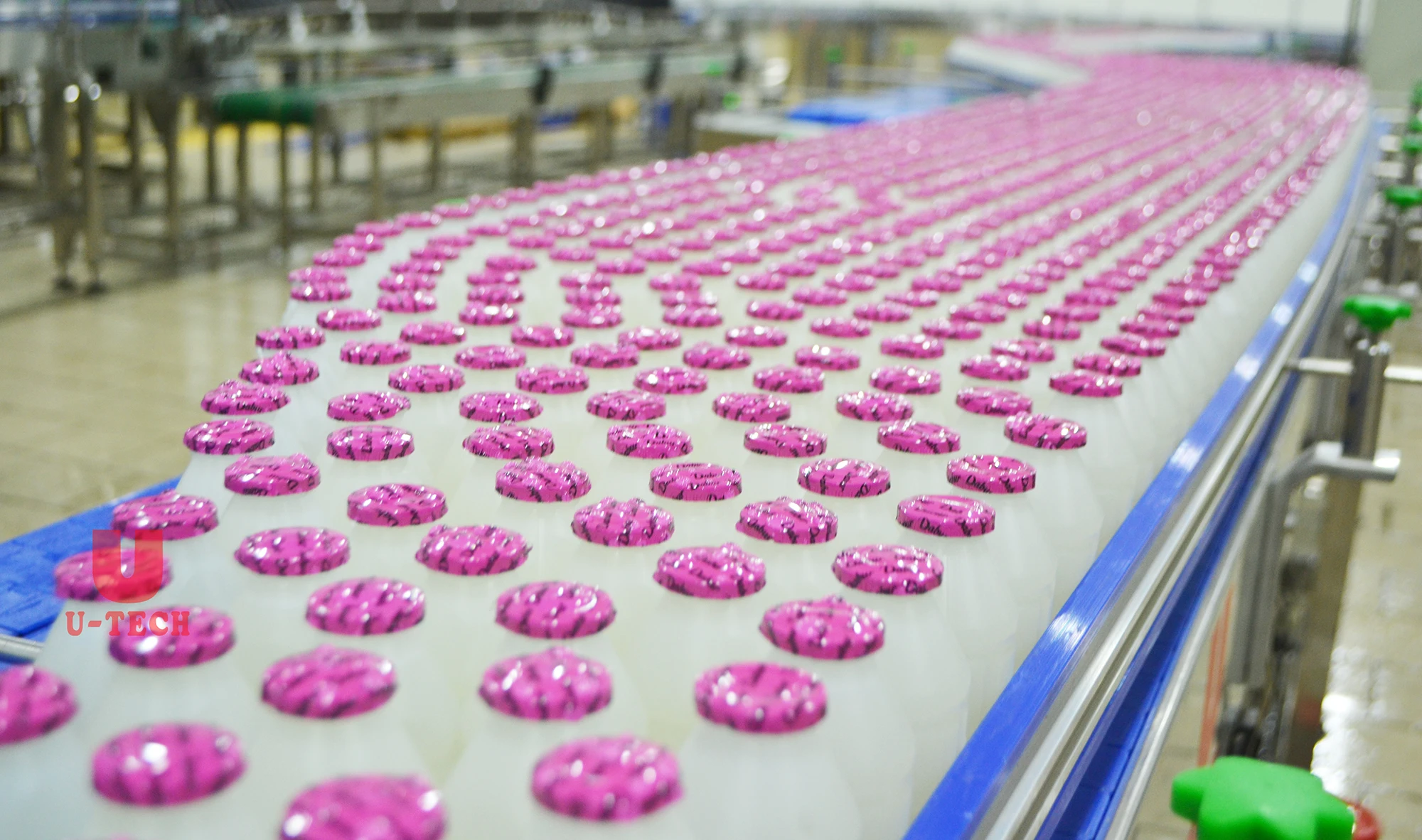

Machine Details

Technical Parameter

Model	LCGF14-14-10-1	LCGF18-18-12-2	LCGF24-24-18-2
production capacity(B/H)	2000-4000	5000-6000	8000-10000
bottle high(mm)	150-310
bottle diameter(mm)	Φ50-Φ90
filling volume(ml)	200-1500
power(kw)	5.5	8.5	11
dimension(mm)	250017502400	300020502400	350022502400
weight(kg)	3500	4800	5500

Related Products

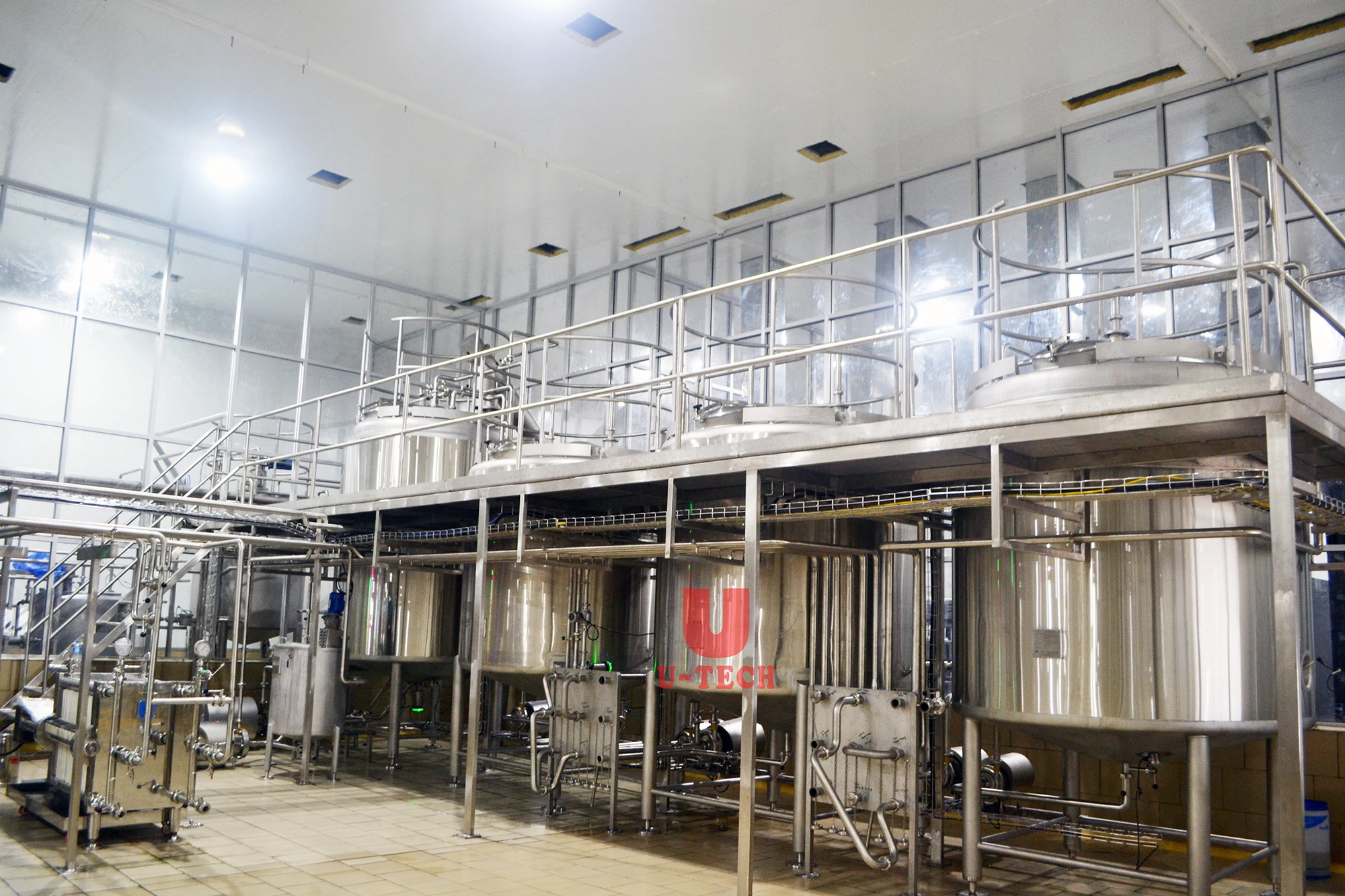

Pretreatment system

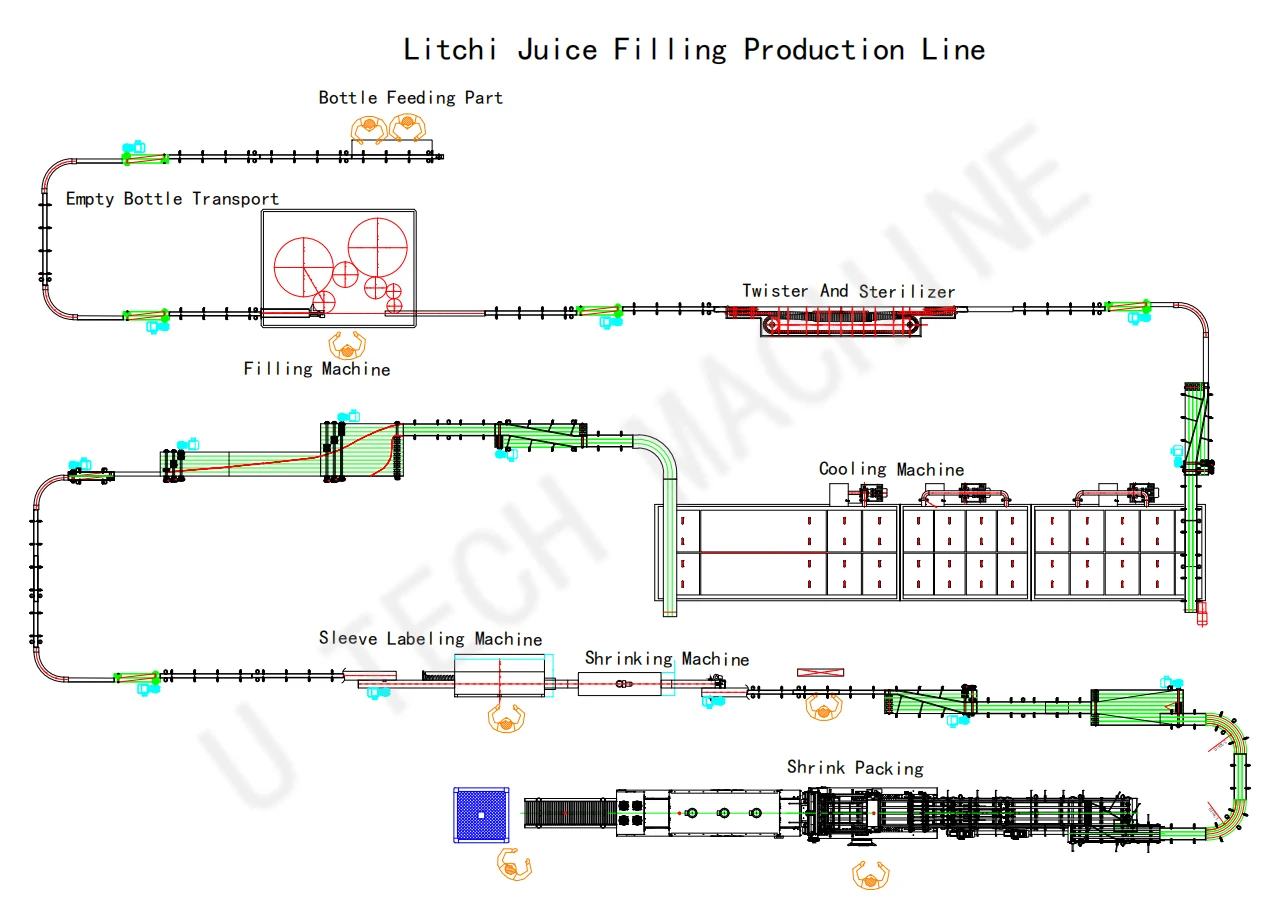

We provide turn-key project for beverage filling line, which it is juice / pulp, milk, drinking water, juice,litchi juice and others. Fruit juice production line can be used for making orange juice production line, apple juice production line, peach juice production line, and cherry juice production line etc. The raw material could be fresh fruit or concentrated juice.

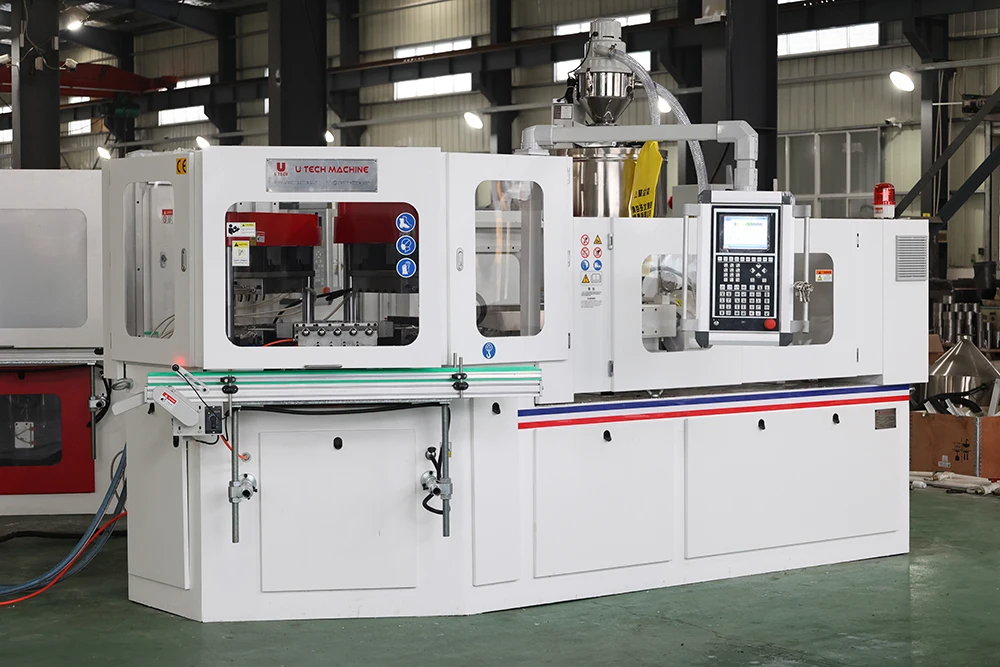

Injection blow moulding machine

Three station - one step injection blow molding machine, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN...plastic material,product volume from 3-1000ml, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..

One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot
runner system and multi-stage injection molding system.

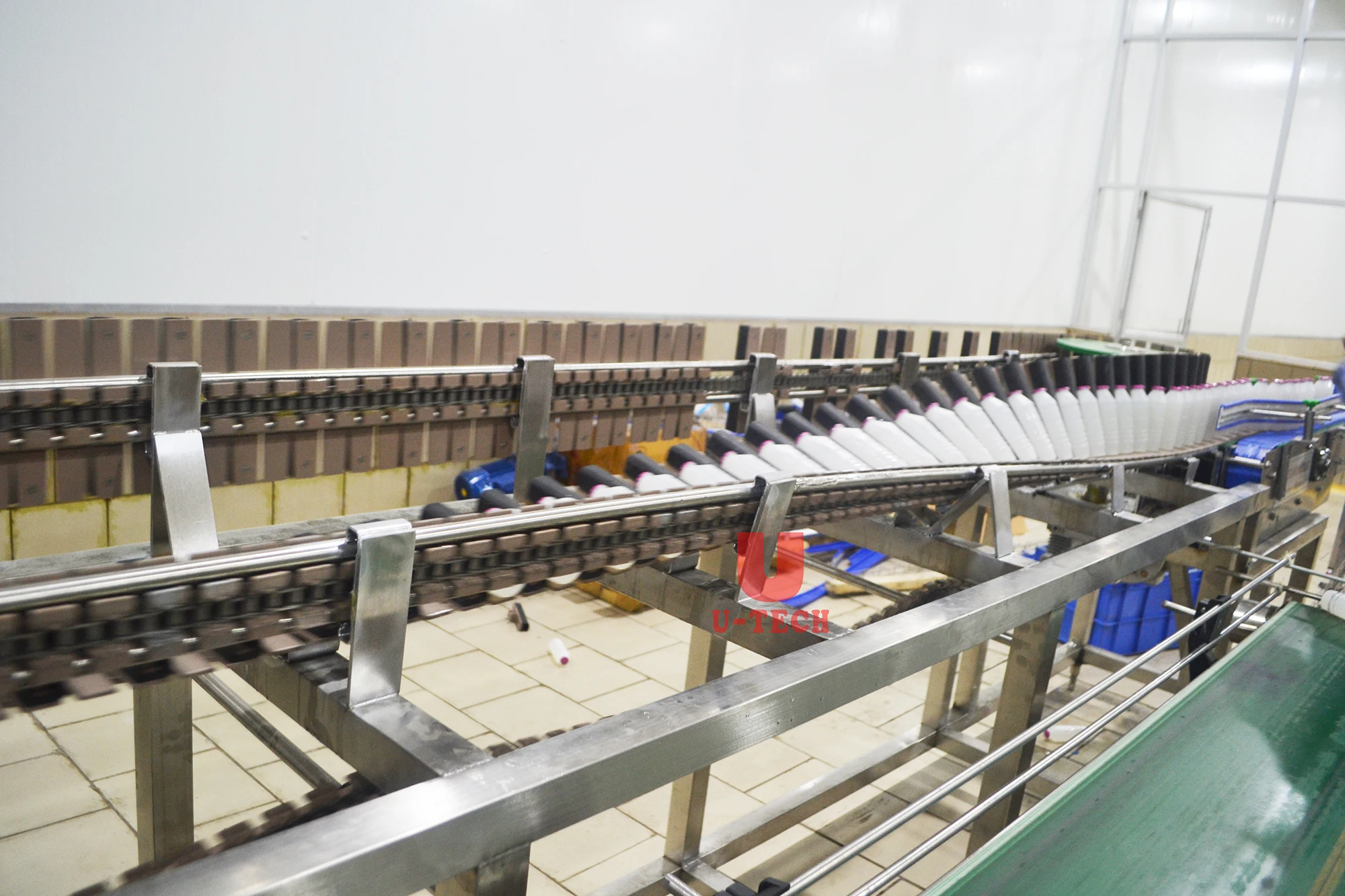

Inverted bottle sterilizer

Automatic PET glass bottled fruit juice invert sterilizing system inverted bottle sterilizer machineInverted bottle sterilizing machine could overturn bottles ( sterilizer glass bottle or PET bottle ), which have been filled and
sealed, to sterilize inside of bottle mouth and caps by high temperature drink in bottle.

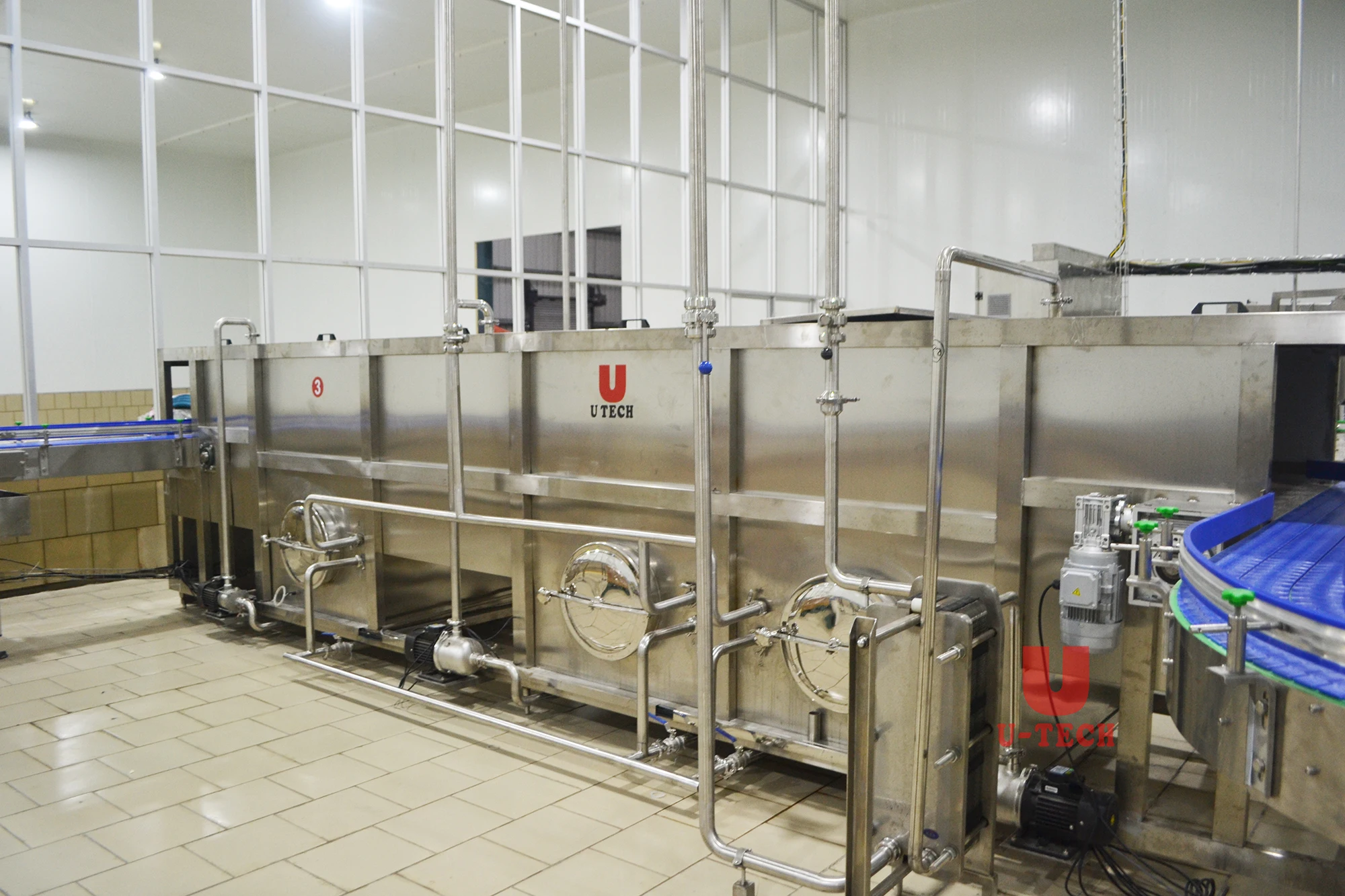

Bottle cooling warming machine

The bottle warming machine adopts a three section steam recycling heating design,the water spraying water temperature shall be controlled around 40 degrees. After the bottle go out, the temperature will be around the 25 degrees. Users can fix the temperature according to need. All the end of the warmer, it is equipped with the drying machine to blow the water outside the bottle.

Sleeve labeling machine

This full automatic sleeve labeling machine adopts international advanced technology;cover the circle label on the pet bottle. Sleeve labeling machine is one of the equipment with high technical content in the back-end packaging. Its excellent high-speed stability, unique dexterous design, and safety mode of man-machine harmony have been fully affirmed by the majority of customers.

Shrink packing machine

This machine is specially designed for packing production line of beverage ,drinking water ,fruit juice ,dairy products etc .with full automatic functions of bottle transfer and arrange ,membrane packing ,sealing and cut ,shrinkage ,cooling and shaping ,etc .
