Automatic Small Scale Pet Bottle Hot Beverage Juice Filling And Capping Machine Price

Share to:

Automatic Small Scale Pet Bottle Hot Beverage Juice Filling And Capping Machine Price

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

 RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml.different models can satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.

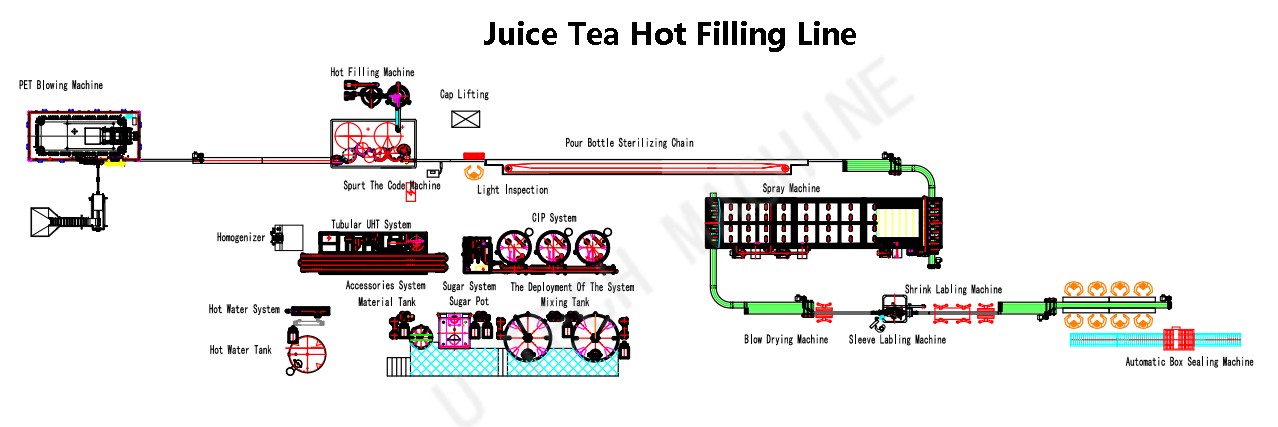

 Flow

 Sample

Technical Parameters

Model	RCGF8-8-3	RCGF14-12-5	RCGF16-16-5	RCGF24-24-6	RCGF32-32-8	RCGF40-40-10
capacity(BPH)	1500 (500ML)	4000 （500ML）	5500 (500ML)	8000 (500ML)	10000 (500ML)	14000 (500ML)
washing heads	8	14	16	24	32	40
filling heads	8	12	16	24	32	40
capping heads	3	5	5	6	8	10
suitable bottle	PET bottle plastic bottle
diameter of bottle	55-100mm
height of bottle	150-300mm
suitable cap	plastic screw cap
weight(kg)	1500	2000	3000	5000	7000	7800
main motor power(kw)	1.2	1.5	2.2	2.2	3	5.5
