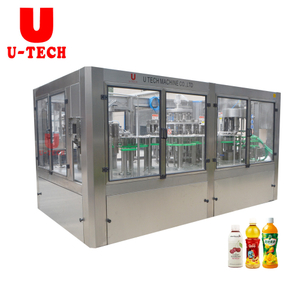

Full Automatic 3 In1 Mini Small Business Scale Plastic Bottle Fresh Milk Filling Machine Line Price

Availability:

Quantity:



Inquire Add to Basket

Brand:
U TECH

Product Description

Product Introduction

 CGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.

Technical Parameters

Model	CGF14-12-5
Capacity	5000PBH
Washing heads	14
Filling heads	12
Capping heads	5
suitable bottle	PET bottle,plastic bottle
Diameter of bottle	55-110mm
Height of bottle	150-310mm
Suitable cap	Plastic screw cap
Weight	2000kg
Main motor power	1.5kw

Filling Machine Details

Washing heads

 <1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

Filling heads

 <1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

Capping heads

 <1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China
