1.Introduction:
Clamping Unit
Tie bars are made of imported Japanese high tensile steel with specially-hardened, chrome-plated surface; Diameter is lengthened to minimize wear-out and maximize durability.
Robust in-house manufactured ductile iron-casted platens guarantee durability and minimize platen deformation.
Multi-stage clamping speed and pressure control
Automatic setting for high pressure clamping position
Central electric fixed-dosage lubrication system
Ejector speed and pressure adjustable and does not need to full retract during vibration which shortens cycle time
Injection Unit
Injection speed ,pressure and holding in five levels
PID barrel temperature control with auto-tuning and ；1℃ accuracy
High torque and high precision hydraulic motor with 99-step speed control for optimal melt environment
Cold-prevention starting device with low temperature alarm to prevent damage of the injection unit caused by low temperature
Decompression device to prevent nozzle from drooling
Cleanliness
Equipped with a high-performance oil fitler,hydraulic oil is repeatedly filtered and cleaned during normal machine operation.It reaches NAS8(USA)standard,which means the oil can be cleaner then new oil.This greatlyenhances the useable life of hydraulic system.
Noise is also minimized during operation

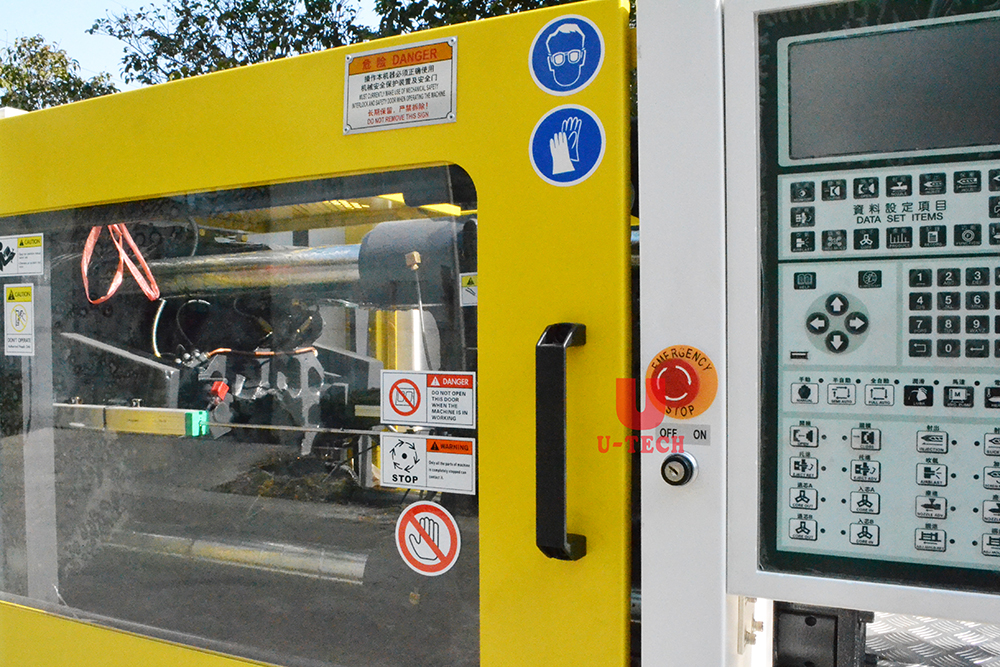

Ai-02 Intelligent Computer Controller
The Ai-02 is a high-performance intelligent controller designed and developed by Japan and fully passed the JIS standards.supported by the latest SMT technology .it maintains greatly stability and reliability.data can be retained over five years without external power supply.multi-lingual interface for free switch ,easy for study and operation
2.Features:
Ultimate Energy Saving
Saves up to 80% of electricity compared to traditional fixed pump systems*
Ultimate Response
The response speed is more than double of a variable displacement pump
Ultimate Precision & Repeatability
Up to 0.5% repeatability even under extremely low speed & prolonged holding conditions
Long Operational Life
Low oil temperature conserves cooling water and reduces the need for hydraulic
oil thus extends the useable lives of hydraulic parts
