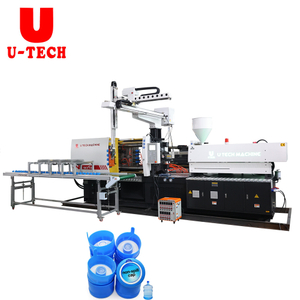

Household PVC Chair Making Container Pet Preform Pallet Bottle Cap Injection Molding Machine

Availability:
Quantity:
Introduction
Injection molding machine, also known as injection molding machine or injection machine. It is the main forming equipment for plastic products which are made of thermoplastic or thermosetting plastic by using plastic molding mould. Divided into vertical,horizontal, all electric. The plastic injection molding function heats the plastic, and exerts high pressure on the molten plastic, so that the injection molding cavity is filled with the mold cavity.
Machines are classified primarily by the type of driving systems they use: hydraulic, mechanical, electric, or hybrid.
Injection molding machine is usually composed of injection system, mold clamping system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, and so on.
Sample
Details Images
Technical parameter
Specification
Clamping force
Max. Plasticising weight(PS)g
Space between tie bars (mm×mm)
BST-700
70
101
320×320
BST-950
95
183
360×360
BST-1300
130
260
420×420
BST-1600
160
486
480×480
BST-2000
200
643
505×505
BST-2400
240
845
555×555
BST-3000
300
1050
600×600
BST-3800
380
1286
680×680
BST-4800
480
1600
760×760
BST-5500
550
2466
810×810
BST-6500
650
2895
850×850
BST-7500
750
3543
950×950
BST-10000
1000
6280
1110×1110
