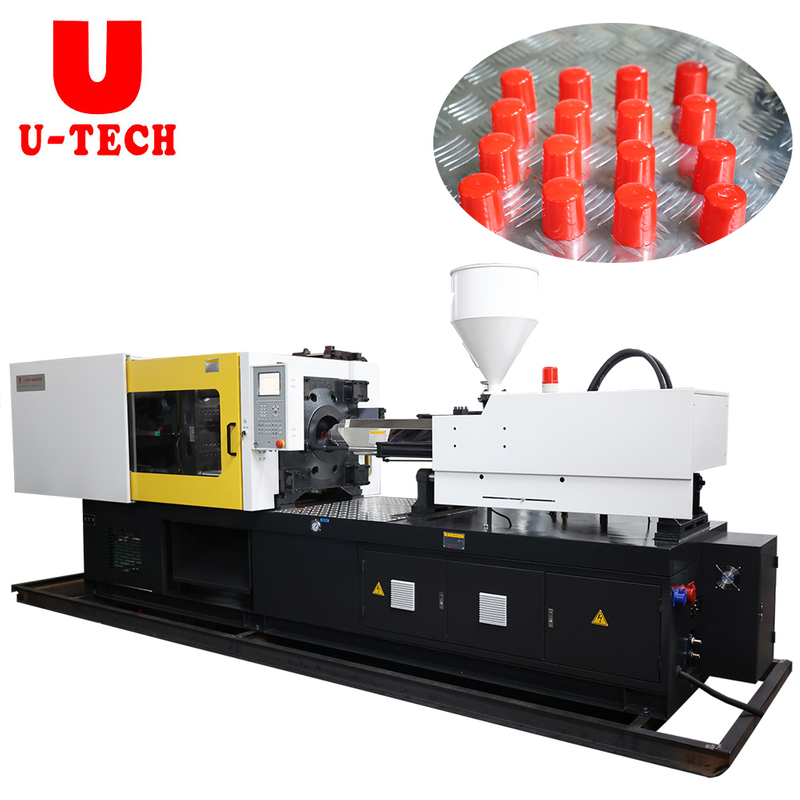

High Speed Beverage Chemical Product PET Preform Making Plastic Cap Injection Moulding Machine

Share to:

High Speed Beverage Chemical Product PET Preform Making Plastic Cap Injection Moulding Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Introduction

 Injection molding machine, also known as injection molding machine or injection machine. It is the main forming equipment for plastic products which are made of thermoplastic or thermosetting plastic by using plastic molding mould. Divided into vertical,horizontal, all electric. The plastic injection molding function heats the plastic, and exerts high pressure on the molten plastic, so that the injection molding cavity is filled with the mold cavity.
 Machines are classified primarily by the type of driving systems they use: hydraulic, mechanical, electric, or hybrid.
Injection molding machine is usually composed of injection system, mold clamping system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, and so on.

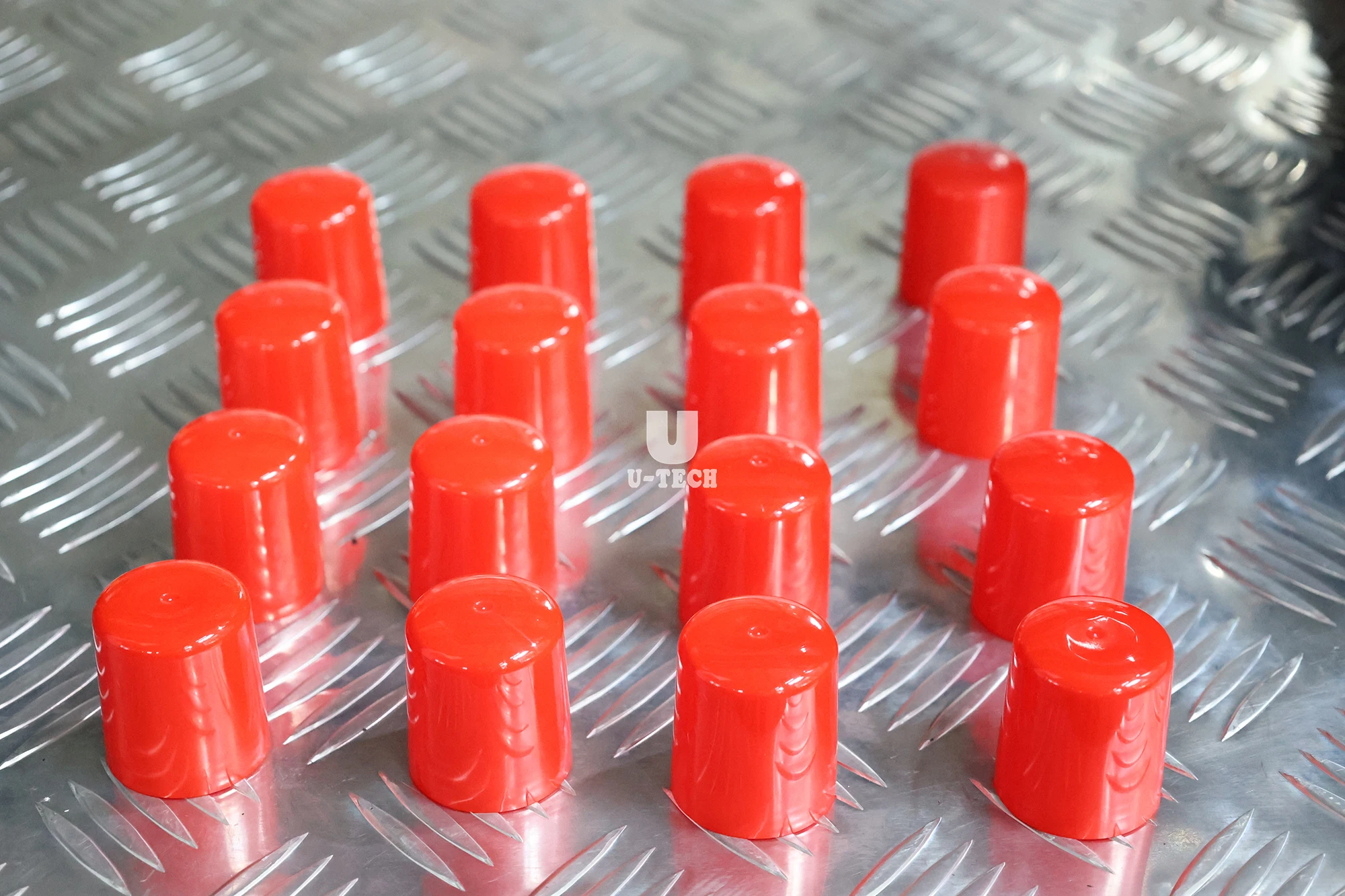

Sample

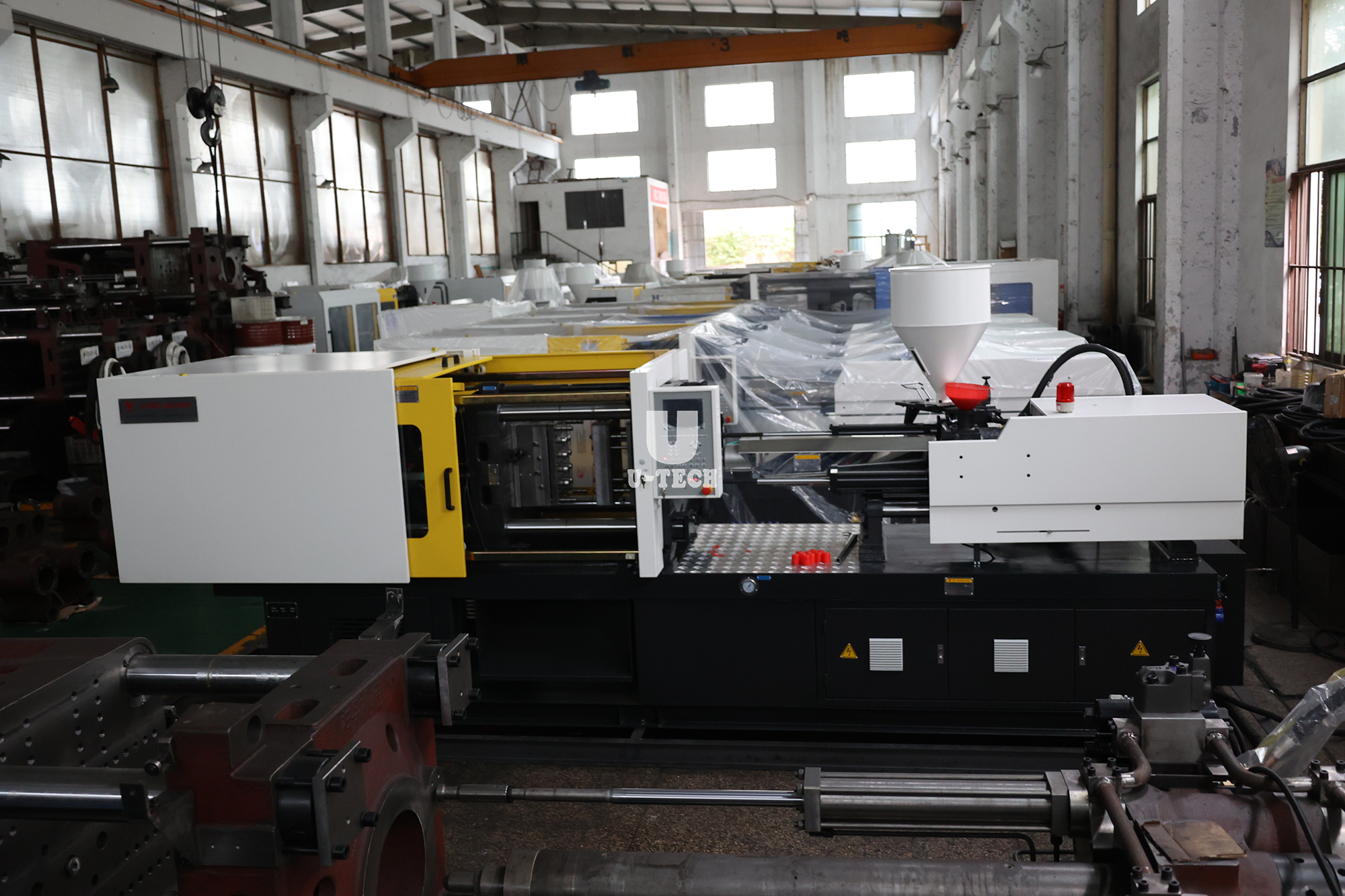

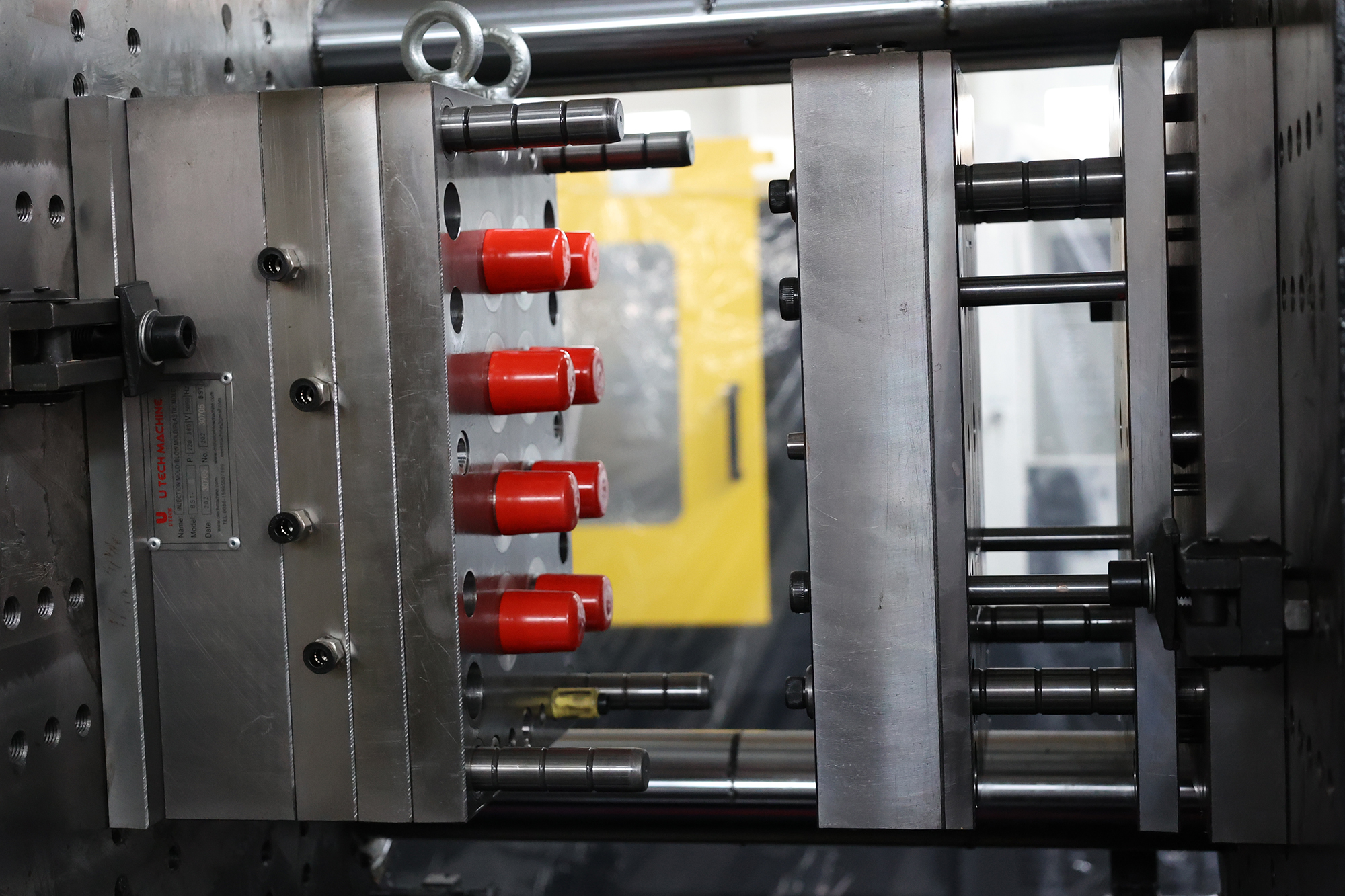

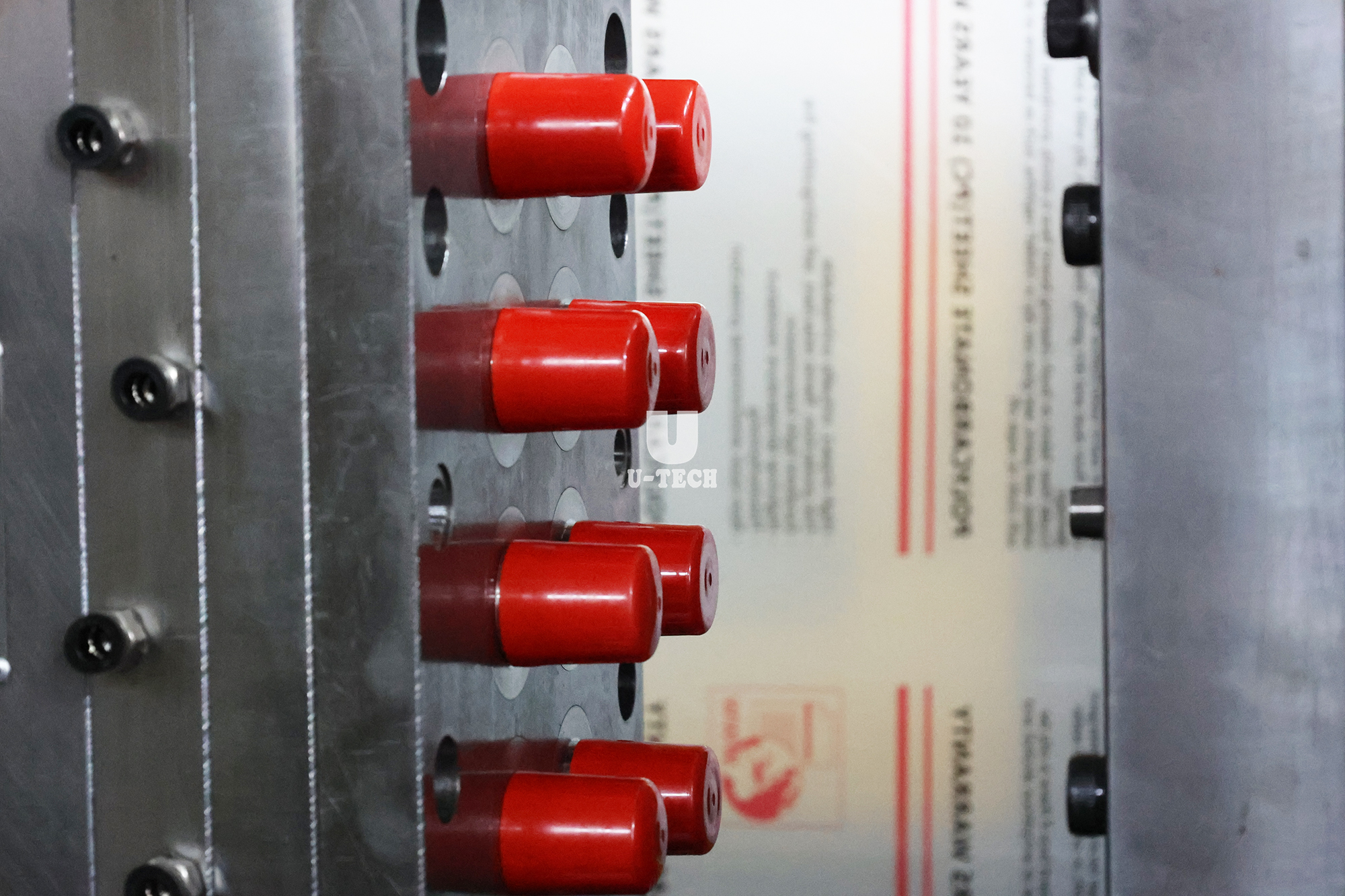

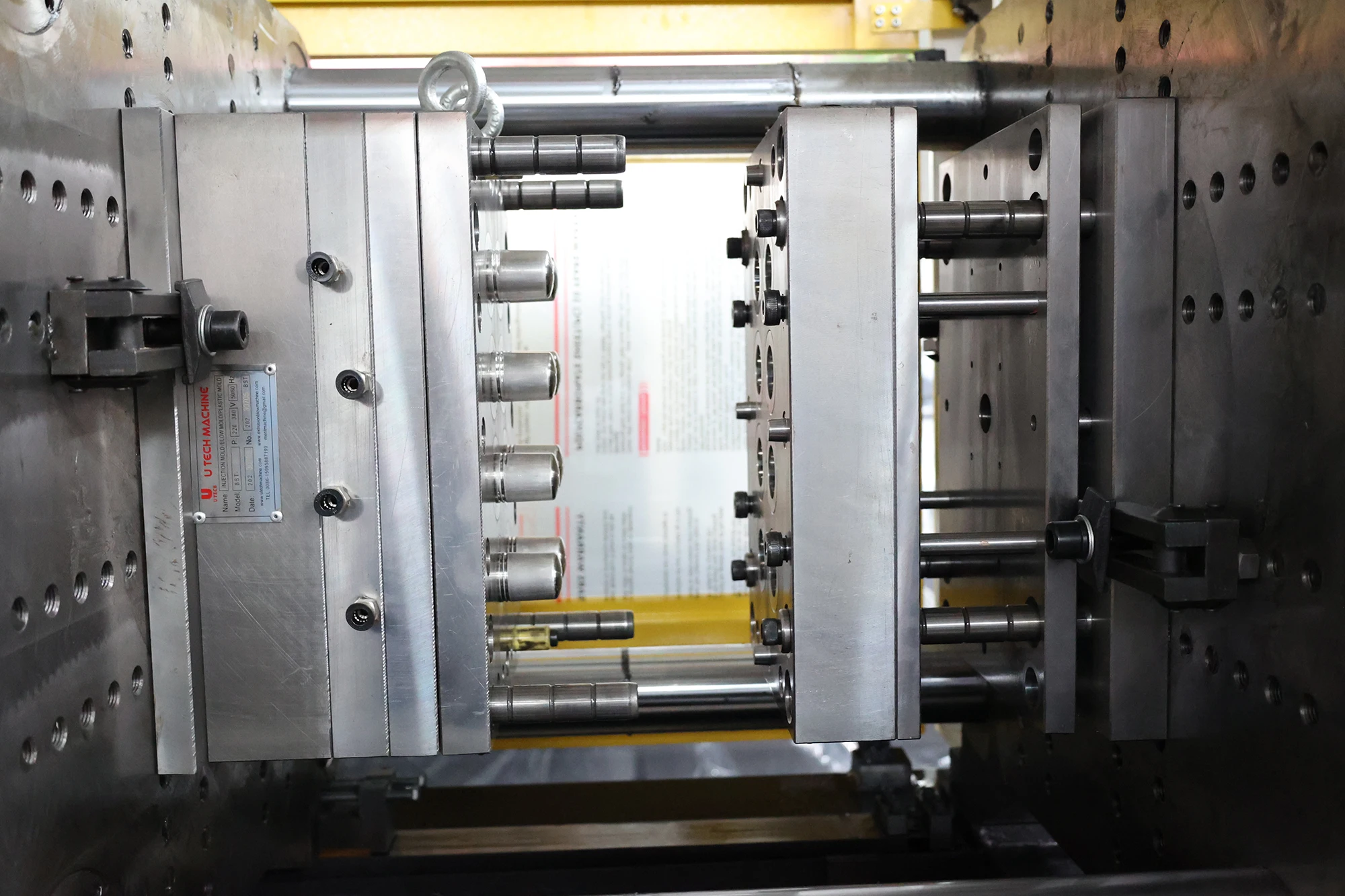

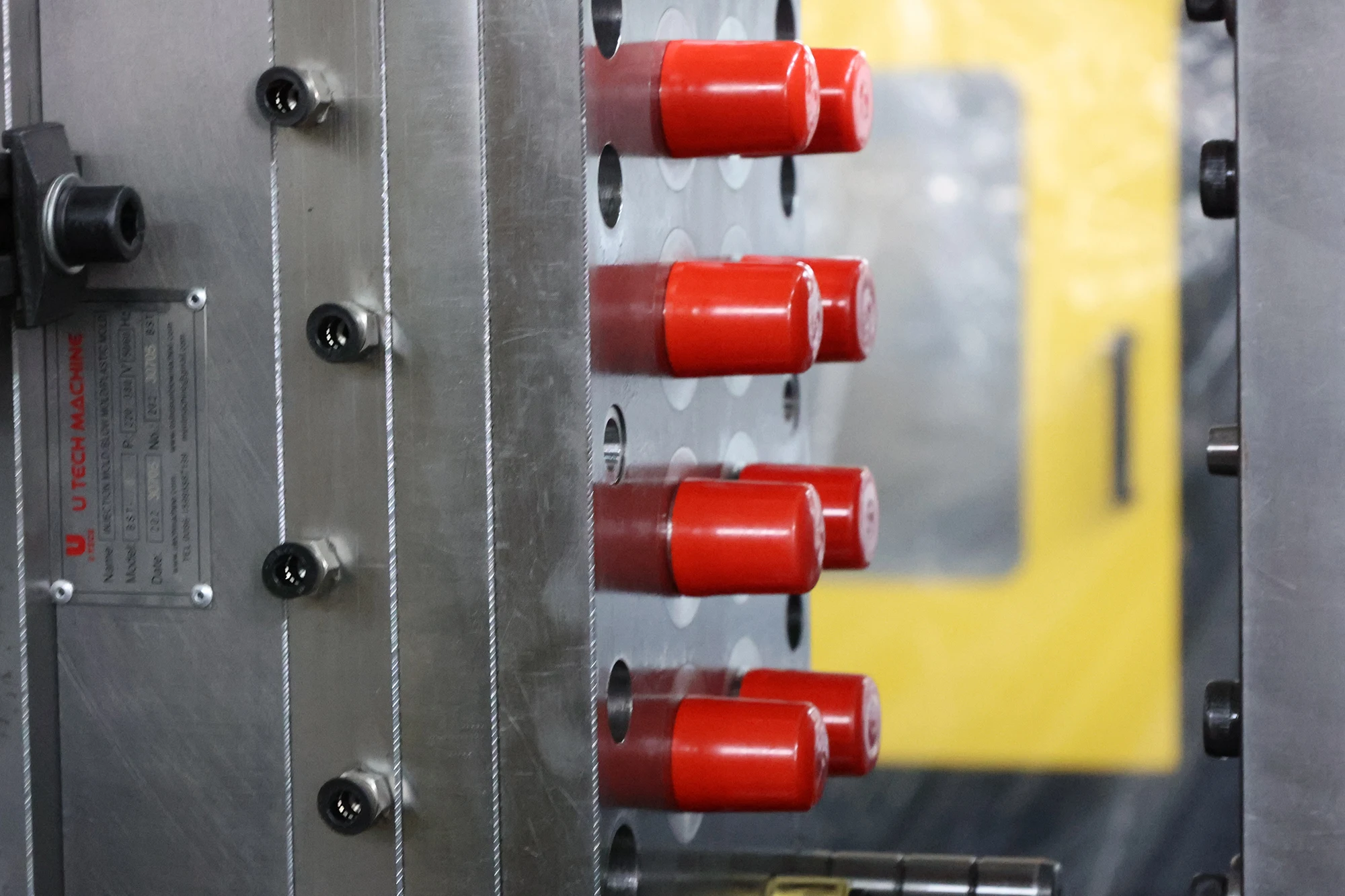

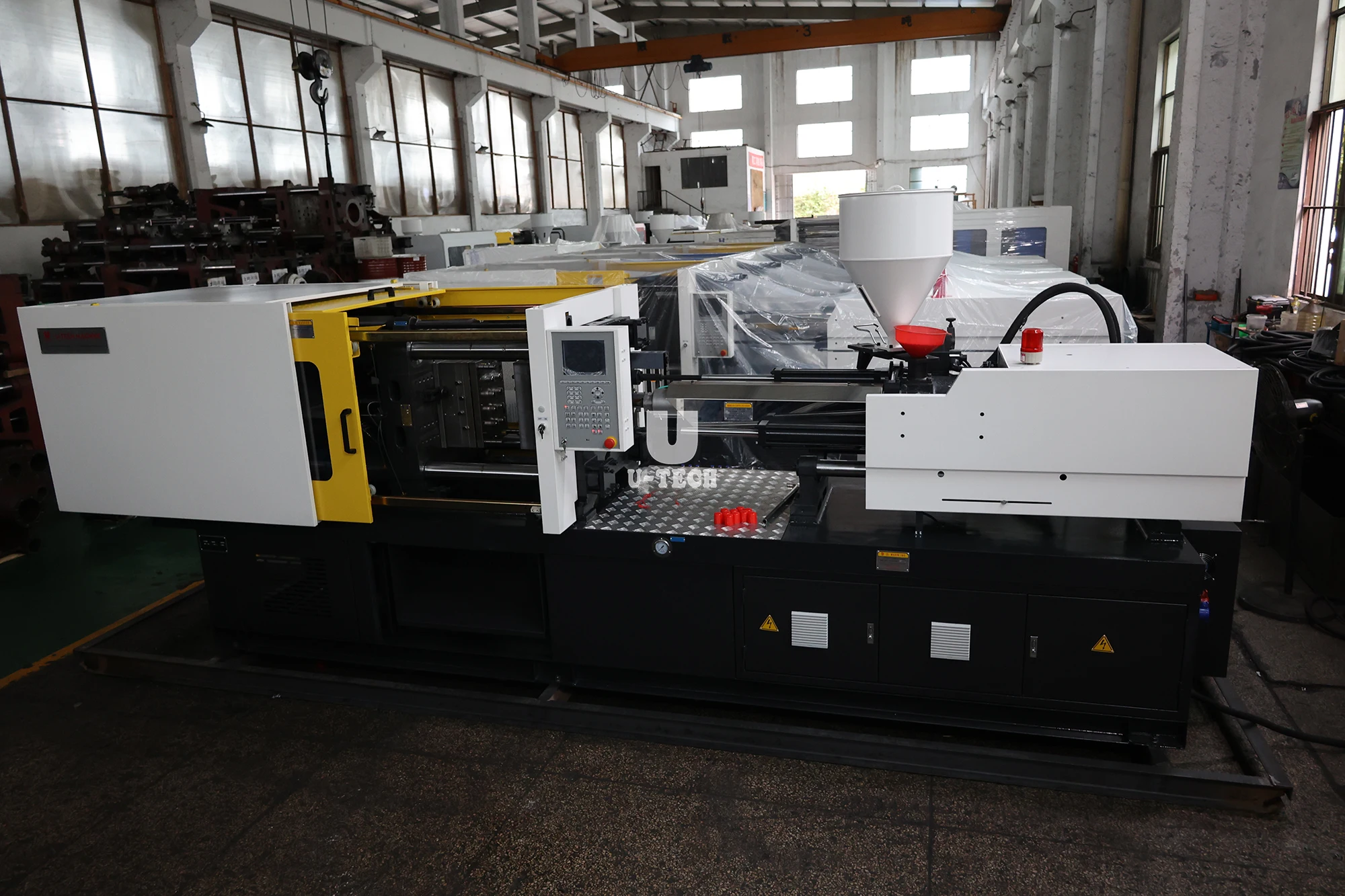

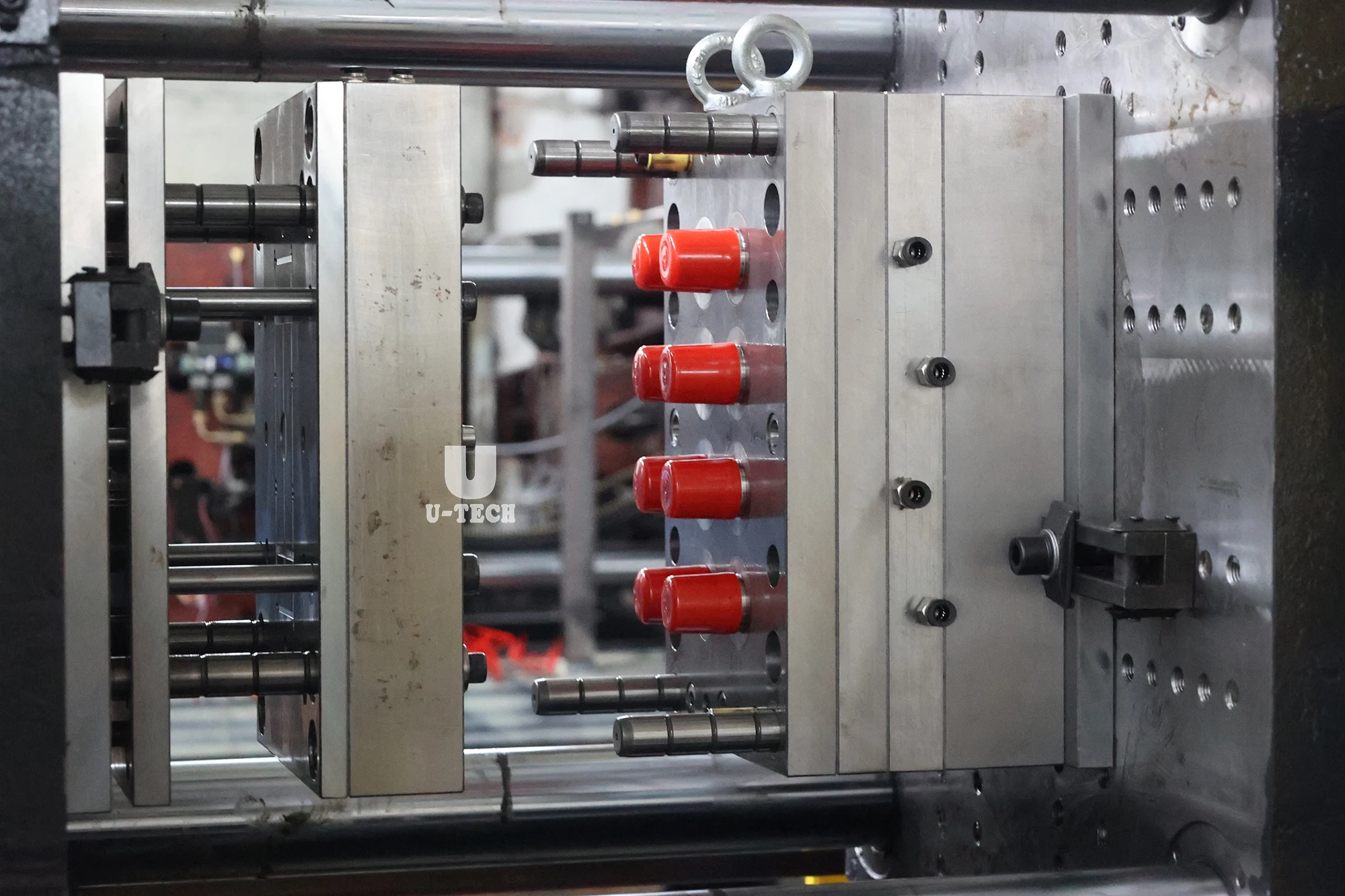

Details Images

Technical parameter

Specification	Clamping force	Max. Plasticising weight(PS)g	Space between tie bars (mm×mm)
BST-700	70	101	320×320
BST-950	95	183	360×360
BST-1300	130	260	420×420
BST-1600	160	486	480×480
BST-2000	200	643	505×505
BST-2400	240	845	555×555
BST-3000	300	1050	600×600
BST-3800	380	1286	680×680
BST-4800	480	1600	760×760
BST-5500	550	2466	810×810
BST-6500	650	2895	850×850
BST-7500	750	3543	950×950
BST-10000	1000	6280	1110×1110
