Semi Auto Beverage Carbonated Drinks Soda Drinking Water Small 500ml Pet Bottle Blow Moulding Machine

Share to:

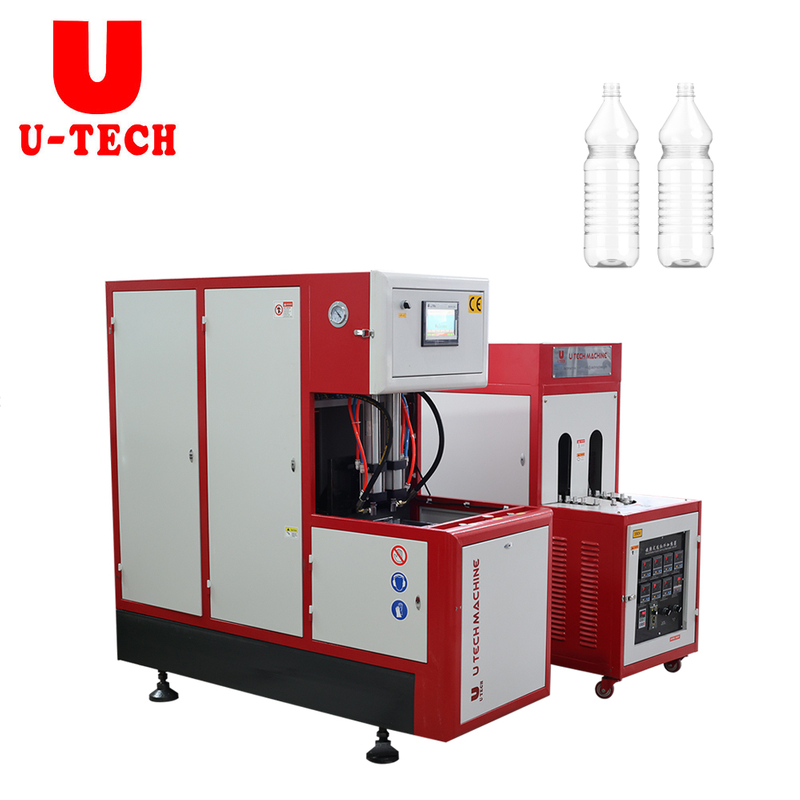

Semi Auto Beverage Carbonated Drinks Soda Drinking Water Small 500ml Pet Bottle Blow Moulding Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation. 3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
PLC control system,the operaton is easy.
With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

Technical parameter

Type	UT-120
Output	According to bottle type	80-100PCS/H
Product species	Bottle diameter	150mm-300mm
	bottle height	250mm-550mm
	Bottle mouth diameter	15mm-100mm
Mould	cavity	1cavities
	mould thickness	200~450mm
	Effective area of mold	600*600mm
Main power	Power	380v 4Phase /220v 2Phase 50/60HZ
	install power/actual power	26kw/11kw
	High pressure air compressor	1.2m3/min 3.0MPa
	Cold dry machine	2.0m3/min 3.0MPa 1set
Cooling water	Cooling water quantity	15L/min
Main machine size	Length width height/weight	21507301700mm/950kg
Oven size	Length width height /weight	24506801580mm/650kg

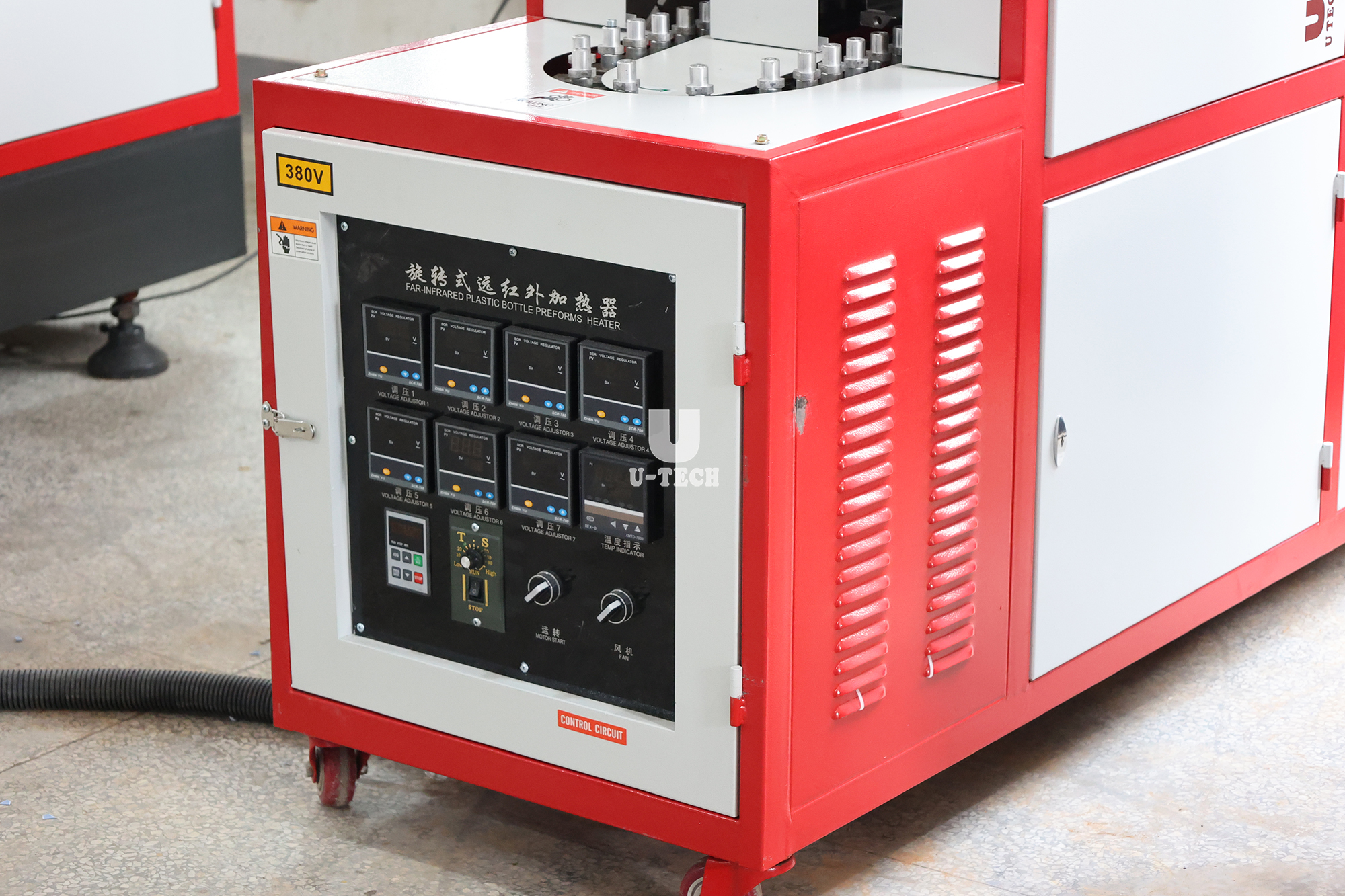

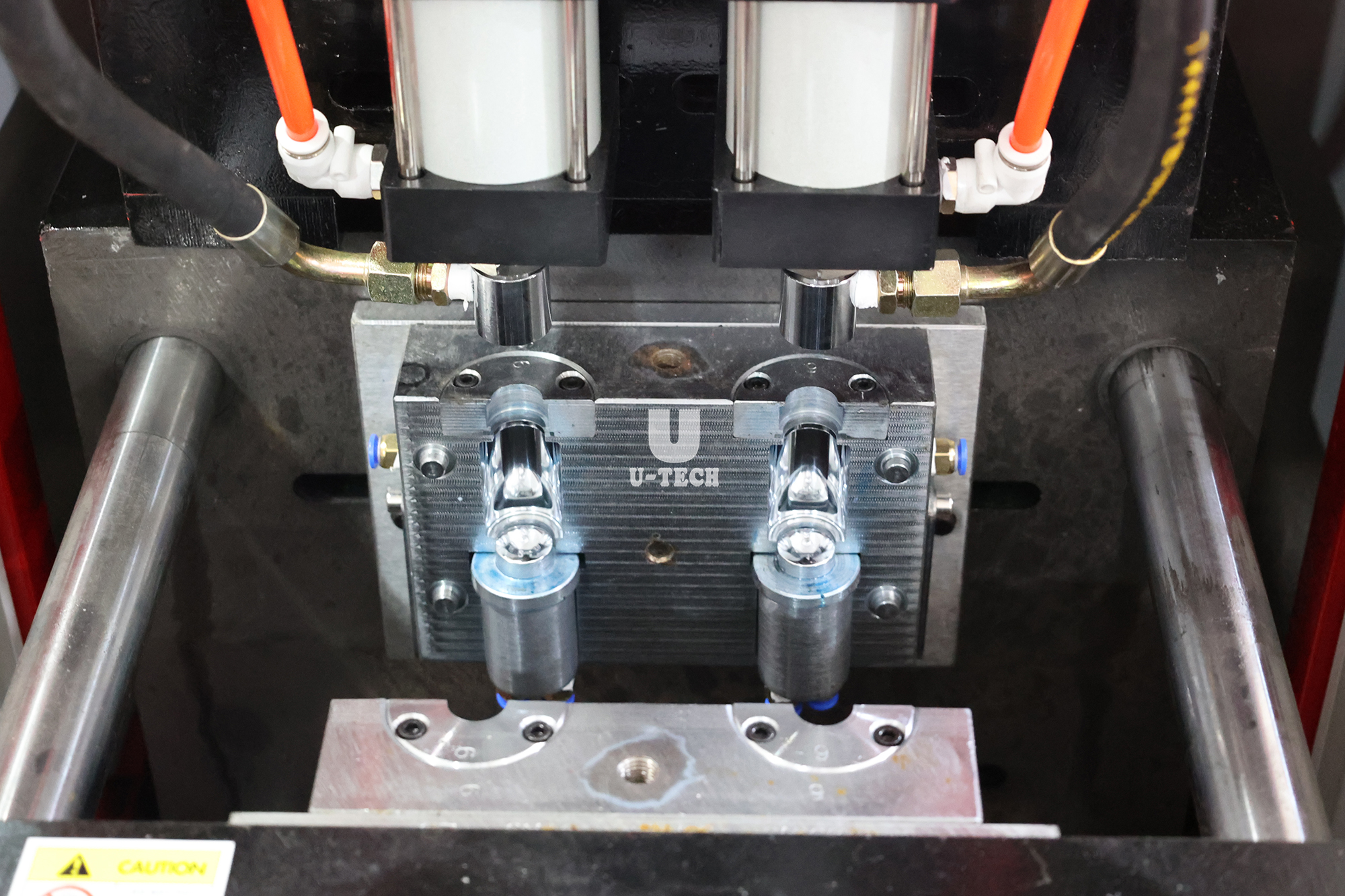

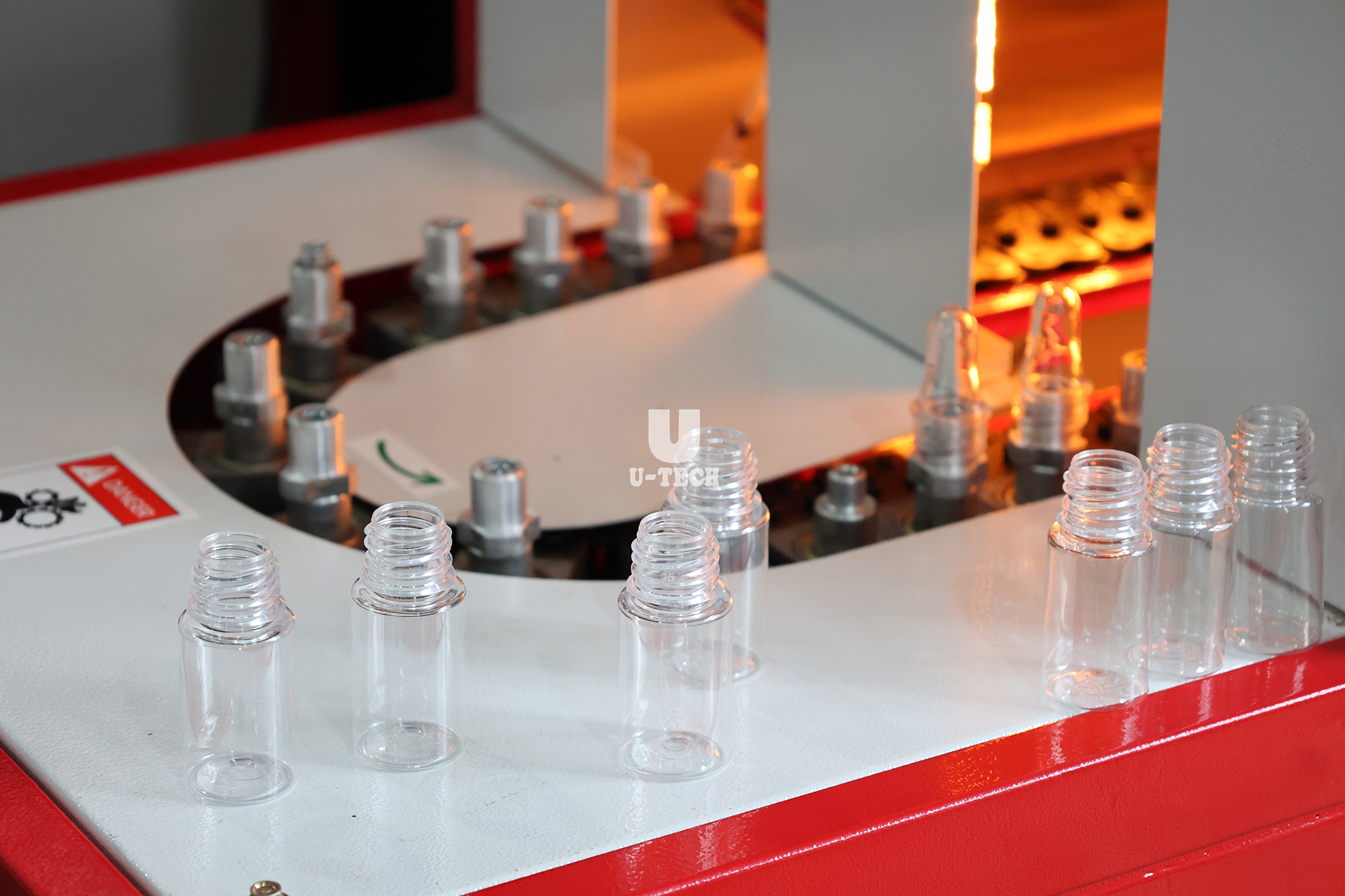

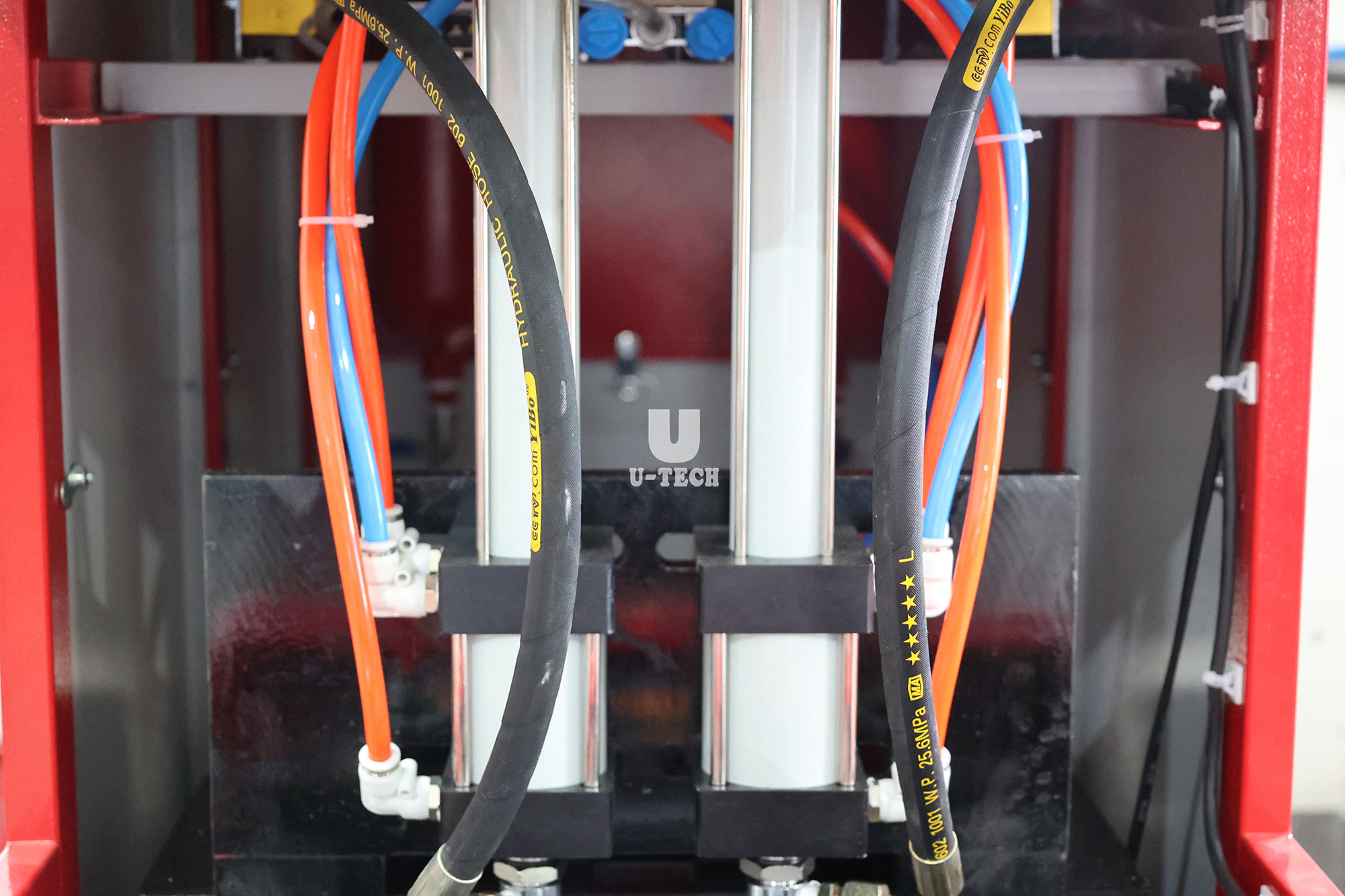

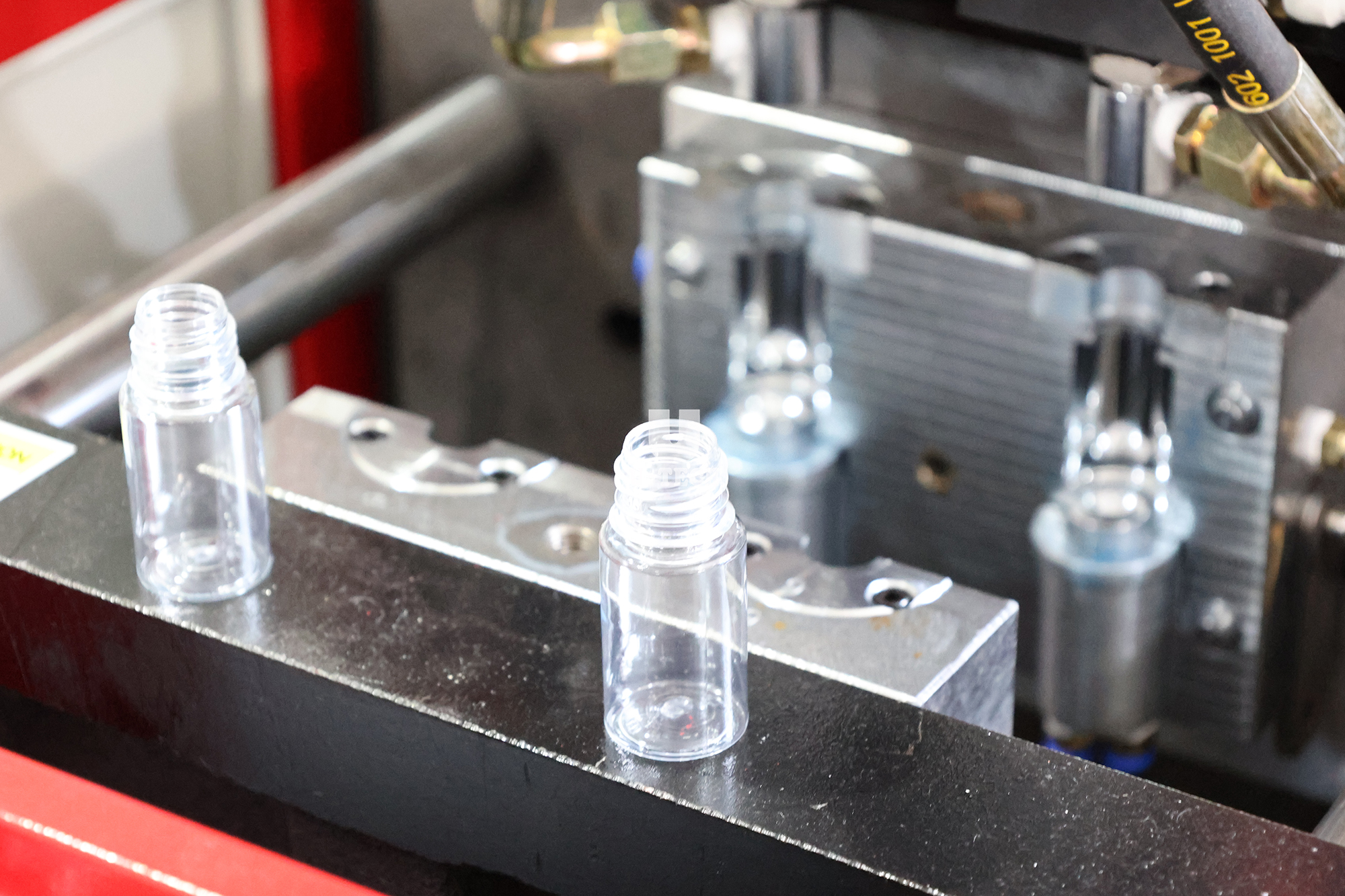

Details Images
