High Speed Competitive Price 4 Cavity 100ml To 1.8l Full Automatic Pet Bottle Blowing Machine

Availability:
Quantity:
Product Description

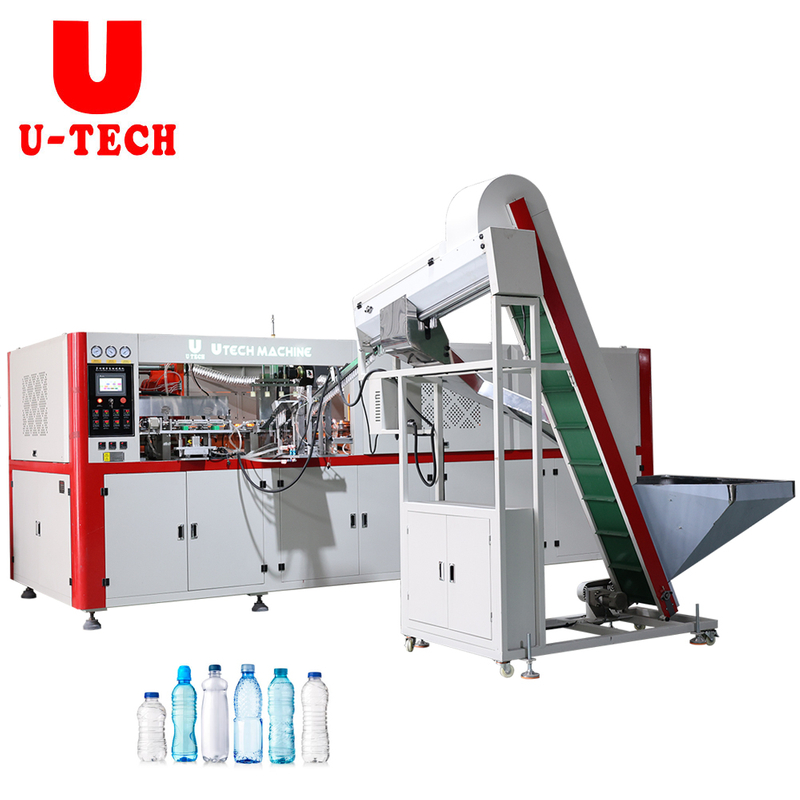

Automatic Stretch Blow Molding Machine
BST-6000 automatic stretch blow molding machine is one of the mewest products for our customer.Its strongest point is energy savings.Adopting high pressure clamping,automatic stretch blow molding machine makes self-adjustment in accordance with the different pressure needed during production,thus ensures the super clamping force.While the high pressure sealing system with automatic adjustment permits that mold sealing is under condition of 100% air tightness before blowing and avoid air energy loss owing to incomplete air tightness.With such effective control over air energy and power,it takes a big part to lower costs and improve efficiency.
Technical parameter
TYPE
ITEM
UNIT
Technical Data
Container
Product material
/
PET
Container volume
L
0.05-2.0
Theoretic output
Psc/hr
5500
Preform length
MM
50-200
Max height of bottle
MM
320
Molding
Preform  inner diameter
mm
15-60
Bottle diameter
mm
35-110
Max mold plate dimension(L*W)
mm
380*460
Max mold thickness
mm
200
Air compressor
High pressure compressor
M3/Mpa
1.2/30*3set
Locking force
KN
170
Mold opening stroke(adjustable)
mm
200
Low pressure compressor
M3/Mpa
2.0/10*1set
Air dryer
M3/Mpa
2.0/30*1sets
Main machine electricity
Power
KW
30
Voltage / frequency
V/Hz
380/50hz

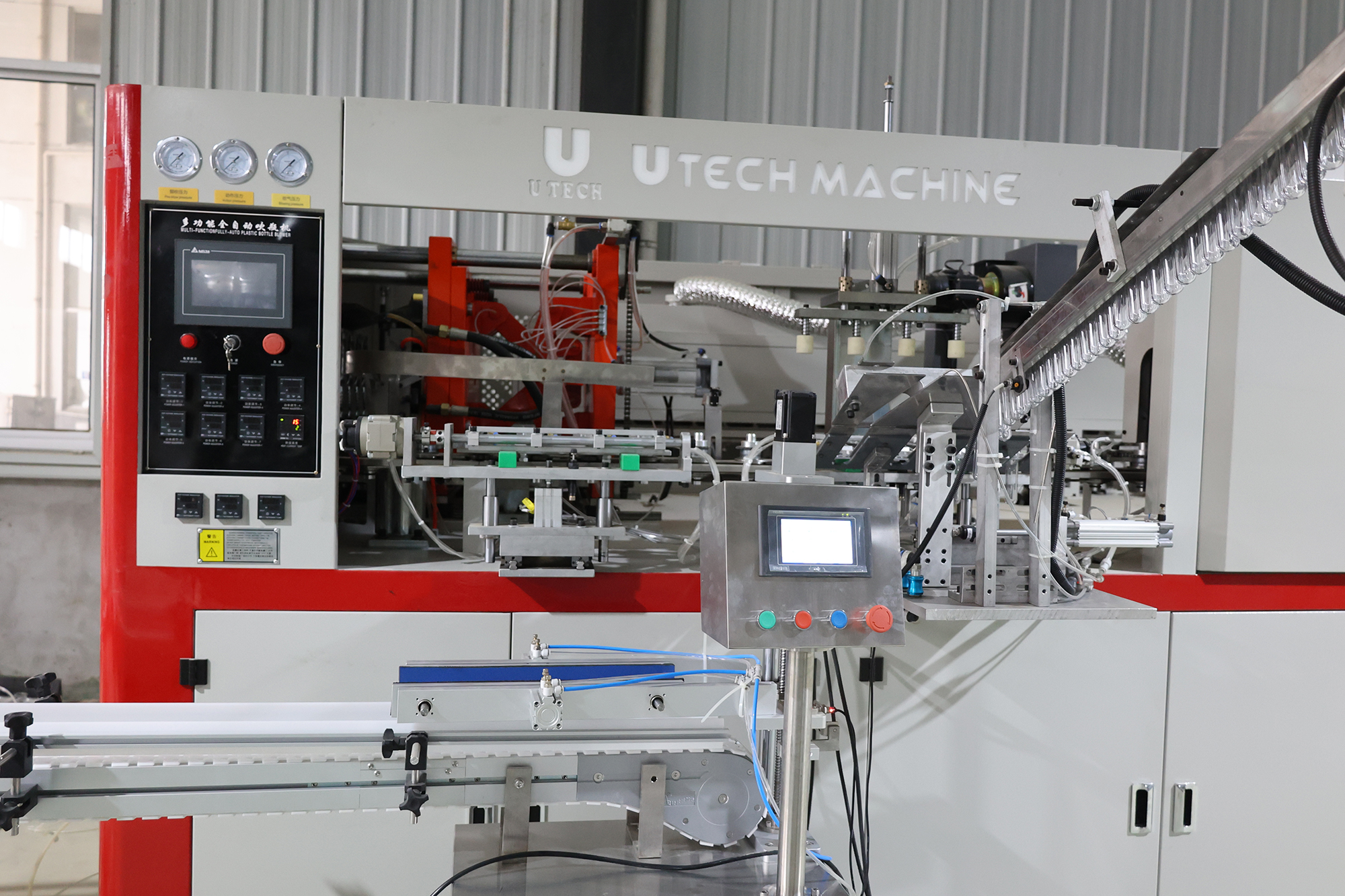

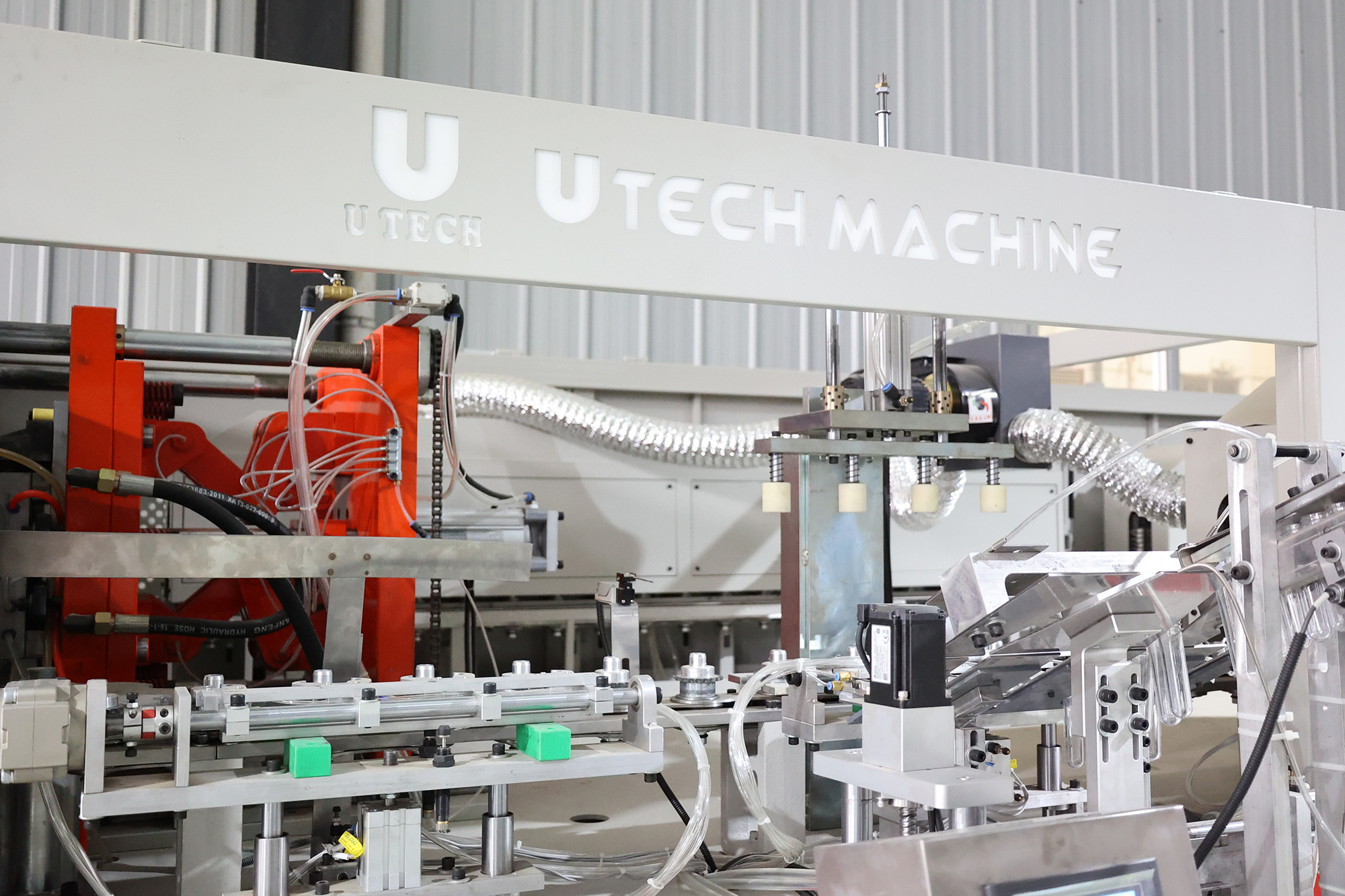

Datail images

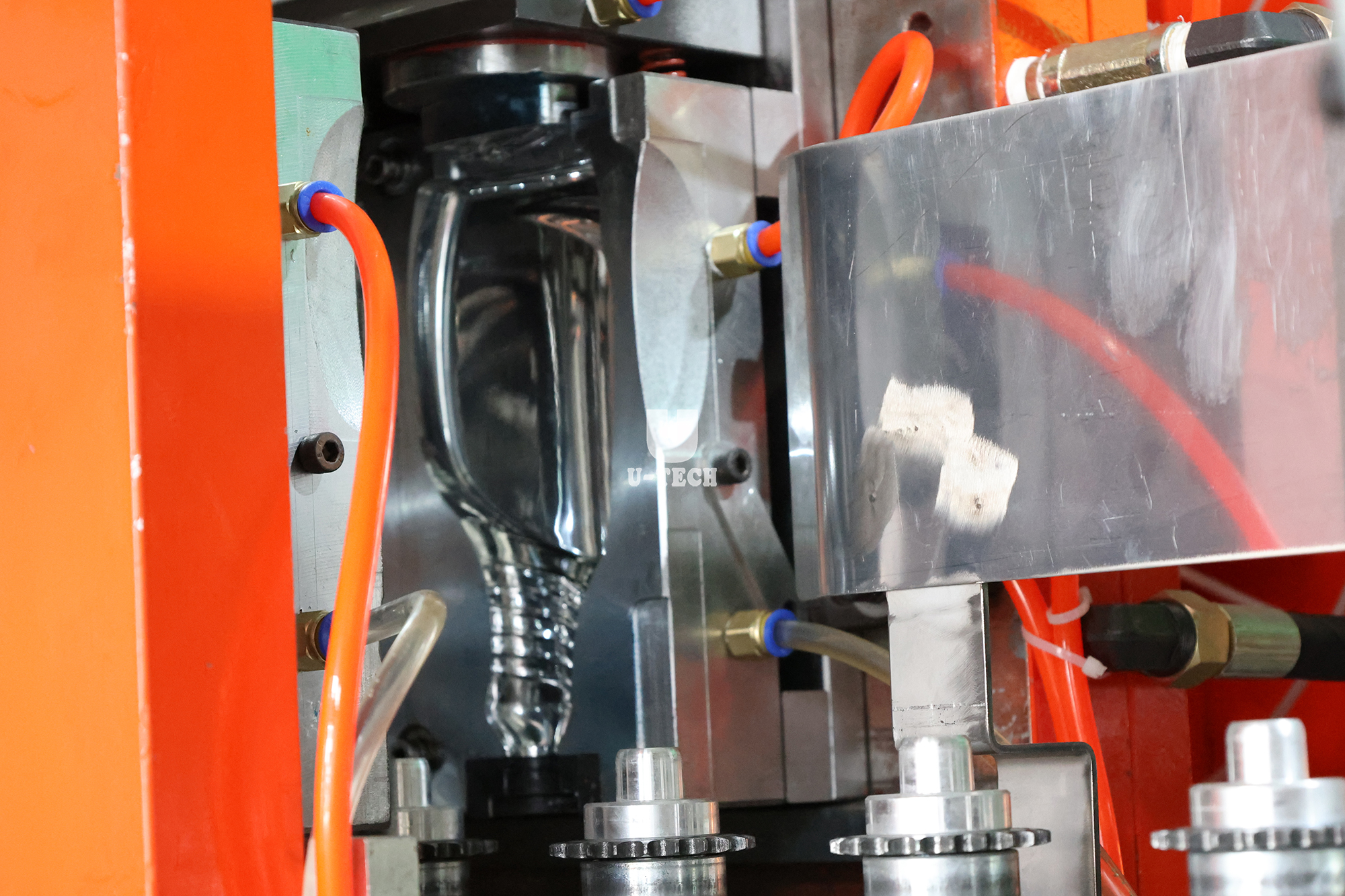

PET Bottle Mould
Prefrom
Related Products
Semi auto PET bottle blowing machine
Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 200ml-2000ml.It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.

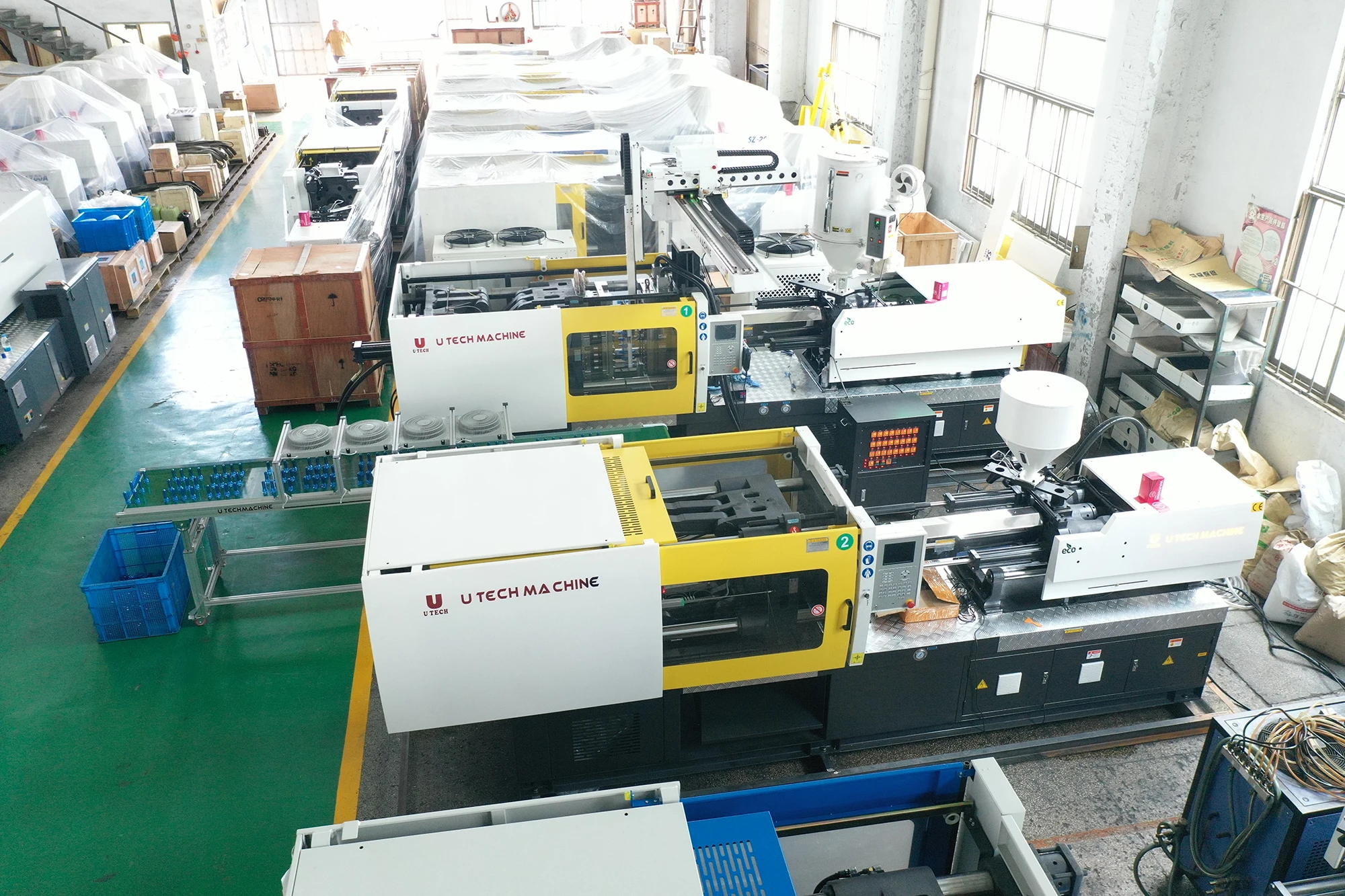

Injection moulding machine
The molding process of general screw injection molding machine is: firstly, the granular or powdery plastic is added into the
barrel, and the plastic becomes molten through the rotation of the screw and the heating of the barrel outer wall. Then, the
machine closes the mold and moves the injection seat forward to make the nozzle close to the gate of the mold.
