Full automatic high speed servo system PET mineral water bottle making blowing machine

Availability:
Quantity:
Inquire Add to Basket

Product Intruduction
BST-6000 automatic stretch blow molding machine is one of the newest products for our customer. Its strongest point is energy savings. Adopting high pressure clamping, automatic stretch blow molding machine makes self-adjustment in accordance with the different pressure needed during production, thus ensures the super clamping force. While the high pressure sealing system with automatic adjustment permits that mold sealing is under condition of 100% air tightness before blowing and avoid air energy loss owing to incomplete air tightness. With such effective control over air energy and power, it takes a big part to lower costs and improve efficiency.
Technical Parameters
TYPE
ITEM
UNIT
technical data
Container
Product material
/
PET
Container volume
L
0.05-2.0
Theoretic output
Psc/hr
5500

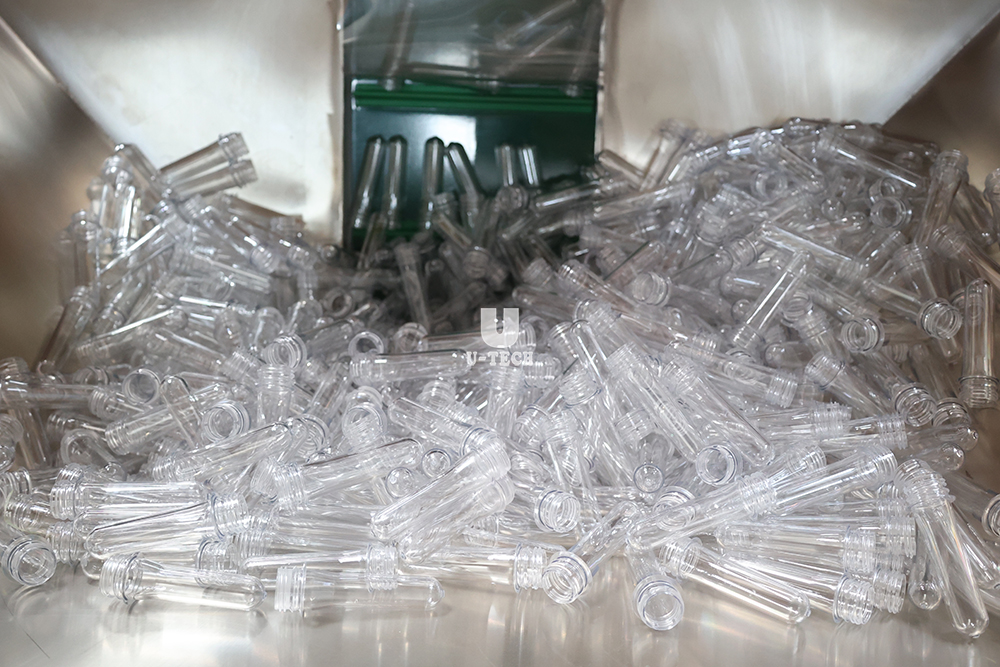

Preform length
MM
50-200
Max height of bottle
MM
320
Molding
Preform inner diameter
mm
15-60
Bottle diameter
mm
35-110
Max mold plate dimension (L × W)
mm
380 × 460
Max mold thickness
mm
200
Air compressor
High pressure compressor
M3/Mpa
1.2/30 × 3set
Locking force
KN
170
Mold opening stroke (adjustable)
mm
200
Low pressure compressor
M3/Mpa
2.0/10 × 1sets
Air dryer
M3/Mpa
2.0/30 × 1sets
Main machine electricity
Power
KW
30
Voltage / frequency
V/Hz
380/50hz
Details Images

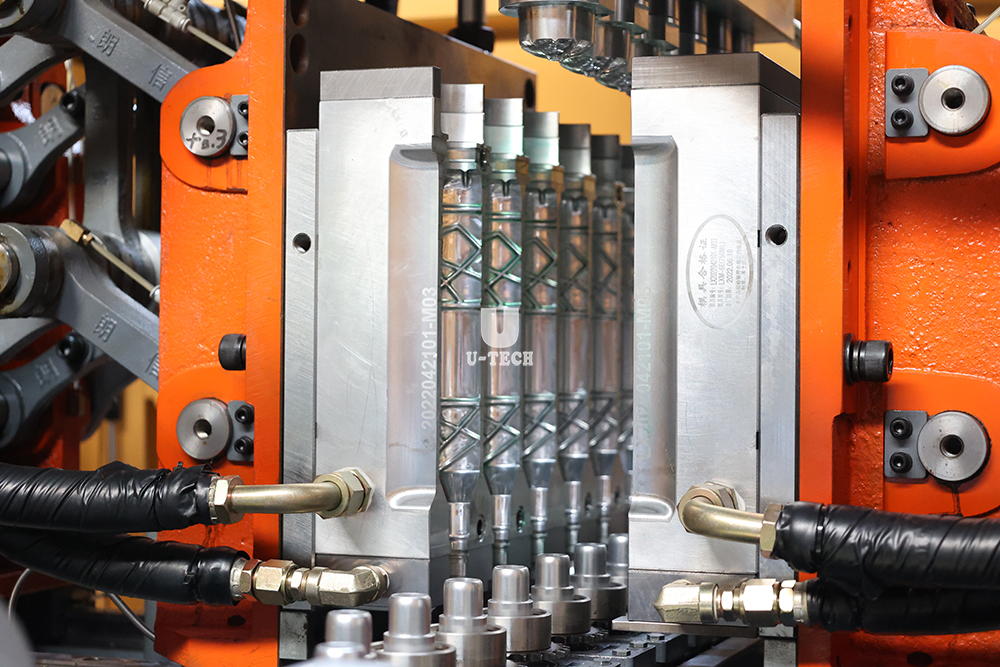

PET Bottle mould
Bottle design drawing
Bottle samples
Control System
S/N
Name
Brand
country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
