Product Description

Product Introduction

 This model is Auto Bottle Baggers which are used to pack HDPE bottles, PET bottles and so on. this equipment replaced the traditional manual packing job, achieve production line automated job, immensely save the labour cost and Improve Efficiency And Effectiveness. The Design of the equipment is simple and practical, easy operation, Covers an area of tiny. control system adopt Japan Mitsubishi PLC, increase the flexibility of function extentions. human-computer interface operation, convenience and fast.The adjust ability of U TECH Standard Auto Bottle Bagger is strong, can pack sizes of plastic bags range from 610 mm x 1016 mm and 1016 mm x 1219,These machines boast the smallest footprint available in the industry. UTECH Auto Baggers have the advantage of being able to position these machines in close proximity to, and in line with the blow-molders using minimal floor space. Every Auto Bagger is fitted with a HMI interface (touch screen) for managing all operation of the machine. The operator can store bottle settings and its parameters on the machine for future use. These machines has been applied to plastic container packing industry for many years, the sales of the machines spread all over the world, in order to provide a perfect service to customers all over the world.On the basis of product characteristics and customer specific requirement, UTECH customize auto bottles baggers for all kinds of different sizes and different shapes of bottles for customers, thus meet the special requirement from customers from different industries.

Technical parameter

Item	Specifications	Remarks
Container requirements	200ml-5L, Ranging from 200 ml to 5L; the ratio between height and diameter should be less than 4
Packing sizes	(400-1200)(400-650)(50-300)(LWH) Length: 400 to 1200 mm; Width: 400 to 650 mm
Conveyor length	Standard conveyor: LW 2200mm114.3mm	Can be customized.
Conveyor height	850±50 mm	Can be customized.
Air pressure	6-8 Bar	Supplied by the purchaser
Power consumption	2KW
Output	3,000 to 4,000 per hour for 500 ml bottle
Main Specifications	PLC-- MITSUBISHI /Japan Touch screen –SIEMENS- Germany Laser probe--Autonics/ Korean Air valves-- FESTO / Germany penumatic and cylinder --FESTO / Germany
Warranty Period	2 year ALL FREE PART SEND

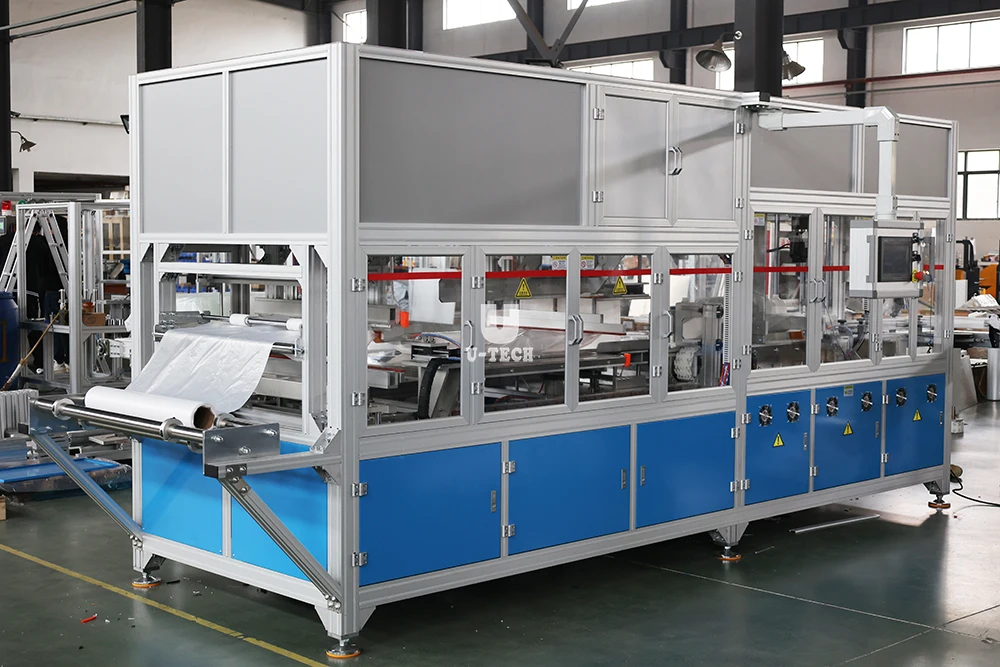

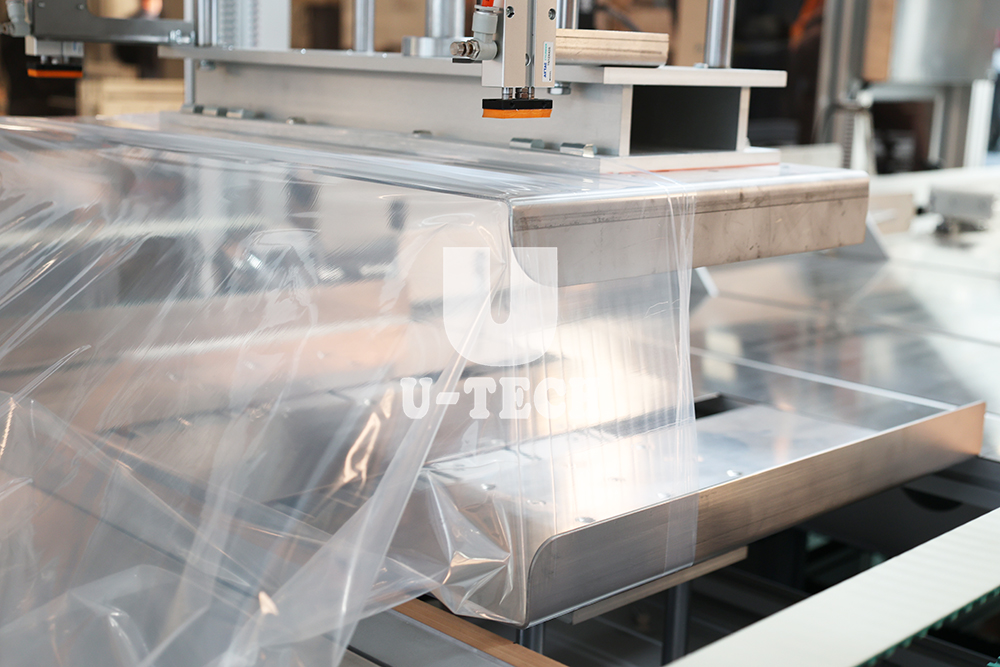

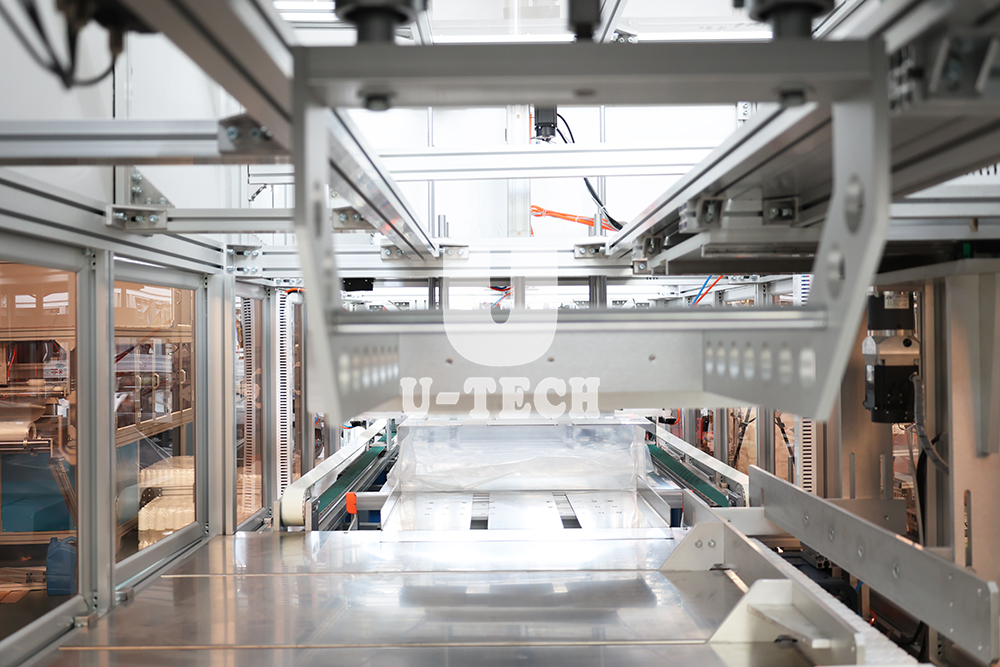

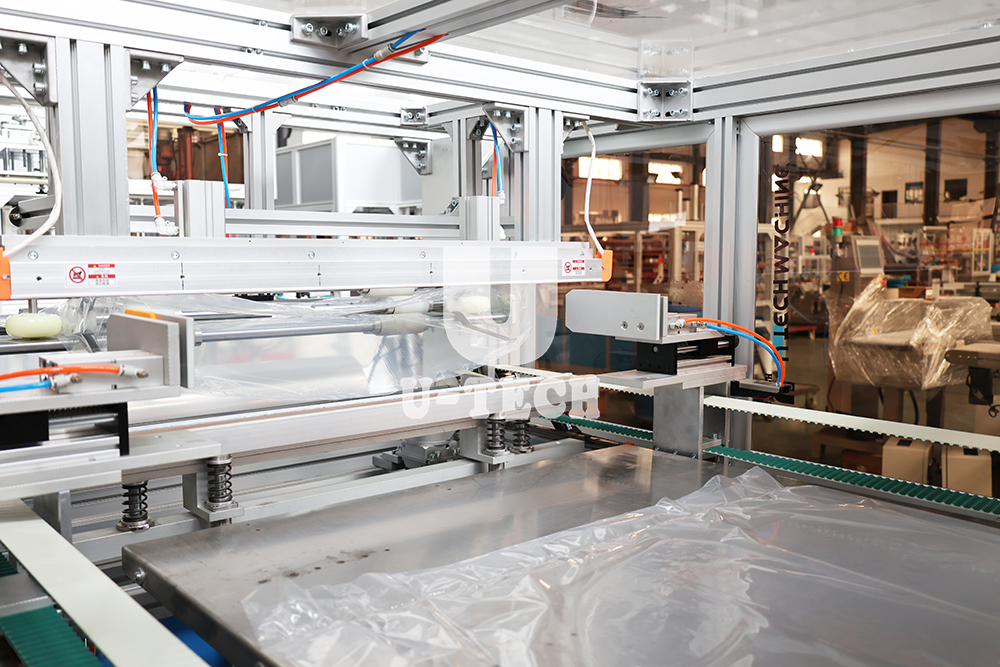

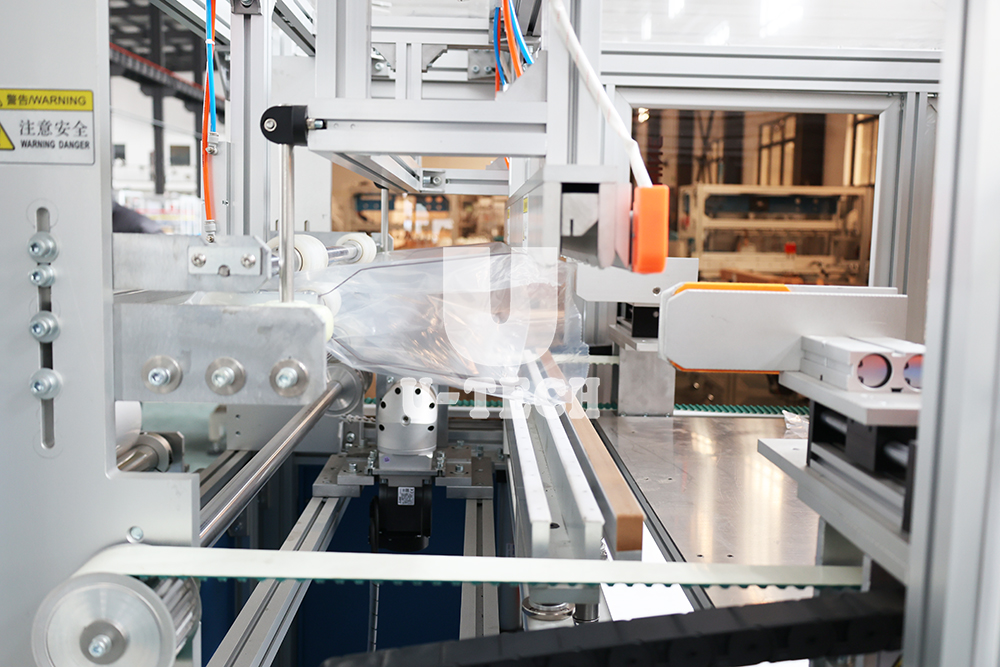

Machine details

Our Services

 What service U Tech Machine Co.,Ltd can offer you ?

• Well-trained & experienced staff are to answer all your inquiries in English.

• 24 hours for engineer response (all services part 5 days in customer hand by Intl' courier).

• 3 Years guarantee

• Your business relationship with us will be confidential to any third party.

• Good after-sale service offered, please get back to us if you got any questions.
