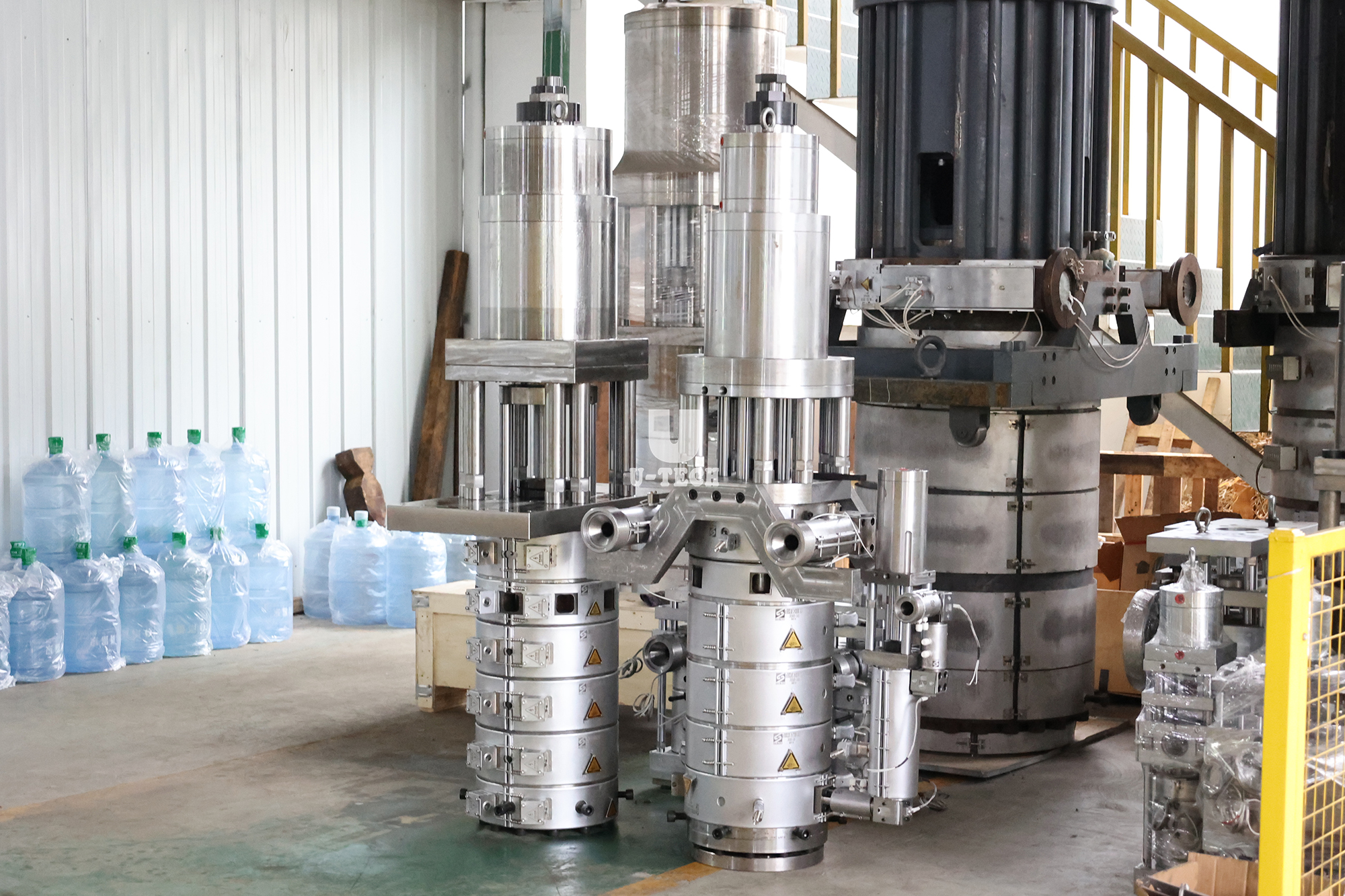

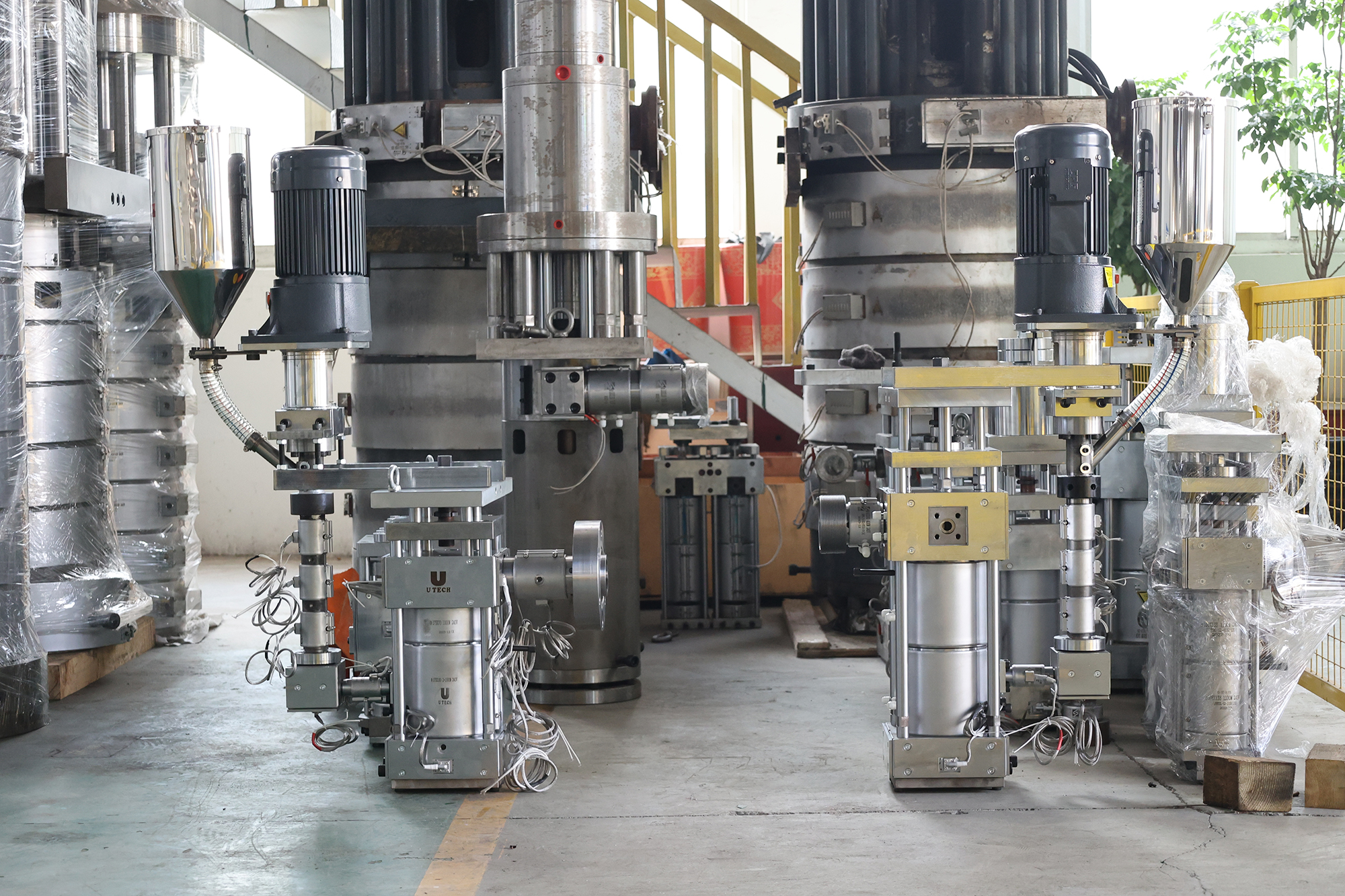

2 Layers 3 Layers 4 Layers Extrusion Blow Molding Machine Die Head

Availability:
Quantity:
Inquire Add to Basket

Products Description

Flow Chart

Cases

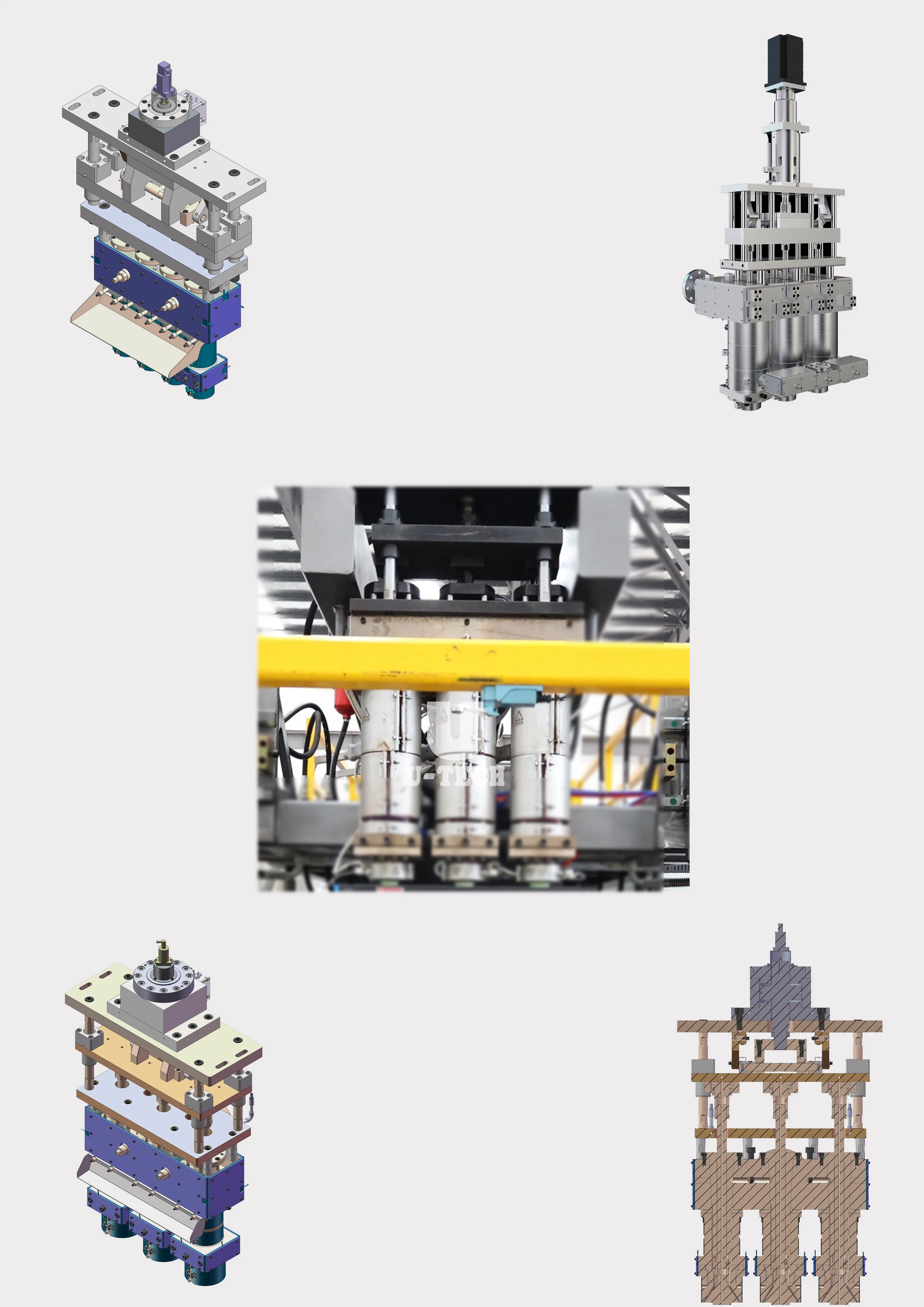

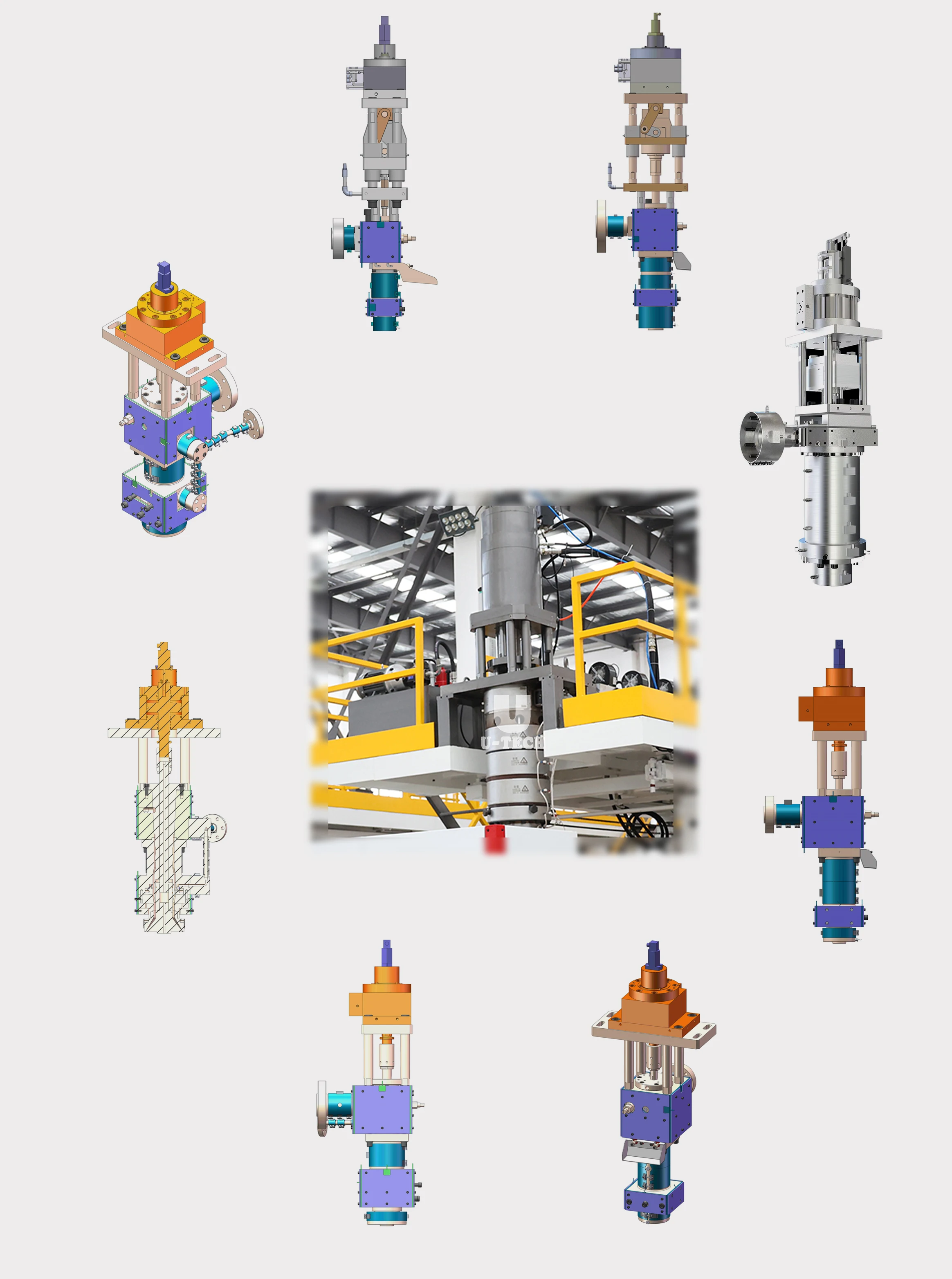

Single die head

Three die heads

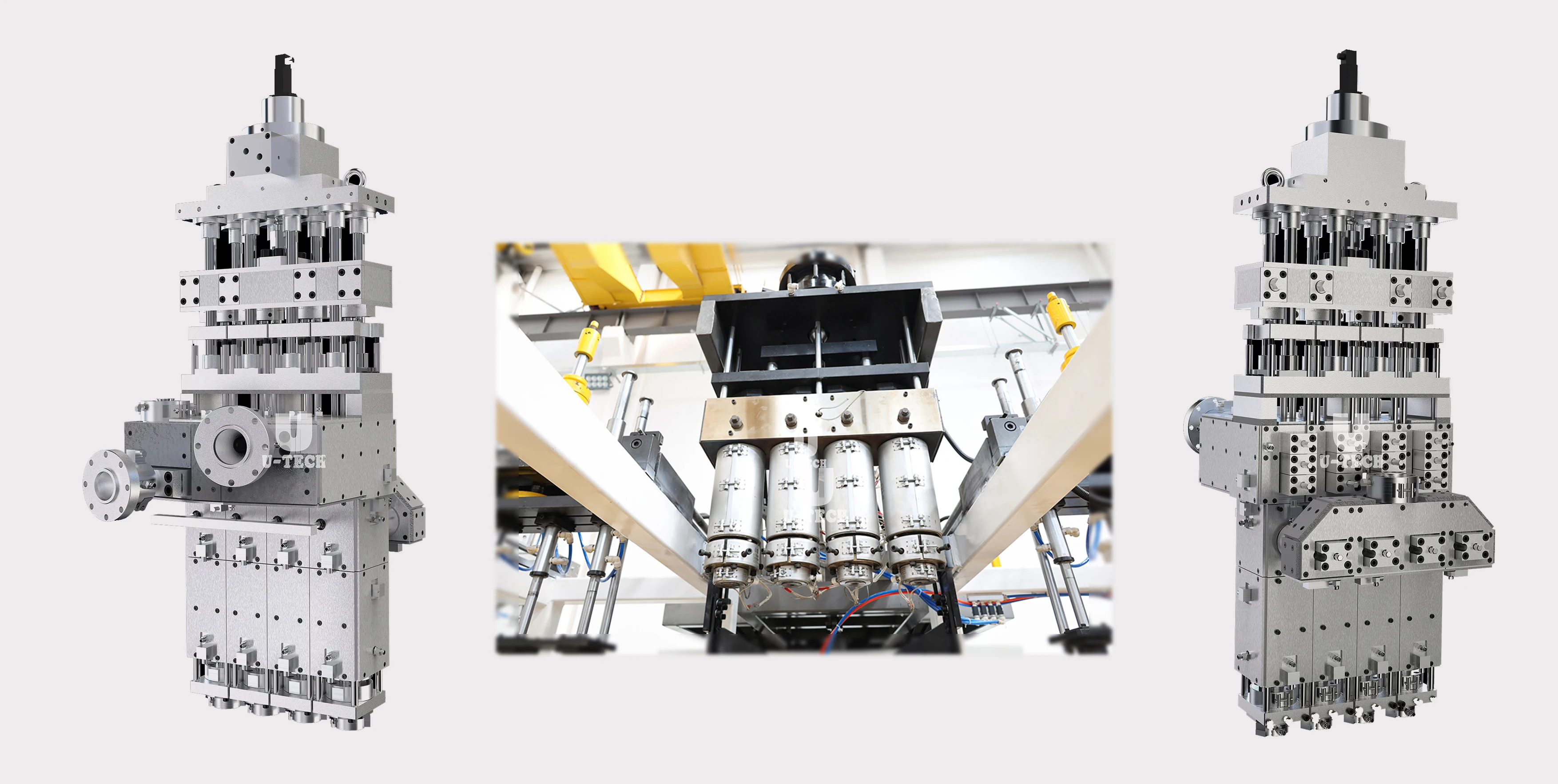

Double layer four die heads

Four layer

Technical Parameter

Dimension

Description

A

Distance extruder flange to the mold parting line. If the extruder platform can move forward and backward, there will be a minimum and maximum distance.

B

Distance extruder axis to the upper edge of the clamping plate. If the extruder platform can move up and down there will be a minimum and a maximum distance

C

Distance extruder axis to ceiling or other upper limitation.

D

Distance between the cavities.

E

Is there a maximum width of the die head?

F

Width of the clamping plate.

G;H

In case of two or more extruders: Distance between the middle of head to the edges of the machine platform.
