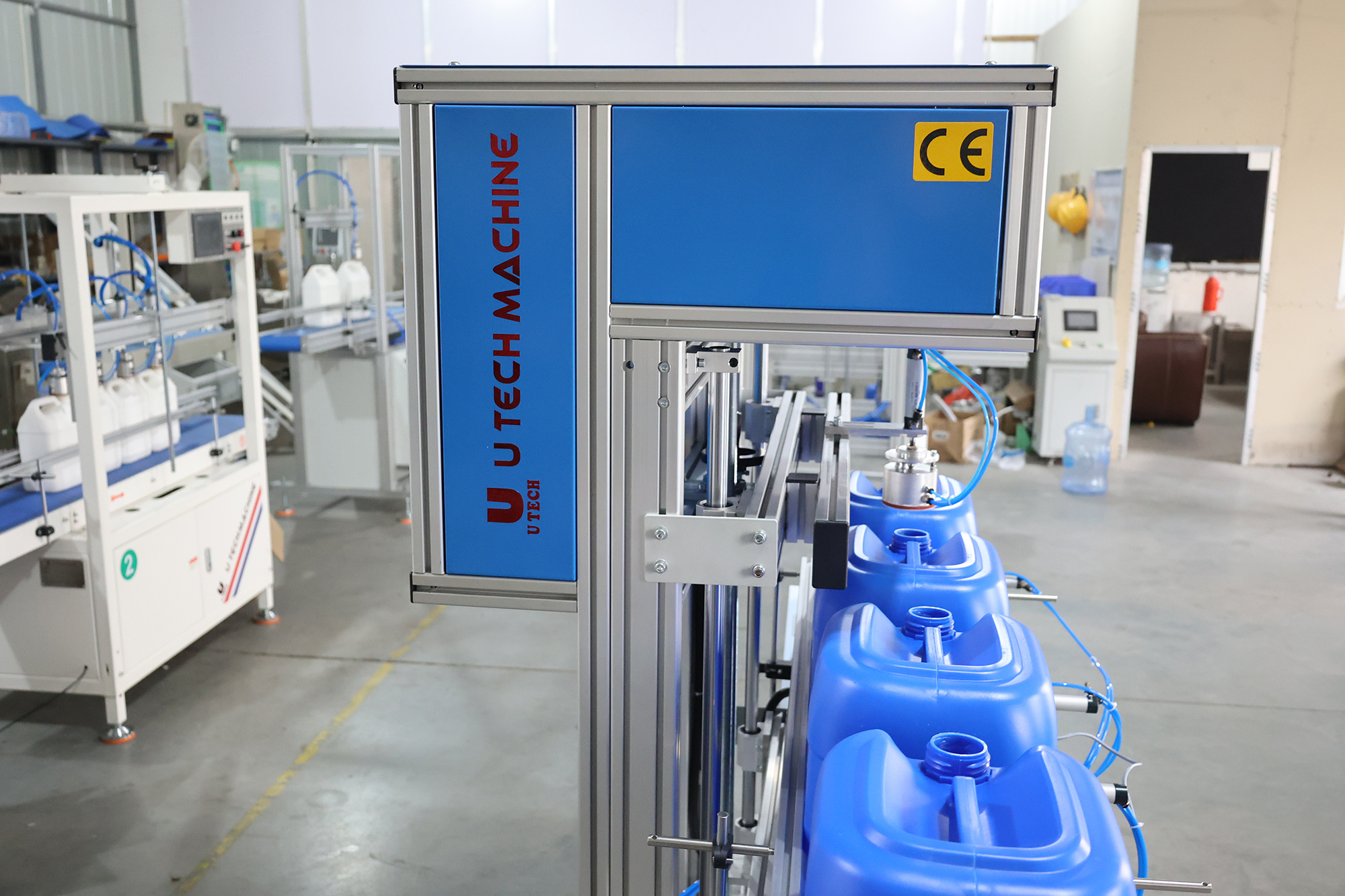

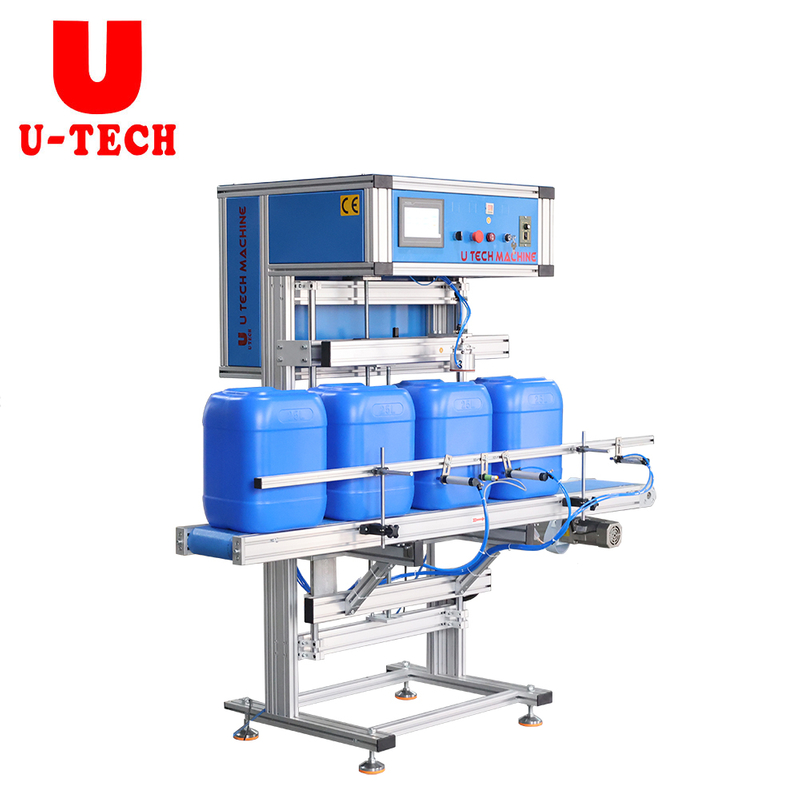

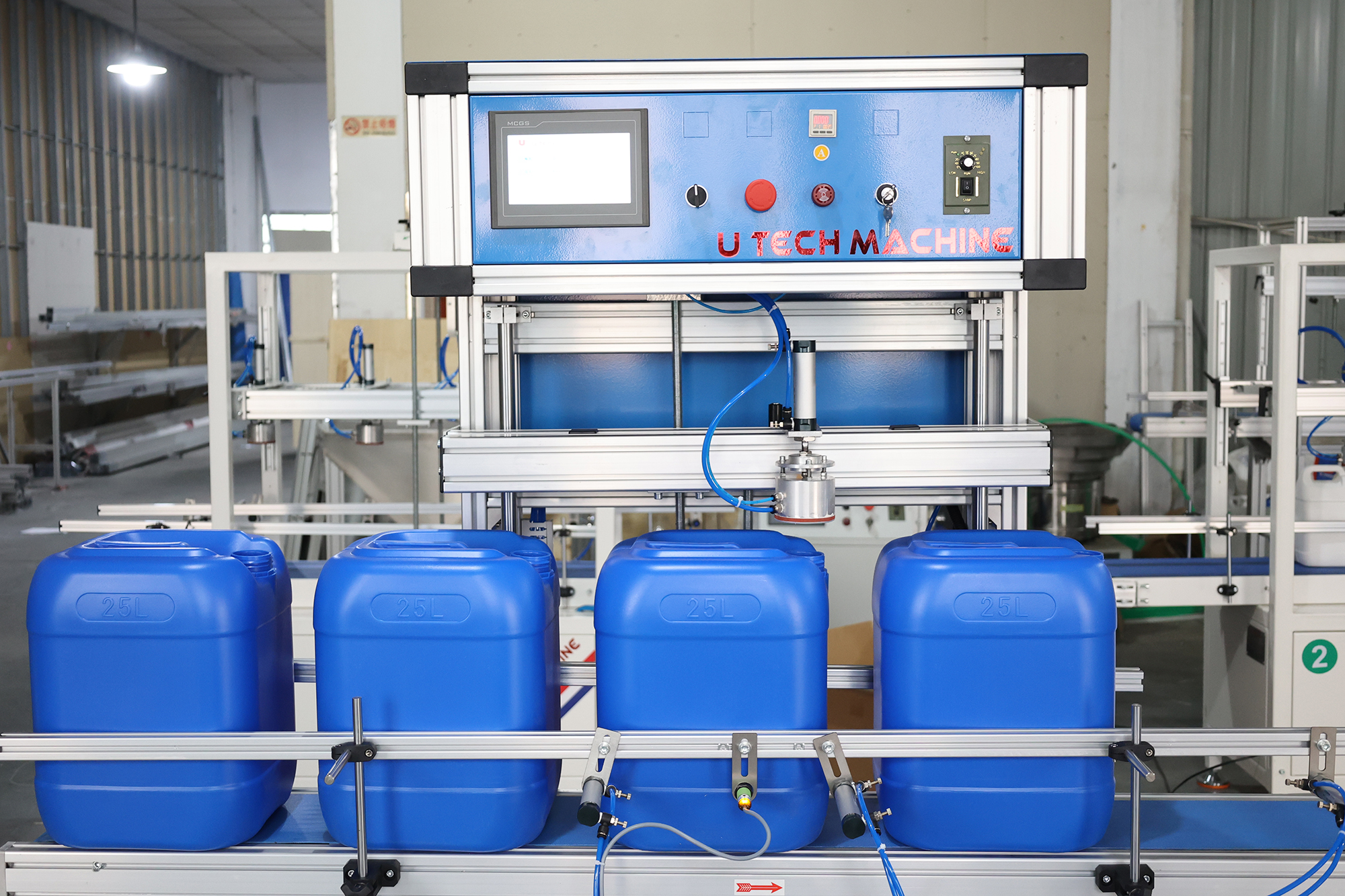

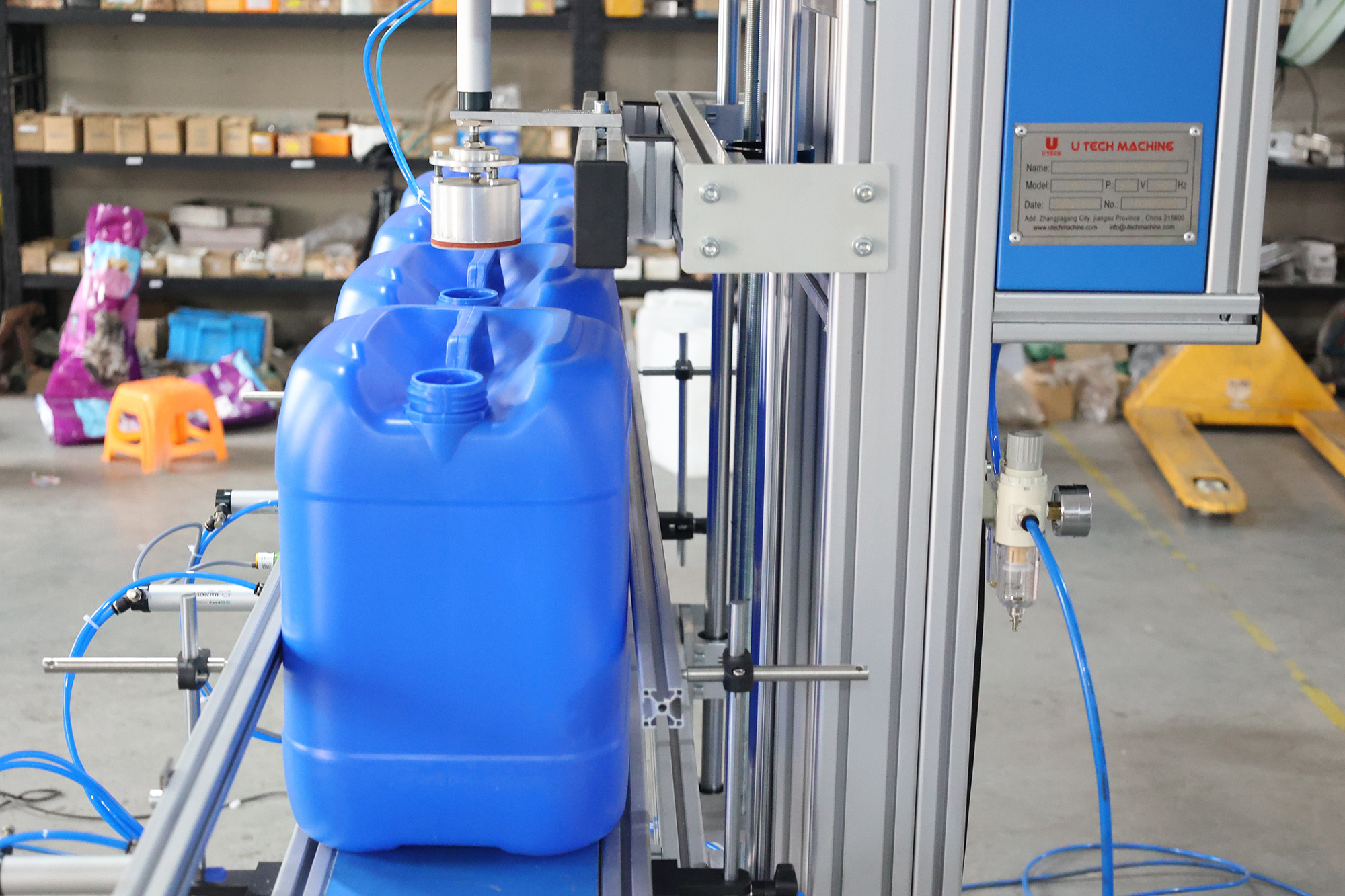

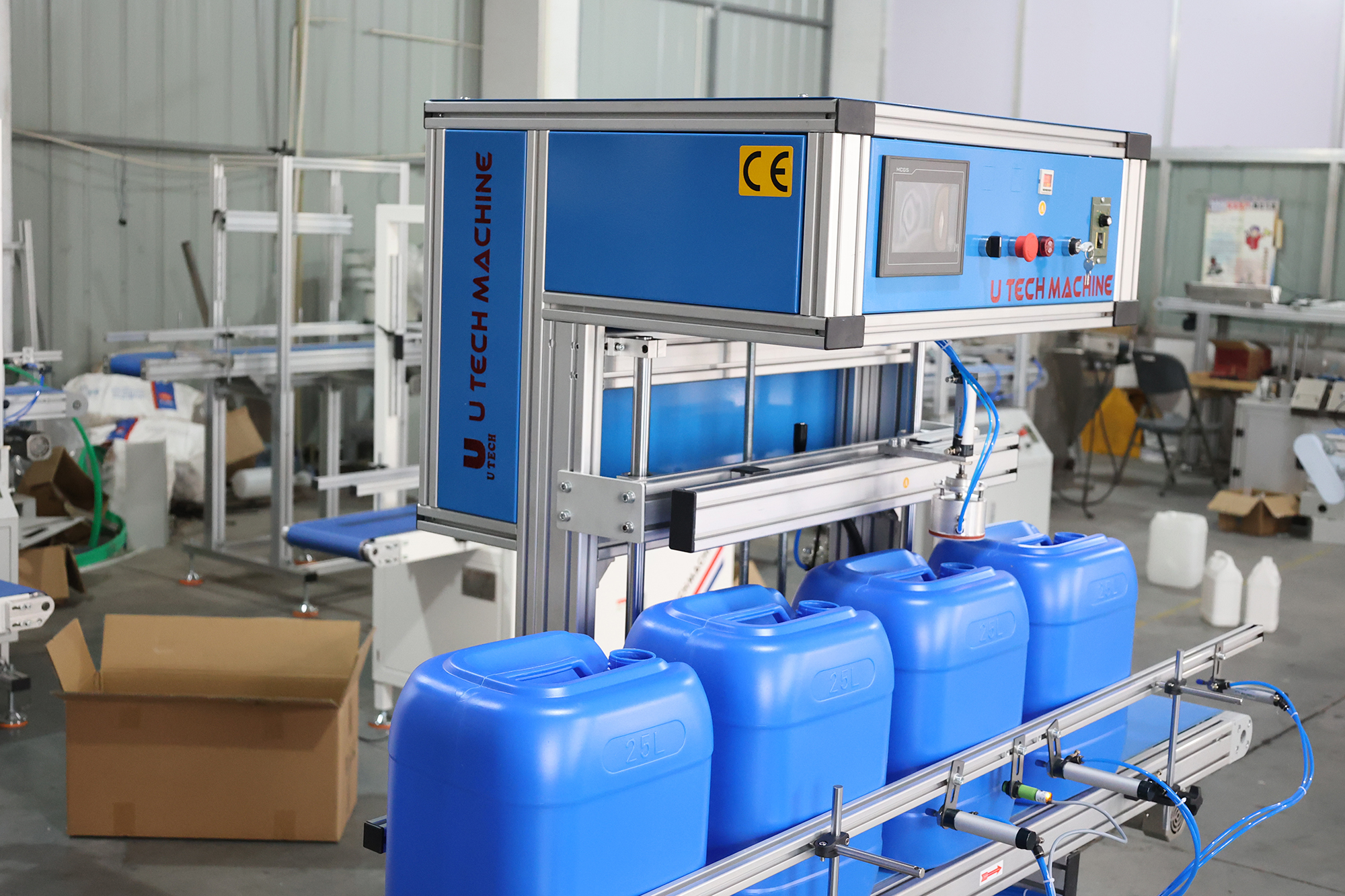

Automatic 20L Drum Tin Cans Air Leakage Detection Pc Pp Pet Empty Bottle Leak Testing Machine

Share to:

Automatic 20L Drum Tin Cans Air Leakage Detection Pc Pp Pet Empty Bottle Leak Testing Machine

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

The basic principle of the leak detector is to inject clean air at a certain pressure into the bottle to be tested, and judge whether the blow-molded plastic bottle is qualified by analyzing the change in the pressure in the bottle. The leak detector adopts the differential pressure analysis method for leak detection, fully understands its physical phenomenon, uses its characteristics, sets the value correctly, so that every leaked bottle can be detected.

Details Images

Specification

1. Overall size:	1600×600×1500mm
2. Weight:	120kg
3. Power supply:.	220V, 50Hz;
4. Air pressure:	5kgf/cm2
5. Testing time:	2-10seconds/pc
6. Suitable container height:	0.3mm A needle
7. Suitable container height:	30mm-4200mm
8. Suitable container width:	20mm-250mm
9. Leak volume:	200ml-10L

Related Products

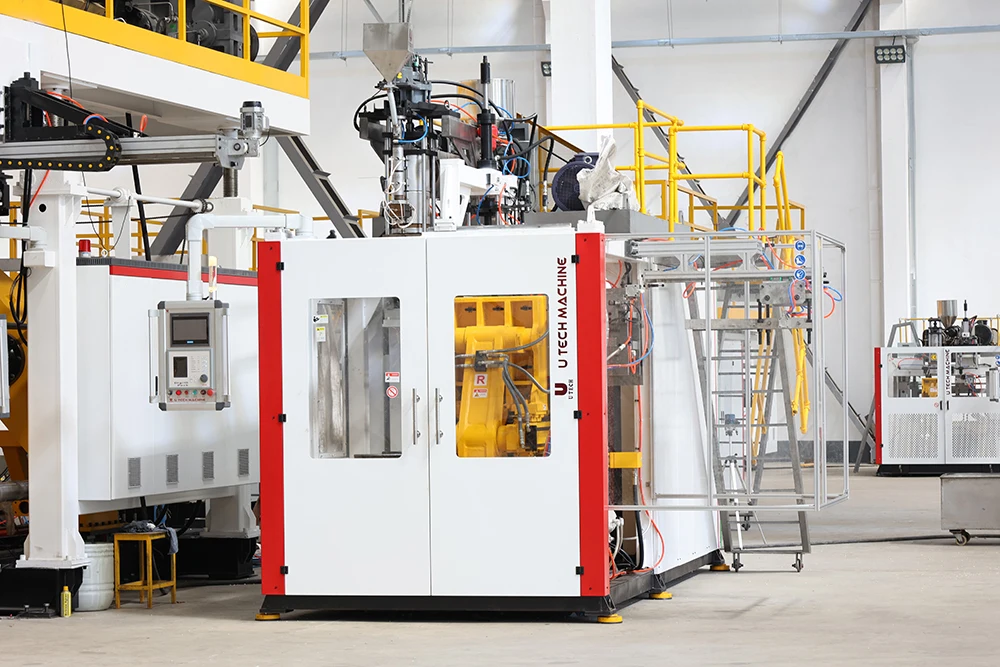

Extrusion blow moulding machine

The BST series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods,toys,beverages, medicines, chemical products, pesticides, detergents, etc with material of HDPE,PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers.

Automatic pet bottle blowing machine

BST-6000 automatic stretch blow molding machine is one of the mewest products for our customer.Its strongest point is energy savings.Adopting high pressure clamping,automatic stretch blow molding machine makes self-adjustment in accordance with the different pressure needed during production,thus ensures the super clamping force.

Bottle neck cutting trimming machine

At present, the cutting industry mainly adopts manual extrusion cutting, this cutting way needs the operator to operate the machine, the speed is limited, because of the different operators, its qualified rate is also different. Due to the container port extrusion, the force is not uniform, cannot guarantee the cutting accuracy.

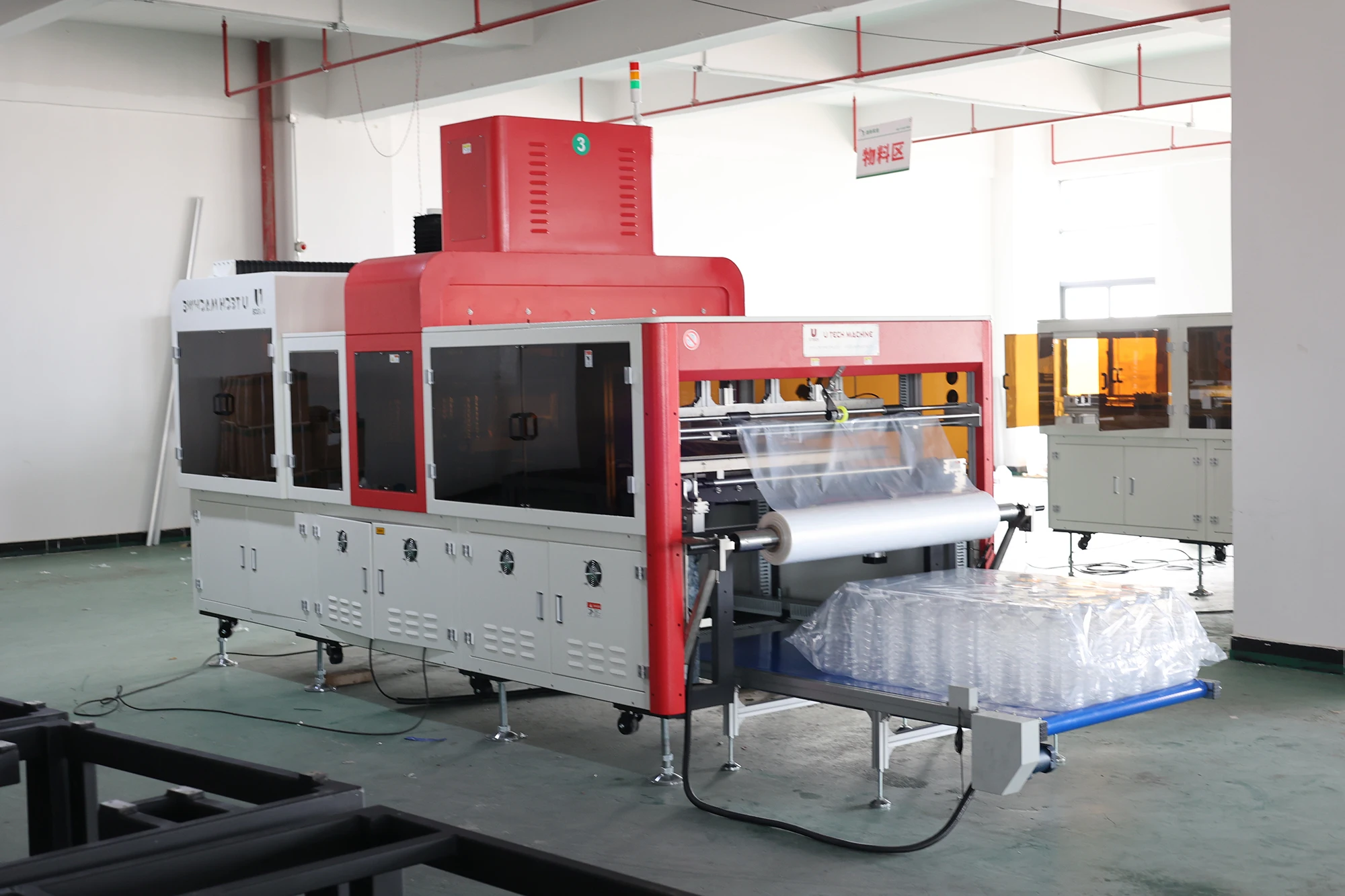

Empty bottle bag packing machine
