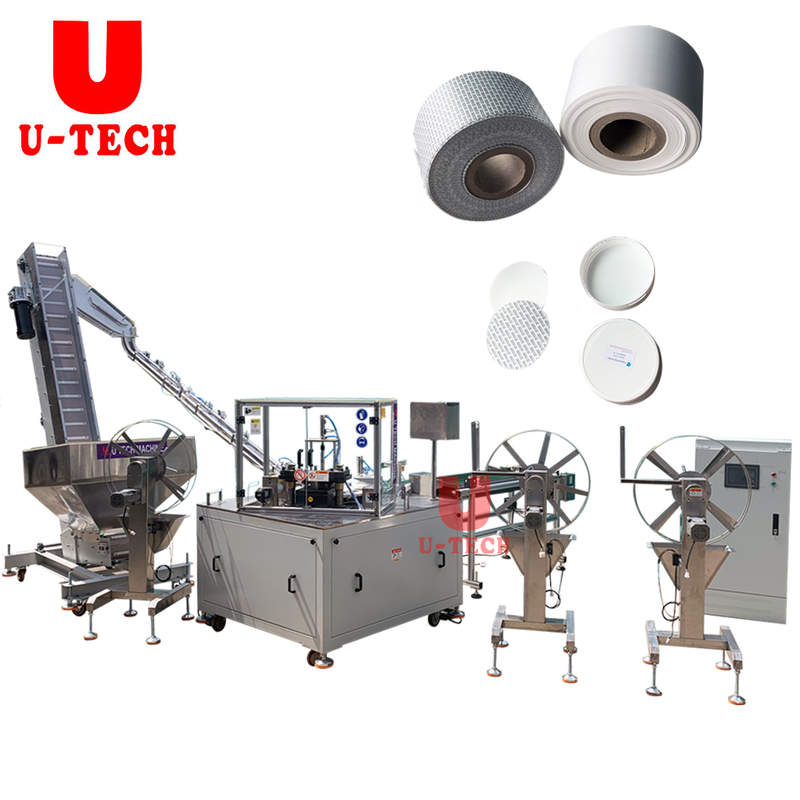

Automatic linear beverage chemical product daily use plastic bottle cap cutting wadding machine

Availability:
Quantity:
Inquire Add to Basket

Product Description
The automatic capping lining machine can cut the foil rolls into linings and insert the liners into the bottle caps at a speed of up to 30-40 pieces per minute. The main body is equipped with a turntable tunnel. The periphery of the turntable is equipped with equidistant grooves that match the bottle cap. One side of the body is equipped with a bottle cap sorting and conveying device, and a bottle cap conveying device is installed on the body. another side of the gasket blanking device is provided with a discharging roller frame just above the groove. The machine’s operation is fully automatic, highlighted by Delta programmable logic controller(PLC), a touch screen operator interface terminal, missing foil cap director and alarm system. the cost of labor is greatly reduced, and the production efficiency is improved.
Specification
model
UT-LCW
Speed
Max 120 caps/min
Electricity power
380V, 50HZ
power
2000W
Air compression
30L/min, ≥0.4Mp
host equipment size
1100mm*900mm*1400mm
Cap elevator and cap feeding device
1700mm*750mm*1200mm
Foil sending device
500mm*500mm*750mm
Waster soil sending device
500mm*500mm*650mm
conveyor
1200mm*100mm*200mm
Machine weight
1100Kg

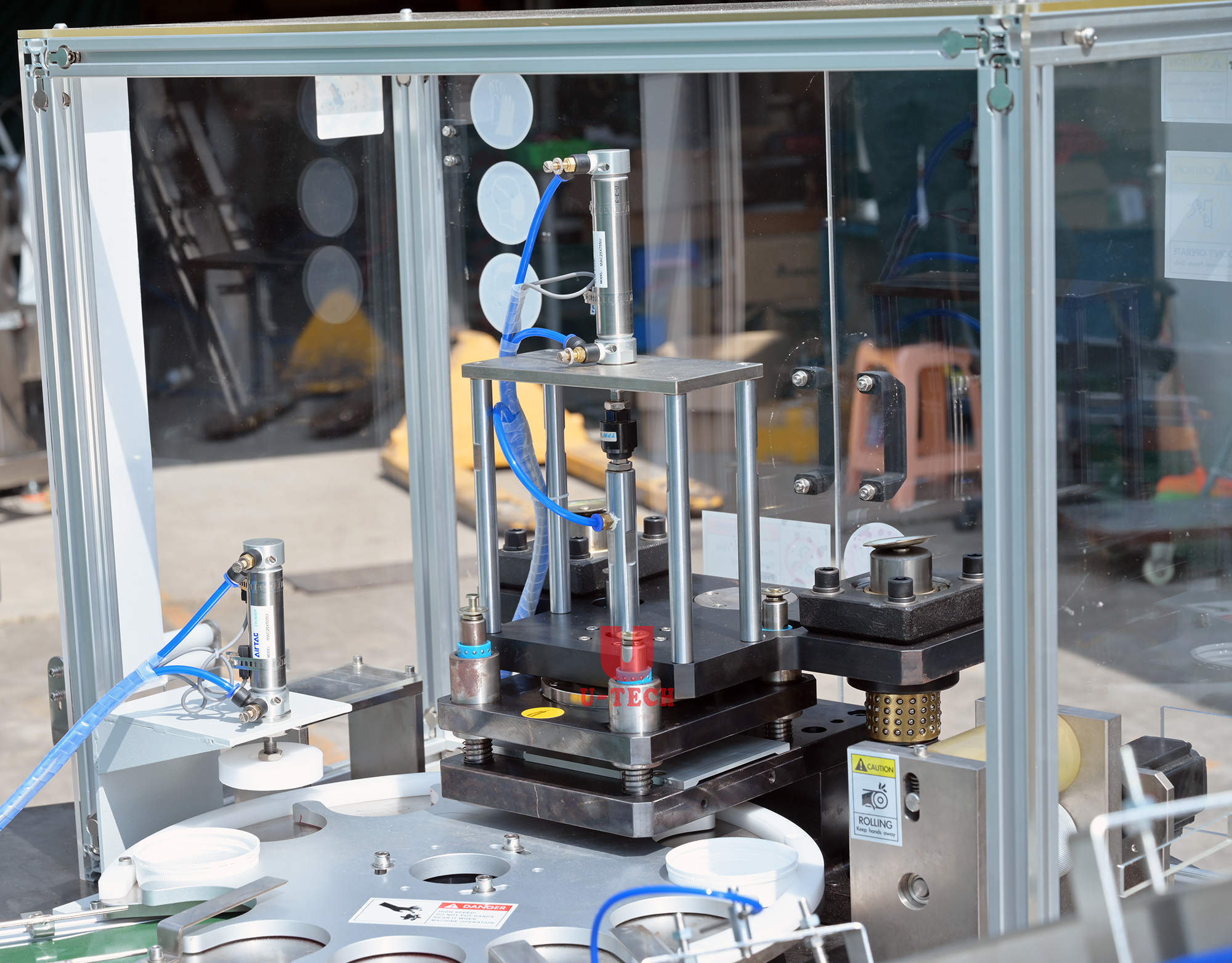

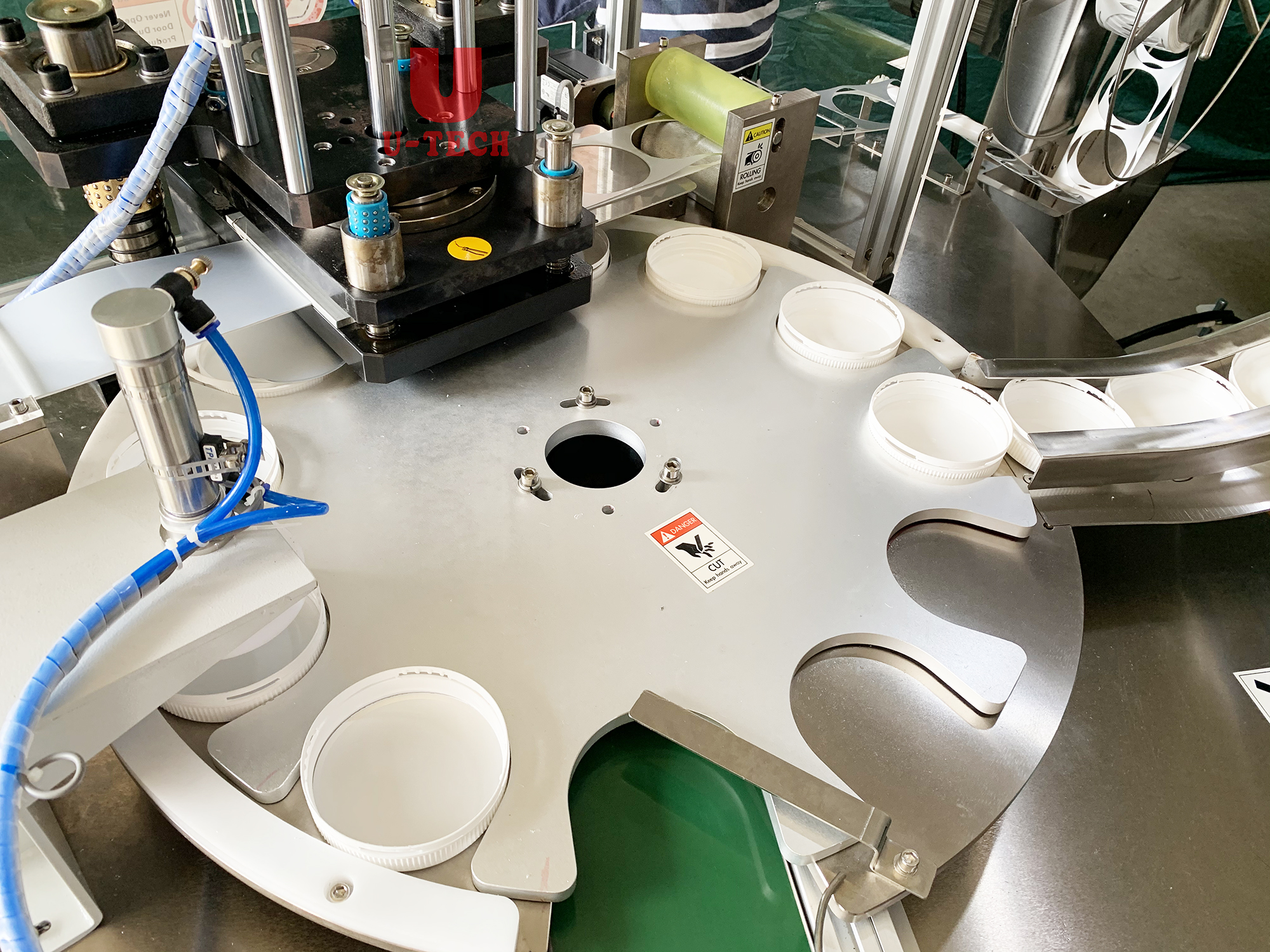

Machine details
