Automatic Tumblet Type Cap Gasket Closing Wadding Lining Inserting Putting Machine

Availability:
Quantity:
Inquire Add to Basket

  • U TECH

Product Description
Fully automatic capping machine, which can cut the foil roll into lining and insert the lining into the bottle cap at the same time, the speed can reach 100 pieces/min. The main body is equipped with a turntable. The periphery of the turntable is equipped with equidistant grooves that match the bottle cap. One side of the body is equipped with a bottle cap sorting and conveying device, and a bottle cap conveying device is installed on the body. The punch of the blanking device is installed on the pad. The block is in place. One side of the gasket blanking device is provided with a discharging roller frame just above the groove. The structure of the utility model can directly stuff the gasket into the bottle cap after the material is cut, and the degree of automation is high, the labor intensity of the workers is greatly reduced, and the production efficiency is improved.

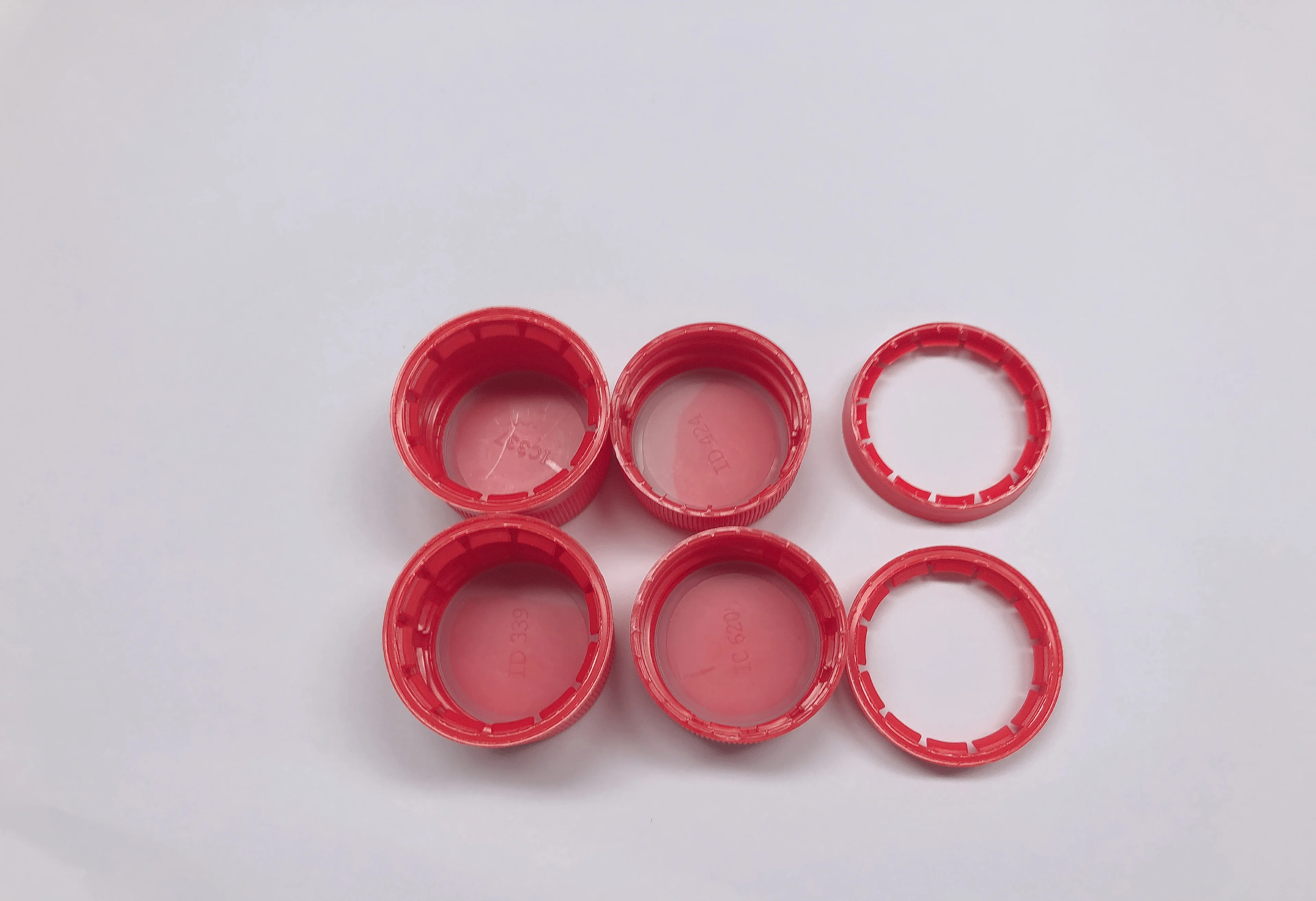

Sample
Specification
Model
SR-CL-I
Speed
Max 120 caps/min
Electricity power
380V, 50HZ
power
2000W
Air compression
30L/min, ≥0.4Mp
host equipment size
1100mm*900mm*1400mm
Cap elevator and cap feeding device
1700mm*750mm*1200mm
Foil sending device
500mm*500mm*750mm
Waster soil sending device
500mm*500mm*650mm
conveyor
1200mm*100mm*200mm
Machine weight
1100Kg
Details Images
Related Products
Injection moulding machine
Pushing type wadding machine
One step cap cutting wadding machine
Cap slitting machine
Cap folding machine
