Product Description

Product Description

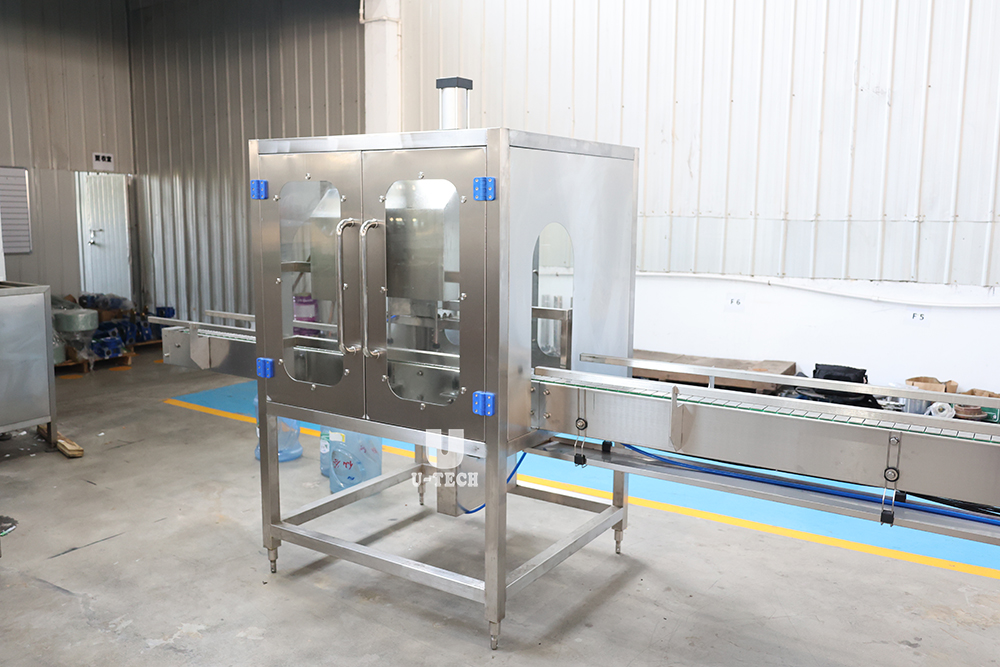

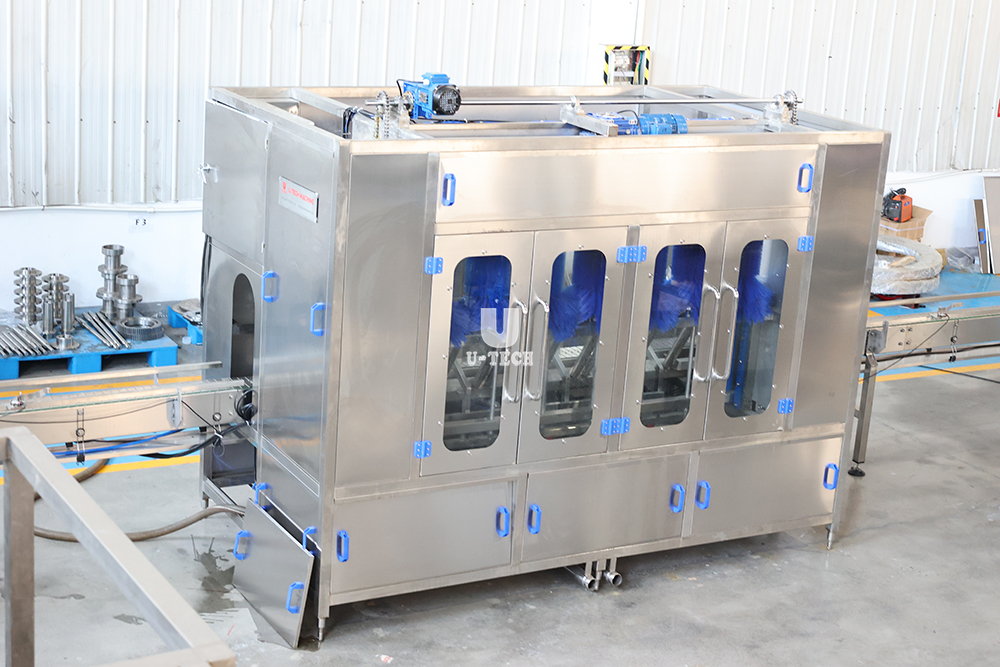

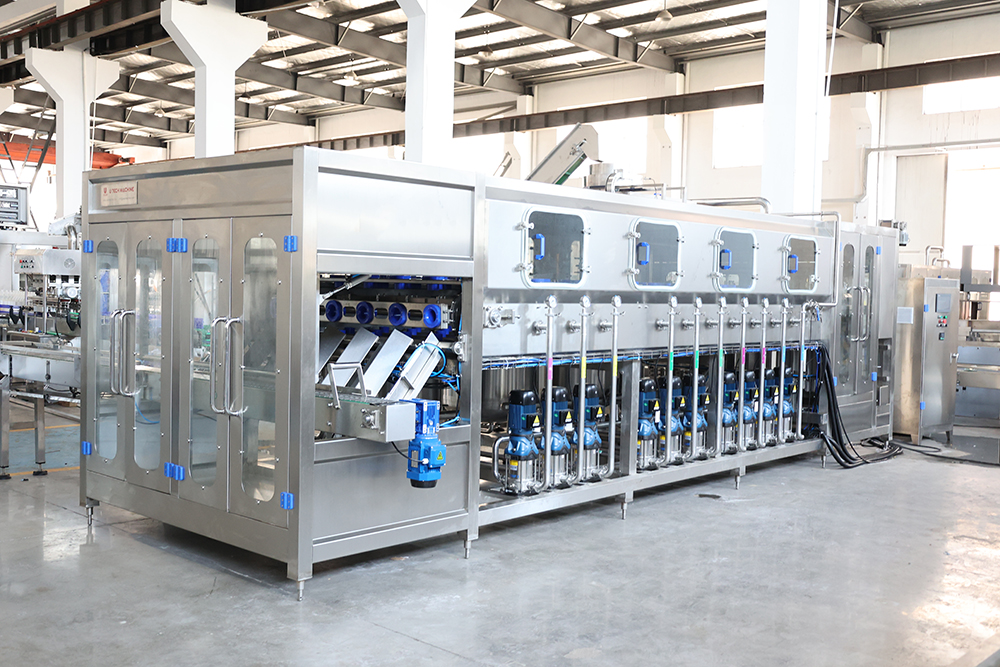

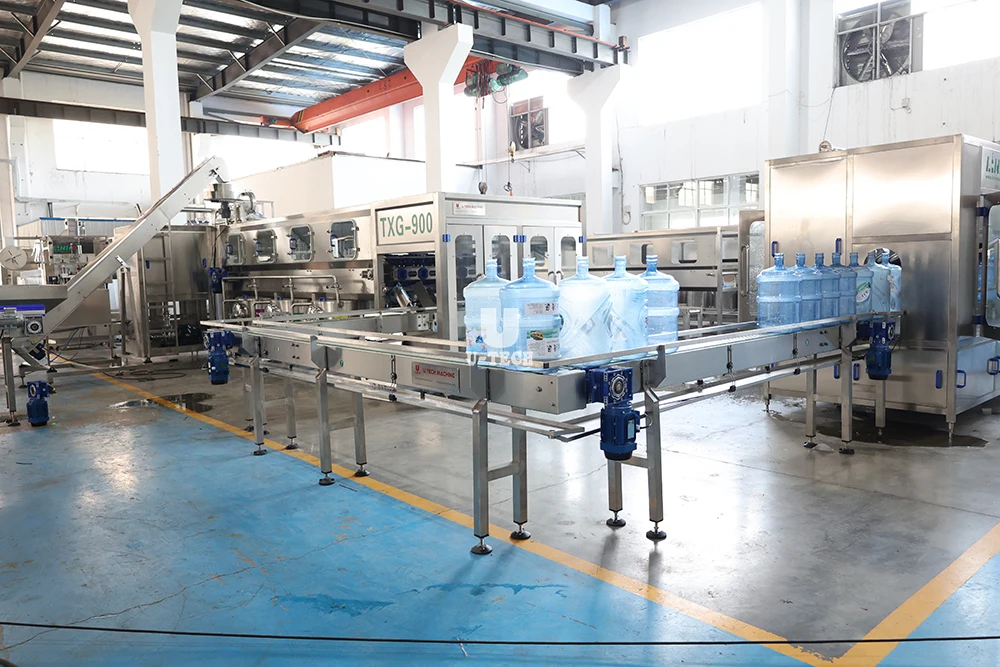

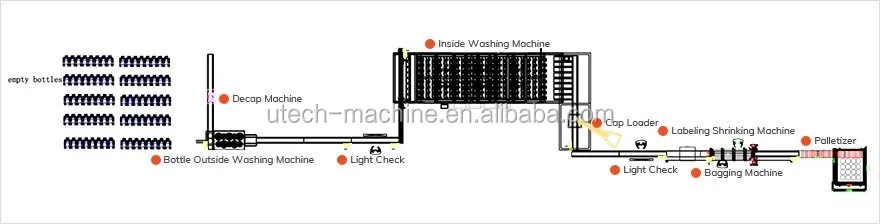

This TXG series barreled water fiiling line is mainly used to produce bottled water with volume from 3 gallon to 5 gallon.And different models can offer production capacity from 100 to 2000B/H.The whole production process operates as follows:Empty barrel are conveyed into decapping machine,which will remove bottle caps.Those caps can be recycled after being cleaned and disinfected.Then barrel are conveyed into the extemal bursh washing machine to take all-round ringsing with hot alkali and pure water.After ringsed,barrel will be sent to ringsing filling capping machine,where bottles are ringsed inside with hot alkali,disinfectant liquid and pure water.and then barrel is filled with pure water provided by water treatment system.Then after capped,those barreled water is sent to shrink packing machine in which shrink packaging of caps is done.

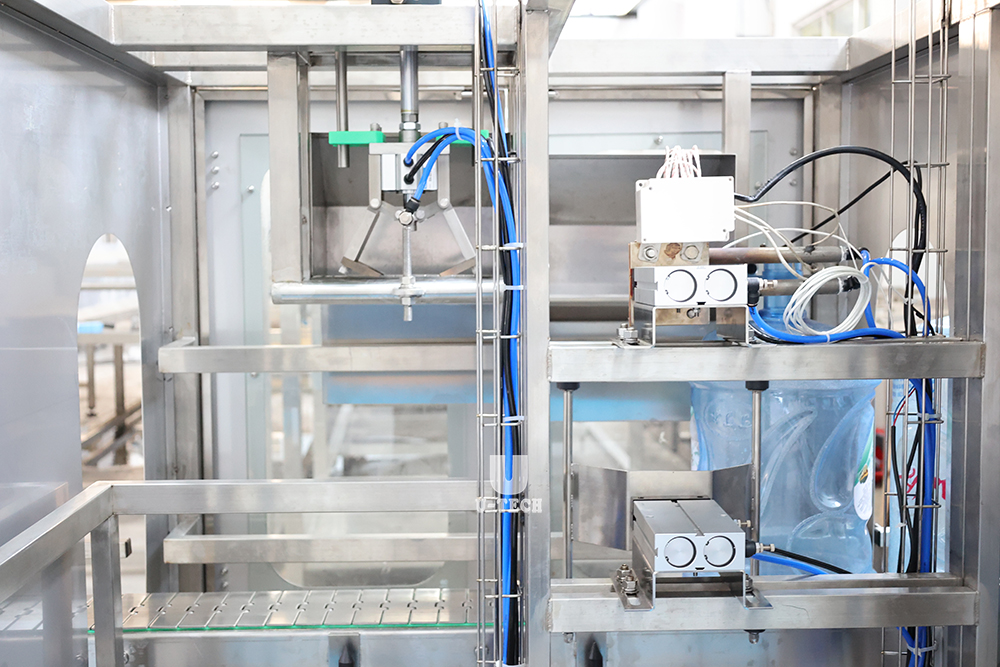

Machine details

Technical parameter

Model	TXG-100	TXG-150	TXG-300	TXG-450	TXG-600	TXG-900	TXG-1200	TXG-1500	TXG-2000
Working position ,filling heads, capping heads	3,1,1	5,1,1	7,2,1	9,3,1	11,4,1	13,8,1	15,10,1	17,12,1	21,15,1
Capacity (5gallon)	100bph	150bph	300bph	450bph	600bph	900bph	1200bph	1500bph	2000 bph
bottle specifications (mm)	3gallon-5gallon D=265-273mm H=150-360mm
Main motor power(kw)	1.41	1.5	6	30	32	35	40	45	52

Water Treatment System

The company's Water Treatment System used in electronics, electroplating,power plants, pharmaceutical, petroleum, chemical, food and beverage and printing industries to provide high quality water, reverse osmosis pure water technology is the most advanced, most economical, the most effective system of water technology,which is the use of ultra-thin film reverse osmosis membrane by water pressure, so that the water seepage from the high levels of salt to reverse the process of low salinity. Can remove most of the harmful substances, heavy metals, solids can be capacitive, only water molecules can only end through a reverse osmosis membrane water.

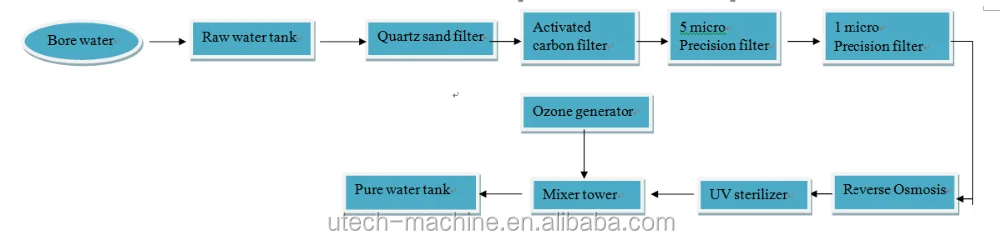

Water Treatment Flow Chart

5 Gallon Barrel Blow Molding Machine

UT-1200 blow moulding machine is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles. Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.

Palletizer

The palletizer is suitable for stacking carton, plastic case, shrink wrapped product and 5 gallon barrel. It consists of case
infeed, classification yard, pusher, pallet feeding etc. Optional interlayer keeps the stack more stable. It can be designed for
different palletizing requirements with capacity ranging from 24000 to 72000bph.
