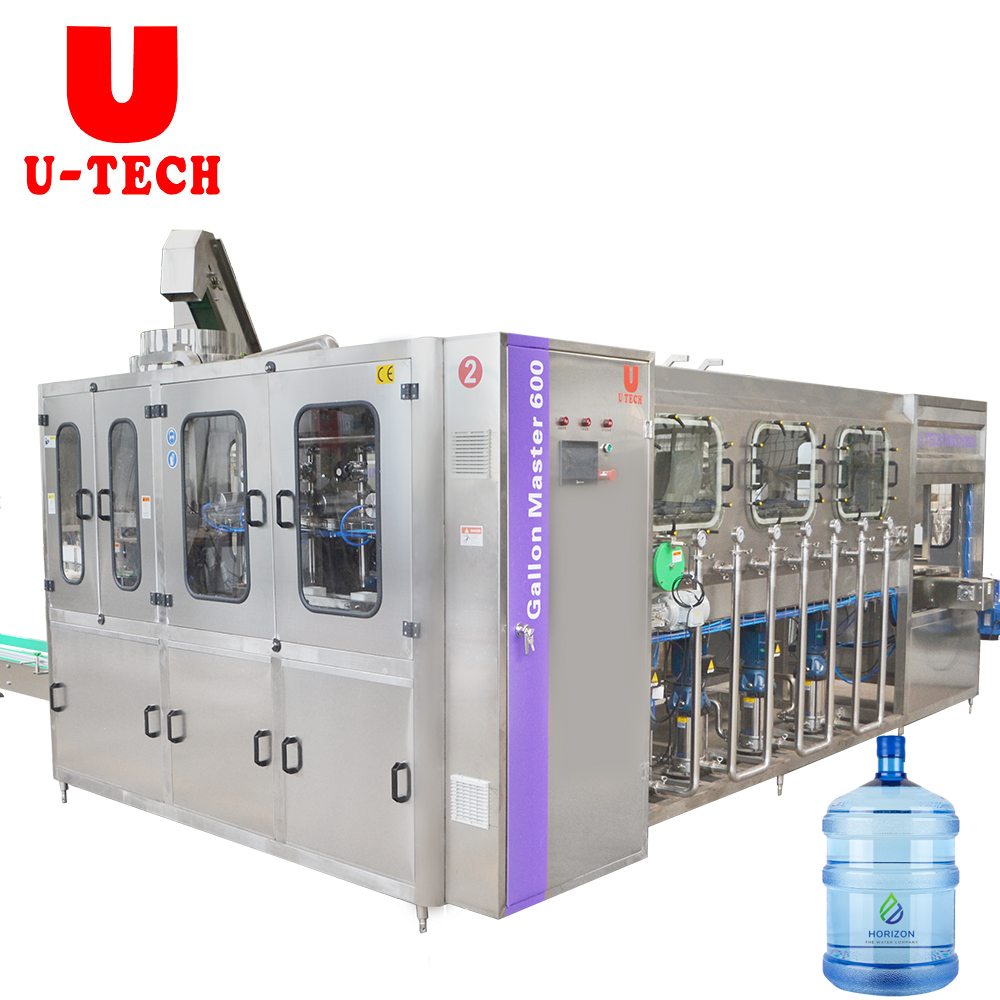

New Product Complete Bucket Automatic 20 Liter Barrel Mineral 5 Gallon Water Filling Machine

Availability:
Quantity:
Product Introduction
The whole filling speed ranges from 100BPH to 2000BPH.
Filling the pure water or the mineral water in 3 or 5 gallons.
The series of machine integrate rinsing,contain rinser-filler-capper monoblock,automatic loading machine,bottle outside
washer,bottle inside washer,decapper,heating shrink tunnel,conveyor system,complete line control system.
Datail images

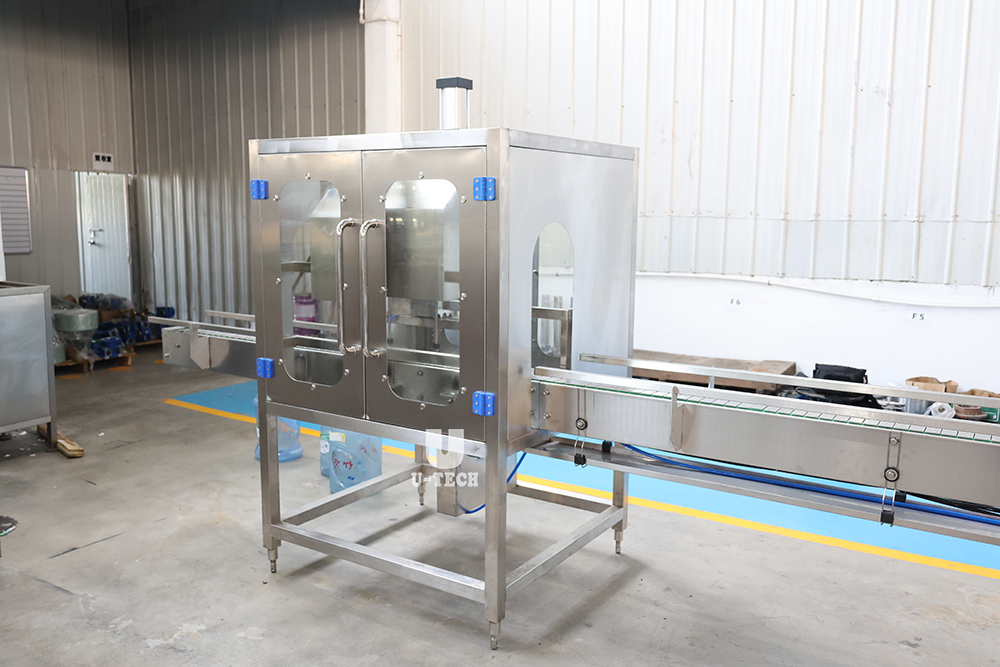

Cap Remover
It is used to remove the 5 gallon cap and bottle label.
Bottom discharge connector with recyle water collection tank.
Welding : full welding with sealing gum.

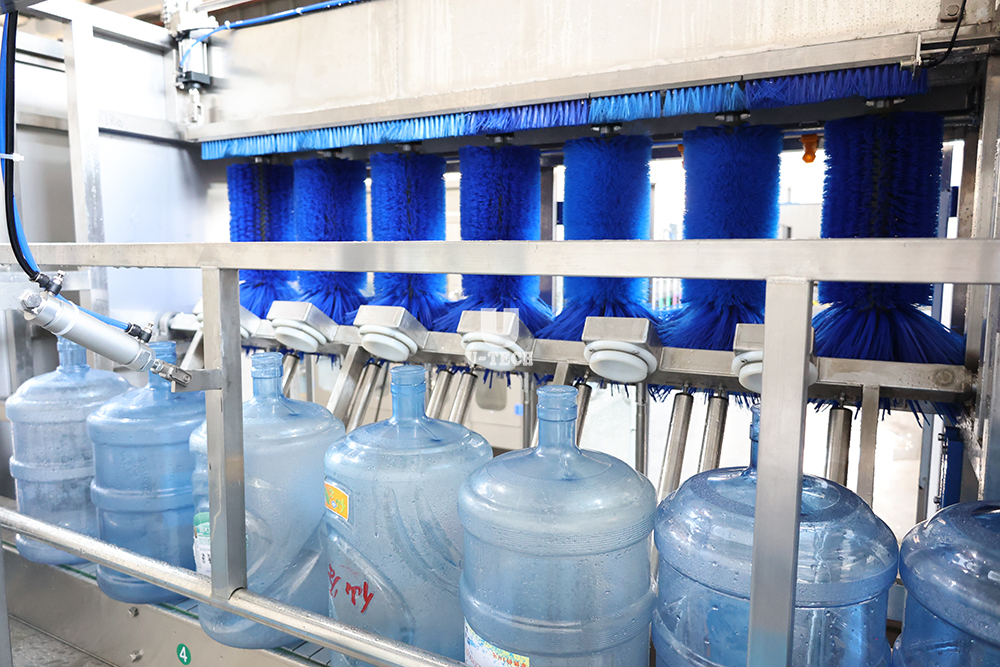

Outside washing machine
Brushes are motorised and clean the bottle externally. Since they make the bottle spin, the water jet hits not only the bottom but also the sides of the bottle. It's used forall-round cleaning the bottle, significantly improves cleaning efficiency.

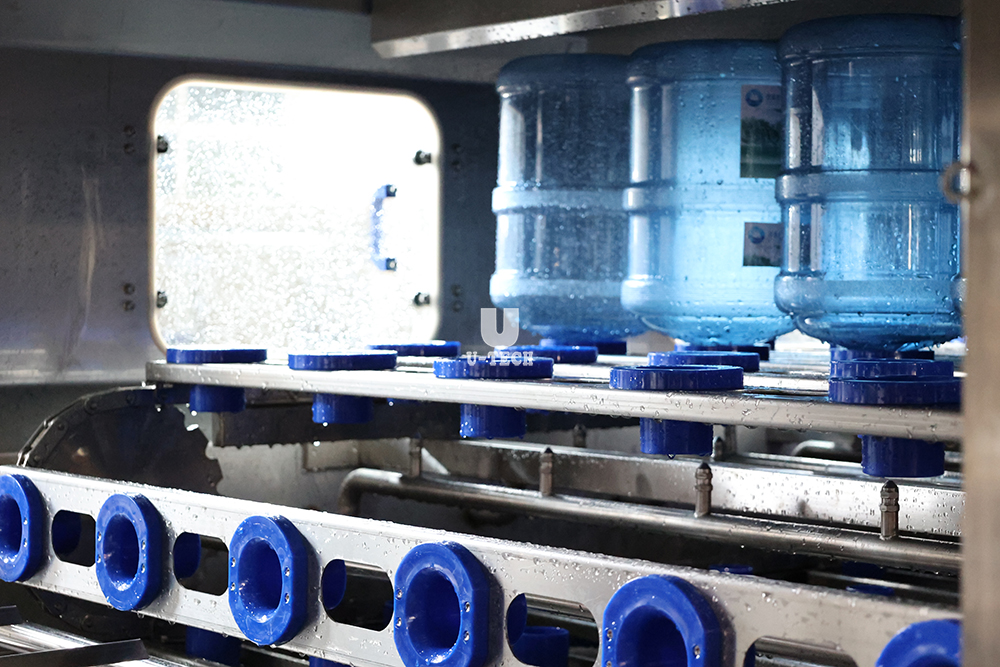

Inside Washing Part
1.It is designed for 5 washing treatment.
2.It can manage 5 liters to 5 Gallons bottles.
3.Automatic bottle unloads and out load.
4.Neck handling of the bottle by the grippers.
5.Lack of point with water stagnation.
6.Automatic disinfection of the rinsing area. 7.Change-over easy and with no downtimes.
8.Easy access for ordinary maintenance.
Filling Part
1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

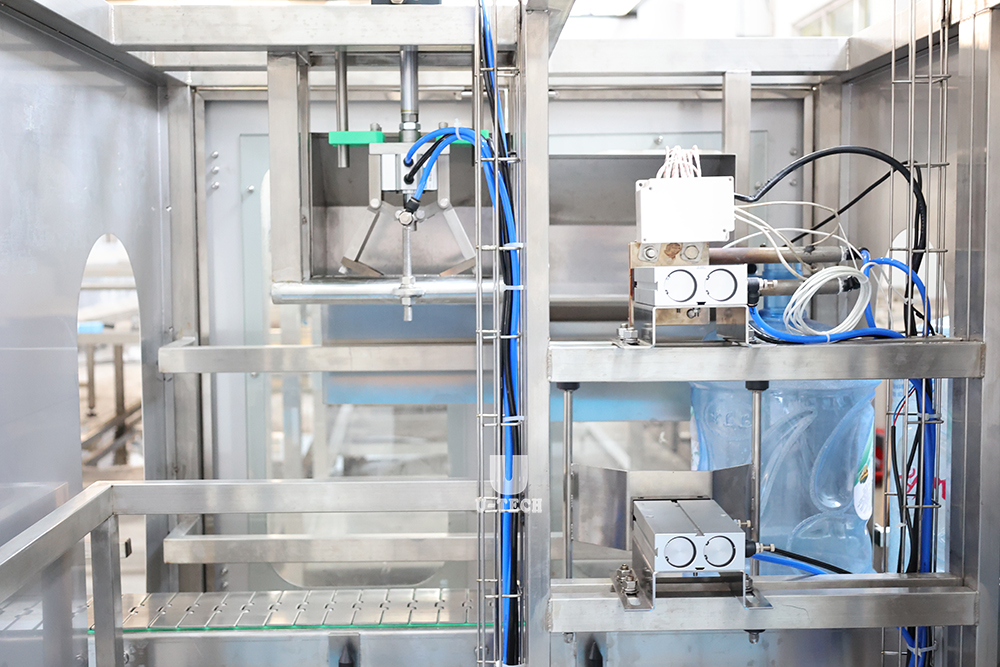

Capping Part
The PRESS-ON CAPPER is a linear machine used for caps applied on the bottle by pressure.
It includes: Cap hopper, Canal chute, Placing system of cap on the neck, Device to snap the cap on the neck. The bottle takes the cap directly from the canal chute. The snapping of the cap on the bottle neck is carried out through the pressure developed by a belt conveyor, provided with a system to adjust the force in order not to stress the bottle.
