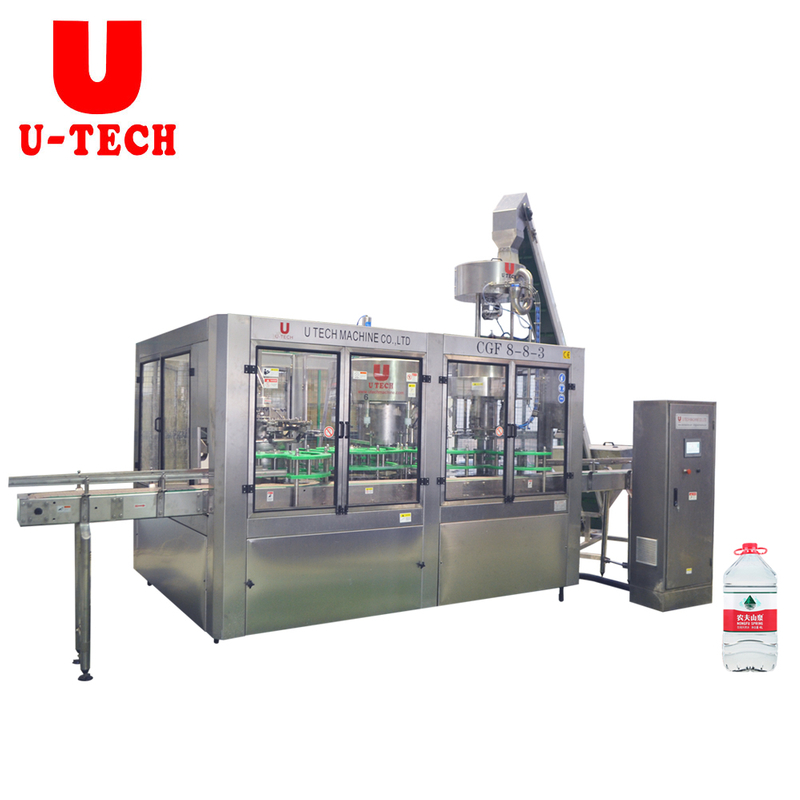

Rotary Fully Automatic Bottle Natural Pure Mineral Drinking 5L Water Bottling Machine

Availability:
Quantity:
  • U TECH
Product Description
1.Water bottling machine is used to fill pure water, mineral water and other non-carbonated beverage.All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

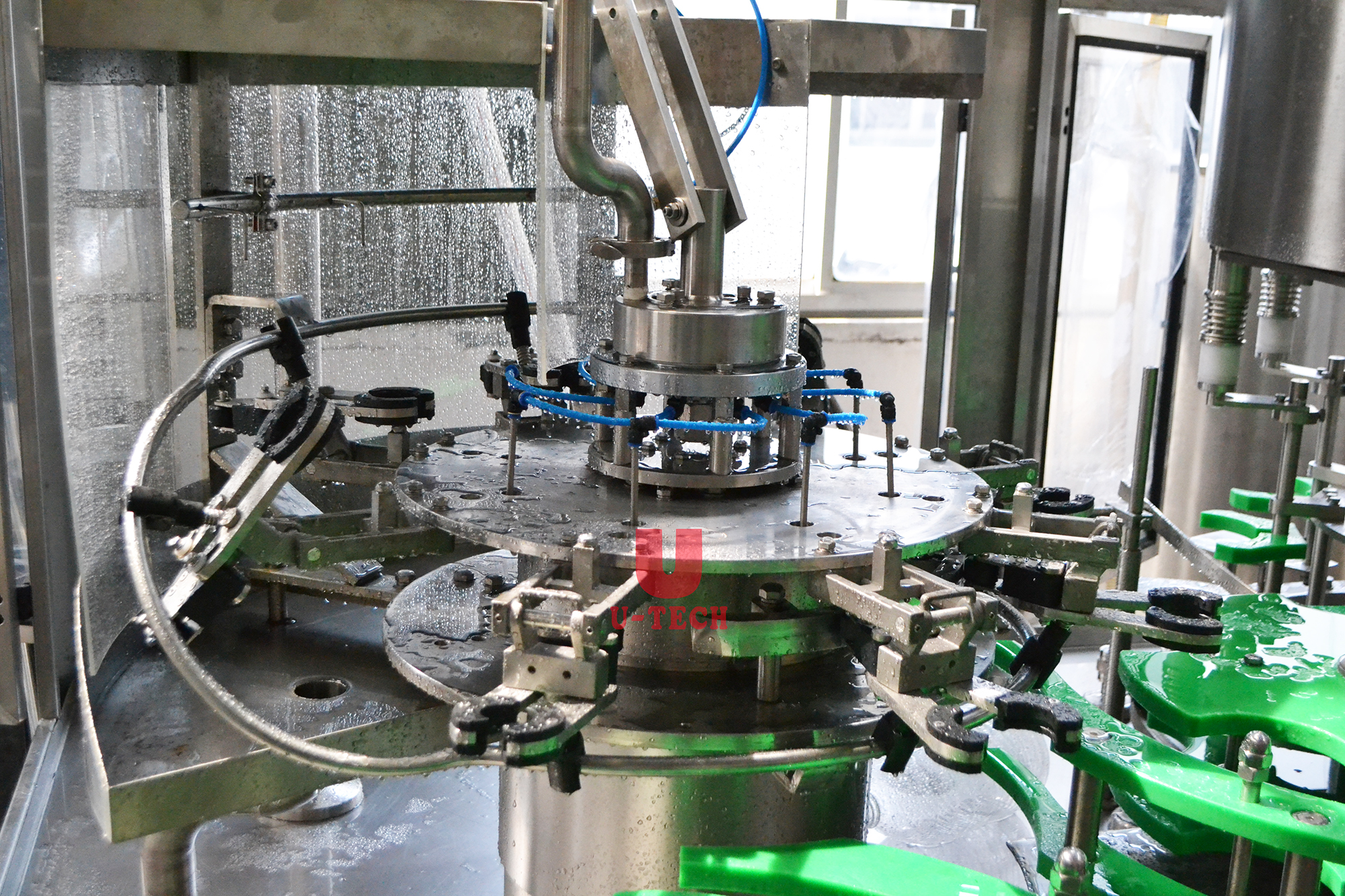

2.This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse
bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle
neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately.Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

3.This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.


Technical Parameters
Model
XGF8-8-3
Working stations
Rinsing 8, filling 8,capping3
Capacity
1200B/H
Air source pressure
0.4MPa
Air consumption
0.7m3/min
Rinsing water pressure
0.2-0.3MPa
Rinsing water consumption
2.5T/h
Man motor power
2.5KW
Dimension
3900×3123×2700
Total weight
3000kg
Machine Details
Control System
S/N
Name
Brand
Country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
Related Products
Water Treatment System
Water treatment system,also called water filtration sterlizer system,is the process of purifying the raw water by a series equipments and devices to be drinkable.This system is to remove the suspended solid,color&smell,bacteria,and microbe,metal hydronium and chemical pollution contained in the raw water.The water purification process affects the quality of the products,as well as the transportation and sale.Thus ,in the real operation,it is effective to remain some disinfectant to kill the bacteria infected during the transportation.
Automatic Sleeve Labeling Machine
Automatic Sleeve Labeling machine is one of the equipment with high technology content in back packaging, the high-speed and stable performance, unique dexterous design and the safety mode of man-machine cooperation have been fully affirmed by the majority of customers. The application fields are: food, beverage and pharmaceutical industry, condiments, fruit juice, injection needle, milk, refined oil, etc.
Certifications
FAQ
Q1:Do you have any reference project?

  >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.


Q2:What's your guarantee or the warranty of the quality if we buy your machines?

  >>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.


Q3: Do you provide customized service?

  >> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.


Q4:When can I get my machine after I paid?

  >> A4:We will deliver the machines on time as the date we agreed both side.


Q5:How can I install my machine when it arrives?

  >> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
