Fully automatic high speed watering pot can extrusion blow molding machine price

Share to:

Fully automatic high speed watering pot can extrusion blow molding machine price

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

 The BST series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for
foods,toys,beverages, medicines, chemical products, pesticides, detergents, etc with material of HDPE,PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and Other benefit.

Application

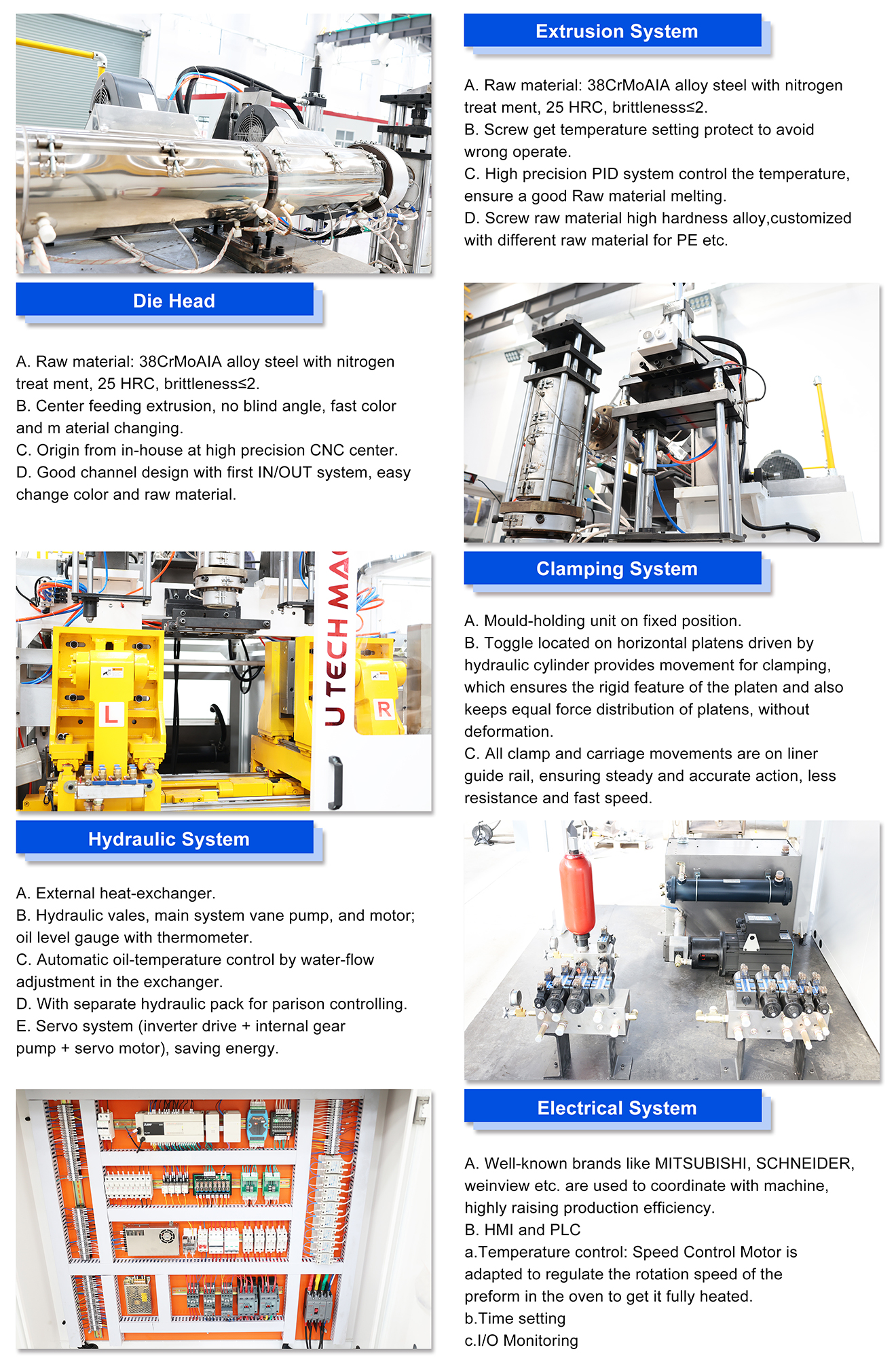

Machine details

Technical parameter

Model	BST65
Max. Product Volume	(L)	5L
Dry cycle	(pc/h)	700
Screw Diameter	(mm)	65
Screw L/D ratio	(L/D)	25
Screw drive power	(KW)	15
Screw heating capacity	(KW)	5.04~6.7
No. of heating zone	(ZONE)	3
Max. Output of HDPE	(Kg/hr)	60
Oil pump drive power	(KW)	7.5
Clamping force	(KN)	60
Platen distance	(mm)	148~508
Mold moving stroke	(mm)	380
Max. Size of Mold(W*H)	(mm)	370*390
Max. Die diameter	(mm)	145
Die heat capacity	(KW)	2.5
No. of heating zone	(ZONE)	3
Central distance of Double head	(mm)	160,180
Blowing pressure	(Mpa)	0.6
Air volume	(M3/MIN)	0.4
Cooling water pressure	(Mpa)	0.2~0.3
Water consumption	(L/MIN)	50
Size of machine ( LWH)	(m)	3.431.772.58
Weight of machine	(TON)	4

Auxiliary Equipment

Package and Delivery

About U TECH

 Our customers

FAQ

 Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .

Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
