Automatic High Speed 19L 20L Bucket Barrel Pure Water 5 Gallon Bottling Equipment

Share to:

Automatic High Speed 19L 20L Bucket Barrel Pure Water 5 Gallon Bottling Equipment

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

 The whole filling speed ranges from 100BPH to 2000BPH.
Filling the pure water or the mineral water in 3 or 5 gallons.
The series of machine integrate rinsing,contain rinser-filler-capper monoblock,automatic loading machine,bottle outside
washer,bottle inside washer,decapper,heating shrink tunnel,conveyor system,complete line control system.

Technical parameter

5 gallon water filling machine
Model	TXG-150	TXG-300	TXG-450	TXG-600	TXG-900	TXG-1200
Capacity(for 5 gallon)	150BPH	300BPH	450BPH	600BPH	900BPH	1200BPH
Working position number	5	7	9	11	13	15
Filling heads	1	2	3	4	8	10
Capping heads	1	1	1	1	1	1
suitable bottle	PET bottle plastic bottle
Diameter of bottle	265-273mm
Height of bottle	150-360mm
Suitable cap	Plastic cap
Weight	500kg	2500kg	3000kg	3500kg	7000kg	8000kg
Main motor power	1.5kw	6kw	30kw	32kw	35kw	40kw

Datail images

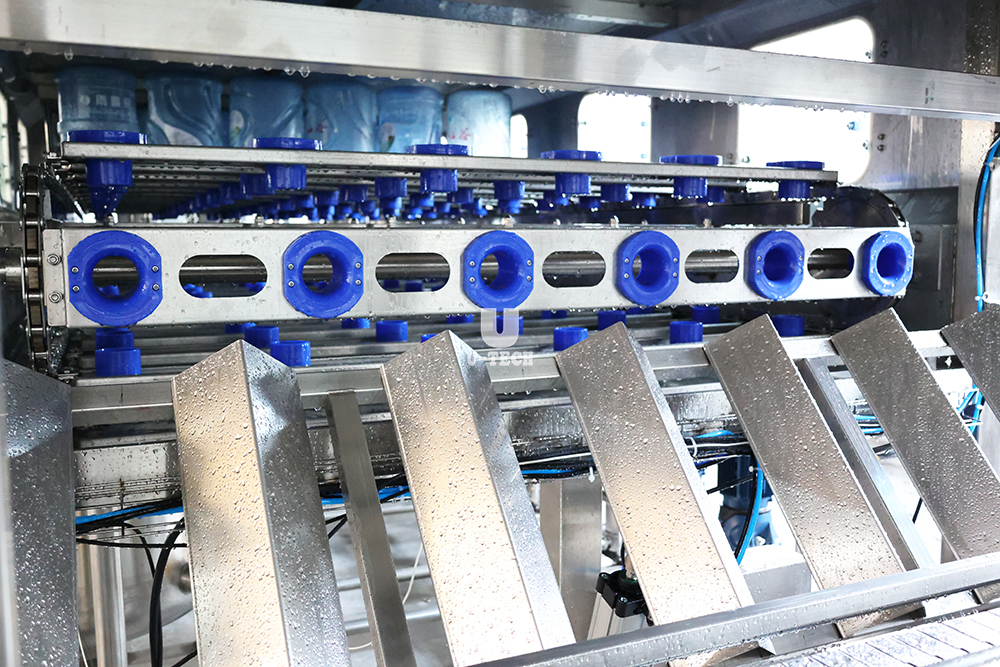

Cap Remover


It is used to remove the 5 gallon cap and bottle label.
Bottom discharge connector with recyle water collection tank.
Welding : full welding with sealing gum.

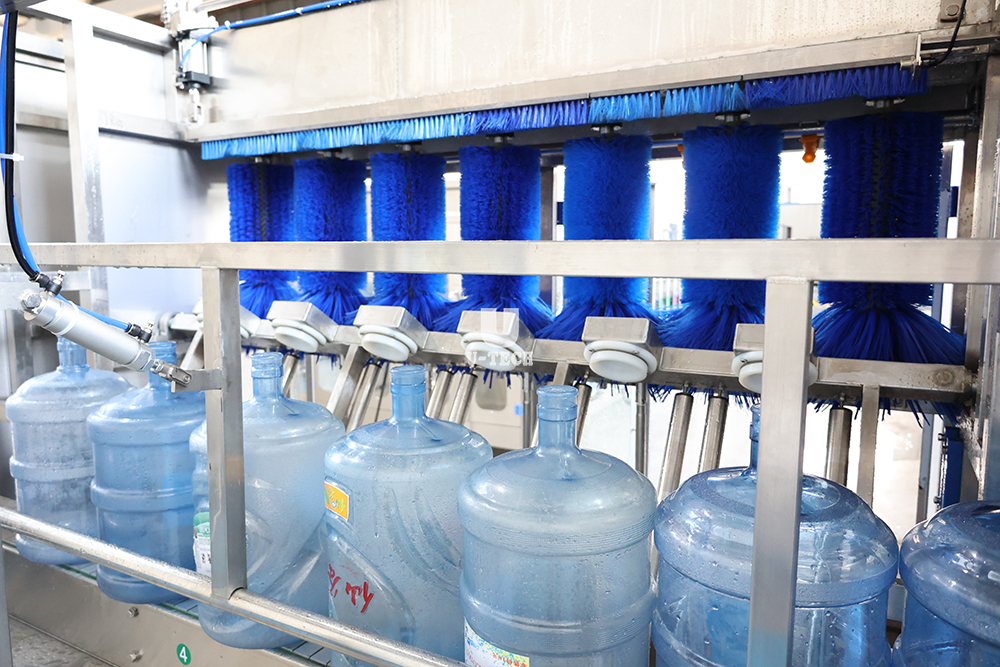

Outside washing machine


Brushes are motorised and clean the bottle externally. Since they make the bottle spin, the water jet hits not only the bottom but also the sides of the bottle. It's used forall-round cleaning the bottle, significantly improves cleaning efficiency.

Inside Washing Part





It is designed for 5 washing treatment.
It can manage 5 liters to 5 Gallons bottles.
Automatic bottle unloads and out load.
Neck handling of the bottle by the grippers.
Lack of point with water stagnation.
Automatic disinfection of the rinsing area. 7.Change-over easy and with no downtimes.
Easy access for ordinary maintenance.

Filling Part


Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

Capping Part

The PRESS-ON CAPPER is a linear machine used for caps applied on the bottle by pressure.
It includes: Cap hopper, Canal chute, Placing system of cap on the neck, Device to snap the cap on the neck. The bottle takes the cap directly from the canal chute. The snapping of the cap on the bottle neck is carried out through the pressure developed by a belt conveyor, provided with a system to adjust the force in order not to stress the bottle.

Our Suppliers

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France

Sleeve Labeling Machine

 This machine adopts international advaced technology;cover the circle label on the pet bottle.And then hot shrinking to fix on the position which bottle body is designed.This machine's structure is compact,and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization,and makes the machine reasonable.
The height adjustment adopts motor fluctuating;It is convenient to replace the material.The special cutter head designing,make the film-rolling cut more correct and reliable.
