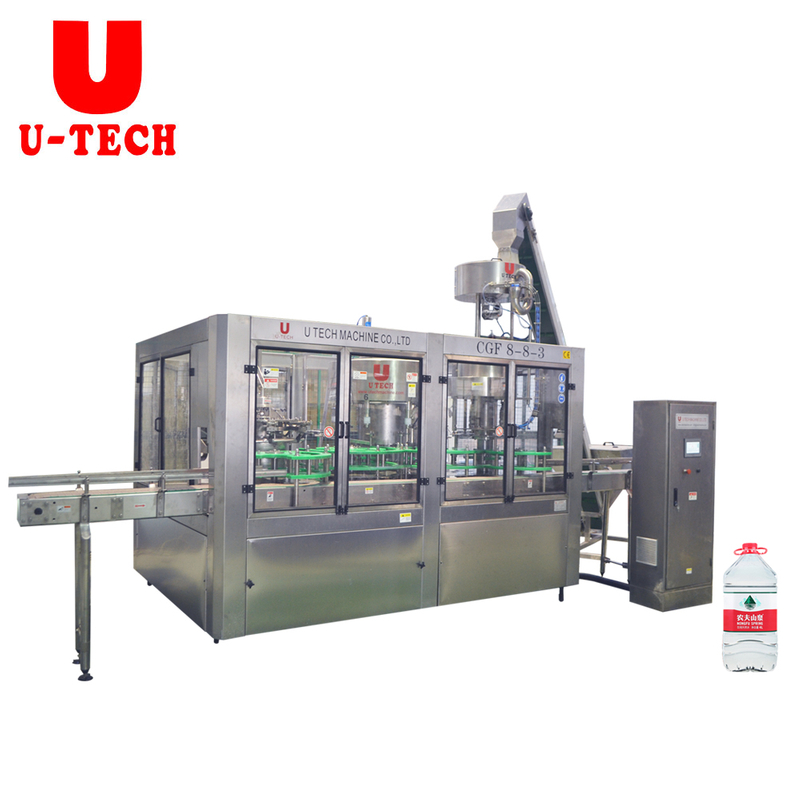

Automatic 3 in 1 rotary 5L bottle mineral pure spring water washing filling capping machine

Availability:
Quantity:
Inquire Add to Basket

  • U TECH

Product Description
1.Water bottling machine is used to fill pure water, mineral water and other non-carbonated beverage.All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

2.This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse
bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle
neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately.Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

3.This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.


Technical Parameters
Model
XGF8-8-3
Working stations
Rinsing 8, filling 8,capping3
Capacity
1200B/H
Air source pressure
0.4MPa
Air consumption
0.7m3/min
Rinsing water pressure
0.2-0.3MPa
Rinsing water consumption
2.5T/h
Man motor power
2.5KW
Dimension
3900×3123×2700
Total weight
3000kg

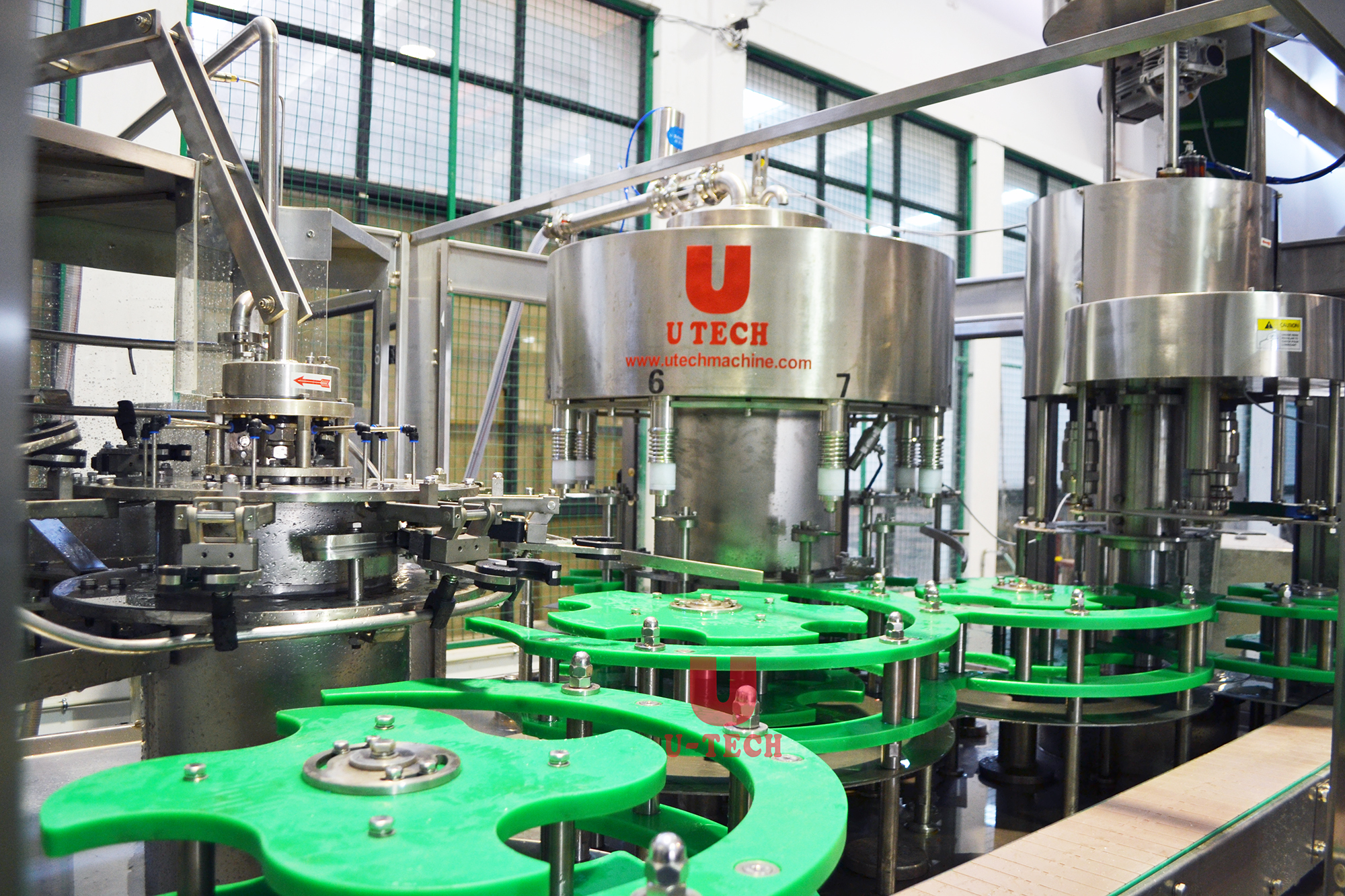

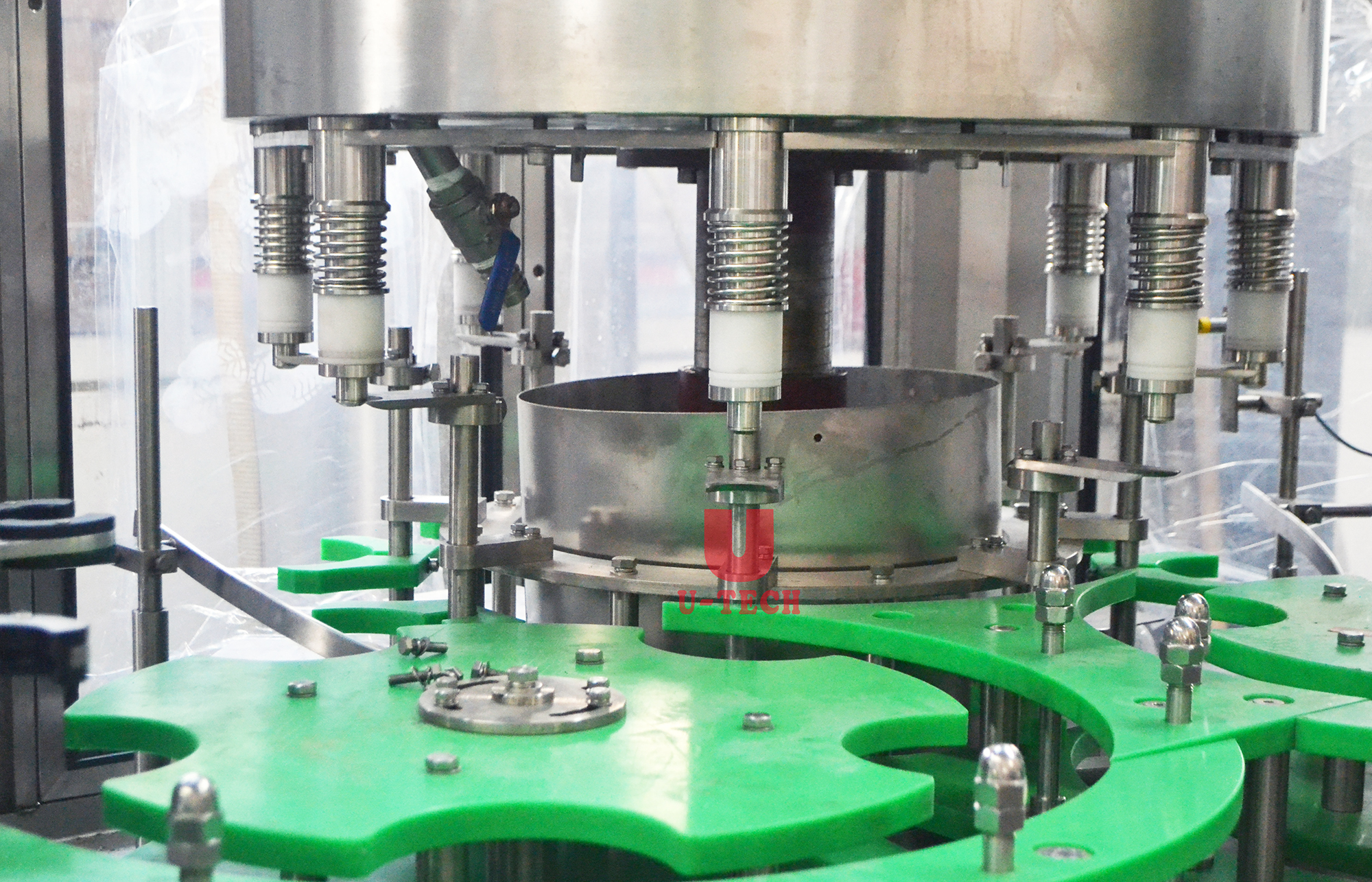

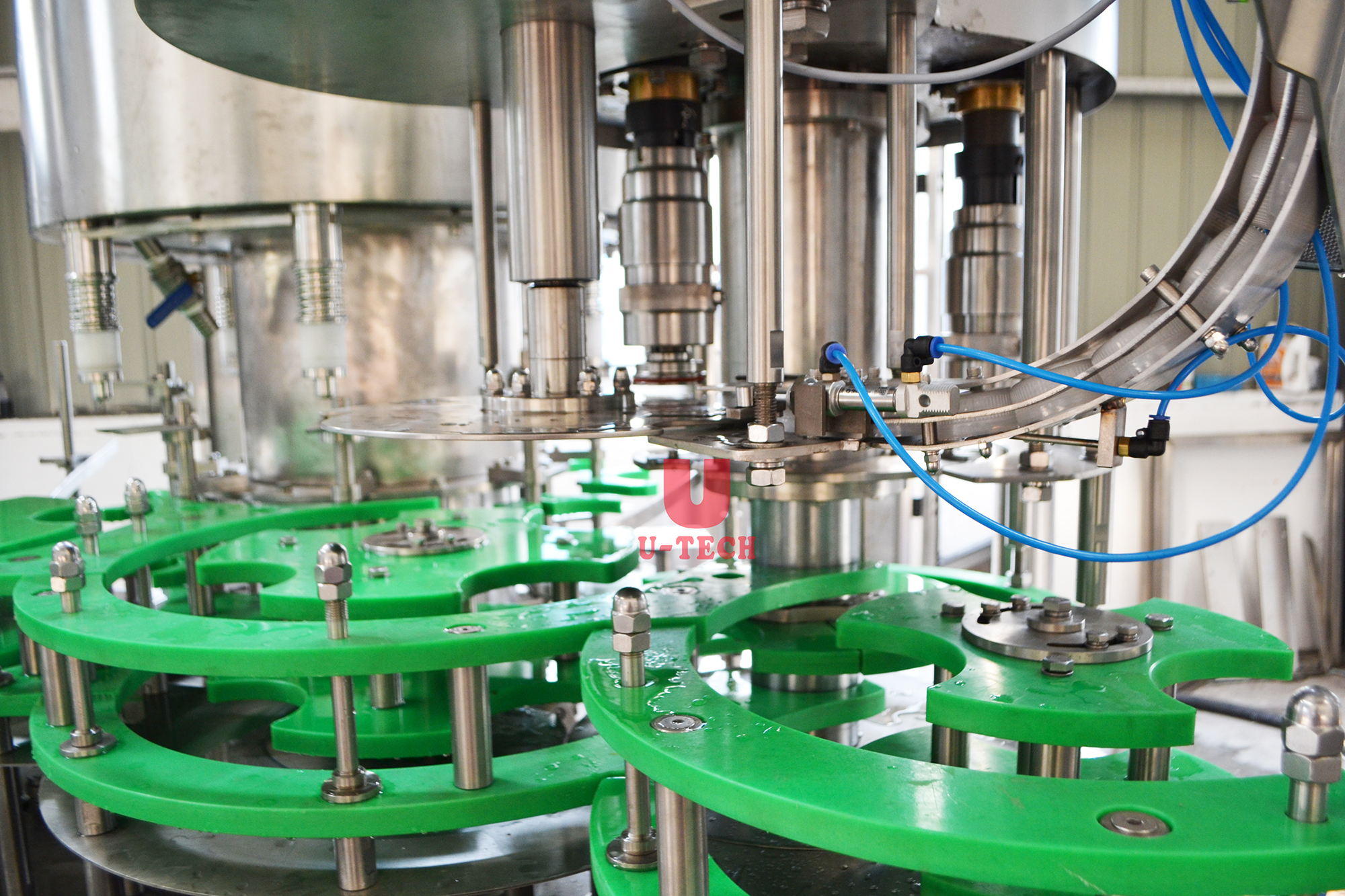

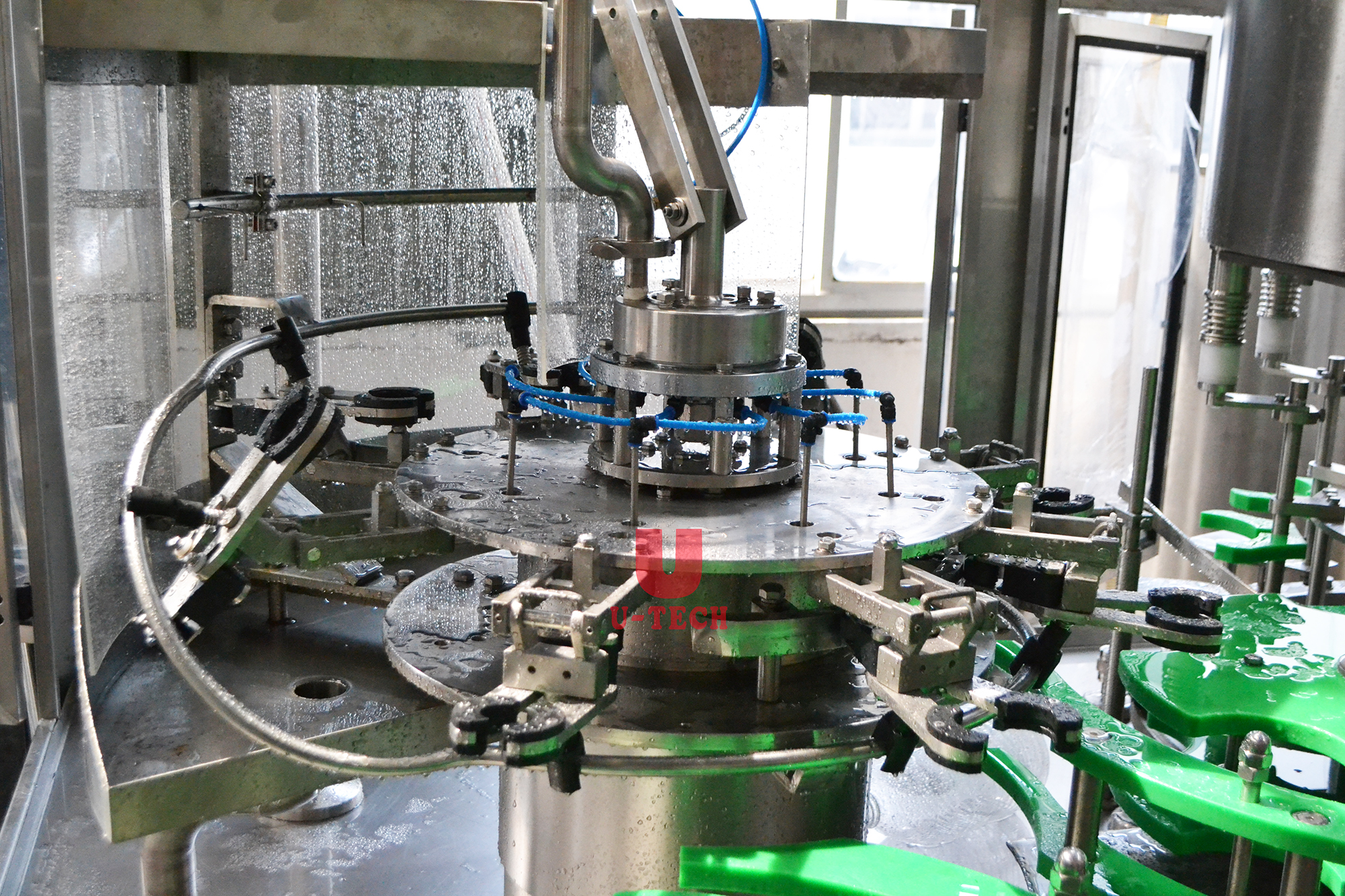

Machine Details
Control System
S/N
Name
Brand
Country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
Related Products

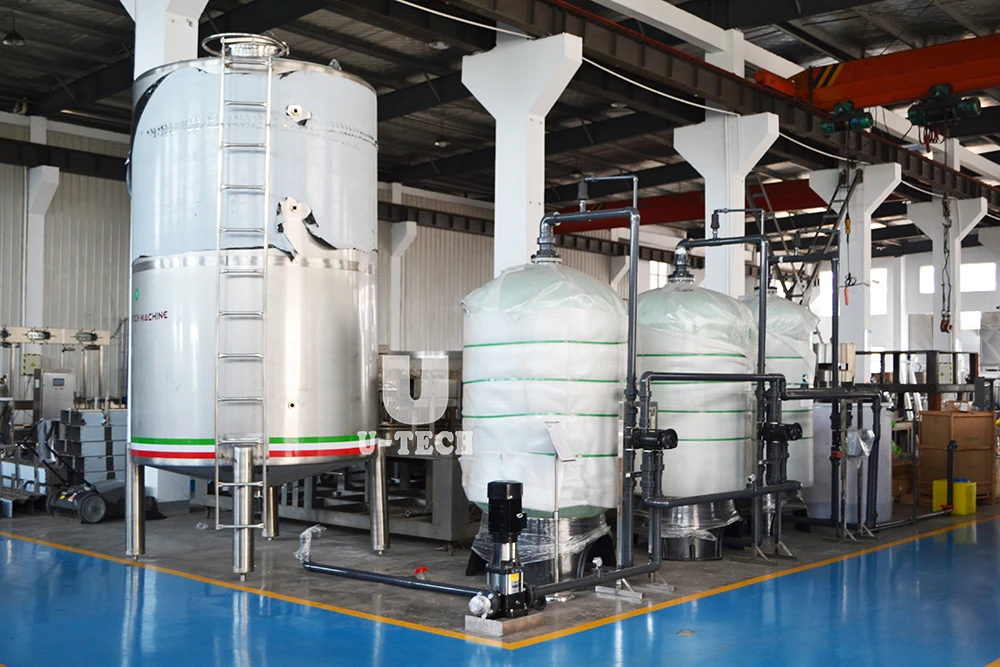

Water treatment system

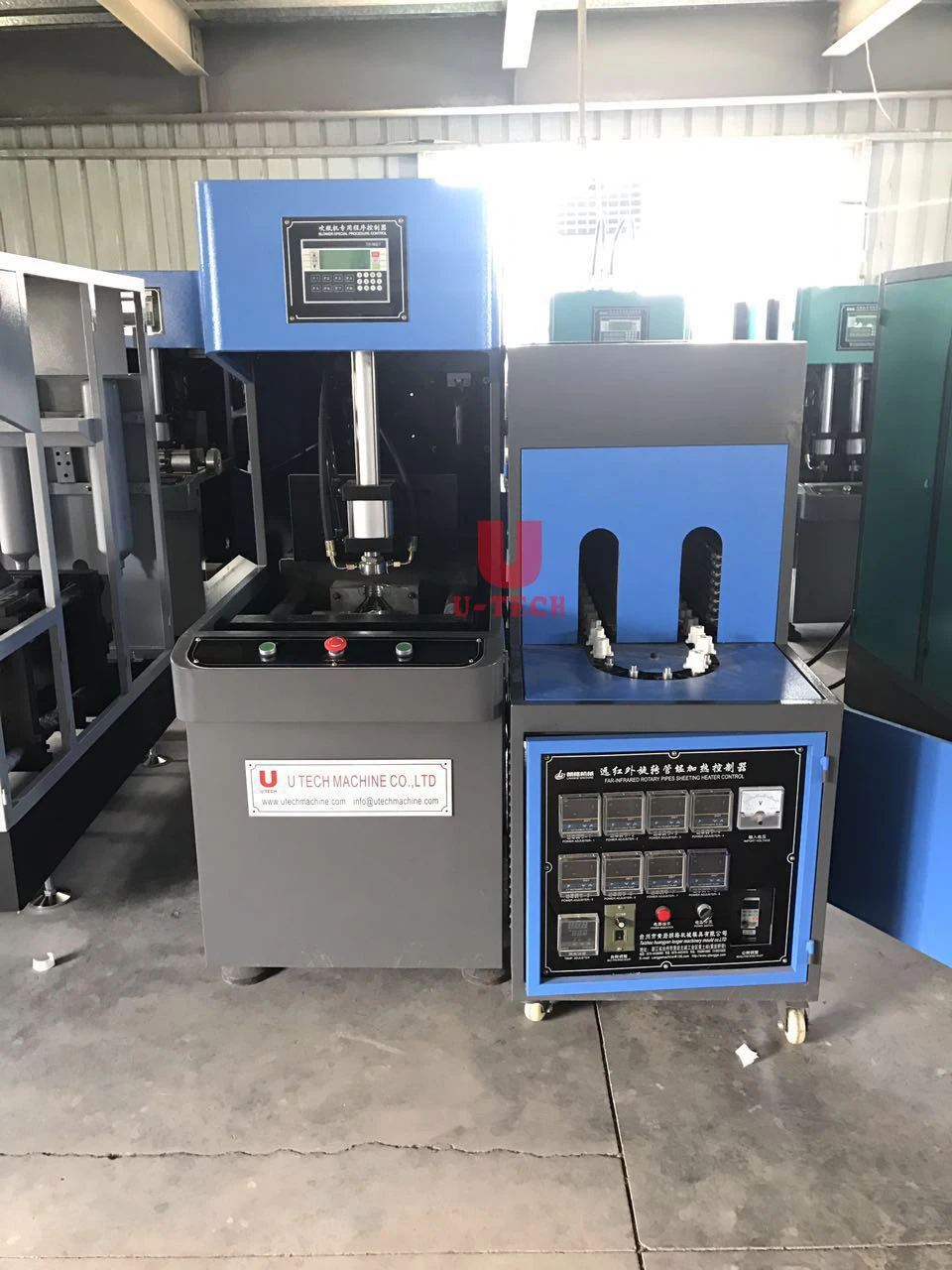

Semi auto PET bottle blow moulding machine

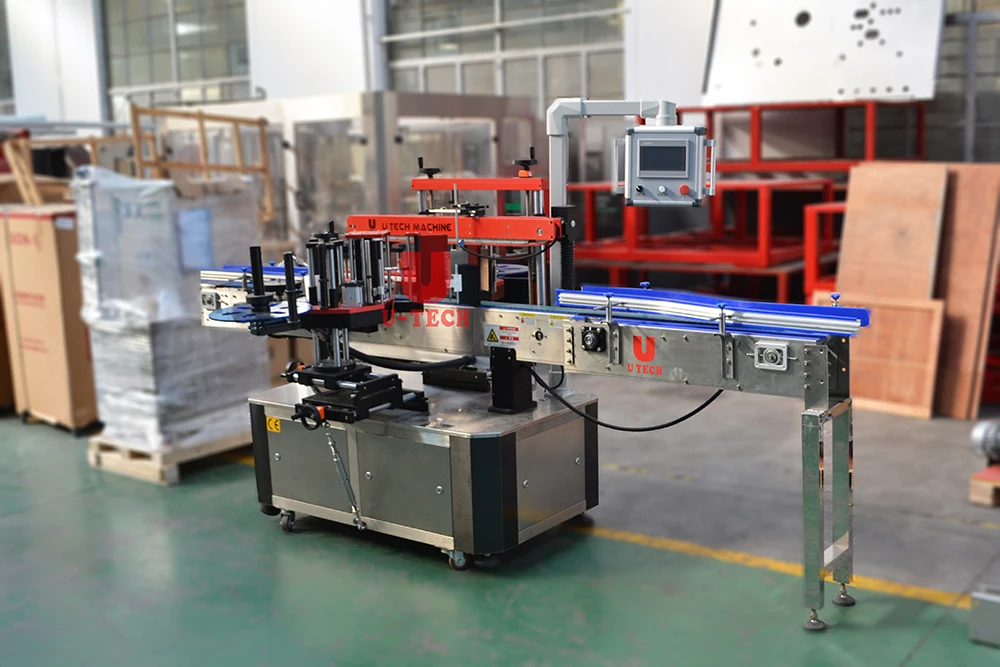

Adhesive labeling machine
