Automatic 10L Bottle Mineral Pure Spring Natural Drinking Water 5L Bottling Machine Plant

Availability:
Quantity:
Inquire Add to Basket

Product Description
The water filling machine is a 3 in 1 equipment composed of 8 rinsing heads, 8 filling heads and 8 capping heads. It is innovated and designed in the requirement of pure water and mineral water in 5L bottle, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Technical Parameters
Model
XGF8-8-3
Working stations
Rinsing 8, filling 8,capping3
Capacity
1200B/H
Air source pressure
0.4MPa
Air consumption
0.7m3/min
Rinsing water pressure
0.2-0.3MPa
Rinsing water consumption
2.5T/h
Man motor power
2.5KW
Dimension
3900×3123×2700
Total weight
3000kg

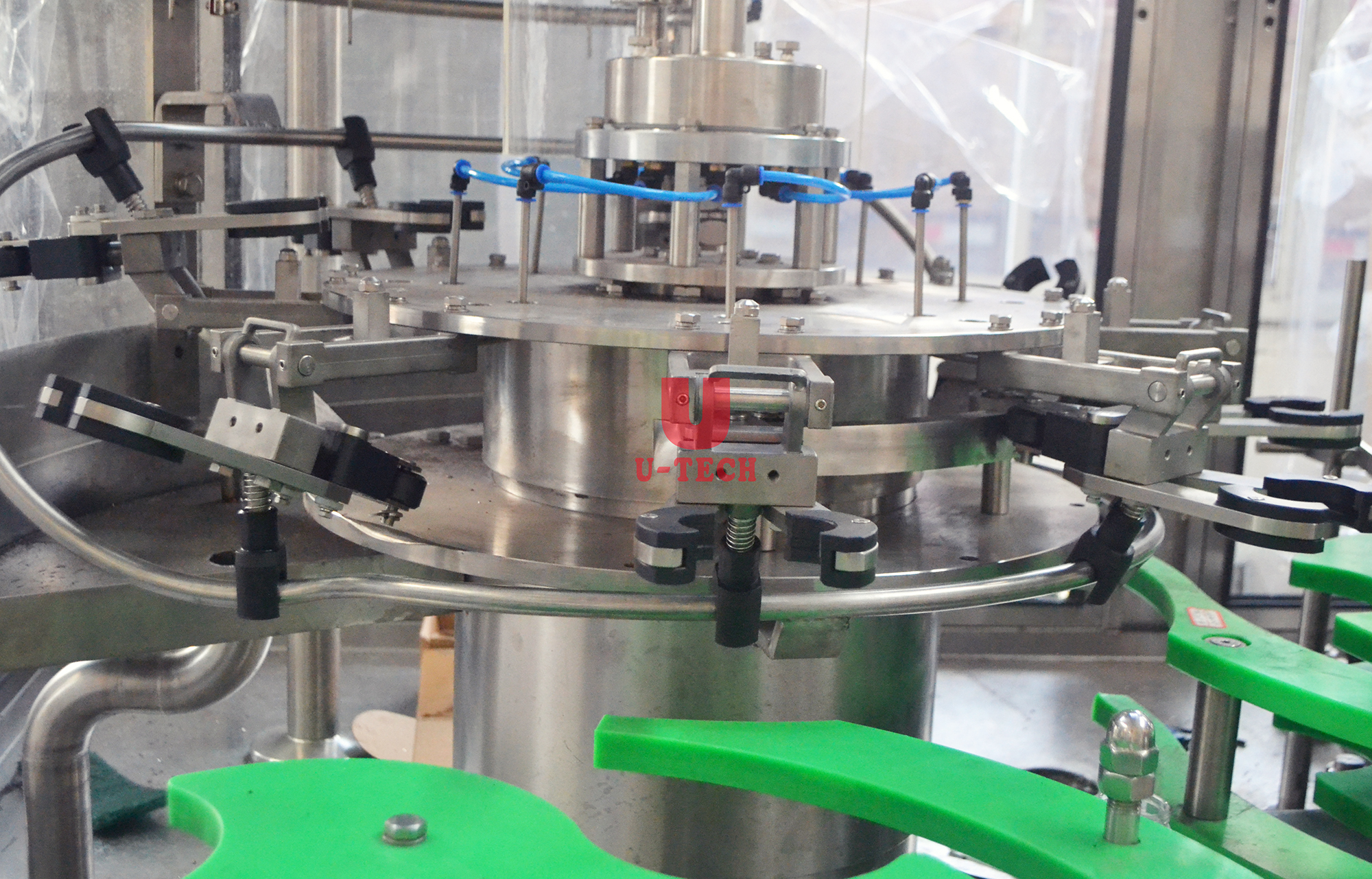

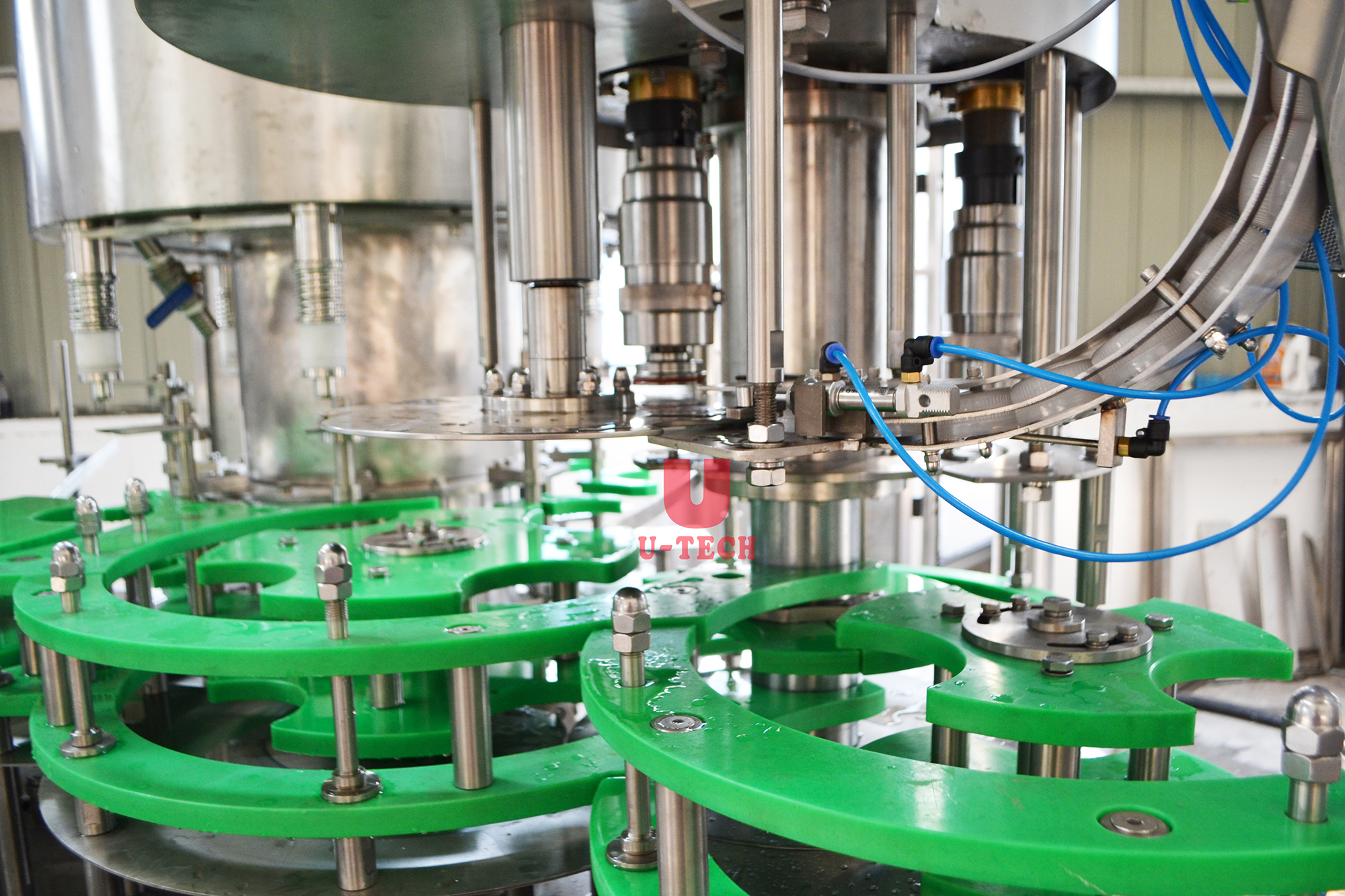

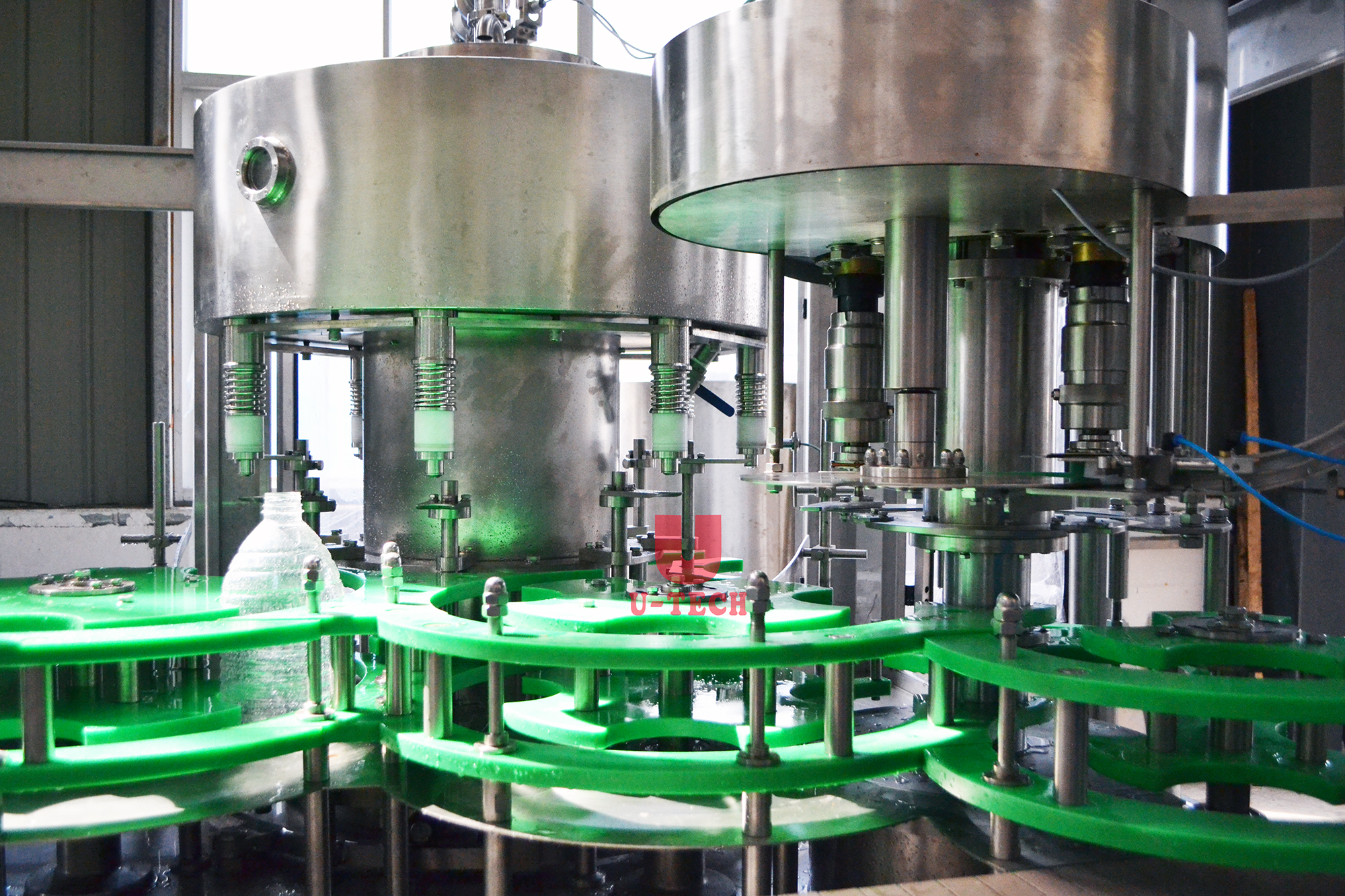

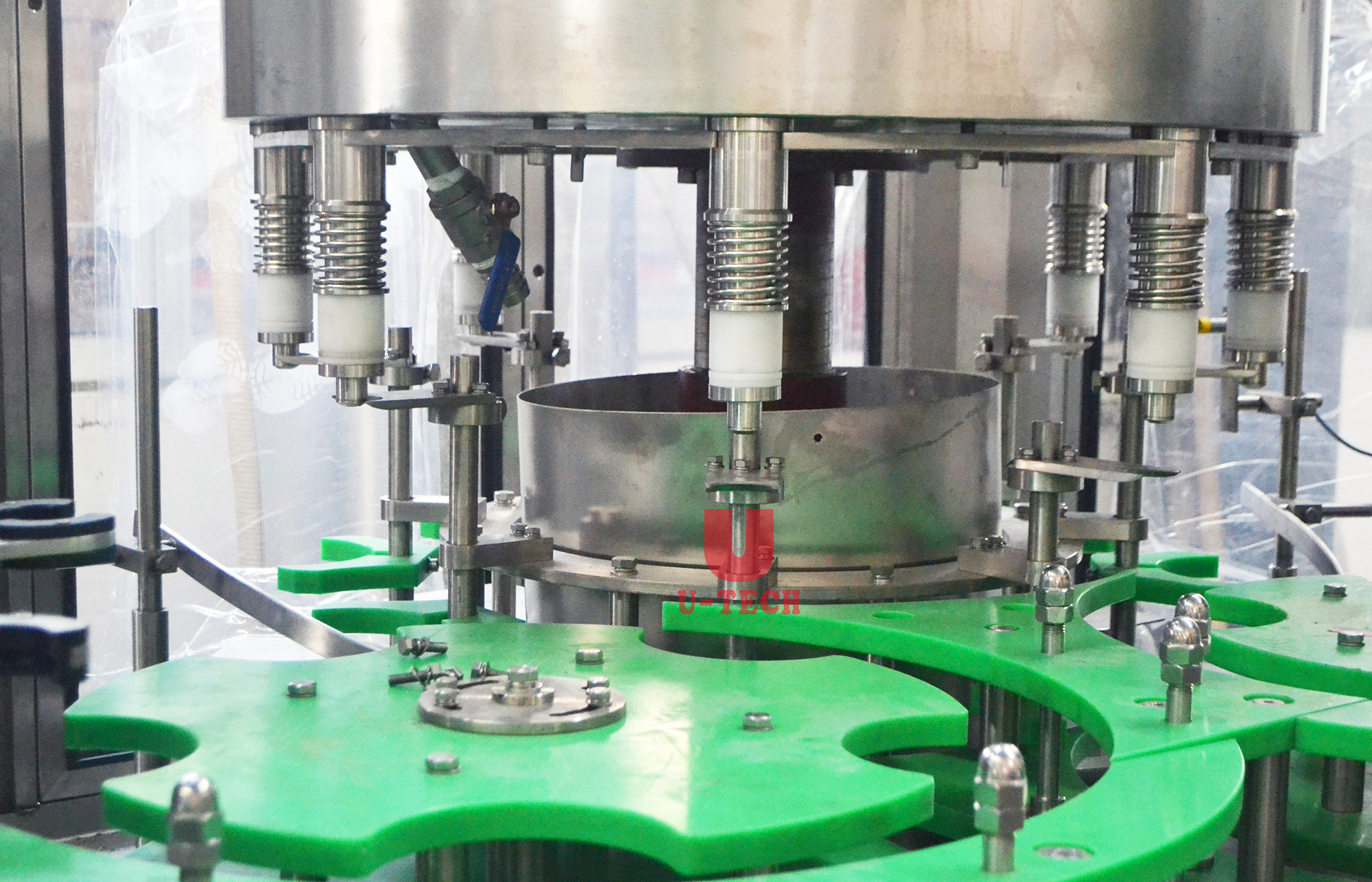

Details Images
Flow chart
water treatment system

5L bottle blowing machine

laser printer
adhesive labeling machine
